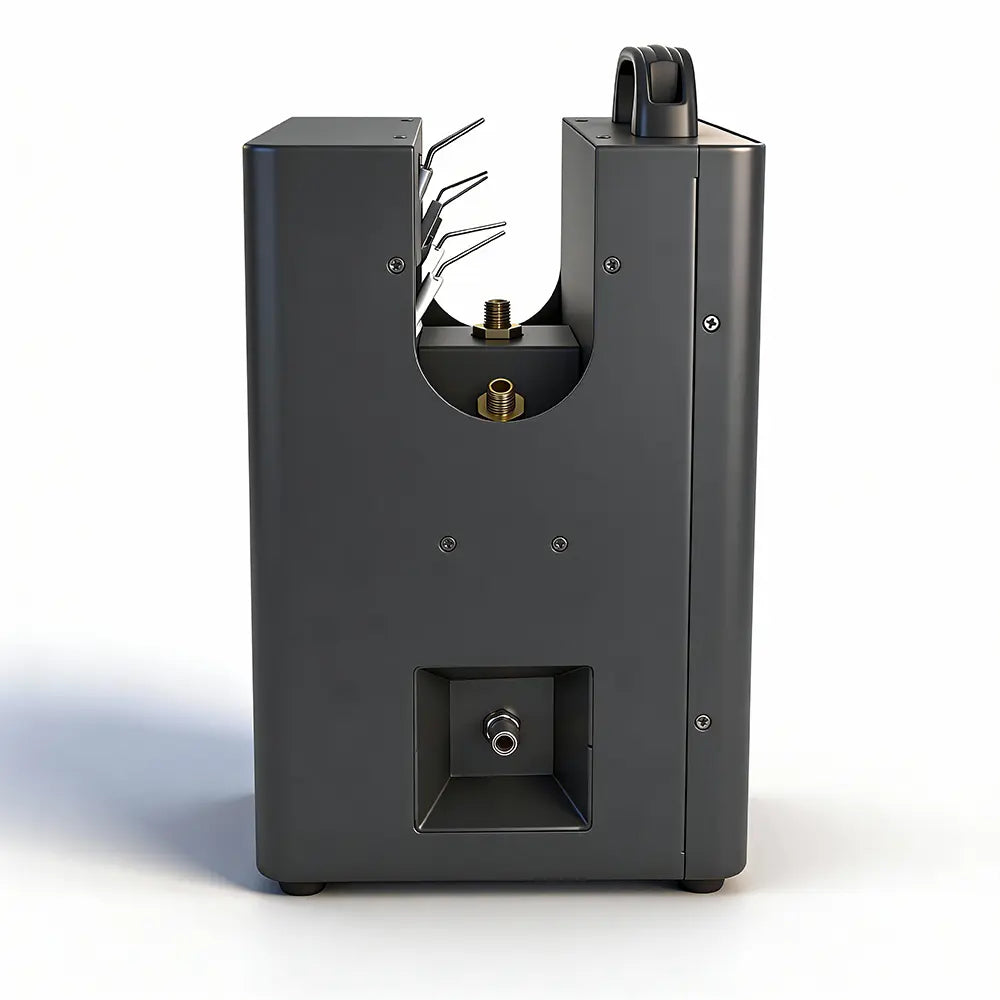

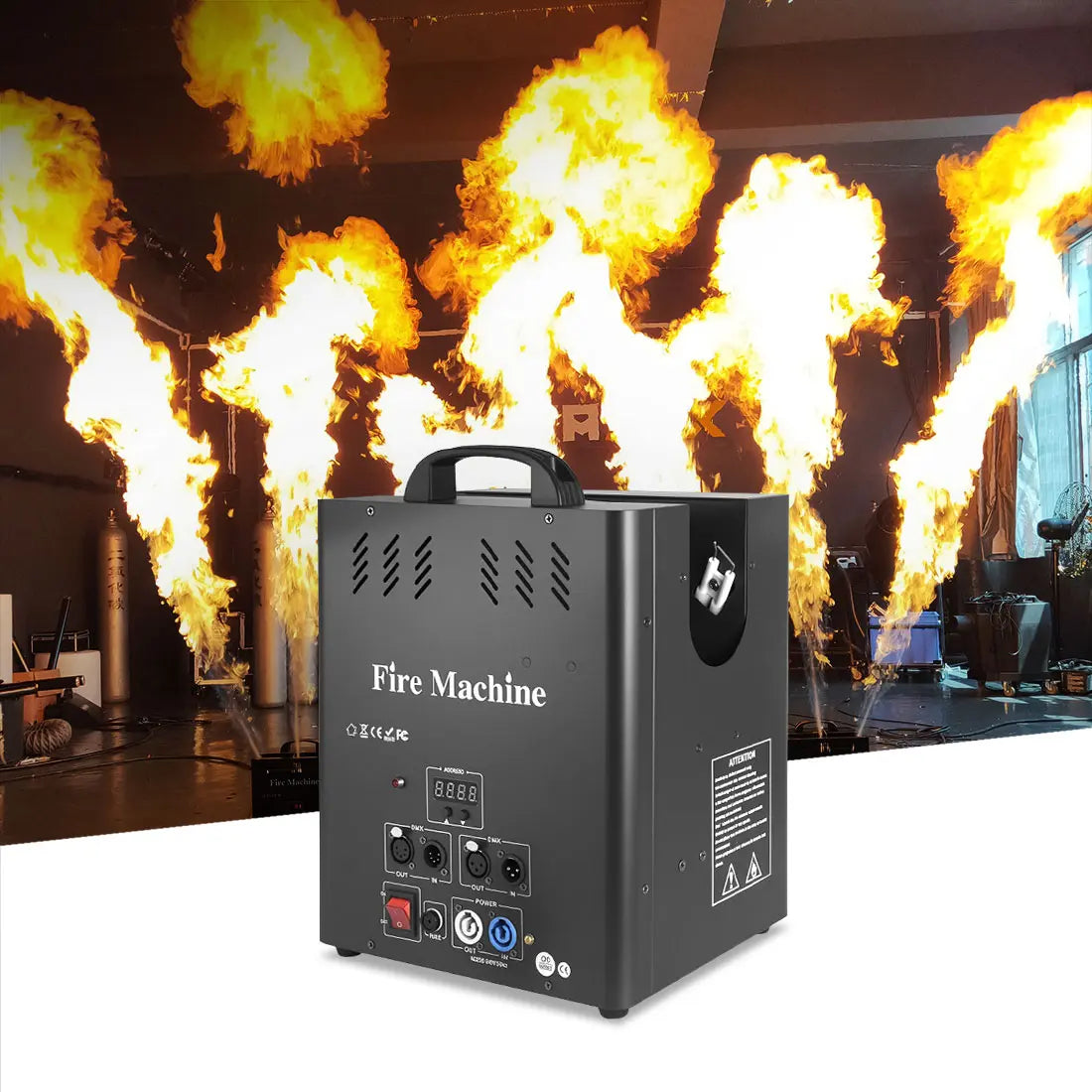

MOKA SFX H-E03A LGP Triple Head Flame Machine

Description

• The flame machine features DMX512 control.
• It is equipped with a digital LCD screen for displaying adjustment.
• You can address codes to make operations more convenient.
• With a safety channel, the flame projector will not jet the fire if you touch the DMX controller by mistake.
• High-quality valves and igniters ensure an ignition success rate of up to 99%.
• The latest design provides the flame-throwing machine with extremely stable, safe, and reliable performance.

Please note ：

All machines sold do not come with a DMX controller. If you need one, please purchase separately: Mini Battery DMX Controller 24 Channel Battery Controller

Technical Specifications

• Product Features

           1、This type of flame machine can be used in various television performances, large outdoor disco performances, concerts, parties, etc., and is an important part of stage effects.

           2. Equipped with a safety channel, the flame ejector will not spray flames when the DMX controller is accidentally triggered.

           3. With safety sensing components, power will be automatically cut off and the flame ejector stops working immediately when dropped.

          4. 3-pin and 5-pin DMX input/output to improve signal transmission.



• Specifications ：

        Control Method: DMX512

        DMX Channels: 6 channels

        Channel 1 (Safety Channel): Open at values between 100-155, closed for other value ranges.

        Channel 2: Left Spray.

        Channel 3: Middle Spray.

        Channel 4: Right Spray.

        Channel 5: Simultaneous spraying.

        Channel 6: Values ​​1-125: Spray from left to right; Values ​​126-255: Spray from right to left.

        Flame Height: 1-2m

        Voltage: AC110V, 220V-250V 50/60Hz

        Power: 180 watts

        Package Size: Gross weight 35x28.5x41cm

        Weight: 8kg

        Color: Fire Red (depending on the color of the fire oil)

        Product Warranty: 1 year

        Certifications: CE, RoHS, FCC Certification

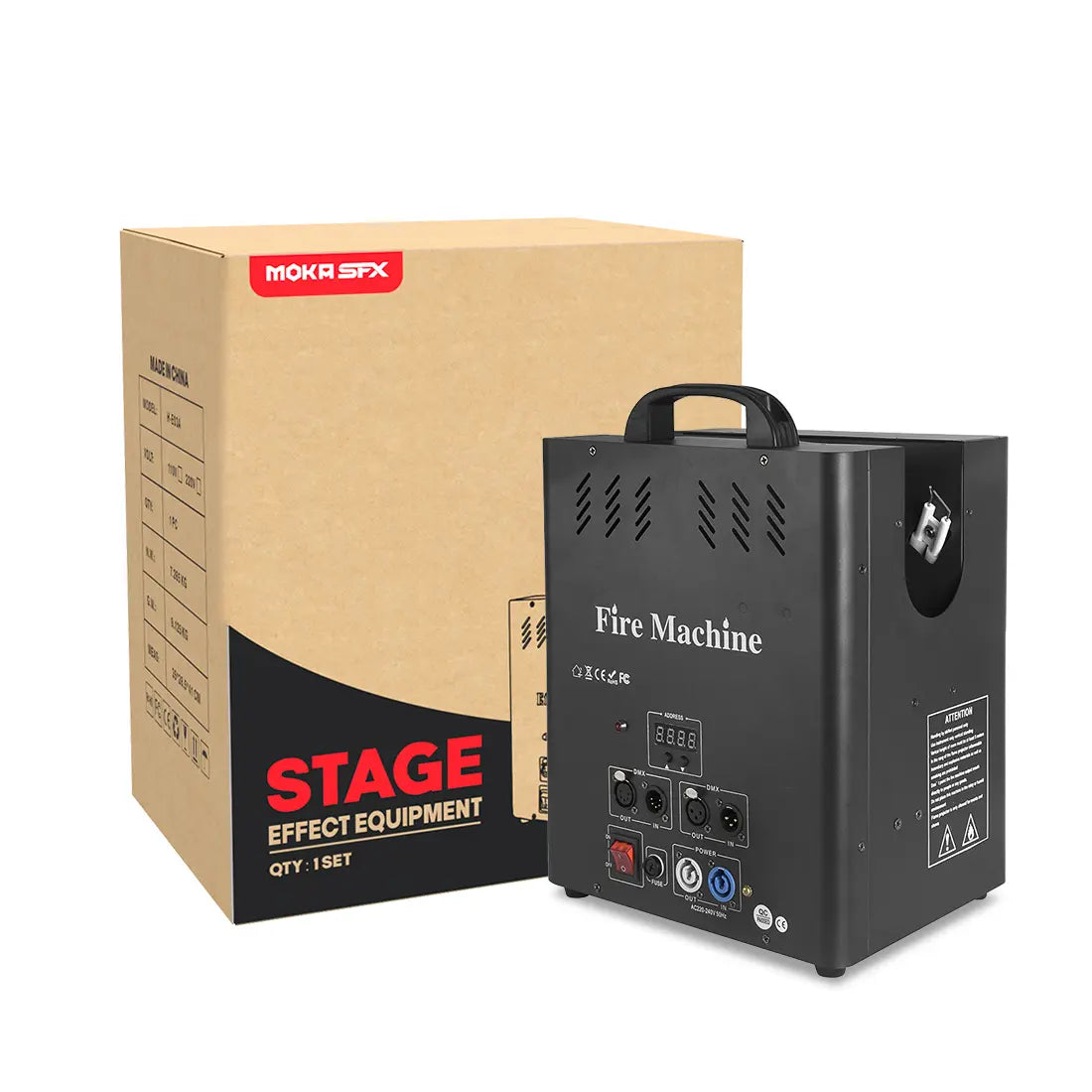

• Package List：

         1 pc Flame Machine DMX

        1 pc Power Cord

        1 pc DMX Cable

        1 pc User manual



• Please Note:

          The fire machine can work with fire oil. However, fire oil is defined as a flammable and explosive substance, so transportation is prohibited. You can obtain fire oil in your own country.

How to Use

• Usage steps：

          1. Connect the LPG(liquefied petroleum gas) with the flame machine securely.

          2. Please connect the power supply for the flame machine and open the switch. Connect with the DMX signal cable and DMX controller, and set the DMX address. The machine will be DMX self-inspection, and the detection lamp will flicker. When contacting with the DMX signal cable, the display will light up. Otherwise, the display will not be bright.

           3. The flame machine has a safety channel. The machine works only when the value of channel 1 is between 100 and 155. Open the safety channel and use channels 2-6 to spray the flame.

           4. After use, turn off the machine and disconnect the power and signal cables.

           5. Wait 15 minutes until the ignition needle has cooled, then remove the fire oil and wipe the machine clean.

• Attention:

          Before using this product please first read the operating guide.

          If the wind at the site is too strong during the use, the spraying height may be affected, which is a normal phenomenon.

Shipping

• U.S. warehouse: 2-5 working days in the U.S., 7-12 working days in other areas.
• Spain warehouse: 2-4 working days in Spain, 7-12 working days in other EU regions.
• Poland warehouse: 2-4 working days in Poland, 7-12 working days in the rest of the EU.
• China warehouse: 7-20 working days for direct shipment from China.
• The transportation type depends on the region, and it is uniformly displayed as international shipping.
• The goods will be sent out within 1-5 working days. After the logistics order number is generated, customer service will send an email to notify you. Please pay attention to the delivery status.
• If you have any questions, please leave a message.

Q&A

• Q: If I use this flamethrower, will it cause a fire, or cause the smoke alarm to go off?

           A: Our flame machine can be used indoors or outdoors, as long as it is kept at a relatively safe distance, it will not cause a fire or cause the smoke alarm to go off. And our machine is equipped with a safety channel, when the machine is tilted more than 45 degrees, the flamethrower will immediately stop working to improve the safety of use.



• Q: Do I need to get a security clearance to use your flame machine or spark machine?

           A: From the customers we have worked with in Europe, America, and other countries, there is no need to obtain security clearance to use our machines.



• Q: What should I do if the machine keeps working?

           A: First of all, please confirm that all procedures with normal operation. It is recommended to cut off the power and operate it again, if fails again, the cause may be the valve is broken. Please cut off the power, and replace a new valve.



• Q: What should I do if the machine just sprays oil and doesn’t catch fire?

           A: In this case, the angle of the ignition pin may be distorted, and the spray nozzle may not be aligned so that the spark cannot be ignited by the ignition pin when the fire spark comes out. Please try to adjust the angle of the ignition pin to align the nozzle and try again.



• Q: If the products are broken during the warranty, what should I do?

           A: Don’t worry, MOKA SFX has a professional foreign trade team and helps you to solve all problems with our products in time. Please send us pictures or videos if there is a problem with the products. We will guide you on how to fix it and provide spare parts for free if needed.



• Q: What are the control modes of the flame machines?

           A: DMX Control and Electric control (H-E01, H-E02)

                  DMX control means connecting the DMX cable and then through the DMX controller to control the machine.

                  Electric control means turning on power then working, turning off power then stopping working.



• Q: What is the control mode of H-E04?

           A: Control by DMX.



• Q: What is the safe channel?

   A: When you use the DMX controller to control the machine, channel 1 is a safety channel with values of 102-153 open, indicating the fire projector safe channel is open and the machine can work.



• Q: What is the dumping switch?

   A: When the machine tilts over 45°, the power will be cut off automatically and the flame projector stop working instantly, ensuring the security of the event.



• Q: How high can the spray be?

            A: H-E01: Spray1-3M;

                 H-E02: Spray2-4M;

                 H-E03: Spray1-3M;

                 H-E04: Spray5-6M;

                 H-E05: Spray1-3M;

                 H-E01A: Spray1-2(LPG Flame machine);

                 H-E03A: Spray1-2M(LPG Triple-head flame machine ).



• Q: Which flame machine can spray the highest? How many meters can it reach?

   A: New Four Heads Flame Machine H-E04. 4 bottles of flame oil working together, enough pressure can spray 5-6M.
