- Signal amplifiers are essential tools in signal processing and distribution systems, designed to improve the quality and strength of electrical signals.
- One such amplifier is the DMX signal amplifier, which comes equipped with several advanced features that make it a reliable and secure option for signal amplification.
- The DMX signal amplifier provides signal detection and alarm functions on each output, which ensures greater security and minimizes signal loss.
- Moreover, the amplifier has a channel-wise signal lamp that indicates any signal problems, and each channel is electrically isolated for improved stability.
- The brushed aluminum panel, blue audio power plug, fixed buckle, and resistance knob make this amplifier robust and easy to use.
- Additionally, the signal detection feature enables timely reflection of any signal issues, ensuring uninterrupted signal flow and optimum performance.
- Overall, the DMX signal amplifier is a valuable asset for anyone looking to amplify signals securely and effectively.
- Specification :

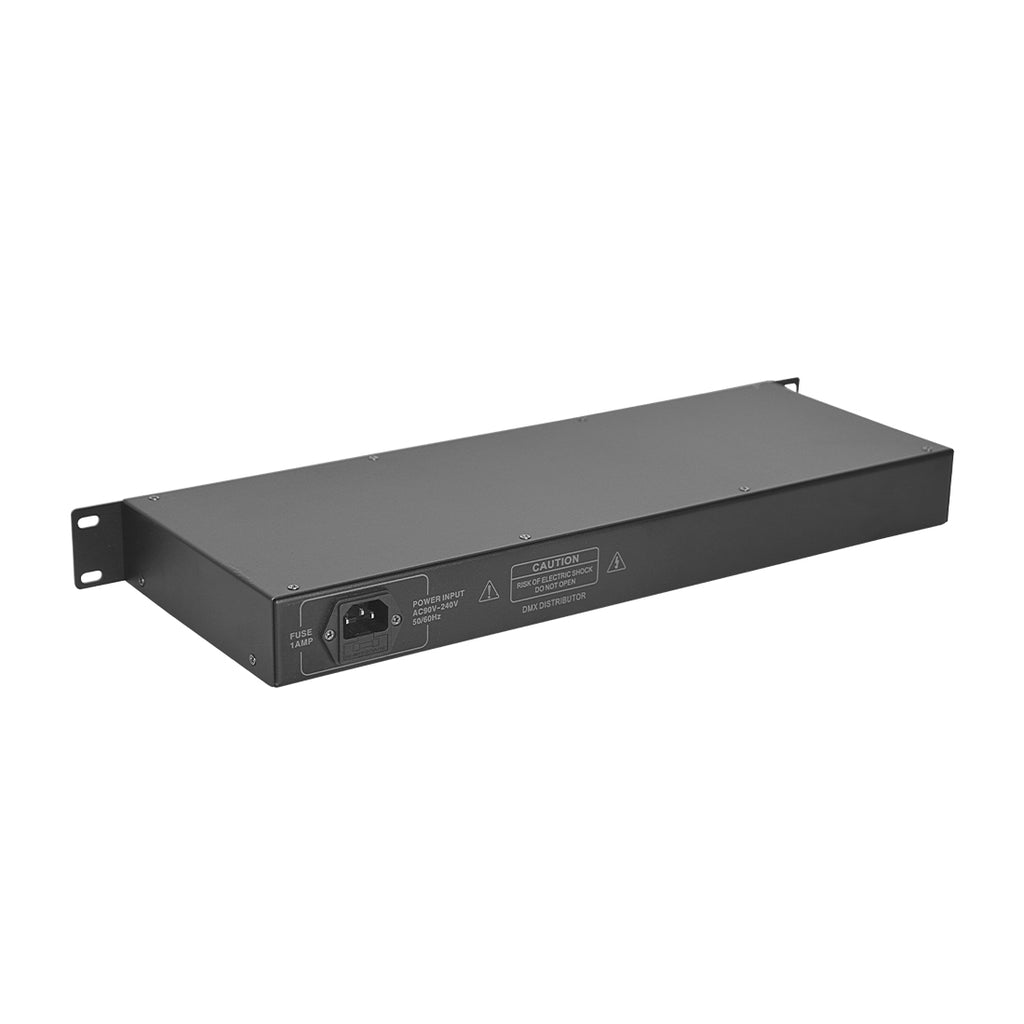

Model: CA8802pro 8-way intelligent signal splitter
8-way output port device fault detection and alarm function
All input and output ports have 220V high voltage mis-input protection function
8 (or 4) galvanically isolated signal distribution outputs
Digital signal type: DMX512, and digital signal transmitted by RS-485 interface
1 channel signal input, 1 channel direct signal output (there is electrical isolation between signal input and direct signal)
Interface type: RS-485
Signal connection socket: input XLR-3-M, output XLR-3-F
Electrical isolation withstand voltage of input to output: >AC300V
Power supply: AC90V~240V, 50Hz / 60Hz, 15W
Size: 484*45*140mm "19" 1U
