MOKA SFX H-D4000 MINI DMX Dry Ice Fog Machine

Warehouse: China Warehouse
Package: Fly case
Plug: US plug

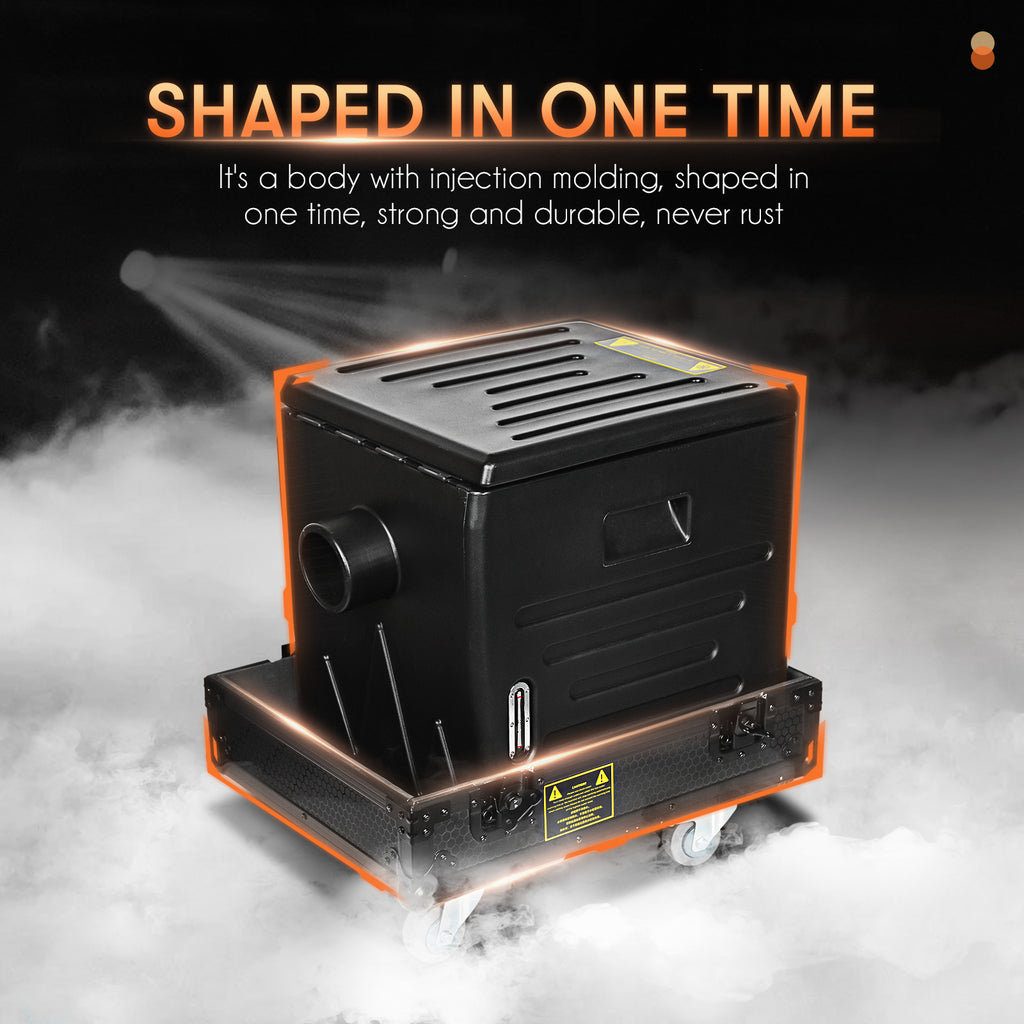

1. The high-strength composite material is formed at one time, which reduces the weight and is durable and will not rust.

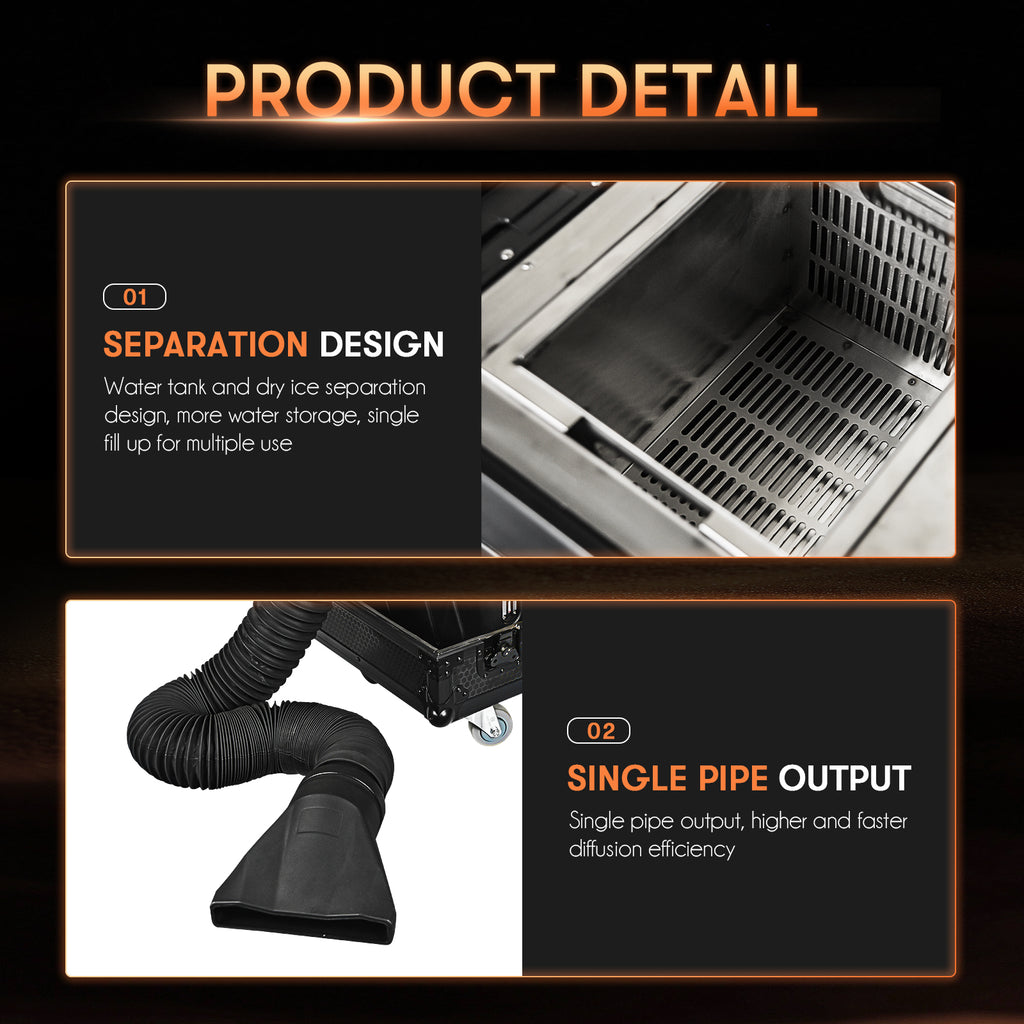

2. The water tank is designed separately from the dry ice, which can store a lot of water and can be used multiple times after being filled up once.
3. Waterfall spray structure, quick start and stop, saving dry ice.
4. The amount of smoke spray can be adjusted steplessly, and it can be turned on as needed to meet changing needs.

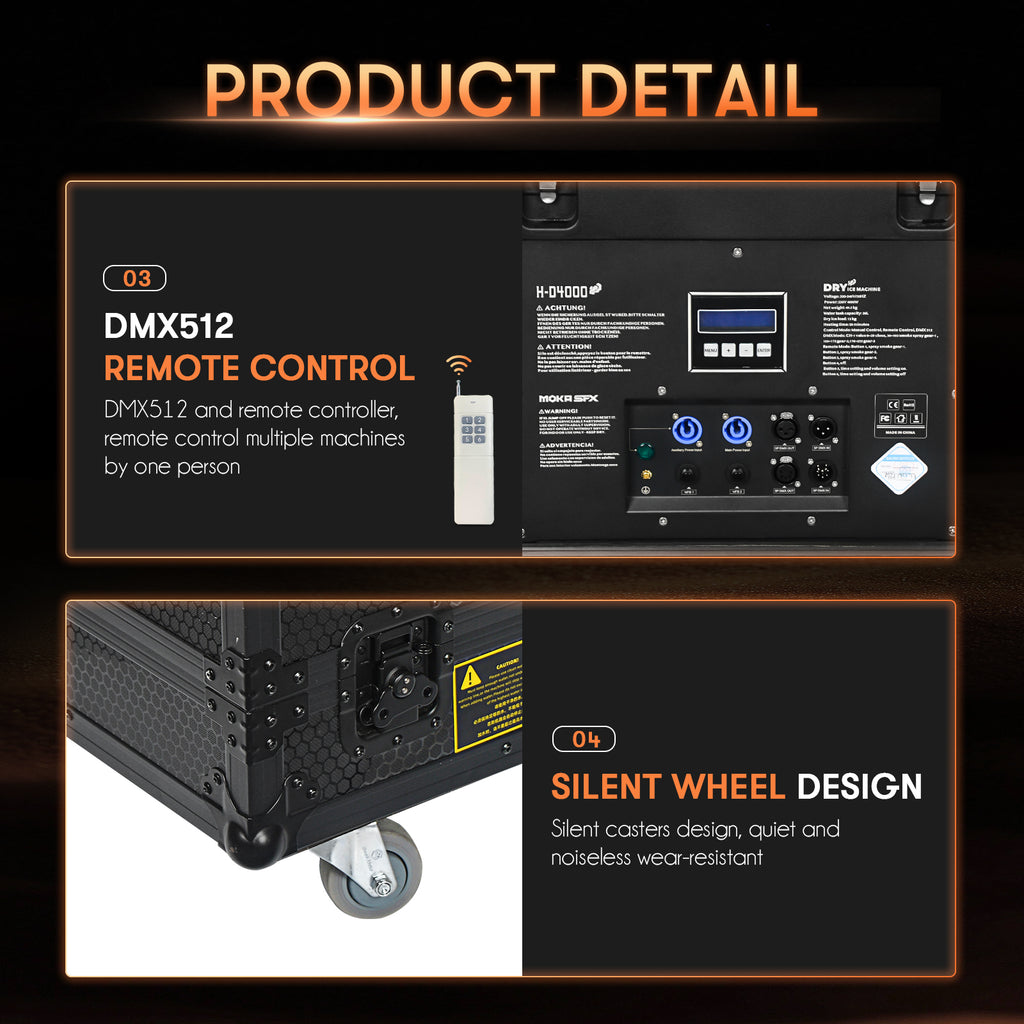

5. DMX512, wireless remote control can remotely control multiple machines, and one person can control the whole field.
6. The wireless remote control can be set to be one-to-one or one-to-several machines.
7. Two sets of heating systems, the power can be switched flexibly to adapt to changing working conditions.
8. Silent caster design, quiet and wear-resistant.

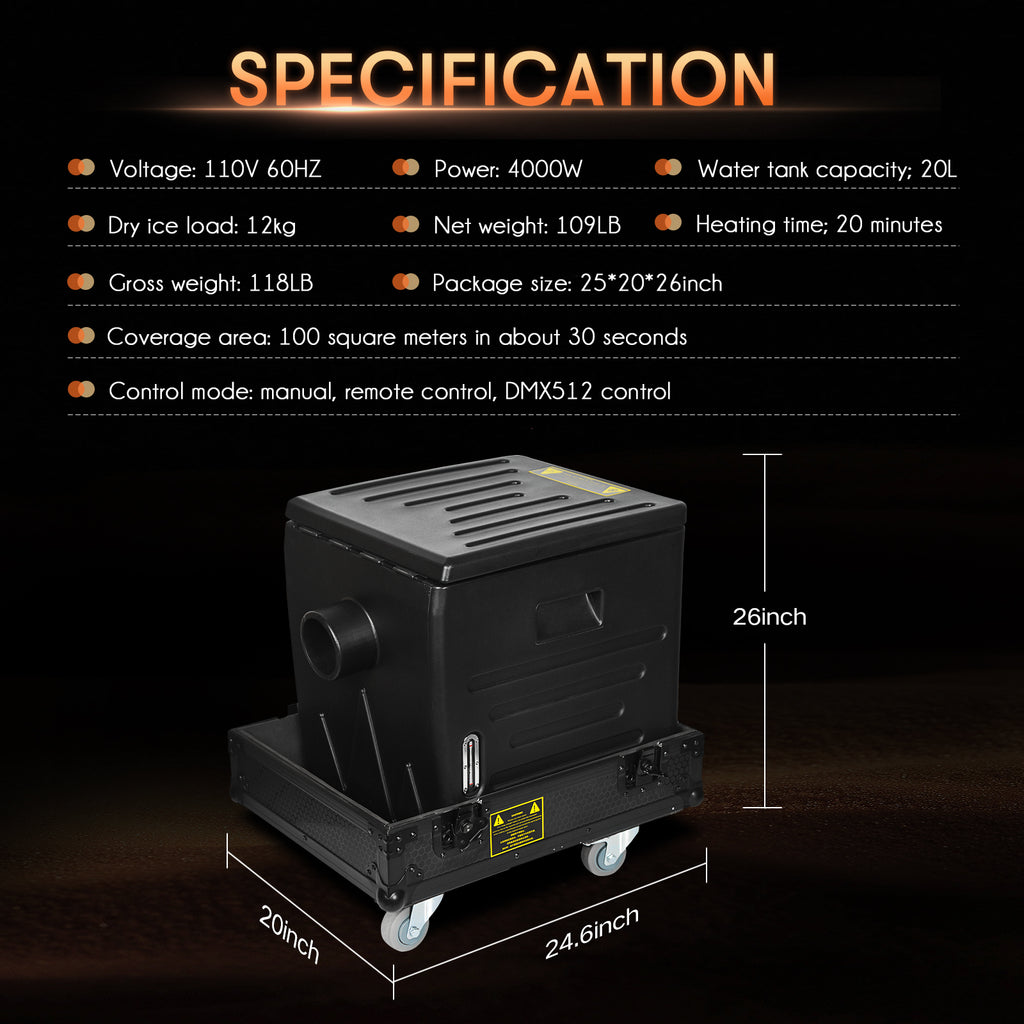

Technical Parameter

  • 1. Voltage: 200-240V50HZ 100-120V60HZ
    2. Power: 220V4000W/110V4000W
    3. Coverage area: 100 square meters in about 30 seconds
    4. Product size: 62.5/49.5/65.5cm
    5. Packing size: 64/51/67cm
    6. Net weight: 49.5 kg
    7. Gross weight: 53.5 kg
    8. Water tank capacity; 20L
    9. Dry ice load: 12 kg
    10. Heating time; 20 minutes
    11. Interval heating time; it depends on the smoke spraying time (the longer the smoke spraying time is, the lower the water temperature is, the longer the heating time is)
    12. Fuse type; reset overcurrent overload protector, 2 groups of 20A in total
    13. Smoke volume; 1.2.3 gear adjustable
    14. Remote control distance: 2500 meters without interference
    15. Remote control battery; 9V square battery
    16. Control mode: button manual control, remote control, DMX512 control 3pin5in interface
    17. Dry ice consumption; 1 gear consumes 1.2 kg in 1 minute
         2 gears consume 2 kg in 1 minute
         3 gears consume 2.5 kg in 1 minute
    18. After the heating is completed, the 3rd gear can continue to work for about 6 minutes, and the dry ice consumption is about 12 kg.
    19. Floor mop packaging; 33/26/15CM, weight 0.85 kg. (The mold will be re-opened later, no need to be packaged separately)

  • Package Included :

          1fog machine

          1 hose

          2 power cables

          1 signal cable

          1 outlet

  • Attention :
  1. Do not directly touch the dry ice with your hands to prevent low-temperature burns to the skin
  2. Do not store dry ice in the refrigerator, it is prone to explosion


How To Use

  •  Remote control function
    1 button, 1 gear, spray smoke
    2 keys, 2 gears, spray smoke
    3 keys and 3 stops to spray smoke
    4 key off
    5-key timing and quantitative opening
    6 key timing quantitative off


  • DMX512 Mode
    1 channel spray smoke Value value 0~29 off, 30~102 first gear, 103~175 second gear, 176~255 third gear


  • China Warehouse: 7-20 working days for direct shipment from China.
  • The transportation type depends on the region, and it is uniformly displayed as international shipping.
  • The goods will be sent out within 1-5 working days. After the logistics order number is generated, customer service will send an email to notify you. Please pay attention to the delivery status.
  • If you have any questions, please leave a message.
