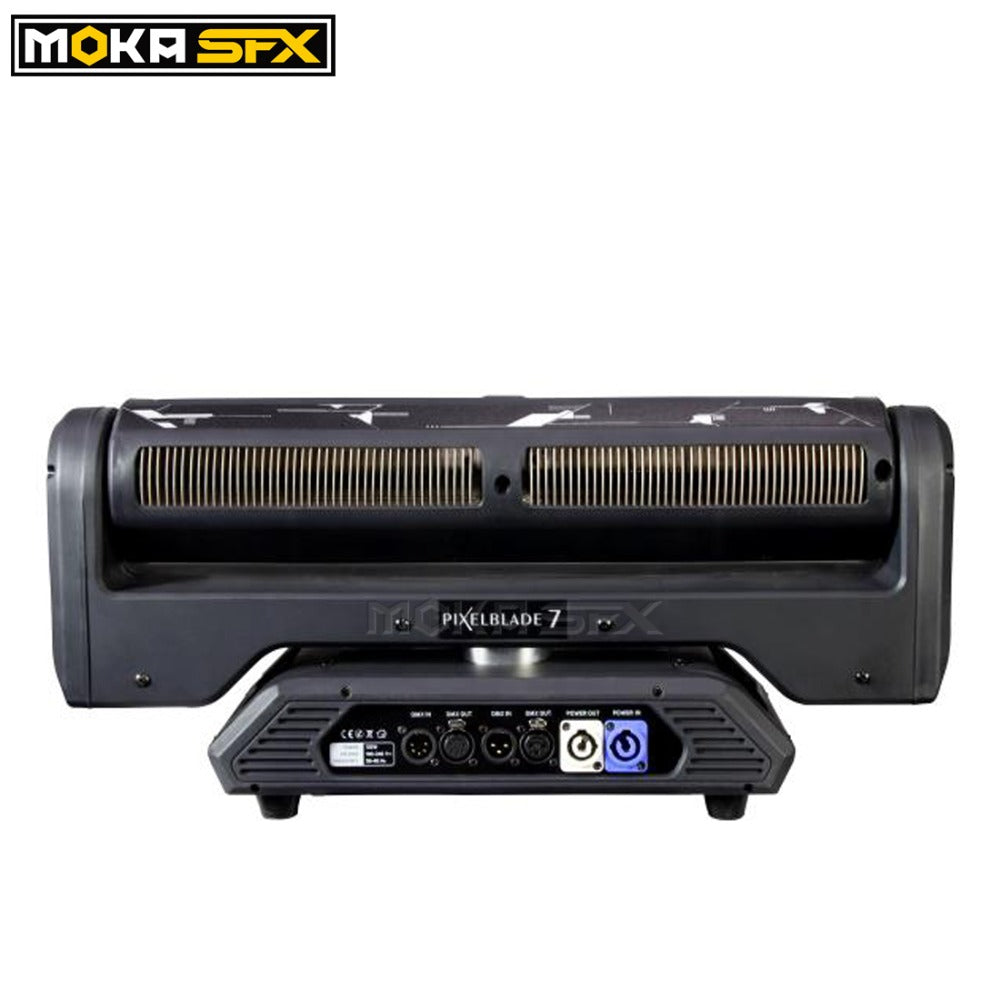

7x15W RGBW 4IN1 Rotation LED Moving Head

Warehouse: China Warehouse
Plug: US
Package: 1 unit
Sale price$550.00



85% optic efficiency

High-efficiency 67 mm PMMA optics

Continuous PAN and TILT rotation

Flicker free sources management, suitable for TV applications and all video High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.

Variable strobe effects

7x15w 4IN1 Non Stop Rotation moving head light (3)7x15w 4IN1 Non Stop Rotation moving head light (1)

Technical Parameter

  • Power Voltage: AC 100-240V, 50/60Hz

    Power Consumption: 120W

    Light Sources: 7 Multi-chip 4in1 RGBW 15 Watt LED sources

    Beam Angle: 4°

    Dimension: 58*17*25cm

    Gross Weight: 11Kgs


    DMX Channel: 12/15/39 Channel
    Control Modes: DMX512, Auto, Master-Slave, Music


    Continuous PAN and TILT rotation
    Pan/Tilt Resolution: 16 bit


    Display: LCD Display
    DMX In/Out socket: 3-pin XLR sockets
    Power Socket: Powercon in
    Protection Rating: IP20
  • Please Note:

             That we have different power supply plugs, united kingdom plugs, au plugs, EU plugs, the USA plugs, please let us know the power supply you need, or we will choose everything according to your country.

How To Use

Set DMX Address Code

1. Press "Menu" to "Set DMX Address",and press "ENTER" keys to enter into

2. Show "Set DMX Address DMX Address:001", Press the "UP and DOWN" keys to amended

3 Press "ENTER" keys to save and Exit,Press the "MENU" Keys does not save and Exit

4. The manual will be shipped with the machine, if the manual is missing, please leave a message on the website, we will contact you as soon as possible.


  • China warehouse: 7-20 working days for direct shipment from China.
  • The transportation type depends on the region, and it is uniformly displayed as international shipping.
  • The goods will be sent out within 1-5 working days.After the logistics order number is generated, the customer service will send an email to notify you. Please pay attention to the delivery status.
  • If you have any questions, please leave a message.


  • Q : Will the light fixture work without a DMX console?
  • A :Yes, don’t worry! In addition to DMX control mode, all moving head lights also have self-propelled, sound-activated, manual and other modes. When there is no DMX console control, you can choose the music sound control mode and the effect is very good.


  • Q : If the lamp is broken during the warranty period, how do you operate it?
  • A : You can rest assured that we have more than 8 years of export experience, and we provide free technical consultation throughout our life.  Moreover, we have a professional after-sales team that can give you information to respond to communication within 1 hour,give you solve solution within 8 hours to help you deal with after-sales problems; but We need your active cooperation and feedback. You can give us feedback on the problem by taking videos and photos, as well as the description of the problem during the operation of the light; we need to confirm which part may be broken, and then we will guide you how to do with step by step, if the problem is more complicated, we also have operation videos to provide guidance; if it still does not work, we will send you the free accessories for replacement, and you only need to pay the freight .

  • Q : After the shelf life, how to ensure the stability of the light?
  • A : If the product has passed the warranty, we will provide free technical consultation for life. Even after the warranty period, we recommend that customers do regular maintenance and maintenance of the lamps; if there is any problem with the product outside the warranty period, you can describe the problem, shoot videos and pictures, and we will provide you with the corresponding accessories for repairs. You need it here. Bear the cost of accessories and transportation.
