Description
Description

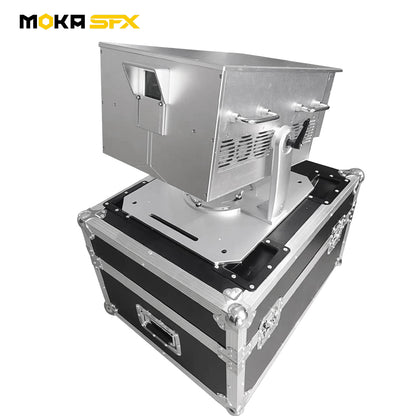

- The 20W full-color animation laser allows for seamless switching between highly saturated colors and rich patterns.
- The laser light offers 200 preset patterns for you to choose from.
- It can project in different colors and at various speeds.
- The control system includes ILDA, DMX512, sound control, auto mode, and master-slave mode.
- The entire unit features an IP65 waterproof design, making it dustproof, maintenance-free, and stable in quality with a small light spot and analog modulation of up to 100Khz.
Our Advantages:
- Integrated module, module driver board, and power supply integration, small size, saving transportation costs, and convenient mobility.
- The overall appearance of the lamp body adopts internal hexagonal screws, making the lamp body flat and smooth, providing a good tactile feel. More importantly, it is not easy to wear and rust.
- Aluminum shell, rust-proof, more durable.
- The logo adopts laser printing, not easy to fall off.
- Uses an intelligent dual temperature control system—silent fan cooling + semiconductor TEC heat sink
Technical Specifications
Specifications:
Parameter | Description |
---|---|
Input Voltage | 100V – 240V/AC, 50/60Hz |
Power | 320W |
Laser Power/Wavelength | R (Red): 5000mW 638nm G (Green): 7000mW 520nm B (Blue): 8000mW 455nm |
Best Divergence Angle | Approx. 6.5mm / <1.3mrad |
Laser Source | Semiconductor Diode |
Modulation Mode | Analog modulation 100KHz |
Control Mode | ILDA, DMX512, sound control, auto mode, master-slave |
Scanning System | DT50 ±30° |
Cooling Method | Air cooling + TEC cooling |
Shell Material | Aluminum |
Operating Temperature | -10℃ to 45℃ |
Product Size | 55× 45 × 36 cm |
Net Weight | 32 kg |
Packaging Size | 60 × 50 × 43 cm |
Gross Weight | 66 kg |
Accessories
Item | Quantity |
---|---|
Laser Projector | 1 |
Power Cord | 1 |
Key | 1 |
Interlock Connector | 1 |
User Manual | 1 |
Please Note:
We offer different power plugs, including UK, AU, EU, and US. Please let us know your power requirements, otherwise, we will select according to your country/region.
How to Use
- Open the packaging box, count the accessories, and carefully read the user manual.
- Before use, check if all parts of the machine are intact.
- Check if the power supply and socket meet the requirements.
- After connecting the power supply, press the "ON" switch.
- If you are using the voice control mode or automatic mode, you can set it up on the display screen according to the menu instructions.
- If using DMX signal control, use a DMX signal cable to connect the machine to the DMX console, set the DMX address and channel mode, and operate according to the channel list in the manual.
- Precautions
- The laser requires the safety key to be turned on before emitting light.
- The Interlock must be in a connected state to emit light.
- Before using any mode other than IDLA mode, the IDLA mode must be set to off; and the IDLA cable needs to be unplugged (inserting the IDLA cable defaults to IDLA mode, and the program will automatically block other modes).
Shipping
- US Warehouse: 2-5 business days in the US, 7-12 business days elsewhere.
- Spain Warehouse: 2-4 business days in Spain, 7-12 business days elsewhere in the EU.
- Poland Warehouse: 2-4 business days in Poland, 7-12 business days elsewhere in the EU.
- China Warehouse: Direct shipping from China takes 7-20 business days.
Q&A
Q: How to choose a laser light?
A: Choose a laser light according to different usage scenarios.
-For small gatherings and home parties, 1W, 2W, 3W, 5W laser lights are sufficient because they are affordable and easy to operate.
- For bars or clubs, it is recommended to choose 10W laser lights. Depending on the size of the bar, 2-6 sets of equipment can be equipped. A 10W laser light can meet all the requirements of the bar, including complex requirements such as laser engraving patterns.
- For concerts, music festivals, celebrations, etc., it is recommended to choose 20W, and 30W laser lights, which can achieve laser engraving and other effects.
-For urban outdoor landmarks, high-power laser lights are recommended, ranging from 30W to 100W, depending on specific requirements. If you need more professional guidance, please contact our customer service.
Q: Do your laser lights have safety keys?
A: Yes, we have standard interlock devices.
Q: Do I need to purchase FB4?
A: Laser lights have various modes of operation, including self-walking mode, which can meet most usage scenarios. If you need customized effects, you can purchase FB4 from local professional websites. Recommended website: https://pangolin.com/
