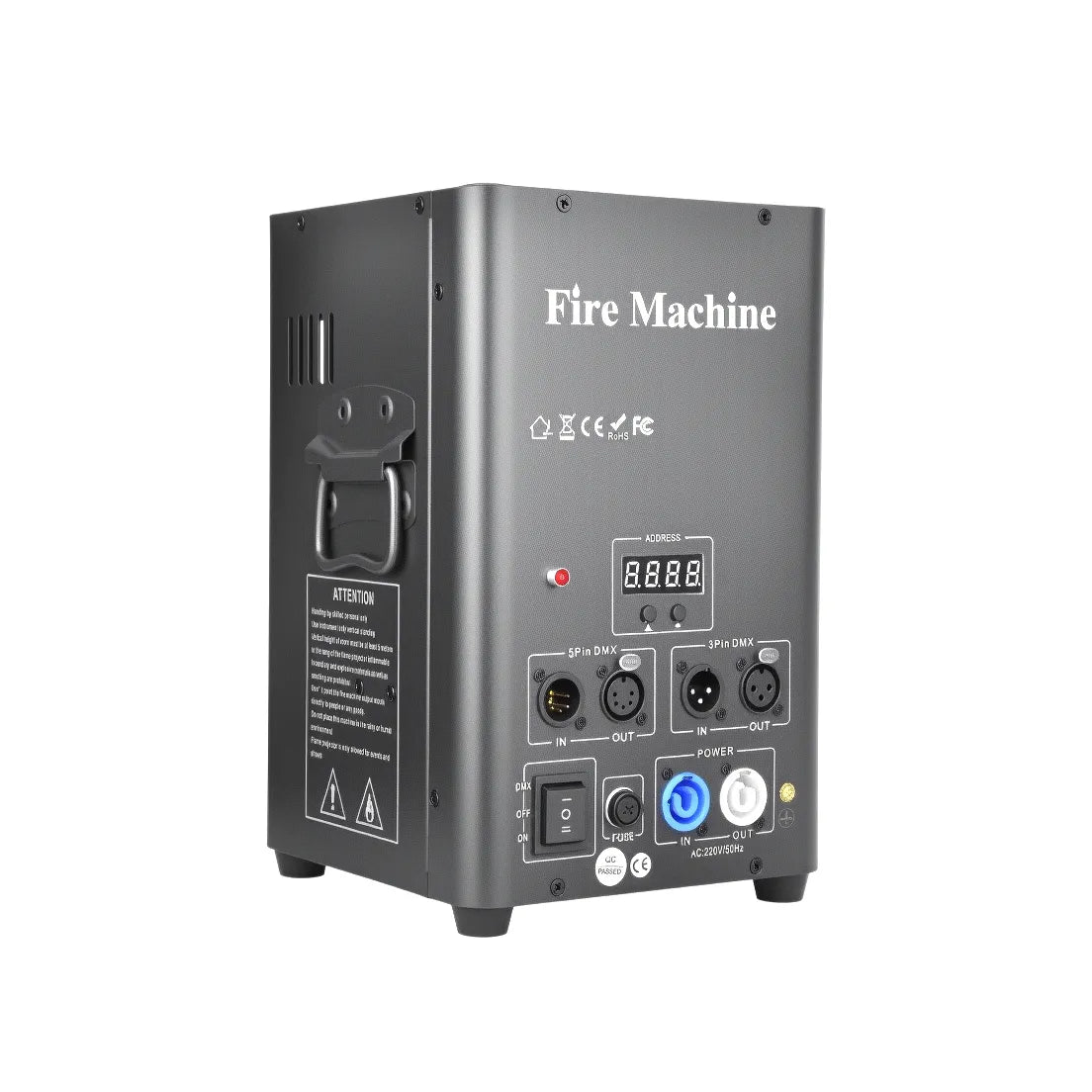

- Flame machine DMX512 control / electric control.
- The latest design makes the spitfire has strong stability.
- With safety channel, with safety that is to stop function.
- The height of the flame can reach 3 meters.
- High-quality valve and pulse igniter, the ignition success rate of up to 99%.
1. High-quality valves and ontóris
2. Instant dashboard display, easy to use
3. LCD display, easy to operate
Voltage: 110 V, 220 V ~ 250 V 50/60 HZ
Control method: DMX512
Fire fuel: flame oil
Jet flame height: 3 m
Gross weight: 5 kg
Package: 25 * 25 * 34 cm
Color: red fire (depending on the color of kerosene)
Product shelf life: 1 year
Certification: CE, ROHS, FCC certification
- Packing List :
Elf spitfire 1 set
A signal cable (2 meters)
Power cord 1 (1.5 m)
- Please Note:
The fog machine can be used with a14 kerosene. Edible a14 kerosene is defined as flammable and explosive, so we prohibit its use. Please use kerosene in your own country.
How To Use
- Steps To Use :
1. Please Open the door of the flame machine, put the flame liquid cans on the holder, ensure the liquid can be fixed correctly. The next step closes the door of the flame machine.
2. Please connect the power supply for the flame machine, Open the switch. Connect with DMX signal cable machine and DMX controller, Set the DMX address. the machine will be DMX self-inspection, and the detection lamp will flicker. When contact with the DMX signal cable, the display will light up. Otherwise, the display will not bright.
3. After you have readied the Genius Flame and set the DMX addresses properly, you are clear to operate the Genius Flame.
4. You previously set a “safety” channel for the Genius Flame so that the device should still be in safety mode. You now take it out of safety mode by setting channel 1 to between 102 and 153. The Indicator light of the Genius Flame will start blinking in turn.
- Attention :
Before using this product please first read the operating guide.
- U.S. warehouse: 2-5 working days in the U.S., 7-12 working days in other areas.
- Spain warehouse: 2-4 working days in Spain, 7-12 working days in other EU regions.
- Poland warehouse: 2-4 working days in Poland, 7-12 working days in the rest of the EU.
- China warehouse: 7-20 working days for direct shipment from China.
- Q: If the products are broken during the warranty, what should I do?
A: Don’t worry, MOKA SFX has a professional foreign trade team and helps you to solve all problems about our products in time, first please send us pictures or videos If there is a problem with the products. We will guide you on how to fix it and provide spare parts for free if needed.
- Q: How high can spray?
H-E01A:Spray1-2(LPG Flame machine);
H-E03A:Spray1-2M(LPG Triple-head flame machine )
- Q: What are the control modes?
A: DMX Control and Electric control
DMX control means connecting the Dmx cable and then through the Dmx controller to control the machine
Electric control means turn on power then working, turn off power then stop working
- Q: What is a safe channel?
A: When you use the Dmx controller to control machine, The channel 1 is a safety channel which values of 102-153 open, when the fire projector safe channel open. By the way, MK-E06 H-E02, H-E01 H-E01A, MK-E02 MK-E02A, these items need to turn on the power first.
- Q: What's the spray called? Chemical composition?
A: Flame Oil, Flame Liquid Animal repellent Air freshener.
Flame oil composition： Methanol 60%, White mineral oil 20%, Butane 15%, Spices 5%.
Color Flame oil composition: glycerin 40% ,Silicone oil 30% , Butane 20% , Pigment 5% , Spices 5%.
- Q: How long will spray for one bottle can be used?
A: After confirming with the factory,200ml for one flame bottle = Approx 60-70 seconds of output.
- Q: What is the dump switch?
A: The power will be cut off automatically and the flame projector stop working instantly when it falls down, ensuring the safety of the event.
- Q: Where can I buy flame oil?
A: Can be purchased from your local market and Amazon,eBay.
①USA Market: pls check the link from amazon https://www.amazon.com/Valvoline-602373-11-Starting Fluid/dp/B00PWLS7HU/ref=mp_s_a_1_5?ie=UTF8&qid=1545973834&sr=8-5&pi=AC_SX236_SY340_QL65&keywords=valvoline+starting+fluid&dpPl=1&dpID=31dshM48ZhL&ref=plSrch
②Europe: pls check the link from amazon for reference https://www.amazon.de/dp/B007VMGD7E/ref=cm_sw_r_wa_api_i_Y-R5CbDJ8WX0E
- Q: What should I do if the machine keeps working?
A: First of all, please confirm that all procedures with normal operation, it is recommended to cut off the power and operate again, If fail again, The cause may be a broken valve, please cut off the power, Replace the new valve.
- Q: What should I do if the machine just sprays oil and doesn’t catch fire?
A: In this case, the angle of the ignition pin may be distorted, and the spray nozzle may not be aligned so that the spark cannot be ignited by the ignition pin when the fire spark comes out. Please try to adjust the angle of the ignition pin to align the nozzle and try again.
