Description
-
1200W Morning Haze Machine
High-output haze for stages, concerts, clubs, and live events. -
3-Minute Fast Warm-Up
Quickly reaches operating temperature for faster event setup. -
100-150m² Wide Coverage
Creates consistent haze across medium to large performance spaces. -
5L Tank & 0.5L/h Consumption
Up to approximately 10 hours of continuous output. -
DMX512, Remote & Manual Control
Flexible control for professional stage and event operation. -
Adjustable Haze Output & Direction
Fine-tune haze volume and spray direction for different setups. -
Timed & Quantified Haze Output
Set output duration and intervals for precise haze effects.

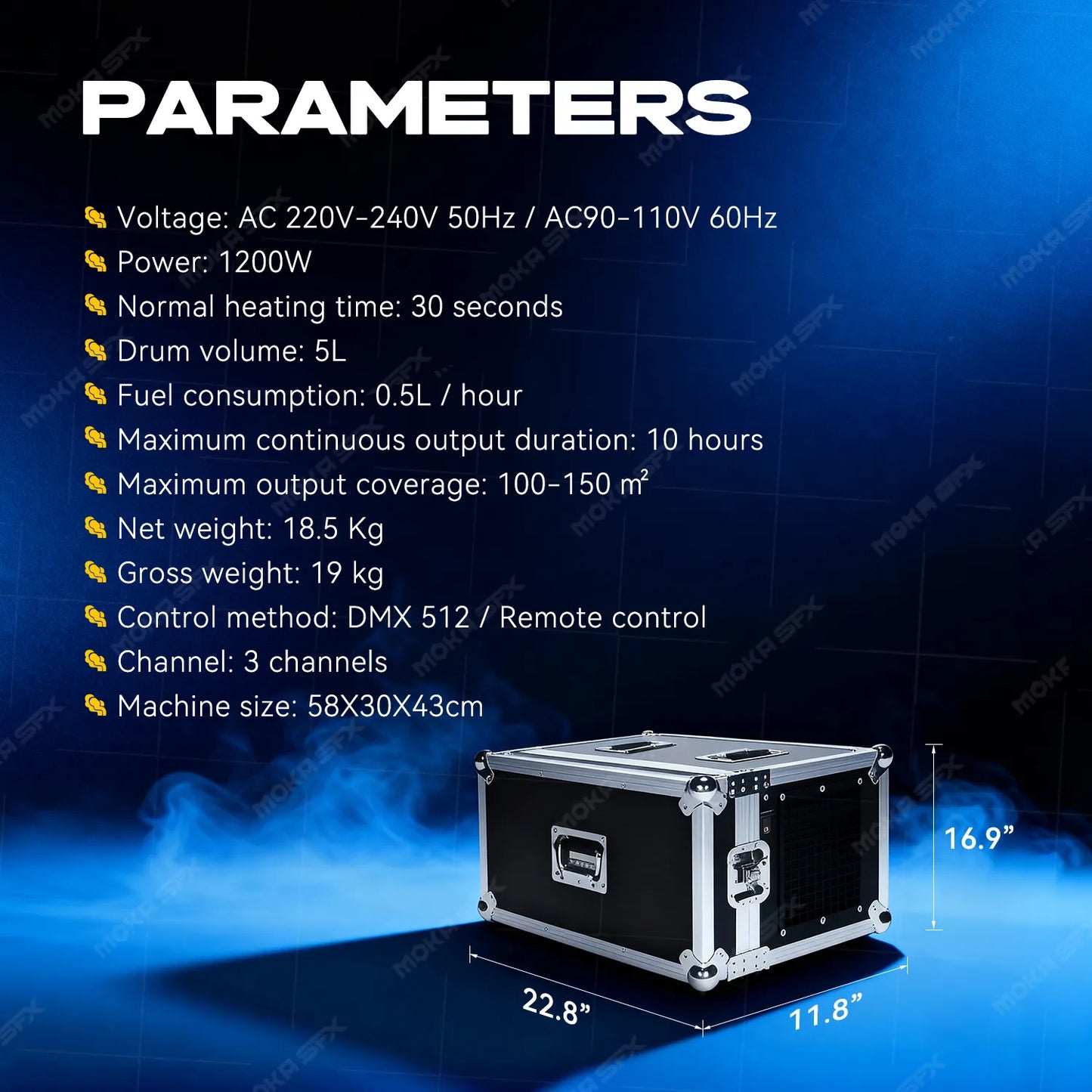

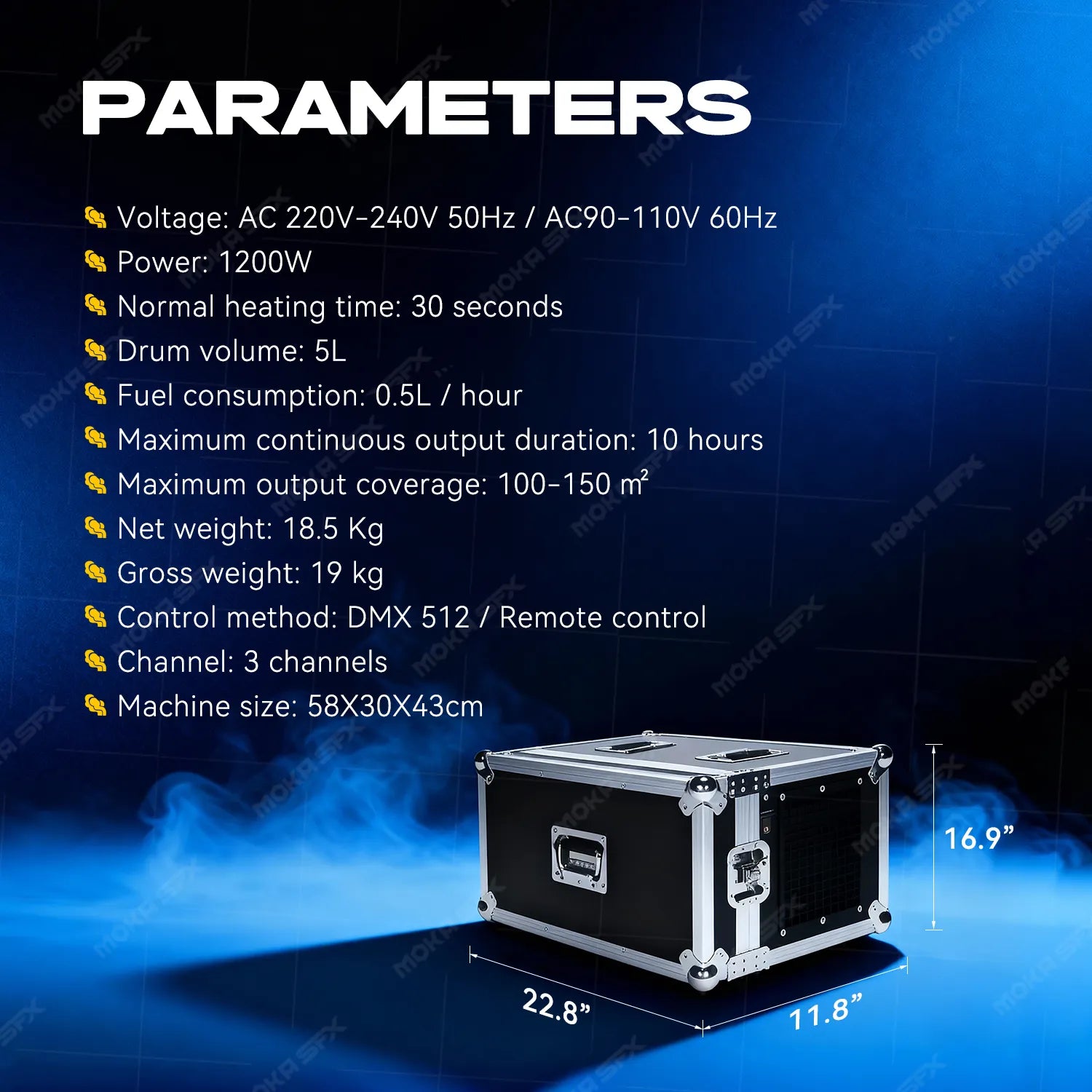

Technical Parameter
- Specification:
| Specification | Details |
|---|---|
| Voltage | AC 90-110V, 60Hz / AC 220-240V, 50Hz |
| Power | 1200W |
| Control Mode | DMX512 / Remote / Manual |
| DMX Channel | 3CH |
| Tank Capacity | 5L |
| Fluid Consumption | 0.5L/h |
| Maximum Continuous Output Duration | 10 hours |
| Maximum Output Coverage | 100-150m² |
| Heating Time | About 3 minutes |
| Haze Volume | Adjustable |
| Haze Speed | Adjustable |
| Product Size | 58 × 30 × 43cm |
| N.W. / G.W. | 18.5kg / 19kg |

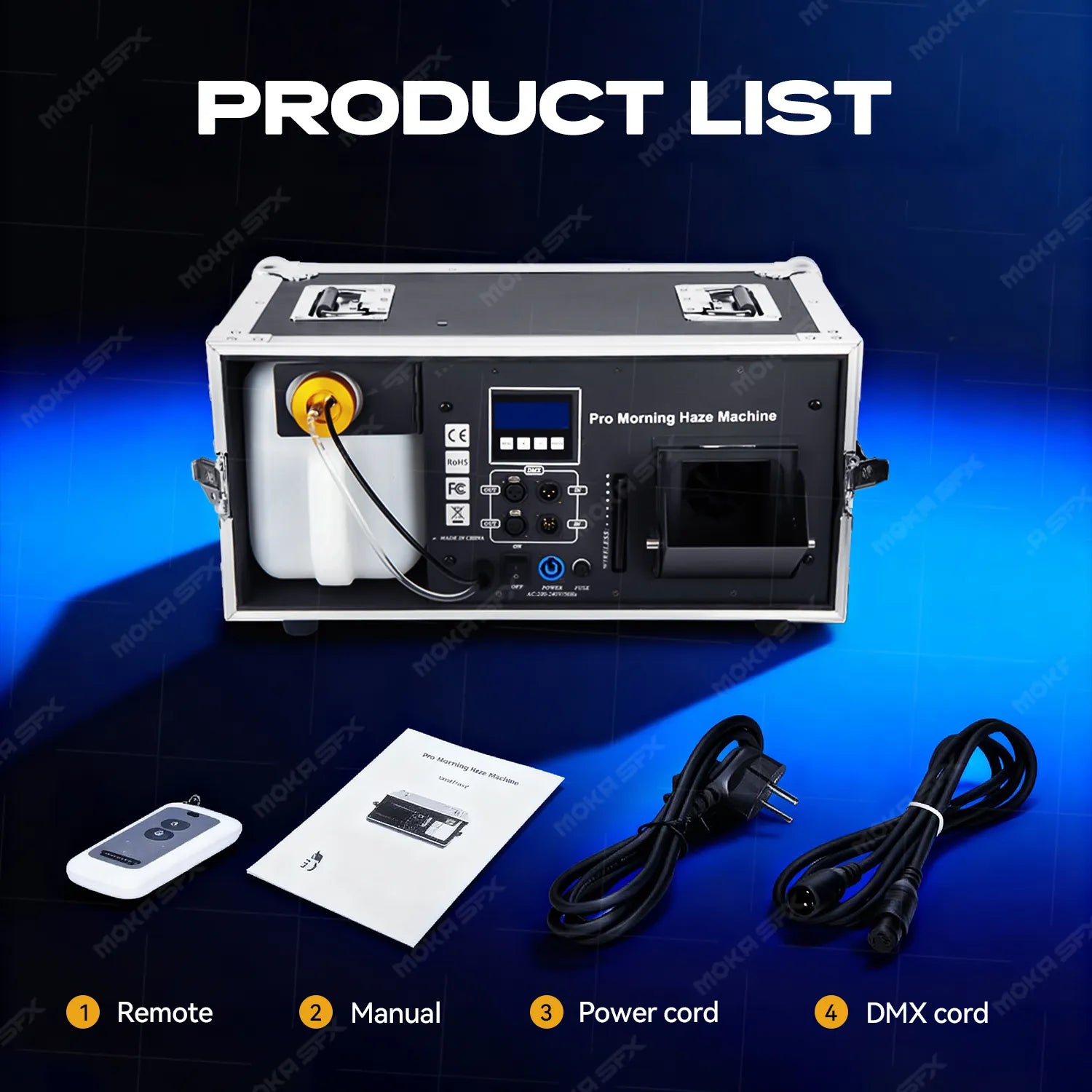

Product List
| Item | Quantity |
|---|---|
| Haze Machine | 1 pc |
| Power Cord | 1 pc |
| Remote Control | 1 pc |
| DMX Cable | 1 pc |
| User Manual | 1 pc |
Notice
- Check the fluid tank before operating the machine.
- Do not refill the tank while the machine is operating.
- Use clean, water-based haze fluid only.
How To Use
Operating Instructions:
-
Place the Machine
Place the machine on a firm, level surface and adjust the nozzle angle as needed. Add up to 5L of water-based haze fluid. -
Connect Power
Connect the power cord to a properly grounded socket. -
Start the Machine
Turn on the power switch and wait approximately 3 minutes until the display shows HAZE READY. -
Remote Control
Connect the remote receiver. Use the UP/DOWN buttons to adjust the haze output.
A: Stop · B: Start -
DMX512 Control
Connect the DMX cable and controller after the machine shows HAZE READY. Use the DMX channels to adjust the fan and haze output. -
Timed & Quantified Output
Set the haze output and interval time according to your event requirements.
Shipping
- U.S. Warehouse: 2-5 working days to the U.S.; 7-12 working days to other regions.
- Spain Warehouse: 2-4 working days to Spain; 7-12 working days to other EU regions.
- Poland Warehouse: 2-4 working days to Poland; 7-12 working days to the rest of the EU.
- China Warehouse: 7-20 working days for direct shipment from China.
- Shipping Method: The shipping method depends on the destination and will be displayed as International Shipping.
- Processing Time: Orders are shipped within 1-5 business days. Once the tracking number is generated, our customer service team will notify you by email.
- Need Help? Please feel free to leave us a message.
Q&A
Q1: How long does the machine take to heat up?
A:The MK-F20 takes approximately 3 minutes to heat up and is ready to use once heating is complete.
Q2: How long can the machine run with a full 5L tank?
A:With a 5L tank and fluid consumption of approximately 0.5L/h, the machine provides up to approximately 10 hours of continuous output.
Q3: What are the control methods?
A:The machine supports DMX512, wireless remote control, and manual control for flexible operation.
Q4: What type of haze fluid can be used, and where can I buy it?
A:The machine uses Haze Fluid (water-based). We recommend using clean, suitable water-based haze fluid. It can be purchased locally or from us.
Q5: Will the machine continue heating if it runs out of fluid?
A:The machine has a protection system. When the fluid runs out, it enters a protection state to help prevent damage caused by running without fluid.
Q6: Can the haze output be timed and quantified?
A:Yes. The MK-F20 supports timed and quantified haze output through the control panel.
Q7: Can the MK-F20 be used in clubs?
A:Yes. The MK-F20 is suitable for indoor clubs, stages, theaters, weddings, concerts, and other indoor events.
Q8: What is the effective range of the remote control?
A:The remote control has an effective reception range of approximately 50m in an unobstructed environment.
Q9: Can the MK-F20 be mounted on a truss?
A:Yes. Please use suitable rigging equipment and a safety cable, and ensure the machine is securely fixed.
Q10: Does the MK-F20 produce heavy smoke?
A:The MK-F20 produces a fine, even haze designed to enhance laser beams and stage lighting rather than create thick, opaque smoke.
Q11: How does fan speed affect fluid consumption?
A:Higher fan speed improves haze dispersion and projection, but also increases fluid consumption.
Q12: How many DMX channels does the MK-F20 have and what do they control?
A:The MK-F20 has 3 DMX channels:
- CH1: Haze volume
- CH2: Airflow
- CH3: Half-power mode
Each channel ranges from 0-255, with 0 meaning off.
