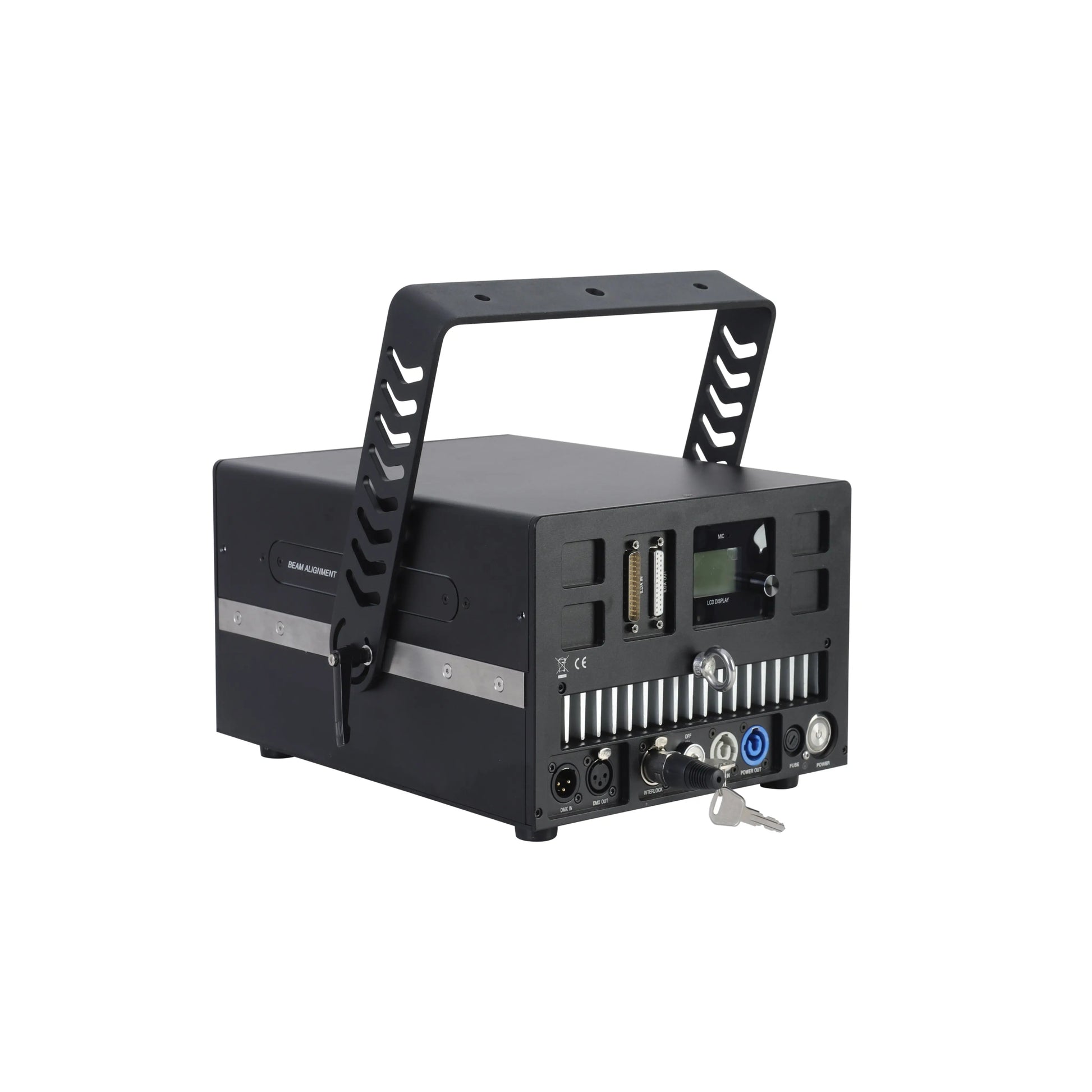

MOKA SFX MK-HLS15 Full-color Animated Laser 15W

Description

• 15W RGB 3in1, high brightness, RGB color, and reasonable laser beam.
• It uses an advanced temperature sensor with a reduction to the right temperature to protect the machine.
• Control models have ILDA, DMX, auto, sound, Self-propelled mode, and master-slave mode can be optional.
• It adopts independent design and production of an integrated power supply, driver, and integrated module.
• The laser's high-speed optical scanner makes it easy to create animated graphics and beam shows, as well as gobo effects.















Technical Parameter

• Our Advantages:

             1. Integrated module, module driver board, and power supply are integrated which makes the light small volume, saves transportation cost, and easy to move.

             2. The whole exterior of the light body uses hexagon socket screws, which make the body plane smooth and bring a good tactile impression. What's more, it is less prone to wear and rust.

             3. Aluminum case, which does not rust and is more durable.

             4. The logo was printed by laser, not easy to fall off.

             5. Silent fan each Moka laser light with 3 silent fans of the 12v pieces makes the laser run smoothly, and extends the service life.

• Specification:

          Laser power/wavelength:

          R (red): 3200mW 638nm
          G (green): 4300mW 520nm
          B (blue): 7500mW 455nm
          Divergence angle: ca.6.5mm/＜1.3mrad
          Control mode: ILDA, DMX512, SOUND (voice control), AUTO, master-slave mode
          Laser light source: imported semiconductor diode
          Modulation mode: analog modulation 100Khz
          Scanning system: DT40 ±30°
          Input voltage: AC100-240V, 50/60HZ
          Shell Material: Aluminum
          Cooling method: air cooling + TEC cooling
          Working temperature: -10℃--45℃
          Power: 310W
          Product size: 340(L)*340(w)*315(H) mm 16KG
          Packing size: 490(L)*440(w)*380(H) mm 29KG

          Flight case packaging: 600(L)*500(w)*430(H)mm 30KG

• Packing list for each unit:

            1pc laser projector

           1pc power cable

           1pc key

           1pc interlock connector

           1pc user manual

• Please Note:

             We have different power supply plugs, UK plugs, AU plugs, EU plugs, the USA plugs, please let us know the power supply you need, or we will choose everything according to your country.
