Description

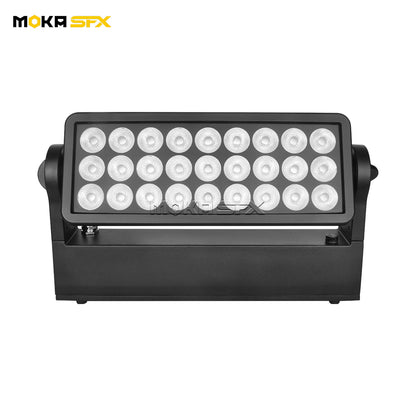

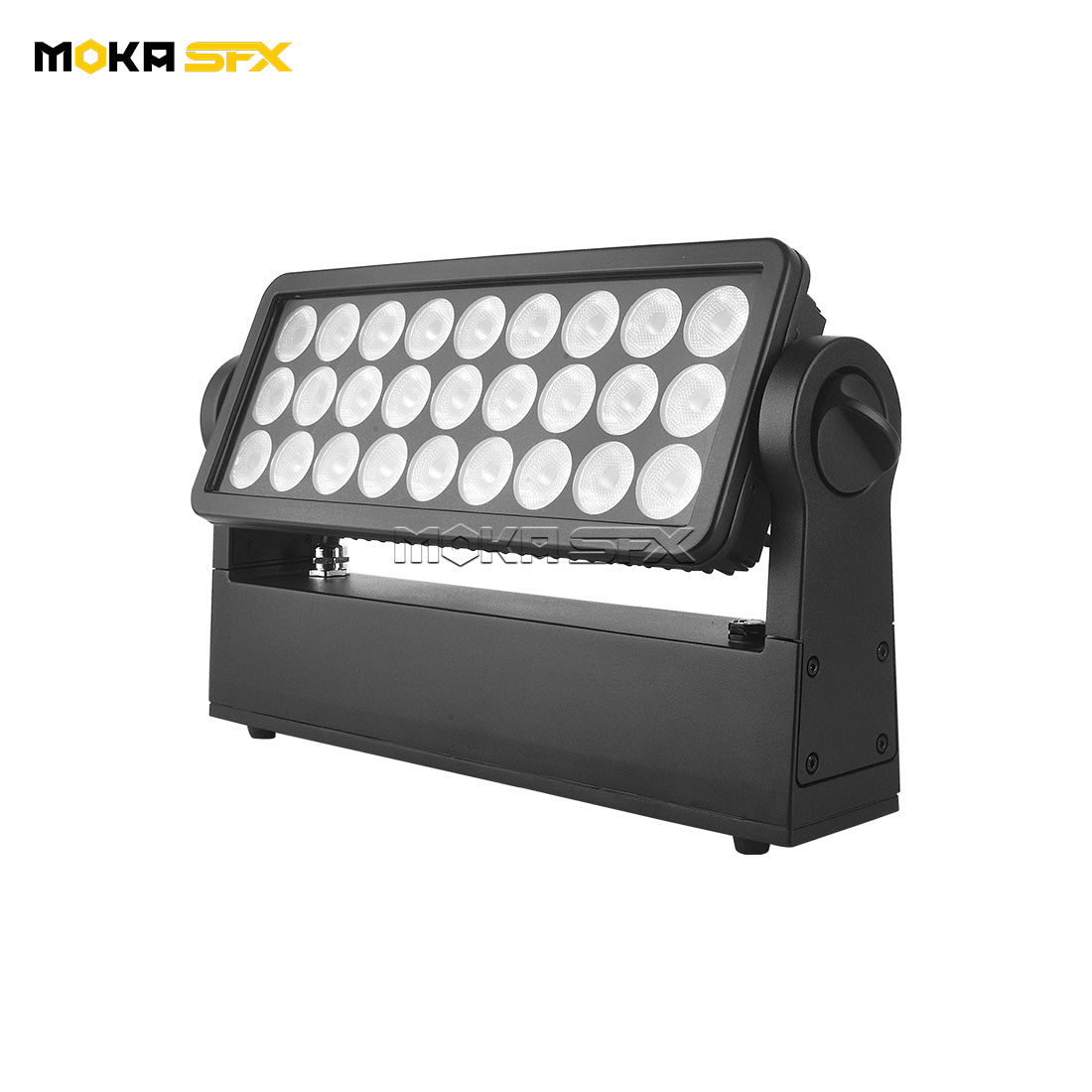

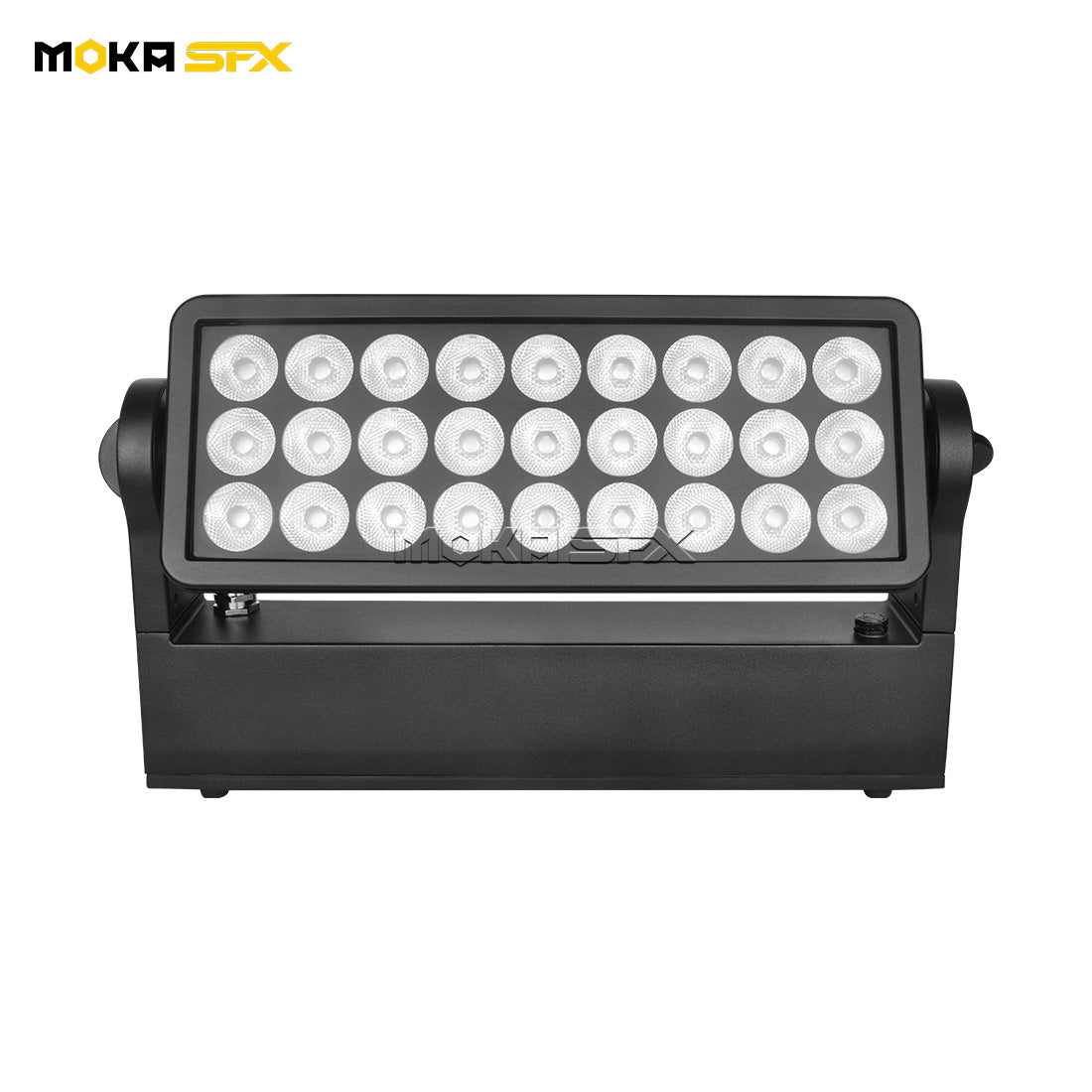

- IP grade IP65, super waterproof performance can adapt to various harsh outdoor conditions.
- 27*15W high-quality RGBW LED light sources, the light output of the whole machine can reach 2400k~8000k.

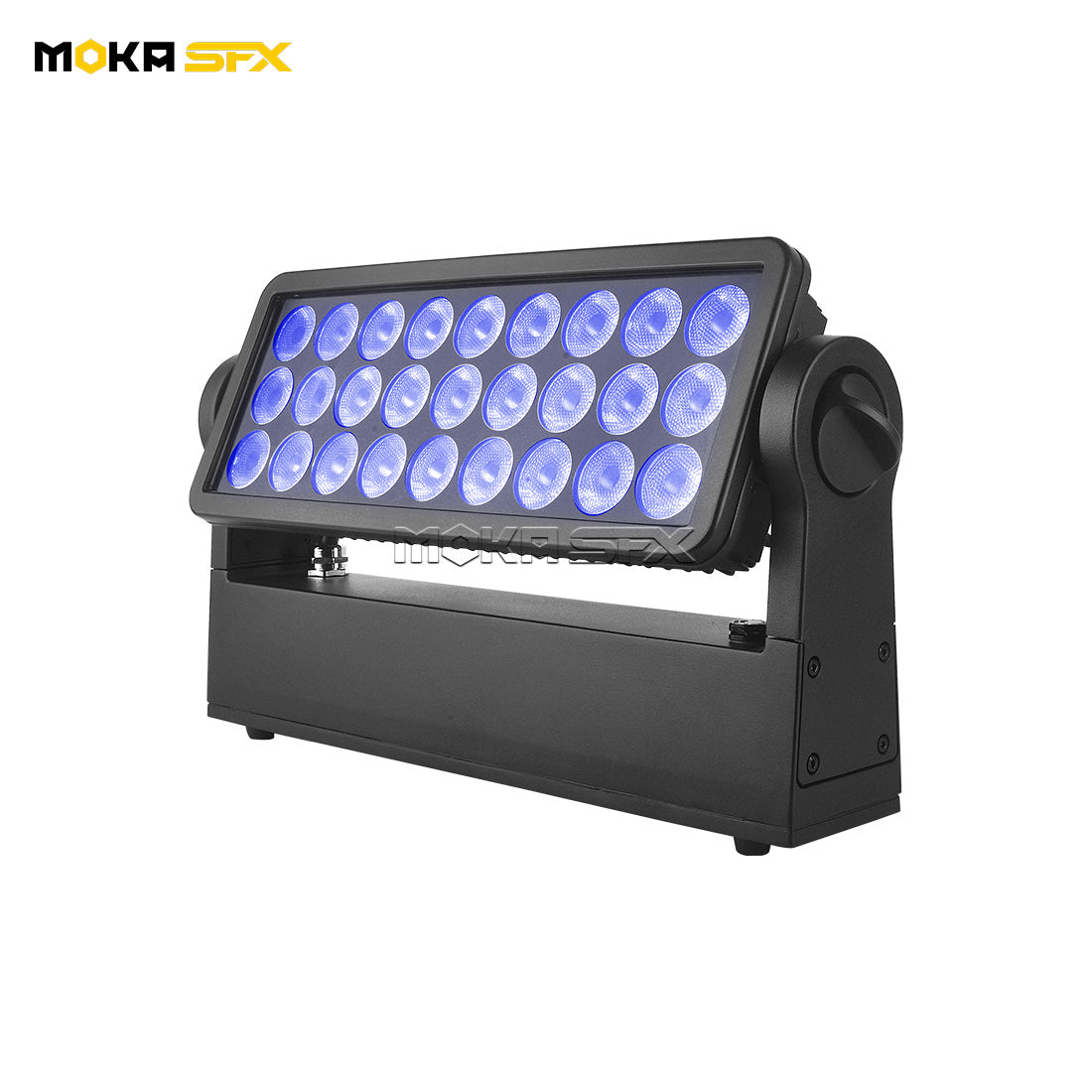

- Uniform RGBW color mixing and CMY color mixing system can modulate any color you want.
- The power supply can be connected in series, multiple units can be used at the same time, and a 1.5 square power cord can connect up to 6 units at the same time (230V).

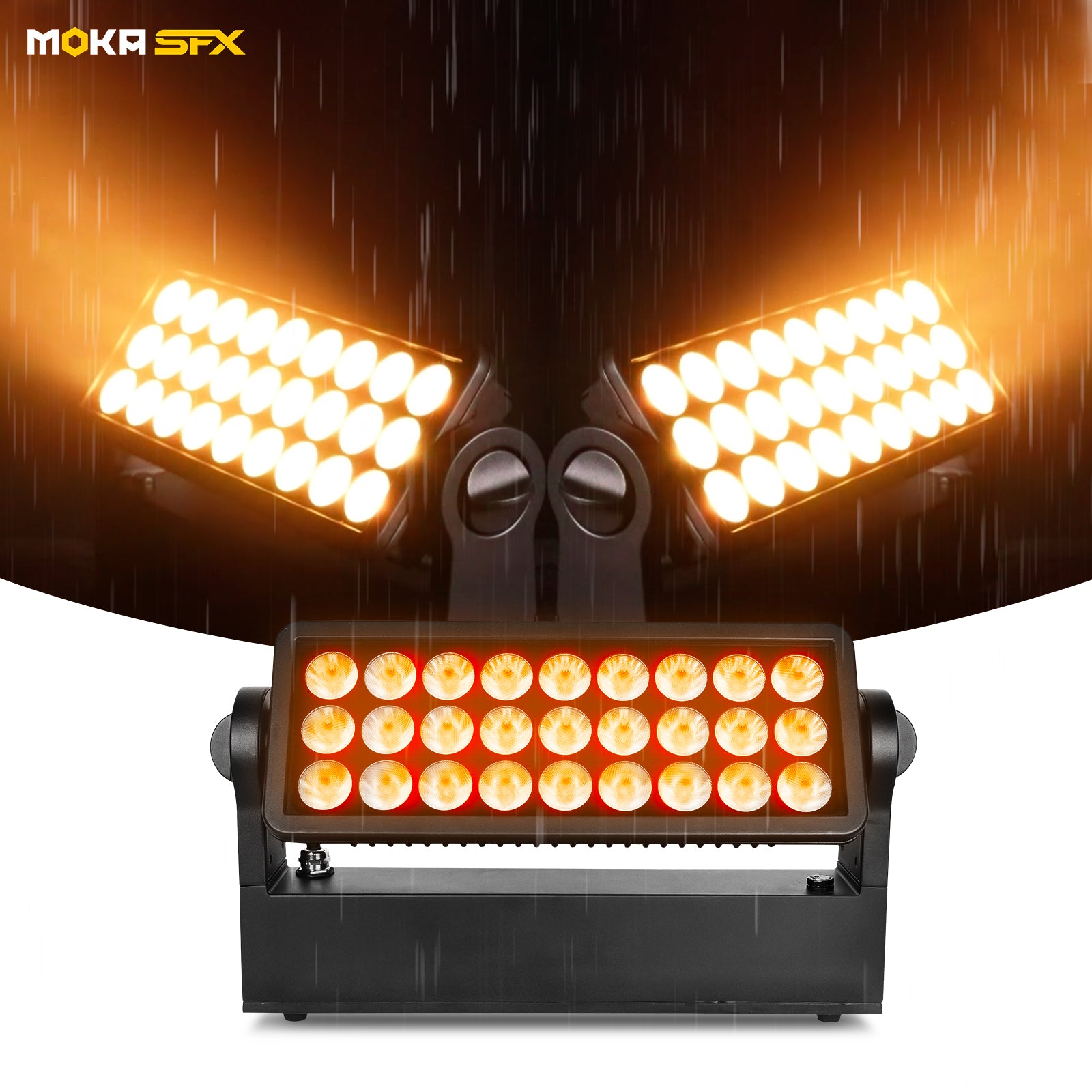

- Whether it's a skyscraper, billboard, bridge, or other structure, this LED wash light creates stunning lighting effects.
Technical Parameter
Specification:
Category | Item | Specifications |
---|---|---|
Electrical | Voltage | 100~240VAC, 50~60Hz |
Power Rating | 280W @ 230V | |
Light Source | Light Source | 280W RGBW LED |
Luminous Flux | 14800Lm (25°) | |
Color Temperature | 2400K~8000K | |
Optical | Beam Angle | 8° / 15° / 25° / 45° |
Strobe | 0~20Hz | |
Control | Control Mode | DMX512 / Wired RDM / W-DMX |
DMX Channel | 4CH / 7CH / 8CH | |
Environment | Working Environment | -20~45℃ |
Protection Grade | IP65 | |
Dimensions & Weight | Product Size | 46580.3239.8mm |
Package Size | 538320180mm | |
Net Weight (N.W.) | 6.6 kg | |
Gross Weight (G.W.) | 7.62 kg |
OPTICS
Feature | Details |
---|---|
Light Source | 27pcs 15W RGBW LED |
Average Lifespan | 50,000 H |
Color Temperature | 7000K |
Light Output of the Whole Machine | 15,000Lm |
Beam Angle | 8° / 15° / 25° / 45° (optional) |
Dominant Wavelength | R: 623nm; G: 530 nm; B: 455 nm |
EFFECT
Feature | Details |
---|---|
Color Mixing System | Uniform RGBW, CTO: 2400~8500K, CMY |
Strobe | Fast electronic strobe 1 ~ 20 Hz |
Refresh Rate | 600 ~ 25K Hz |
Dimming Curve | Four types |
Pixel Matrix | Full segment control |
CONTROL AND PROGRAMMING
Feature | Details |
---|---|
Protocol | Standard DMX512 / RDM protocol |

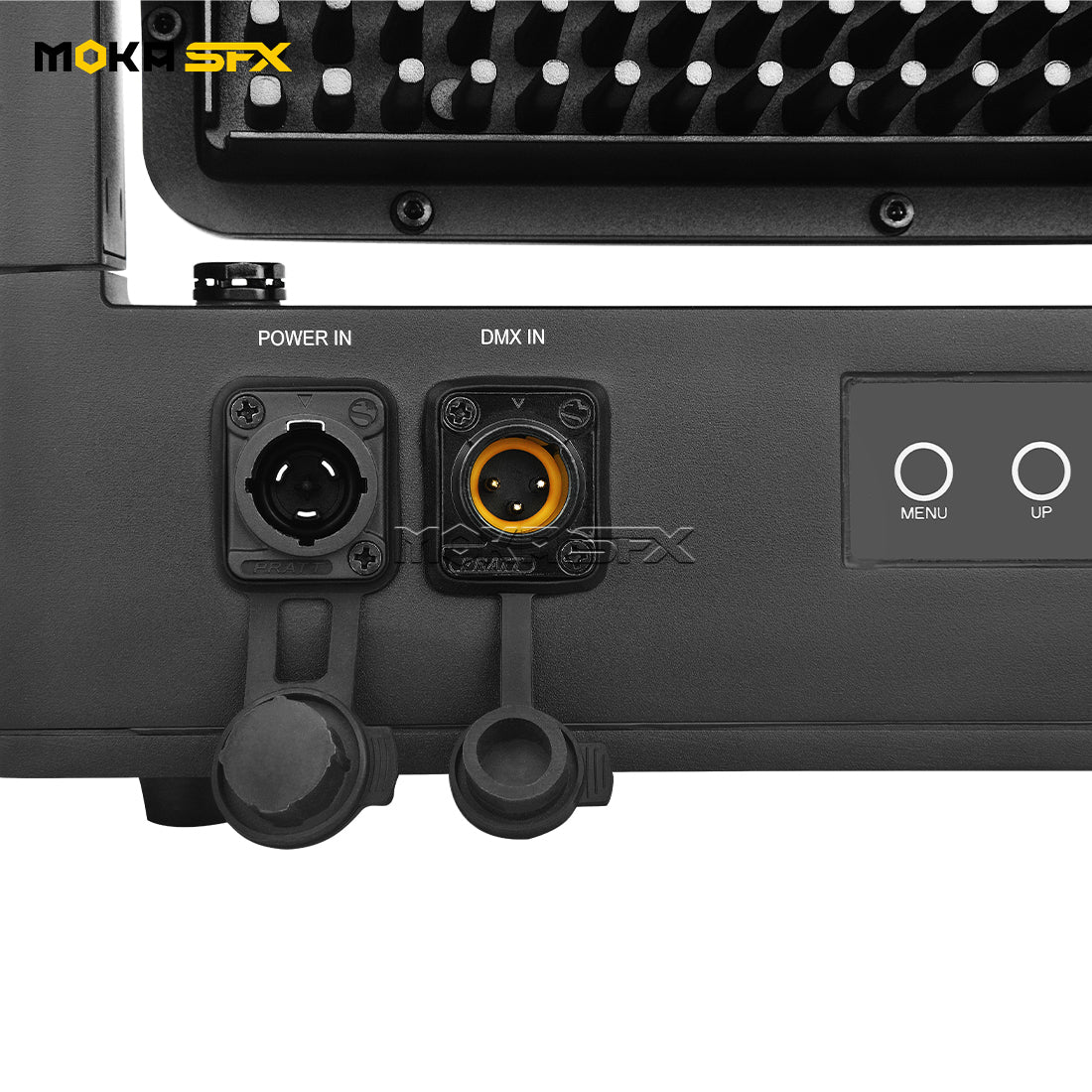

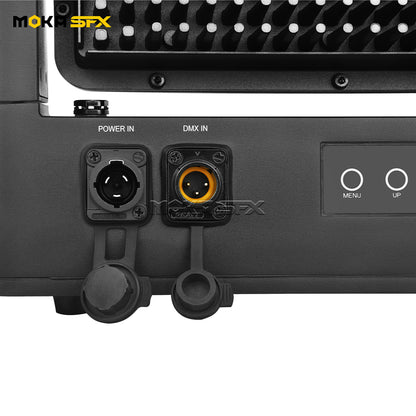

Data Connection | 3-core or 5-core waterproof signal line I/O |
DMX Channel | 4CH / 7CH / 8CH |
Display | 1.8-inch OLED display |
OTHER
Feature | Details |
---|---|
Software Update | Easy and fast via DMX signal |
Temperature Protection | Intelligent to ensure LED lifespan |
Dimming | 0~100% |
Protection Class | IP65 |
Working Environment | -20℃~40℃ |
Size | 454×250×80mm |
Weight | 6.6 kg |
How To Use
The manual will be with the machine, if the manual is missing, please leave a message on the website, and we will contact you as soon as possible
Shipping
- U.S. warehouse: 2-5 working days in the U.S., 7-12 working days in other areas.
- Spain warehouse: 2-4 working days in Spain, 7-12 working days in other EU regions.
- Poland warehouse: 2-4 working days in Poland, 7-12 working days in the rest of the EU.
- China warehouse: 7-20 working days for direct shipment from China.
- The transportation type depends on the region, and it is uniformly displayed as international shipping.
- The goods will be sent out within 1-5 working days. After the logistics order number is generated, customer service will send an email to notify you. Please pay attention to the delivery status.
- If you have any questions, please leave a message.
