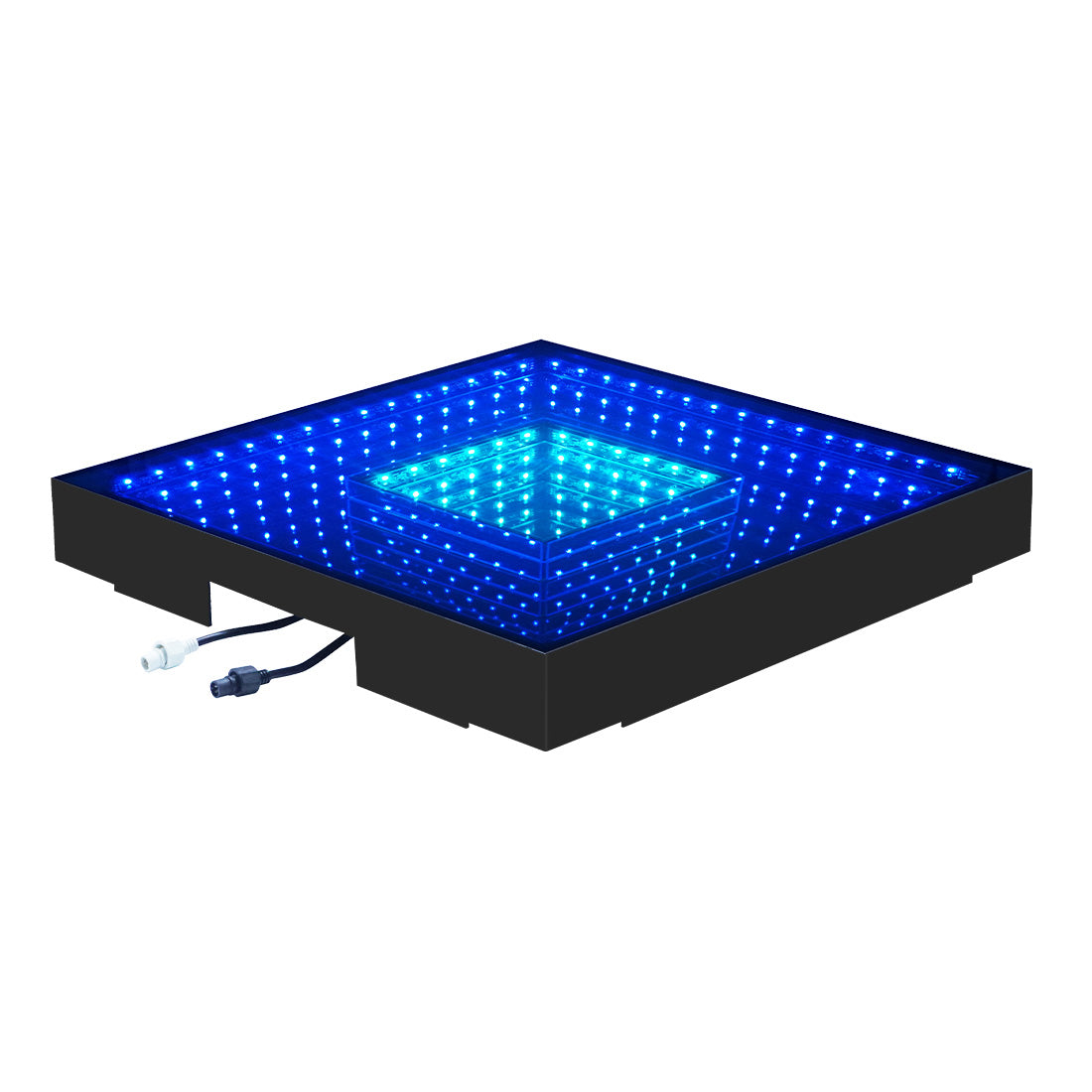

MOKA SFX MK-LD03D Wired/Magnet Double Abyss Infinity 3D LED Dance Floor


Shipment: Shipping by sea
Spec: 8x8(FT)
Connection: Magnet connection
Preis:
Sonderpreis$3,900.00

Beschreibung

Description:

  • Perfect 3D effects, independent operation, offering you various RGB 3IN1 color light effects, high reliability.
  • Energy-saving, no need for auxiliary heat dissipation, natural heat dissipation, noise-free, seamless integration.
  • Control methods include SD and DMX functions, easy to set up.
  • With IP55 waterproof rating, suitable for indoor and outdoor use. Combined with other stage effect products such as smoke machines, cold spark machines, etc., it will bring an unforgettable experience to your wedding.
  • Can bear weight up to 500kg/m², suitable for disco stages, concerts, fashion shows, various hotels, entertainment venues, theaters, large-scale live performances, etc.

Please note:

The size of each magnetic model block is 60*60*7cm.
The size of each tile model block is 50*50*7cm.

The standard size is 50*50. The 60*60 size requires customization. If you need custom sizes, please feel free to contact us!



Technical Parameters

  • Specifications:

           Voltage: 90-240VAC, 50/60 Hz

           Power Consumption: 20W

           Number of LEDs: 84 pieces 5050 SMD

           Color: Full-color RGB

           Lifespan: ≥100,000 hours

           Panel Material: ABS + Tempered Glass

           Waterproof Rating: IP55-IP67

            Load Capacity: 500kg/m²

            Control Methods: SD Controller (supports DMX, sound control, remote control), PC Controller, MADRIX

            Dimensions: 50050070mm

            Weight: 23kg

           Suitable Venues: DJs, bands, bars, pubs, clubs, skating rinks, KTV, home parties, birthdays, celebrations, weddings, festivals, malls, specialty stores, and other designated places.

Included Accessories:

  • Power Supply
  • DMX SD Controller
  • Protective Edges
  • Flight Case, 10-in-1

The quantity of these accessories will be configured according to the number of floor tiles.

If you have special customization or shipping requirements, such as customs clearance and door-to-door delivery services, please contact customer service at any time.

  • Please Note

          We offer different power plugs: UK plug, AU plug, EU plug, US plug. Please let us know the type you need, otherwise we will choose based on your country/region.

How to Use

  • How to Operate MK-LD03D LED Floor Tiles:

1、Before connecting, please identify the first tile in each row. The black connector is the power cable, which connects directly to the power box. The other cable with a white connector is the signal cable. Please connect the signal cable to the signal box. Once the first tile is identified, connect the other end to the corresponding connector of the next tile, ensuring male and female connectors align.

Note: Always disconnect the power during the connection process to avoid short circuits.

2、The signal box has 8 ports, each port can drive one row of floor tiles.

3、The signal box's SD card has 96 built-in effects, which can be switched using the buttons on the signal box. This is our usual operating mode.

The standard signal controller features sound control, master-slave, and auto-run modes, operable directly via buttons.

  • How to Install Magnetic Models?

  • The magnetic model installation is easier. All power cables pass through the sloped surface of the floor tile lights. First, determine the position of the slope, then follow the arrows on each floor tile to piece the tiles together.


We will provide complete power boxes and signal boxes according to the number of floor tiles. If you want to customize the floor according to your needs, please provide the area or number of tiles you require.

  • DMX Control Mode:

 If you want to use DMX512 control, you can use the DMX SD signal controller and simply connect the floor tiles to the DMX console.

  • PC Control Mode:

If you want to use a PC controller, please let us know. We will provide a controller specifically for connecting to a computer. Then, just connect the floor tiles to the computer using signal cables and control them via the software on your computer.



Shipping

  • Since the floor tiles need customization, the processing time is 7-14 days.
  • Shipping by sea takes approximately 2 months.
  • Please check the nearest port to you and leave a message for customer service. We will contact you promptly to discuss shipping details.

  • The prices in the options include sea freight. We generally choose the method with customs clearance included, so you don't need to clear customs and pick up the goods yourself. Just fill in the correct address and contact information, and the floor tiles will be delivered to your doorstep.
