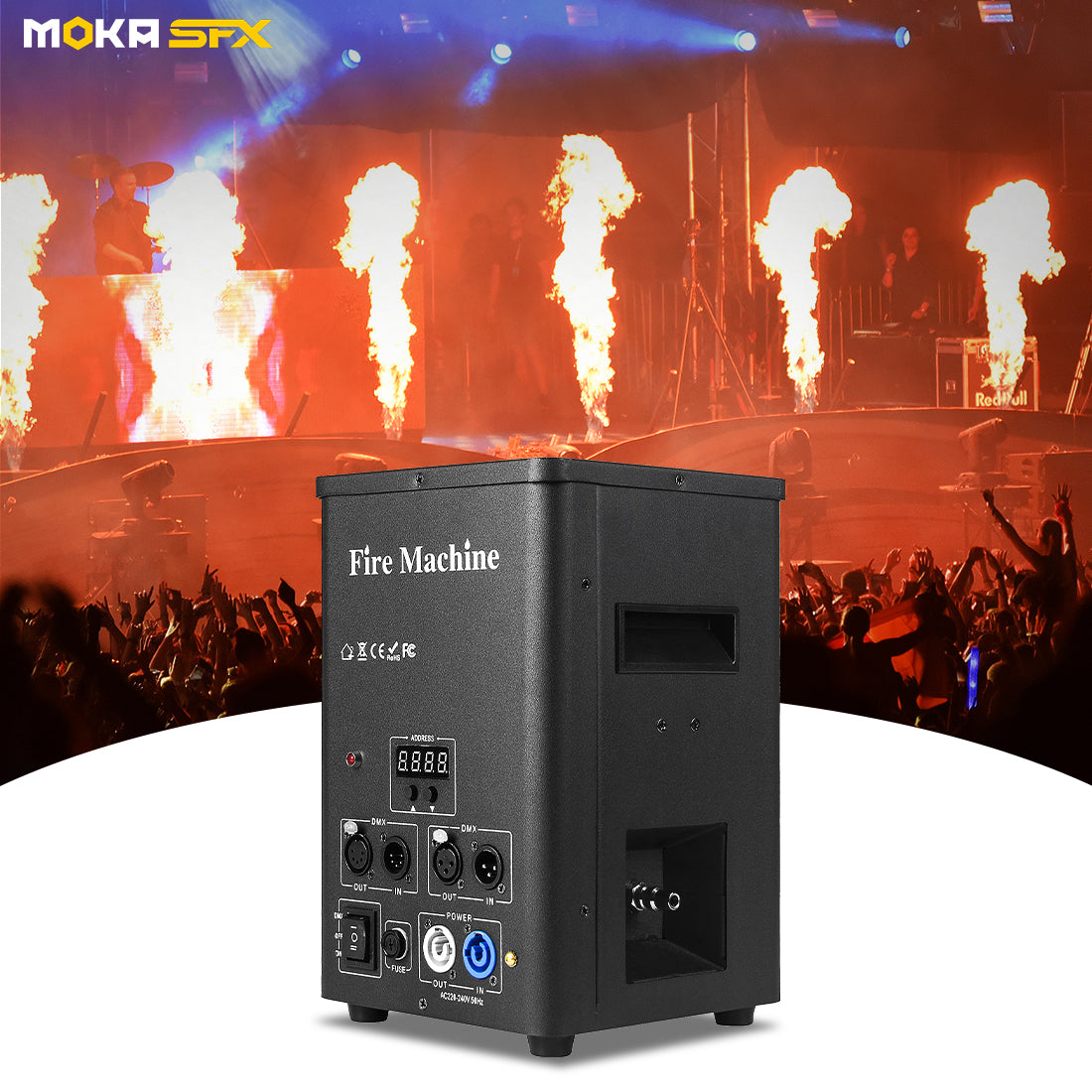

MOKA SFX H-E01A LGP Single Head Flame Machine

Description

• LPG Fire Machine for Stage Effects
  Ideal for small to mid-sized events, including concerts, clubs, festivals, DJ shows, weddings, parties, and live performances.
• Up to 2M Real Flame Height
  Creates powerful flame effects up to 2 meters high for high-impact stage performances.
• DMX512 & Electric Control
  Supports DMX512 and electric control for flexible professional operation.
• Safety Channel Protection
  Built with a safety channel to help prevent accidental flame output caused by mistaken DMX operation.
• Tip-Over & Shock Auto Shutoff Protection
  Automatically stops flame output when the machine tilts, falls, or is exposed to shocks, helping improve event safety.
• Uses LPG Gas Cylinder
  Connects to an LPG gas cylinder for stable real flame output, making it suitable for stage fire machine applications.
• High-Quality Valve & Ignition
  High-quality valve and ignition system provide fast, reliable, and efficient flame activation.

• PLEASE NOTE :

DMX controllers are not included with any machines. If needed, please purchase a DMX controller separately.

•  Recommended Controller:


MINI BATTERY DMX CONSOLE 24CHS BATTERY CONTROLLER

Technical Parameter

• Specifications :

• Packing List :

How to Use:

1. Connect the LPG gas cylinder to the flame machine securely with the gas pipe.

2. Connect the flame machine to the power supply and turn on the power switch. Connect the DMX signal cable to the machine and DMX controller, then set the DMX address. The machine will perform a DMX self-check, and the indicator light will flash. When the DMX signal cable is connected properly, the display will light up.

3. The flame machine is equipped with a safety channel. The machine can only work when Channel 1 is set between 100 and 155. Activate the safety channel, then use Channel 2 to spray flames.

4. After use, turn off the LPG gas cylinder first and release the remaining gas from the pipe.

5. Turn off the flame machine, then disconnect the power cord and DMX signal cable.

6. Wait 15 minutes until the machine has cooled down. Then disconnect the gas pipe and wipe the machine clean.

• Attention:

Please read the user manual carefully before using this product.

If the wind at the site is too strong during operation, the flame height may be affected. This is normal.

Shipping

• U.S. warehouse: 2-5 working days to U.S., 7-12 working days to other areas.
• Spain warehouse: 2-4 working days to Spain, 7-12 working days to other EU regions.
• Poland warehouse: 2-4 working days to Poland, 7-12 working days to the rest of the EU.
• China warehouse: 7-20 working days for direct shipment from China.
• The transportation type depends on the region, and it is uniformly displayed as international shipping.
• The goods will be sent out within 1-5 working days. After the logistics order number is generated, customer service will send an email to notify you. Please pay attention to the delivery status.
• If you have any questions, please leave a message.


Q&A

• Q: If I use this flamethrower, will it cause a fire, or cause the smoke alarm to go off?

           A: Our flame machine can be used indoors or outdoors, as long as it is kept at a relatively safe distance, it will not cause a fire or cause the smoke alarm to go off. And our machine is equipped with a safety channel, when the machine is tilted more than 45 degrees, the flamethrower will immediately stop working to improve the safety of use.

• Q: Do I need to get a security clearance to use your flame machine or spark machine?

           A: From the customers we have worked with in Europe, America, and other countries, there is no need to obtain security clearance to use our machines.

• Q: What should I do if the machine keeps working?

           A: First of all, please confirm that all procedures with normal operation. It is recommended to cut off the power and operate it again, if fails again, the cause may be the valve is broken. Please cut off the power, and replace a new valve.

• Q: What should I do if the machine just sprays oil and doesn’t catch fire?

           A: In this case, the angle of the ignition pin may be distorted, and the spray nozzle may not be aligned so that the spark cannot be ignited by the ignition pin when the fire spark comes out. Please try to adjust the angle of the ignition pin to align the nozzle and try again.

• Q: If the products are broken during the warranty, what should I do?

           A: Don’t worry, MOKA SFX has a professional foreign trade team and helps you to solve all problems with our products in time. Please send us pictures or videos if there is a problem with the products. We will guide you on how to fix it and provide spare parts for free if needed.

• Q: What are the control modes of the flame machines?

           A: DMX Control and Electric control (H-E01, H-E02)

                  DMX control means connecting the DMX cable and then through the DMX controller to control the machine.

                  Electric control means turning on power then working, turning off power then stopping working.

• Q: What is the control mode of H-E04?

           A: Control by DMX.

• Q: What is the safe channel?

           A: When you use the DMX controller to control the machine, channel 1 is a safety channel with values of 102-153 open, indicating the fire projector safe channel is open and the machine can work.

• Q: What is the dumping switch?

           A: When the machine tilts over 45°, the power will be cut off automatically and the flame projector stop working instantly, ensuring the security of the event.

• Q: How high can the spray be?

           A: H-E01: Spray1-3M;

               H-E02: Spray2-4M;

               H-E03: Spray1-3M;

               H-E04: Spray5-6M;

               H-E05: Spray1-3M;

               H-E01A: Spray1-2(LPG Flame machine);

               H-E03A: Spray1-2M(LPG Triple-head flame machine ).

• Q: Which flame machine can spray the highest? How many meters can it reach?

           A: New Four Heads Flame Machine H-E04. 4 bottles of flame oil working together, enough pressure can spray 5-6M.
