Description
-
Powerful Lighting Effects
RGB LED with stunning 3D abyss mirror effect, Equipped with 5050 LED chips, offering high brightness, long lifespan, and a wide range of vibrant colors.
-
Multiple Control Methods
Compatible with SD (music/DMX), PC, MADRIX, and remote control for flexible and professional lighting control. -
Durable & Waterproof Design
IP65 waterproof rating with high-strength tempered glass, supporting up to 500kg/sqm for safe and reliable use. -
Flexible Installation Options

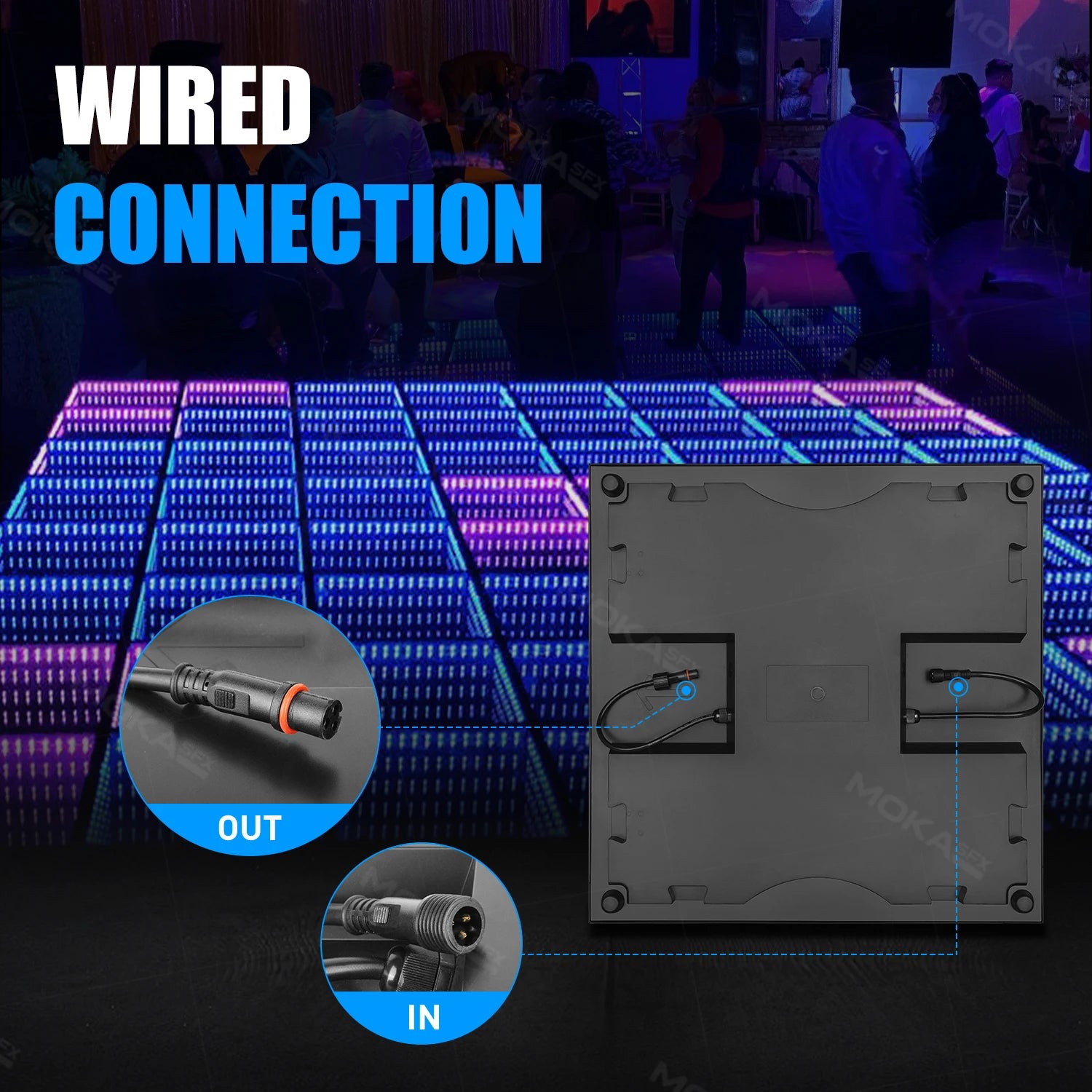

Supports Cable connection, making setup fast, stable, and adaptable to different venues.
-
Stable Signal & Smooth Performance
Built-in circuit connection ensures more stable signal transmission and uniform color transitions across all panels. -
Customizable Solutions
Custom sizes, layouts, and waterproof designs available to fit your specific project needs. -
Safe Packing & Easy Reuse

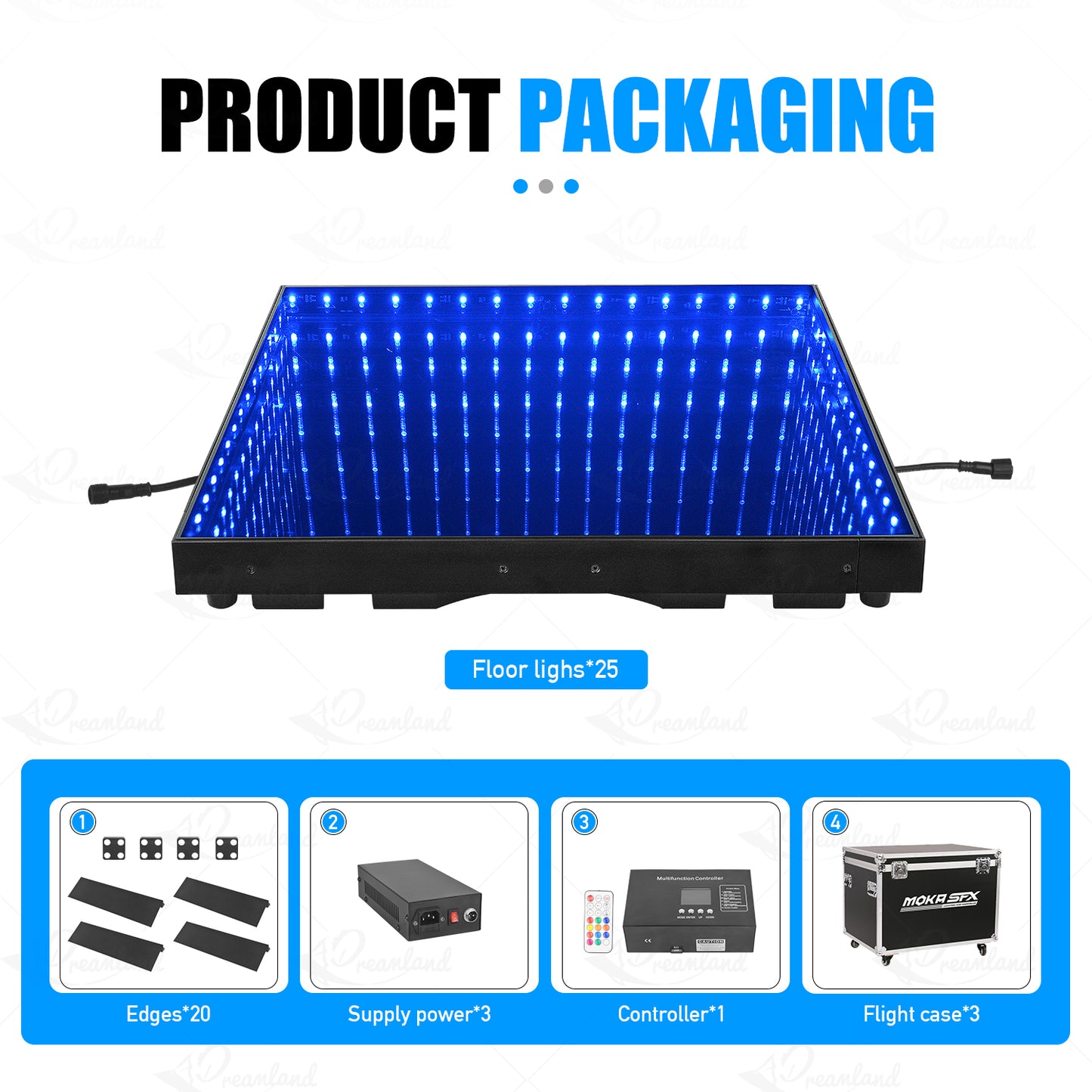

Packed in durable flight cases for protection, with removable installation for repeated use. Full logistics tracking provided.
Technical Parameter
Specification:
| Attribute | Details |
|---|---|
| Panel Size | 50 x 50 x 7 cm |
| Voltage | 90-240VAC, 50/60 Hz |
| Power | 12W |
| Color | RGB 3IN1 |
| LED Quantity | 60 pcs 5050 SMD |
| Life Span | ≥ 100,000 hours |
| Surface Board | 10mm tempered glass |
| Base Material | ABS plastic |
| Control Mode | DMX, SD, Auto, Sound Control |
| Control Channels | 7CH |
| Waterproof | IP55 |
| Load Bearing | 500kg/m² |
| Net Weight (N.W.) | 9.3 kg |
How To Use
- How to install Your MK-LD03C LED Dance Floor Panel (wired)?
Please watch the video：
Q&A
Q1: What should I consider when choosing a dance floor venue?
A: Make sure the space fits your guest count, has proper lighting, and a flat surface. Leave enough room for the dance floor without affecting the overall layout.
Q2: How does the LED dance floor work?
A: It uses LED lights and mirrors to create a 3D infinity effect. Light reflects between mirrored layers, producing deep, multi-dimensional colors.
Q3: Is the dance floor durable and scratch-resistant?
A: Yes. It’s made of double-layer tempered glass, supports up to 500 kg/m², and is highly scratch-resistant. Avoid sharp debris like gravel on shoes.
Q4: Is it non-slip and waterproof?
A: Yes. It features a non-slip surface and IP55 waterproof rating, safe for indoor use—even with spills. Higher waterproof levels can be customized.
Q5: How heavy is the product and how is it shipped?
A: 25 pieces weigh about 746 lbs and are shipped by truck. A phone number is required for delivery scheduling.
Q6: How long does shipping take?
A: 2–4 days for CA & Texas orders. Other locations typically take 5–10 days.
Q7: How do I clean the dance floor?
A: Simply use clean water and a soft cloth.
