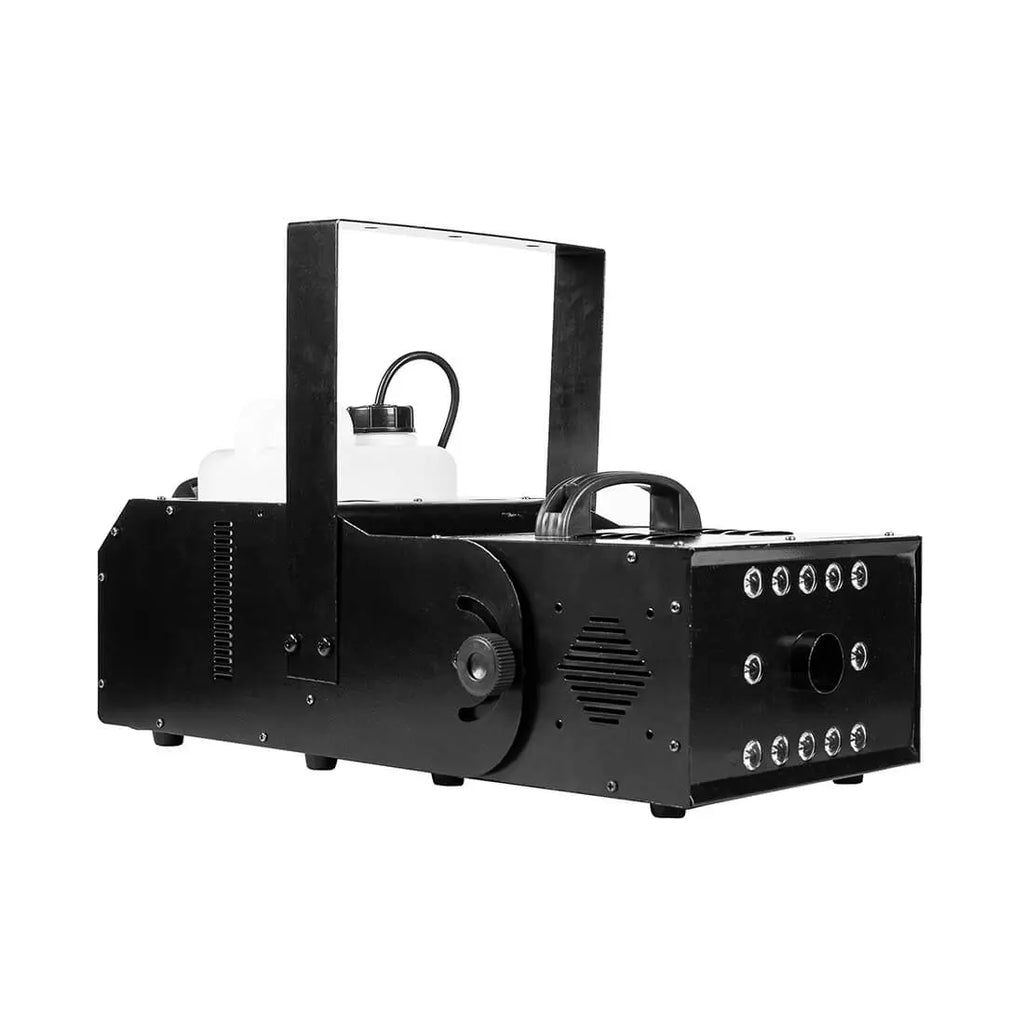

- DMX512/Remote control two control modes, easy to operate.
- The smoke machine outlet is 180 degrees angle adjustable， it can be placed anywhere in the party.

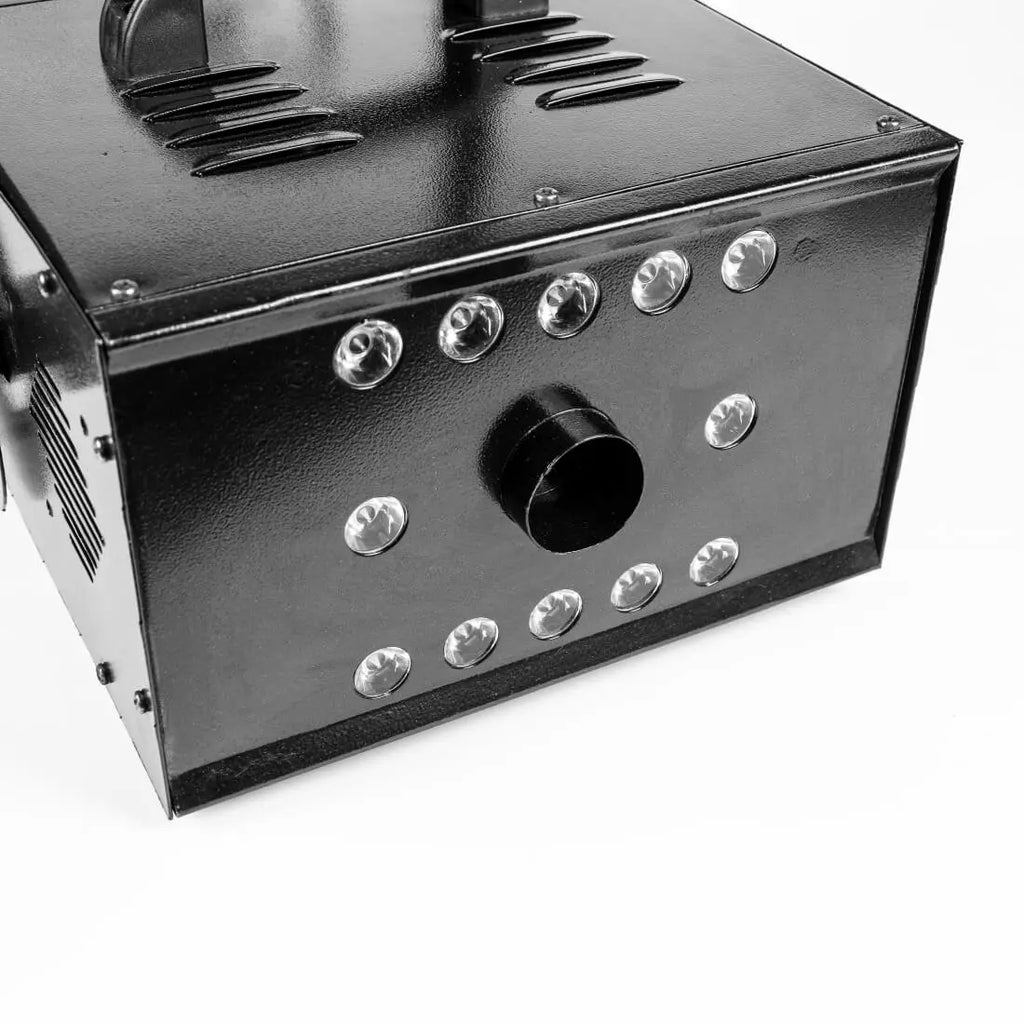

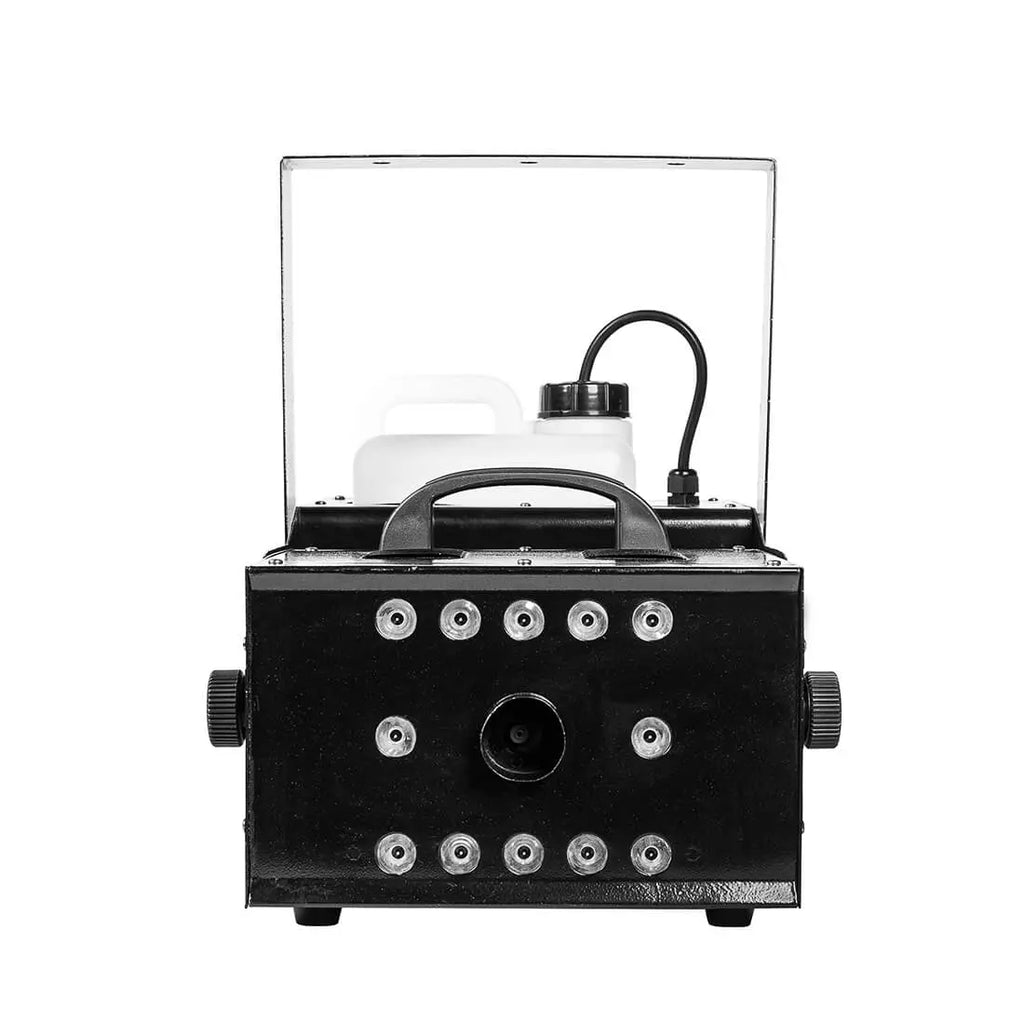

- The color fog machine is equipped with 12 high brightness led lamp beads to produce colorful fog.
- Machine heating time is only 40 seconds and spray distance can reach 8-10 meters.
- The fog machine has inbuilt electronic temperature control and mechanical temperature control that helps turn off the machine when it reaches the heating point.

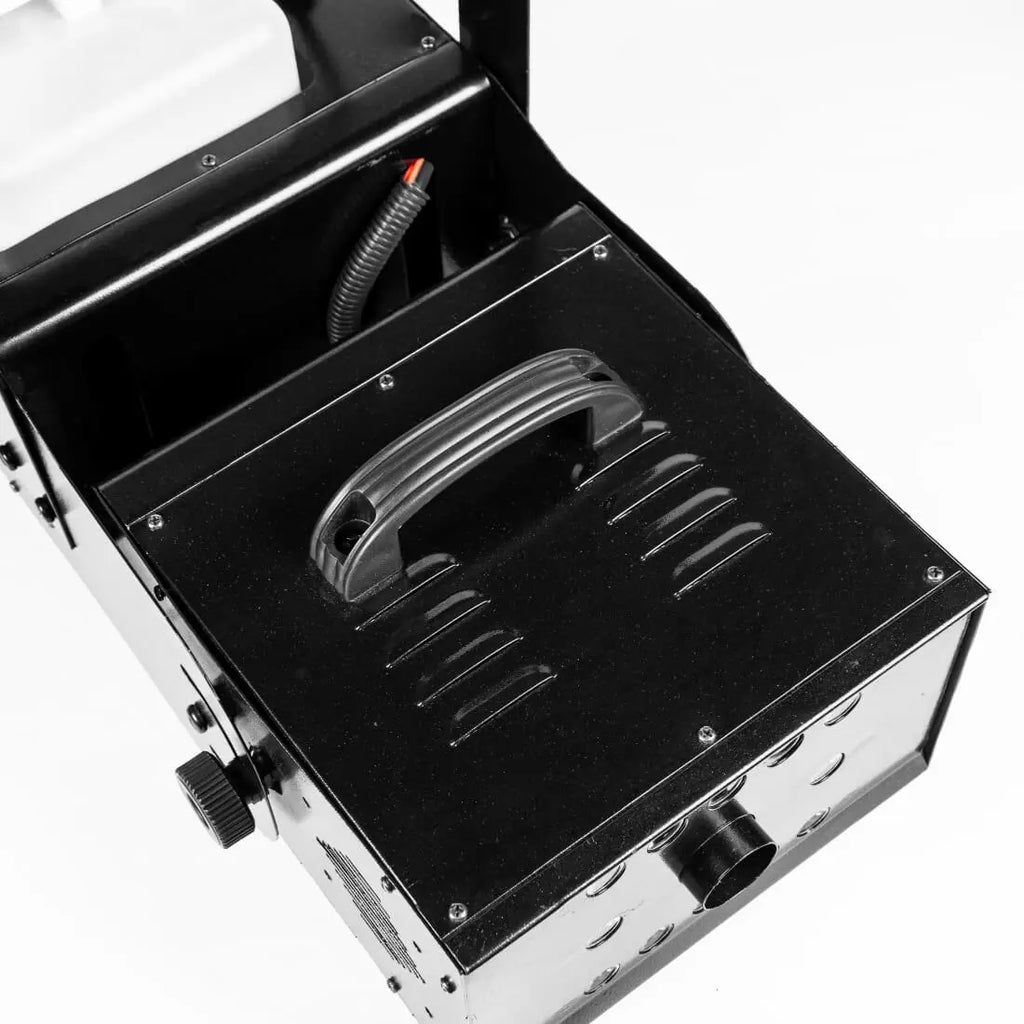

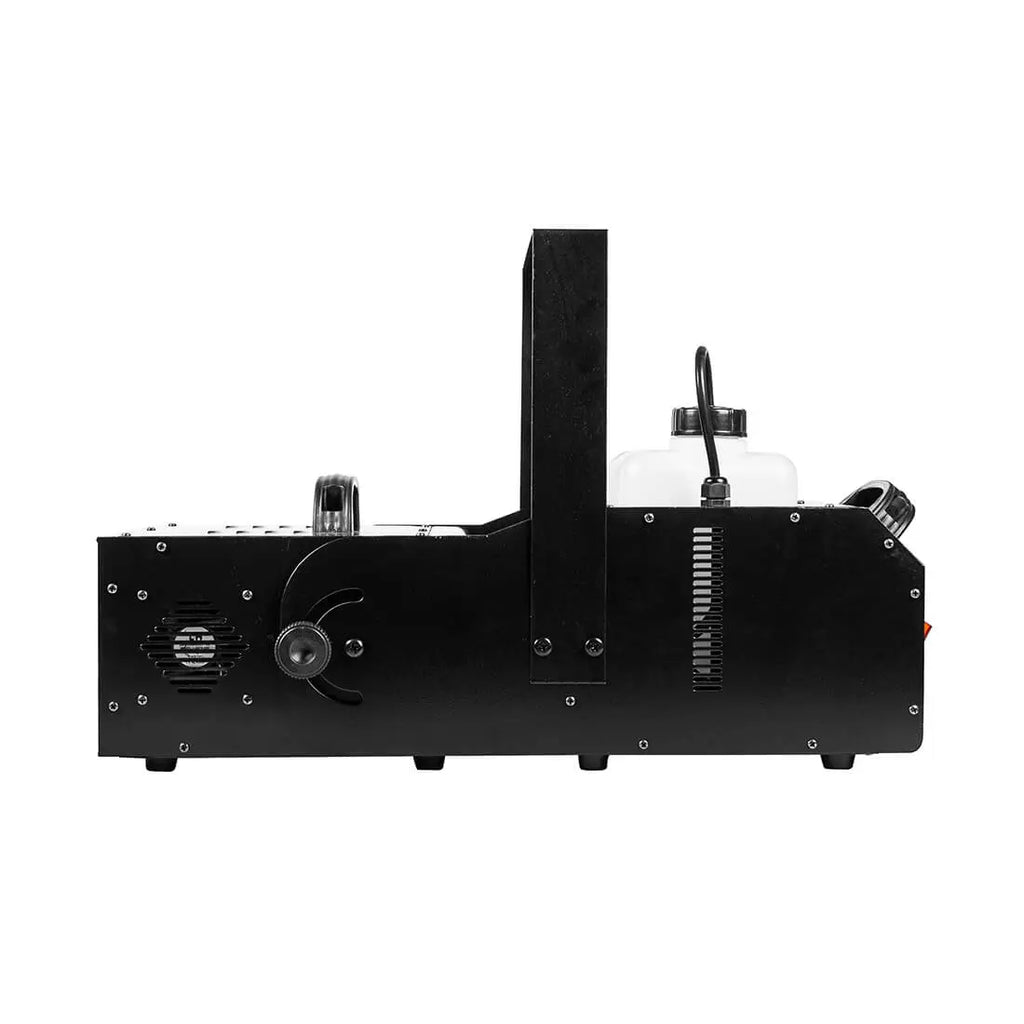

1. The angle of the baffle can be manually adjusted to control the smoke output angle.

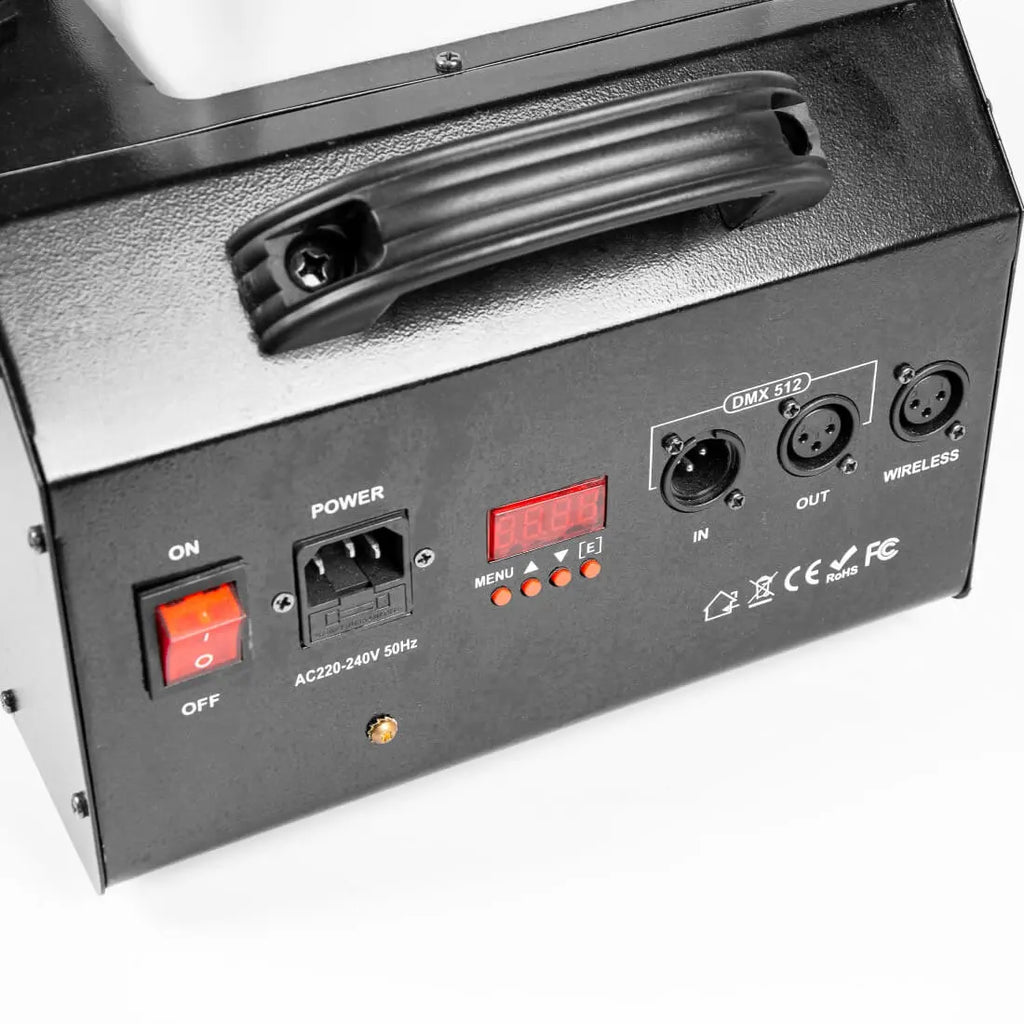

2. Support LCD control, 3 pin XLR & 5 pin XLR DMX512 control, remote control.

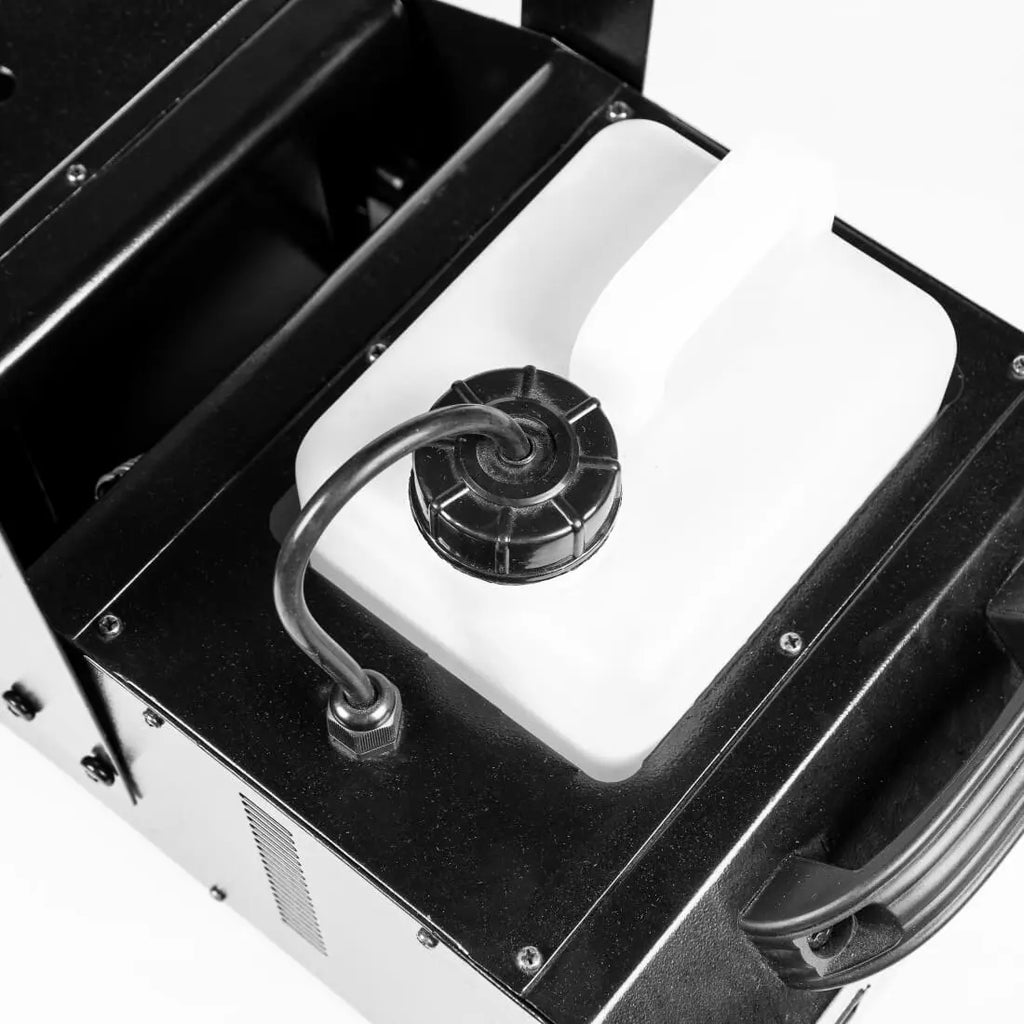

3. The oil can is installed externally for quick oil refill, and the built-in luminous lamp is convenient for operation and visualization at dark.
4. Smoke volume and speed adjustable.
5. Large Tank Capacity, Fuel-efficient.
6. Fast Heating and Quick Recovery.
Voltage: ac110v/220v, 60hz/50hz
Led: 12pcs x 3w
Tank capacity: 2.5l
Smoke output: 20000 clipping/min
Heating time: 6 minutes
Exit distance: 8-10m
Exit time: 30-40s
DMX channel: 6
Control: dmx 512/remoto
Packing size: 54x32x32cm
Packing weight: 11.5kg
- Packing list for each unit:
1pcs fog machines
1pcs dmx cables
1pcs power cables
How To Use
- Steps To Use:
1. When you receive the machine, open the package and check if the machine is damaged or if the accessories are missing, if there is any problem, please contact the supplier.
2. This product can be installed in a high place (with a hanger) or put on the ground.
3. Keep the fog machine flat, do not tilt or flip it over. Before connecting the machine to the main power supply for the first time, you must fill the liquid tank with high-quality fogging liquid and check that the nozzles are clean and unobstructed.
4. Before connecting the power supply, you should check whether the power supply you use is suitable for the fog machine.
5. The power cord should be plugged into a grounded power outlet, put the switch on "ON", then the fog machine starts to heat up, after the heating is complete, you can spray.
6. Connect the controller to the fog machine, then you can control the fog machine through the controller.

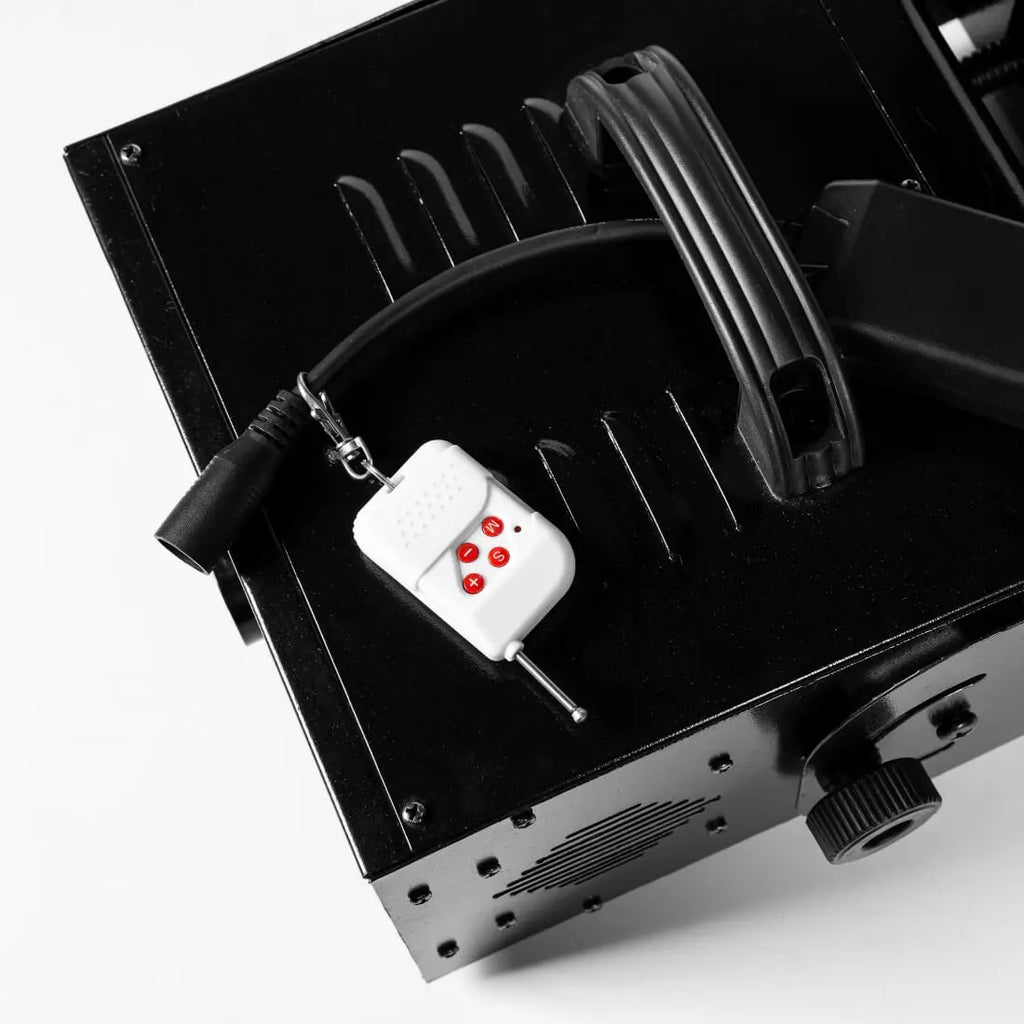

7. Remote control key functions: S button control pump, M is the LED mode (menu) key, “+” and “-” are the key of changing color or strobe speed key.
- LED Remote Control :
1. Remote control key functions, S button control pump, M is the LED mode (menu) key, “+” and “-” are the key of changing color or strobe speed key.
2. Powered fog machine to normal operation state, press any key can light LED lamps, when the warm-up finishing, then the pump will start to work.
3. Press and hold the M button for 2 seconds, when the LED lamps flash off instantly, press + or - to change color and strobe speed. Each time press the M button to go into the next mode, there are 4 modes available: monochrome, monochrome strobe, full-color change, and full-color strobe. When selecting the mode of LED, press M, +, or - can not control the pump, only the S button can control the pump.
4. After selecting the LED mode, press and hold M for 2 seconds to make the LED off momentarily, then the selected LED mode has been saved.
- 5 DMX Channels Control :
Channel 1: control the pump
Channel 2: led full-color strobe, full-color changing
Channel 3: green light
Channel 4: blue light
Channel 5: red light
- U.S. warehouse: 2-5 working days in the U.S., 7-12 working days in other areas.
- Spain warehouse: 2-4 working days in Spain, 7-12 working days in other EU regions.
- Poland warehouse: 2-4 working days in Poland, 7-12 working days in the rest of the EU.
- China warehouse: 7-20 working days for direct shipment from China.
- The transportation type depends on the region, and it is uniformly displayed as international shipping.
- The goods will be sent out within 1-5 working days.After the logistics order number is generated, the customer service will send an email to notify you. Please pay attention to the delivery status.
- If you have any questions, please leave a message.
- Q: What is the spray height of the fog machine?
A: The spray height of this machine is about 8-10m
- Q: What is the continuous output time of this machine?
A: One spray time is 40 seconds, with an interval of 10 seconds
- Q: What’s the control mode?
A: Electric and manual control
- Q: How long is the warranty?
A: Yes we provide customize logos. The warranty period of our machine is one year. If the machine is broken, you can send us a video first. And our technical department will check the machine for problems. If it is a problem with the parts, we will send you the parts that need replacement.
- Q: How large is the oil bottle of the machine? How long can it be used?
- Q: Will the machine stop working automatically when it runs out of liquid?
A: Yes, our machine has electronic and mechanical temperature control. If the oil is used up or the temperature of the machine is too high, the machine will stop working automatically.
- Q: How much can the angle be adjusted?
A: 180-degree free adjustment
- Q: How long does the machine take to heat for the first time?
A: Heating for 7-8 minutes for the first time, continuous spraying for 40 seconds, heating for 10 seconds at intervals, spraying for more than 10 seconds (the longer the interval heating time is, the longer the spraying time will be)
- Q: What liquid is used in this machine?
A: Our light tobacco tar, heavy tobacco tar, and fast scattered tobacco tar can all be used on this machine.
- Q: Can remote control mode control the smoke and lights?
A: Yes, you can
- Q: Can the machine smoke output be timed and quantified?
A: Built-in dual temperature control, you can control the time of smoke and the amount of smoke out
- Q: Can the machine be upside down?
A: Yes, also can freely adjustable angle
- Q: How do I maintain the machine?
A: Clean the fog machine regularly to maintain ventilation. The machine can be cleaned with water and white vinegar in the proportion of 1:20 instead of oil
- Q: Why the oil pump and heating rod are blocked?
A: When the machine uses impure fog liquid for a long time, impurities will easily block the holes of the heating rod, which will cause the heating rod to burn out. Instead, the fog liquid we mixed is not easy to be broken, because our fog liquid is mixed with pure water.
- Q: How to guarantee quality? (explain separately with our liquid and without our liquid)
A: If the accessories are blocked by our tobacco tar, we can replace them for free;
If you are not using our oil, which causes the parts to be blocked, you need to replace it at your own expense.
