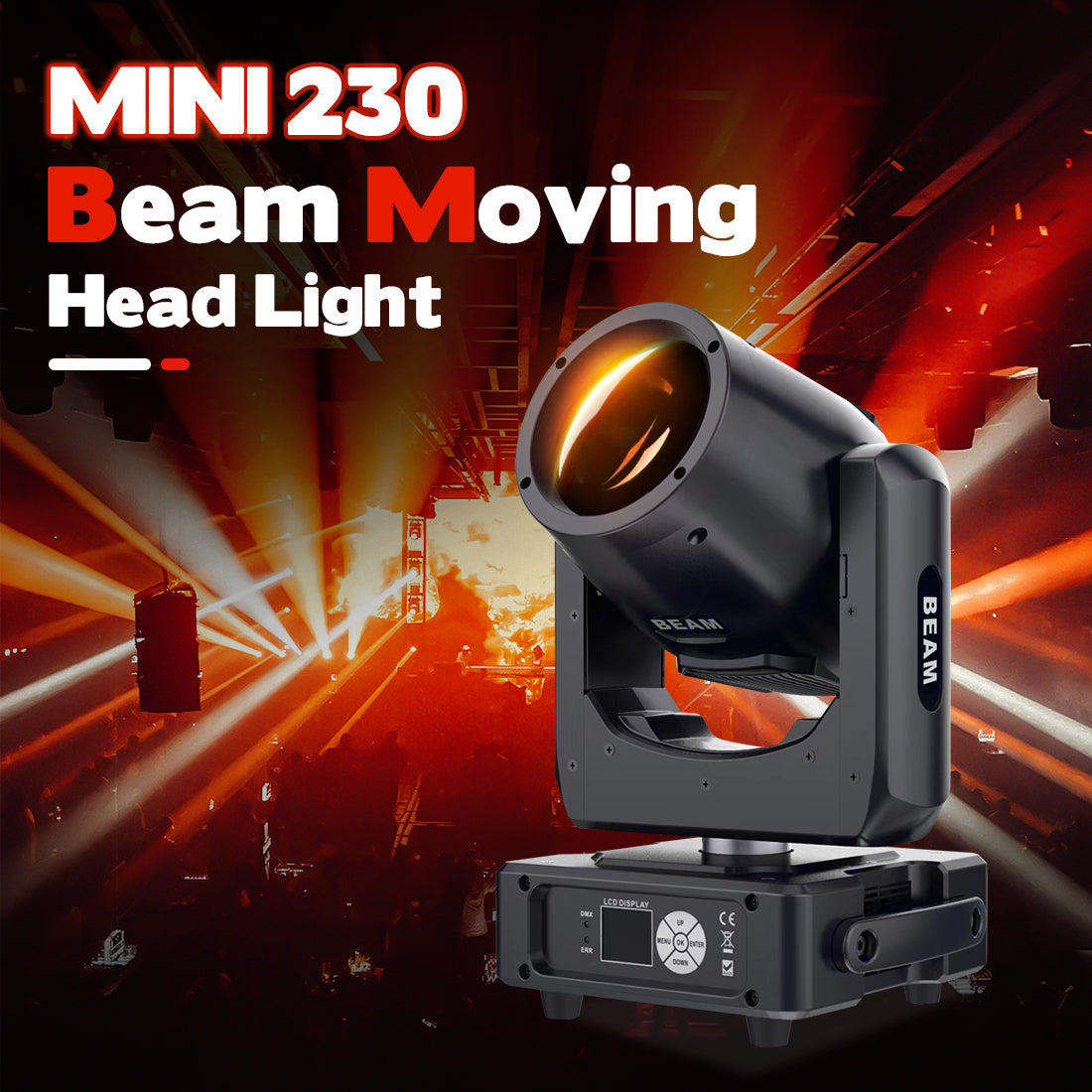

- Compared with the old 230 7R, this 230 mini is smaller in size, higher in brightness
- It is very suitable for spaces with a floor height of 5-6 meters such as music dining bars and small bars

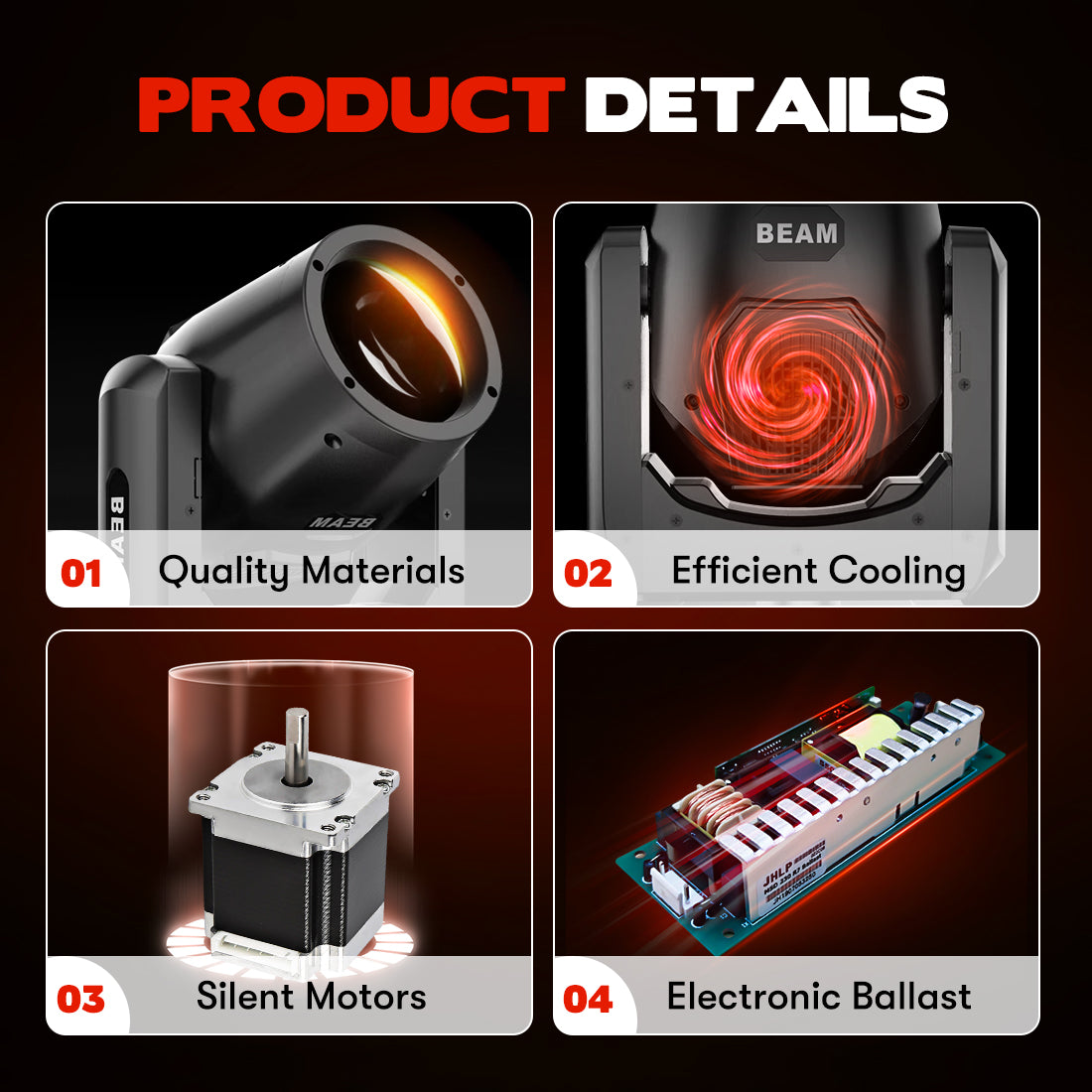

- The electronic rectifier makes the product lighter in weight, stronger in brightness, more stable in the bulb, more environmentally friendly, and energy-saving.
Power supply: AC110-240V, 50/60Hz 250W sufficient power supply
Light source: custom 5R bulb, custom lamp, average lifespan: 1500-2000H
Strobe: High number of strobes 1-15 times per second strobe switching, random strobe, and pulse strobe can be selected
Atomization: 0-100% linear atomization
Focus: linear focus Dimming: 1-100% linear adjustment
Optical lens: 6-layer high-definition color-coated lens
Light aperture: 128mm
Beam Angle: Parallel Beam Angle: 2.1-3.2 degrees
Prism: 8 prisms
Color: 1 fixed color wheel, 13 colors + white light, adjustable speed of the rainbow effect, half-step color effect
Fixed picture: 1 fixed gobo wheel, 14 gobos + white light, two-way variable speed rotation
Horizontal scanning: 540 degrees (160bit precision scanning) electronic error correction.
Vertical scanning: 250 degrees (160bit precision scanning) electronic error correction.
Channel mode: 16 international standard DMX512 channels, master-slave mode.
Display: color display
Heat dissipation: whole machine full ball fan (three defenses)
Number of motors: a total of 9 ultra-quiet motors
Appearance: high temperature resistant plastic + molded alloy material

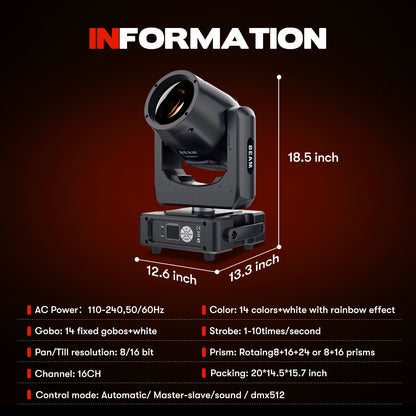

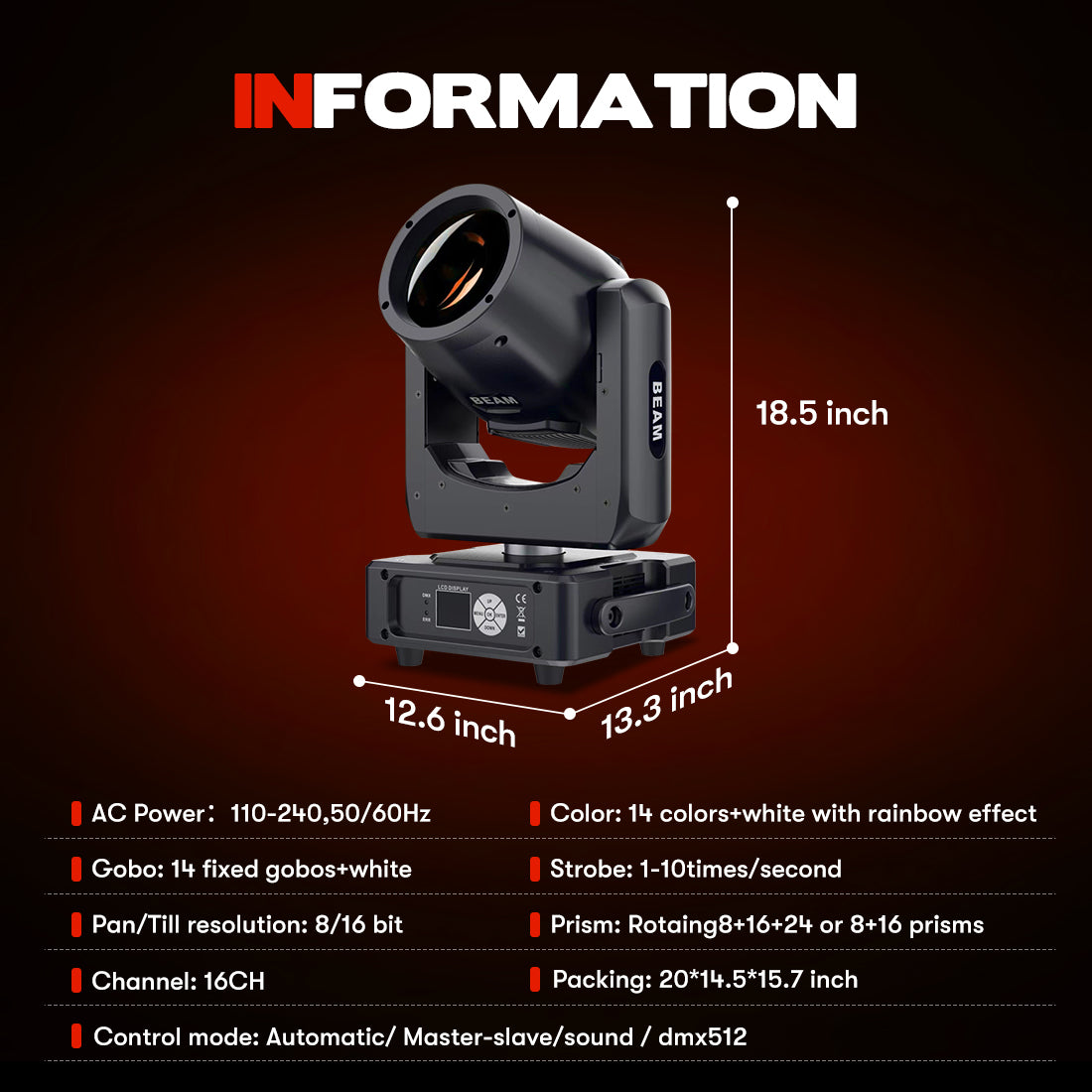

Product size: bottom length 28cm bottom width 23cm lamp body height 46.5cm
Packing size: 51.5*37*40.5CM
Gross weight: Net weight: 10.35kg
How To Use
The manual will be with the machine, if the manual is missing, please leave a message on the website, and we will contact you as soon as possible
- China Warehouse: 7-20 working days for direct shipment from China.
- The transportation type depends on the region, and it is uniformly displayed as international shipping.
- The goods will be sent out within 1-5 working days. After the logistics order number is generated, customer service will send an email to notify you. Please pay attention to the delivery status.
- If you have any questions, please leave a message.
