- DMX 512 controls, the flame machine is with the newest design of 4 shots.
- The fire machine with high-quality valve and ignition,99% successful ignition rate.
- With a safe channel, the flame projector will not jet the fire if you touch the Dmx controller by mistake.
- The type of fire machine creates a splendid and beautiful flame, the height of the flame can reach 6 meters (19.7 feet).
- Safety sensor component, the power will be cut off automatically and the flame projector will stop working instantly when it drops down.
- Product Features:

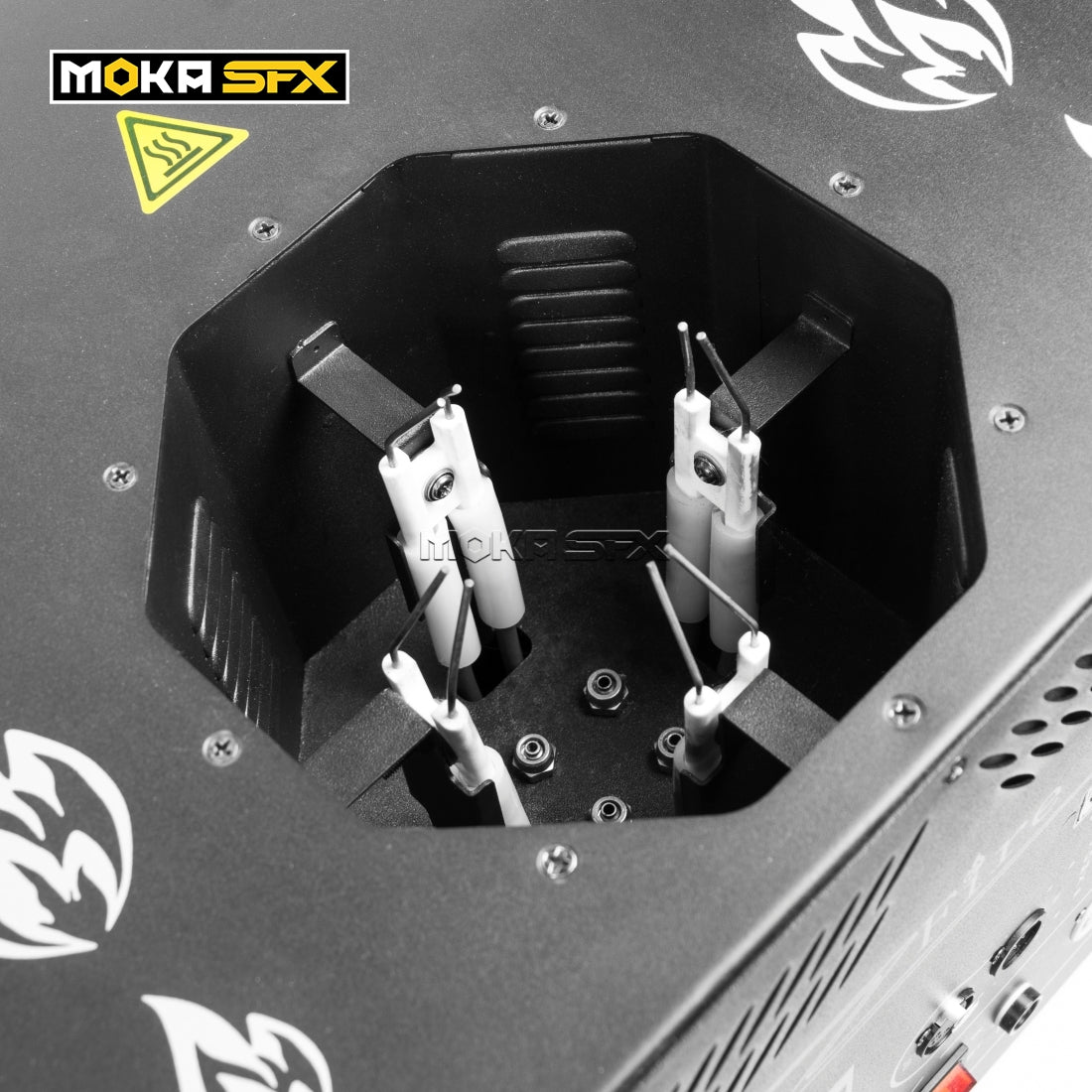

1. The flame machine is the professional phase effect equipment with the newest design of 4 shots with DMX 512 control is easy to control.
2. The fire machine with high-quality valve and ignition,99% successful ignition rate.
3. The type of fire machine creates a splendid and beautiful flame, the height of the flame can reach 6 meters (19.7 feet). Its flames are designed as if the explosion of the atomic bomb can bring the show to the climax.
4. This can be suitable for various television performances, large outdoor disco shows,s and concerts, parties, etc. It is an important part of stage effects.
5. With a safe channel, the flame projector will not jet the fire if you touch the Dmx controller by mistake.
6. Safety sensor component, the power will be cut off automatically and flame projector will stop working instantly when it drops down.
7. 3-pin and 5-pin dmx in/out Improve signal transmission.
- Specifications :
Power: 180 W
Voltage: 110 v, 220 v ~ 250 v 50/60 Hz
Control Mode: DMX512
Sprayer flame height: 6 m (19.7ft)
Package dimensions: 45x40x39cm
Gross weight: 13 kg
Color: fire red (depends on the color of the fire oil)
Product warranty: 1 year
Certificate: CE, RoHS, fcc certified
Dmx channel: 7 CHS
Channel 1: safety channel (value 100-150, the safe channel will be on)
Channel 2: spray no.1
Channel 3: spray no.2
Channel 4: spray no.3
Channel 5: spray no.4
Channel 6: spray 4 flames together
Channel Value 7 1-125: Spray no. 1 no. 2 no. 3 and no4 from slow to fast
Value 126-255: Spray no 4, no 3, 1 no2, and no3 from fast to slow
- Packing List:
1pc Fire machine dmx
1pc Power cord
1pc dmx cable
1pc Manual book
- Hot Tip:
The fire machine can work with fire oil. however, fire oil is defined as a flammable and explosive item, so are forbidden to ship it, you can get the fire oil in your own country.
How To Use
- Steps To Use :
1. Please Open the door of the flame machine, put 4 bottles of flame liquid cans on the holder, ensure the liquid can be fixed correctly. The next step closes the door of the flame machine.
2. Please connect the power supply for the flame machine, Open the switch. Connect with DMX signal cable machine and DMX controller, Set the DMX address. the machine will be DMX self-inspection, and the detection lamp will flicker. When contact with the DMX signal cable, the display will light up. Otherwise, the display will not bright.
3. After you have readied the Hi Flame Machine and set the DMX addresses properly, you are clear to operate the Hi Flame Machine.
4. You previously set a “safety” channel for the Hi Flame Machine so that the device should still be in safety mode. You now take it out of safety mode by setting channel 1 to between 100 and 155. The Indicator light of the Hi Flame Machine will start blinking in turn.
- Attention: Before using this product please first read the operating guide.
- U.S. warehouse: 2-5 working days in the U.S., 7-12 working days in other areas.
- Spain warehouse: 2-4 working days in Spain, 7-12 working days in other EU regions.
- Poland warehouse: 2-4 working days in Poland, 7-12 working days in the rest of the EU.
- China warehouse: 7-20 working days for direct shipment from China.
- The transportation type depends on the region, and it is uniformly displayed as international shipping.
- The goods will be sent out within 1-5 working days.After the logistics order number is generated, the customer service will send an email to notify you. Please pay attention to the delivery status.
- If you have any questions, please leave a message.
- Q:Where can I buy fuel?
A:Websites for buying kerosene in various countries:
- Q: If I use this flamethrower, will it cause a fire, or cause the smoke alarm to go off?
A: Our fire-breather can be used indoors or outdoors, as long as it is kept at a relatively safe distance, it will not cause a fire or cause the smoke alarm to go off. And our machine is equipped with a safety channel, when the machine is tilted more than 45 degrees, the flamethrower will immediately stop working to improve the safety of use.
- Q: Do I need to get a security clearance to use your flame machine or floral sprayers?
A: From the customers, we have worked within Europe, America, and other countries, there is no need to obtain security clearance to use our machines.
- Q: If the products are broken during the warranty, what should I do?
A: Don’t worry, MOKA SFX has a professional foreign trade team and helps you to solve all problems about our products in time, first please send us pictures or videos If there is a problem with the products. We will guide you on how to fix it and provide spare parts for free if needed.
- Q: How high can spray?
H-E01A:Spray1-2(LPG Flame machine);
H-E03A:Spray1-2M(LPG Triple-head flame machine )
- Q: What are the control modes?
A: DMX Control and Electric control
DMX control means connecting the Dmx cable and then through the Dmx controller to control the machine.
Electric control means turning on power then working, turning off power then stopping working.
- Q: What is a safe channel?
A: When you use the Dmx controller to control machine, The channel 1 is a safety channel which values of 102-153 open, when the fire projector safe channel open. By the way, MK-E06 H-E02, H-E01 H-E01A, MK-E02 MK-E02A, these items need to turn on the power first.
- Q: What's the spray called? Chemical composition?
A: Flame Oil, Flame Liquid Animal repellent Air freshener.
Flame oil composition： Methanol 60%, White mineral oil 20%, Butane 15%, Spices 5%.
Color Flame oil composition: glycerin 40% ,Silicone oil 30% , Butane 20% , Pigment 5% , Spices 5%.
- Q: How long will spray for one bottle can be used?
A: After confirming with the factory,200ml for one flame bottle = Approx 60-70 seconds of output.
- Q: What is the dump switch?
A: The power will be cut off automatically and the flame projector stop working instantly when it falls down, ensuring the safety of the event.
- Q: Where can I buy flame oil?
A: Can be purchased from your local market and Amazon,eBay.
①USA Market: pls check the link from amazon https://www.amazon.com/Valvoline-602373-11-Starting Fluid/dp/B00PWLS7HU/ref=mp_s_a_1_5?ie=UTF8&qid=1545973834&sr=8-5&pi=AC_SX236_SY340_QL65&keywords=valvoline+starting+fluid&dpPl=1&dpID=31dshM48ZhL&ref=plSrch
②Europe: pls check the link from amazon for reference https://www.amazon.de/dp/B007VMGD7E/ref=cm_sw_r_wa_api_i_Y-R5CbDJ8WX0E
- Q: What should I do if the machine keeps working?
A: First of all, please confirm that all procedures with normal operation, it is recommended to cut off the power and operate again, If fail again, The cause may be a broken valve, please cut off the power, Replace the new valve.
- Q: What should I do if the machine just sprays oil and doesn’t catch fire?
A: In this case, the angle of the ignition pin may be distorted, and the spray nozzle may not be aligned so that the spark cannot be ignited by the ignition pin when the fire spark comes out. Please try to adjust the angle of the ignition pin to align the nozzle and try again.
- Q: What is the control mode of H-E04?
A: Control by DMX
- Q: Which one flame machine is sprayed highest? How many meters can it reach?
A: New Four Heads Flame Machine H-E04, 4 bottle flame oil can working together, enough pressure can spray 5-6M
