MOKA SFX H-F01 1500w Hi-Super Jet LED Fog Machine Instant Stop Dmx/Remote Control

Description

• The super jet fog machine has three operation modes: panel control, remote control, and DMX control.
• The fog machine is equipped with 32 3-watt RGB lights, which can change the color of the fog, making it brighter and more colorful.
• The machine only requires 4 minutes for preheating, during which the smoke output will reach 32,000 cubic feet per minute, and the reheating time is only 40 seconds.
• The spraying distance can reach 6-8 meters, bringing you powerful and captivating effects.
• The liquid consumption rate of the LED machine is 1 liter per hour, indicating that one liter of liquid can help you enjoy approximately 60 minutes of activity.

Technical Specifications

• Features:

1. Developed an independent motherboard to resist signal interference.
2. Oil-free protection device, which prevents damage to the machine.
3. Larger oil pump for increased smoke output and faster speed. Utilizes rapid dispersion of smoke oil for better effectiveness and quick spraying.
4. Equipped with a temperature control patch for more accurate temperature regulation.
5. Preheating time only takes 4 minutes, with large smoke output and smoke column reaching up to 8 meters.
6. 32 high-brightness 3W LEDs, remote-controlled to set the color of the smoke spray, creating a dazzling and colorful effect.
7. operation panel for convenient operation can be used upright, inverted, or sideways for versatile applications.
8. It has a smoke-stop function, allowing the smoke to stop instantly with no residual smoke, achieving an effect closer to a column of air.

• Specifications：

          Power：1500W

           Voltage: 110V 50Hz/220V 60Hz

          Heating Time: 5 minutes.

           Water Tank Capacity: 2.5 liters.

          Fuses: 10A, 15A.

          Fluid Consumption (100% output): 18000 cu ft/min.

          Control Modes: DMX 512, Wireless Remote Control

          Smoke Distance: 8-10 meters

          Net Weight: 12kg

          Gross Weight: 13.5kg

          Fog: 8 seconds

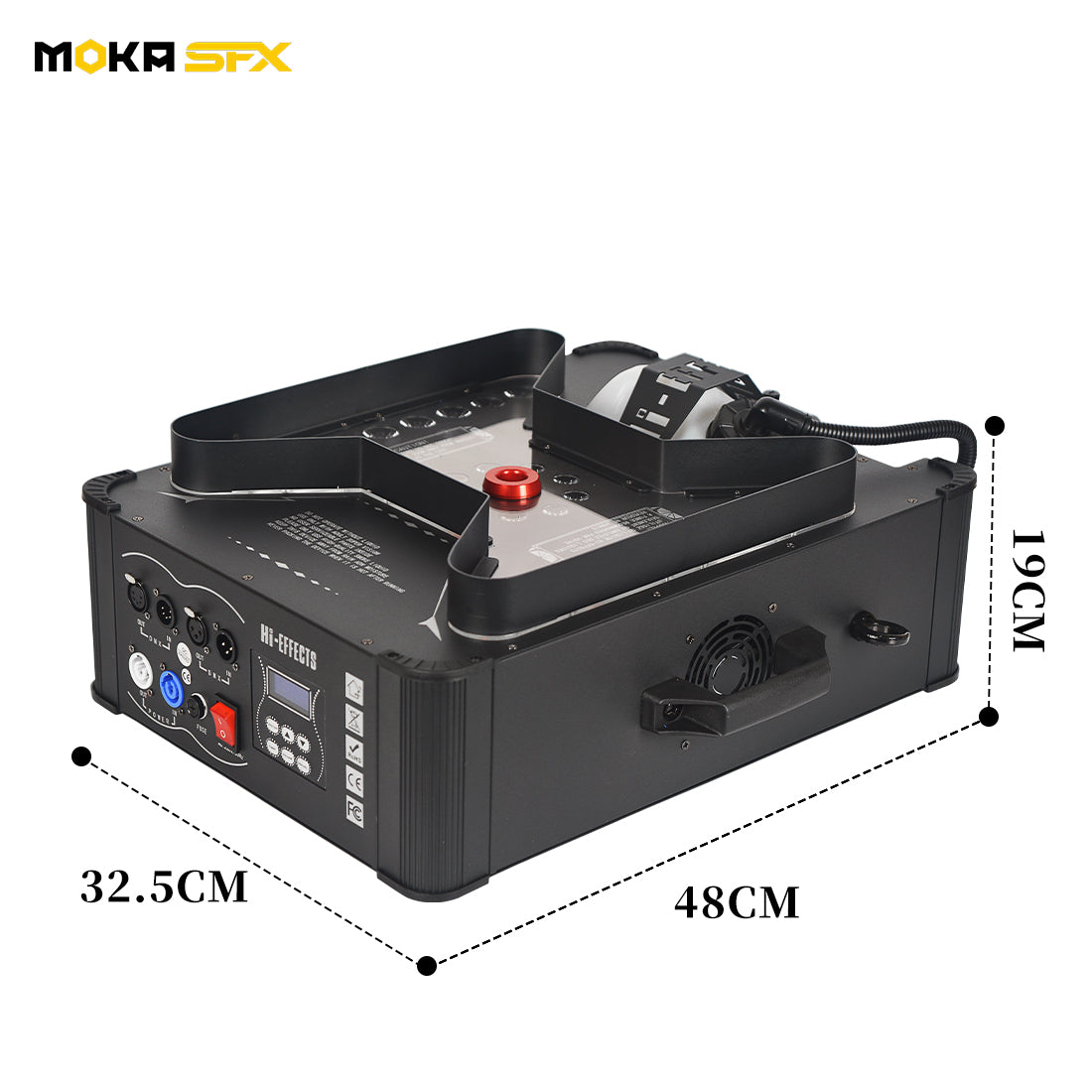

           Dimensions: 494220cm

          Package dimensions: 55.54928cm

• Remote control function:

            1. Change the fog working pressure of the compressor to red

            2. Activate the fog operation of machine BB with the color set to green.

            3. Activate the fog operation of machine CC with the color set to blue.

            4. Activate the fog operation of machine D with the RGB color scheme.

• DMX channels：

             1. Fog operation, value 0-9 stops operation, 10-255 adjusts fog output

             2. Color full, value 0-9 turns off all colors, 10-255 adjusts brightness.

             3. Circle red, color 0-9 close, 10-255 adjust circle red.

             4. Circle green, next color 0-9, 10-255 adjust circle green.

             5. Circle blue, adjacent color 0-9, 10-255 adjust circle blue.

             6. Line red, following colors 0-9, 10-255 adjust line red.

             7. Line green, following colors 0-9, 10-255 adjust line green.

             8. Line blue, next color 0-9, 10-255 adjust line blue.

             9. Gradient color change, stop operation 0-9, light up 10-255 faster.

            10. Color jump, stop operation 0-9, light up 10-255 faster.

             11. Strobe function, stop operation 0-9, light fast 10-255.

How to use

• Steps for Use：

1. Step 1: Wait for the preheating time to reach 4 minutes. Reheating only takes                    40 seconds.
2. Connect the remote control to the connector socket on the device's control panel.
3. Press the button corresponding to the desired color on the LED effect ring to trigger the fog output combined with the desired color, with a duration of approximately 12-15 seconds.
4. To stop the fog output in advance, press any button on the remote control.
5. Press the main switch while turning off the power.

• Hot Tips：

            Only transport the machine when it has completely cooled down. To prevent fog liquid leakage during transportation, the machine should only be moved when the liquid container is empty.

Shipping by sea

• U.S. warehouse: 2-5 working days in the U.S., 7-12 working days in other areas.
• Spain warehouse: 2-4 working days in Spain, 7-12 working days in other EU regions.
• Poland warehouse: 2-4 working days in Poland, 7-12 working days in the rest of the EU.
• China warehouse: 7-20 working days for direct shipment from China.
• The transportation type depends on the region, and it is uniformly displayed as international shipping.
• The goods will be sent out within 1-5 working days. After the logistics order number is generated, customer service will send an email to notify you. Please pay attention to the delivery status.
• If you have any questions, please leave a message.

Q&A

• Q: How long is the heating time?

          A： The heating time for MK-F01 is 7 minutes.
                        For H-F01, the heating time is 4 minutes.



• Q: Can it spray continuously?

          A: No, it is not necessary. MK-F01 can spray continuously for 10-15                                         seconds, with a heating interval of 4 minutes.
                         H-F01 sprays for 8 seconds each time, with a 20-second heating interval.



• Question: Can it spray continuously?

            Answer：Spray distance is 8-10 meters.



• Q： The oil tank capacity is?

          A： The maximum liquid capacity of MK-F01 is 2.5 liters. The maximum liquid capacity of H-F01 is 2.5 liters. The liquid consumption. rate is                                   200ml per minute.



• Q： Can it be hung upside down on a truss? Will it leak?

            A： Yes, it can. The tank is a reversible tank installation, providing flexible mounting solutions for more freedom in your setup. The Super Fog                                   Machine can be used vertically or horizontally. The water tank can be installed at the front or back of the equipment, allowing the machine to be positioned upwards or downwards.



• Q： What are the control methods available?

            A: 8-channel DMX and wireless remote control for full control.



• Q： How many channels are there?

            A： MK-F01 and H-F01 have 8 channels:

                              Channel 1 controls the smoke output,

                              Channel 2 adjusts LED brightness,

                               Channel 3 controls the red LED,

                              Channel 4 controls the green LED,

                              Channel 5 controls the blue LED,

                              Channel 6 controls RGB color fading,

                              Channel 7 controls RGB color transitioning,

                               Channel 8 controls the RGB strobe function.



• Q： What are the differences between H-F01 and MK-F01?

            A： The H-F01 machine starts and stops immediately upon command.                                     The fogging effect halts instantly upon activation, taking only 1                                         second. It features 27 LEDs, indicating more powerful and intense lighting effects. I use professional-grade fast-dissipating vertical fog fluid, which boasts better light transmission characteristics, producing brighter fog that dissipates within seconds, making it ideal for creating instantaneous atmospheric columns. The heating time is only  4 minutes, with a spraying time of 8-10 seconds and a heating interval of just 20 seconds. As for the MK-F01, it has a heating time of                               7  minutes, with each spraying lasting 10-15 seconds and a heating interval of 4 minutes.



• Q： What is the wattage? Can it be increased to a larger value, such as  3000W?

            A： The wattage is 1500W, and currently, this is the maximum wattage. In the future, it might be a high-performance machine.



• Q： Do you have liquid? How much?

            A： It uses Prosmoke fog liquid. You can purchase it locally. We also sell the liquid, but it's hazardous and can only be shipped by sea. The minimum order quantity is 200 bottles.



• Q： If the liquid runs out, will it continue to heat?

            A： No, it won't. There's dual-temperature control protection. When the oil runs out, the machine will automatically stop working to protect itself. Additionally, there's a temperature control device that will stop the machine automatically when it reaches 180 degrees to avoid unnecessary damage.



• Q： The price is so expensive.

            A： H-F01: The main feature of this model is its instant start and stop function. The fogging effect stops immediately upon activation, taking only 1 second. It boasts 27 RGB LED lights with lampshade protection to prevent dust entry, ensuring better machine protection. The heating time is only 4 minutes. Its brand-new exterior design enhances its aesthetic appeal.



• Q： The DMX control and wireless control of this machine, what are they respectively?

          A： DMX Channels:

                           1.Fog operation, value 0-9 stops operation, 10-255 adjusts fog output.

                           2. Full color, value 0-9 turns off all colors, 10-255 adjusts brightness.

                           3. Circle red, 0-9 approximates color, 10-255 adjusts circle red.

                           4. Circle green, 0-9 approximates color, 10-255 adjusts circle green.

                           5. Circle blue, 0-9 approximates color, 10-255 adjusts circle blue.

                           6. Color gradient, 0-9 stops operation, 10-255 brightens faster.

                            7. Color change, 0-9 stops operation, 10-255 brightens faster.

                            8. Strobe function, 0-9 stops operation, 10-255 strobes faster.

                            Remote Control:

                            1. Press "A", fog operation is red.

                             2. Press "B", fog operation is green.

                             3. Press "C", fog operation is blue.

                             4. Press "D", fog operation is in RGB color.
