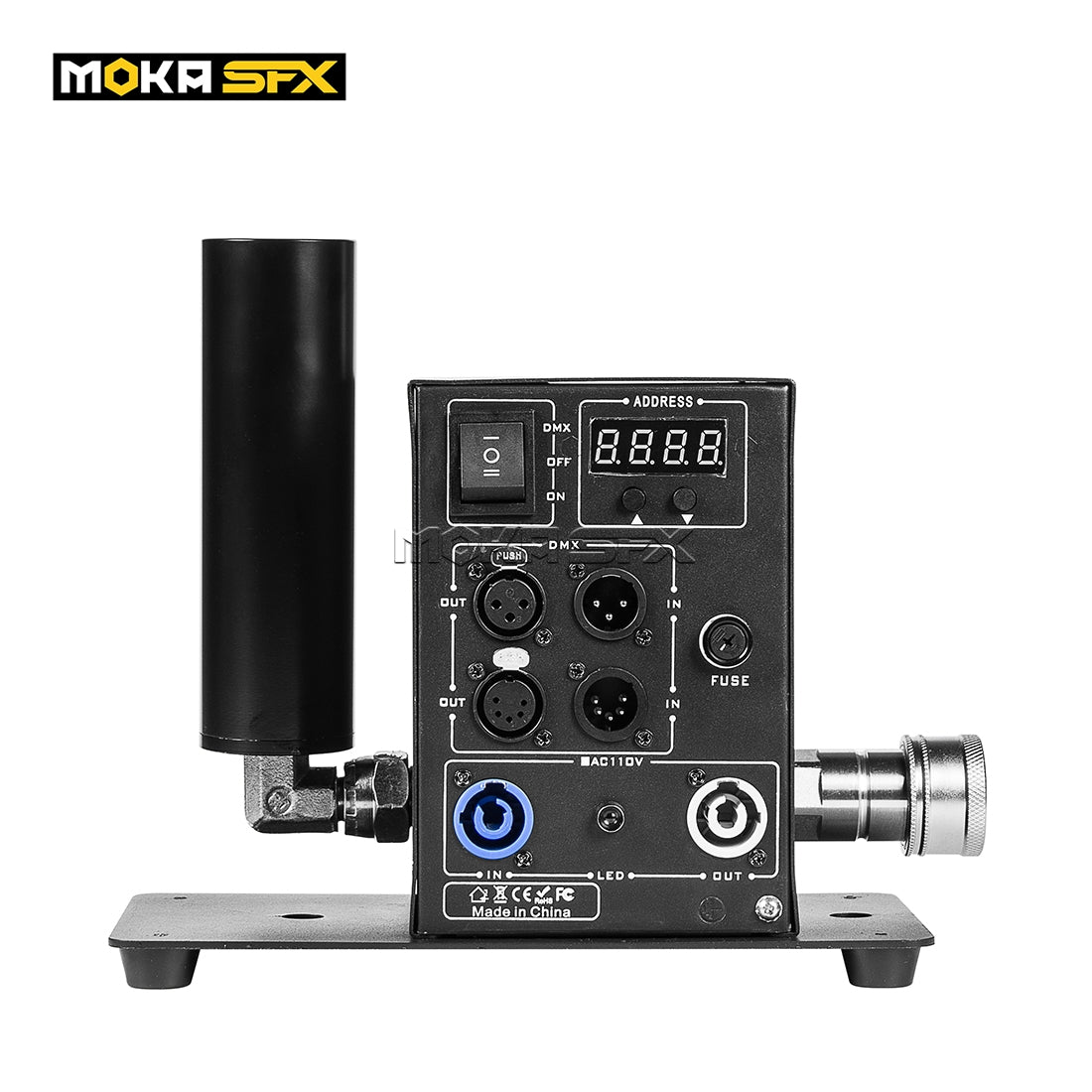

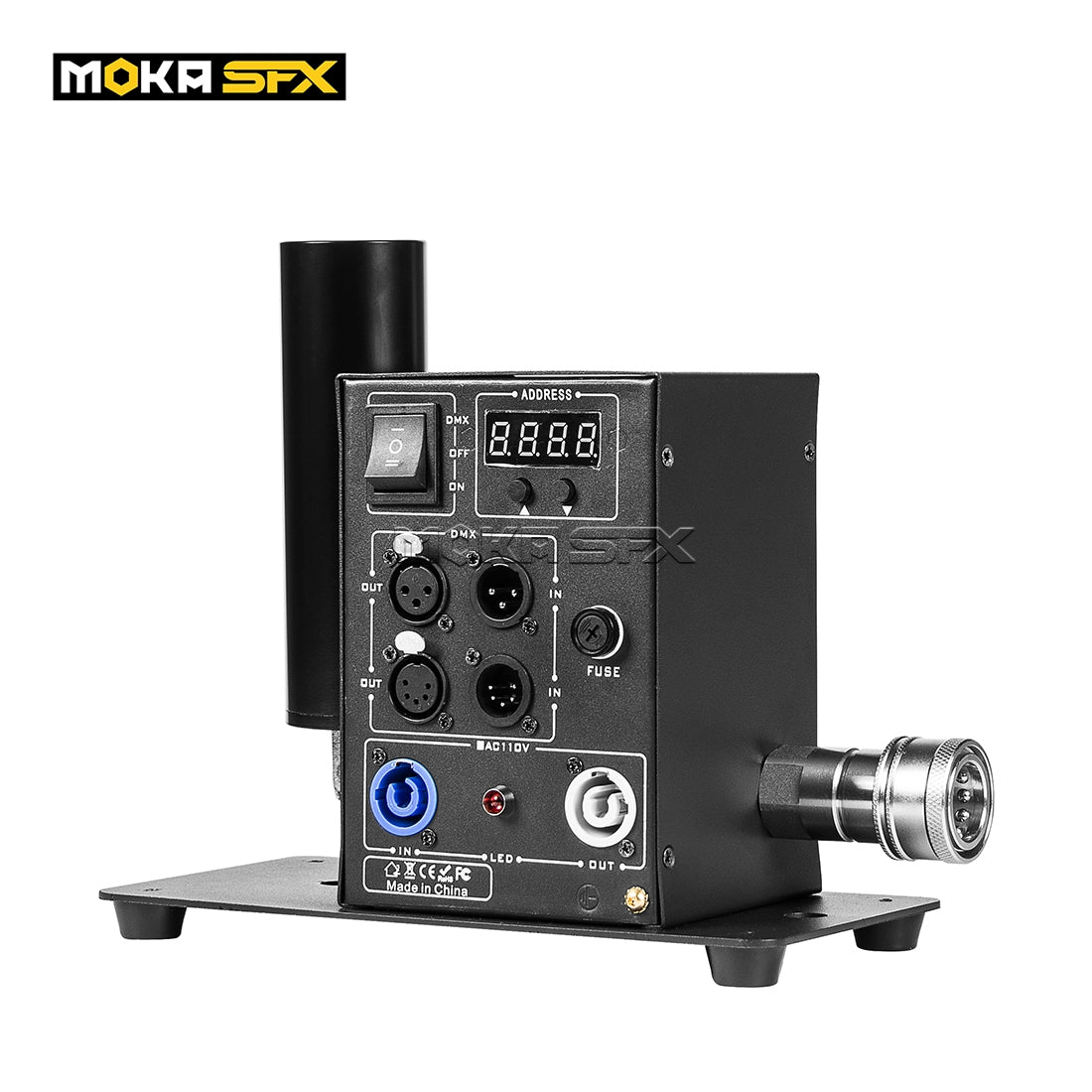

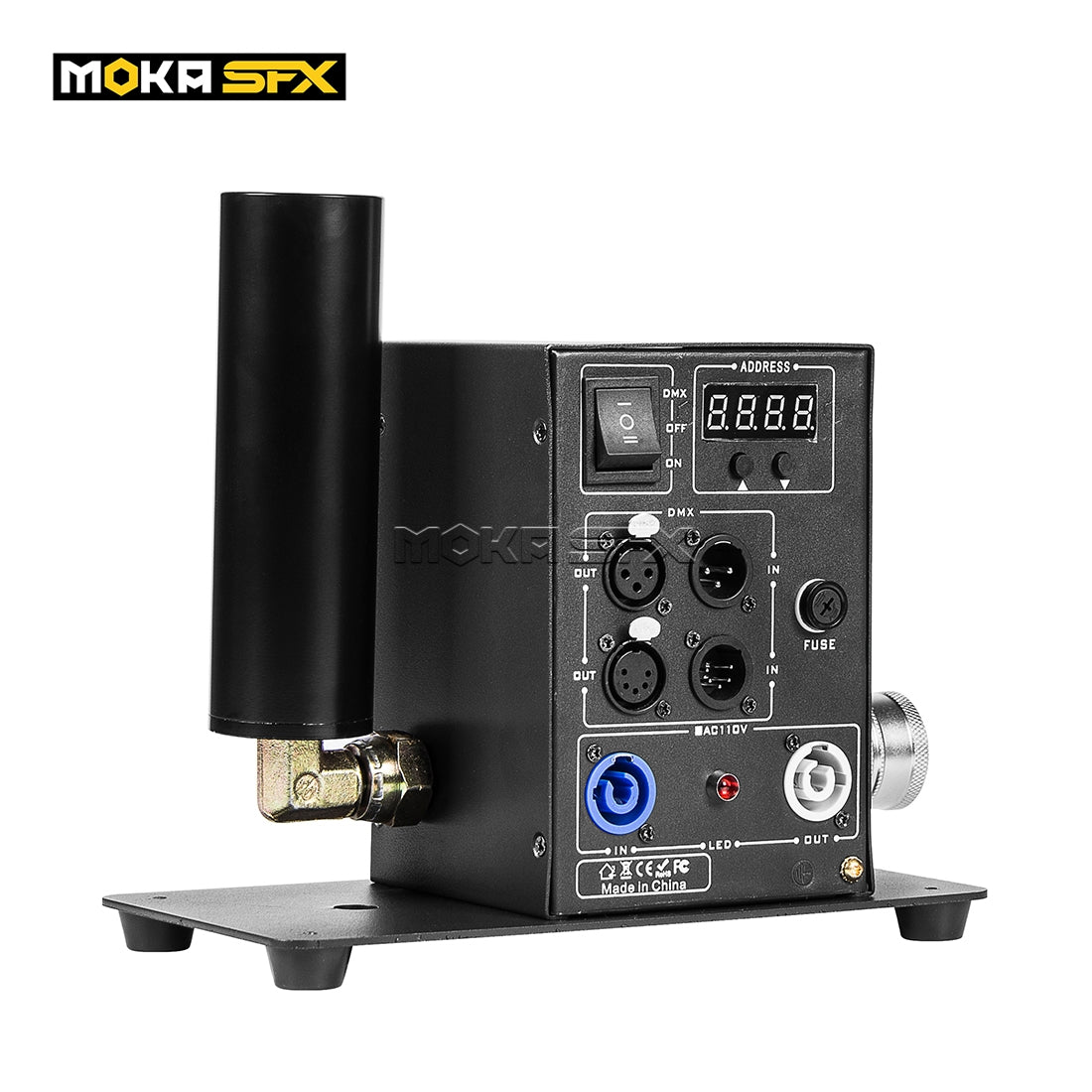

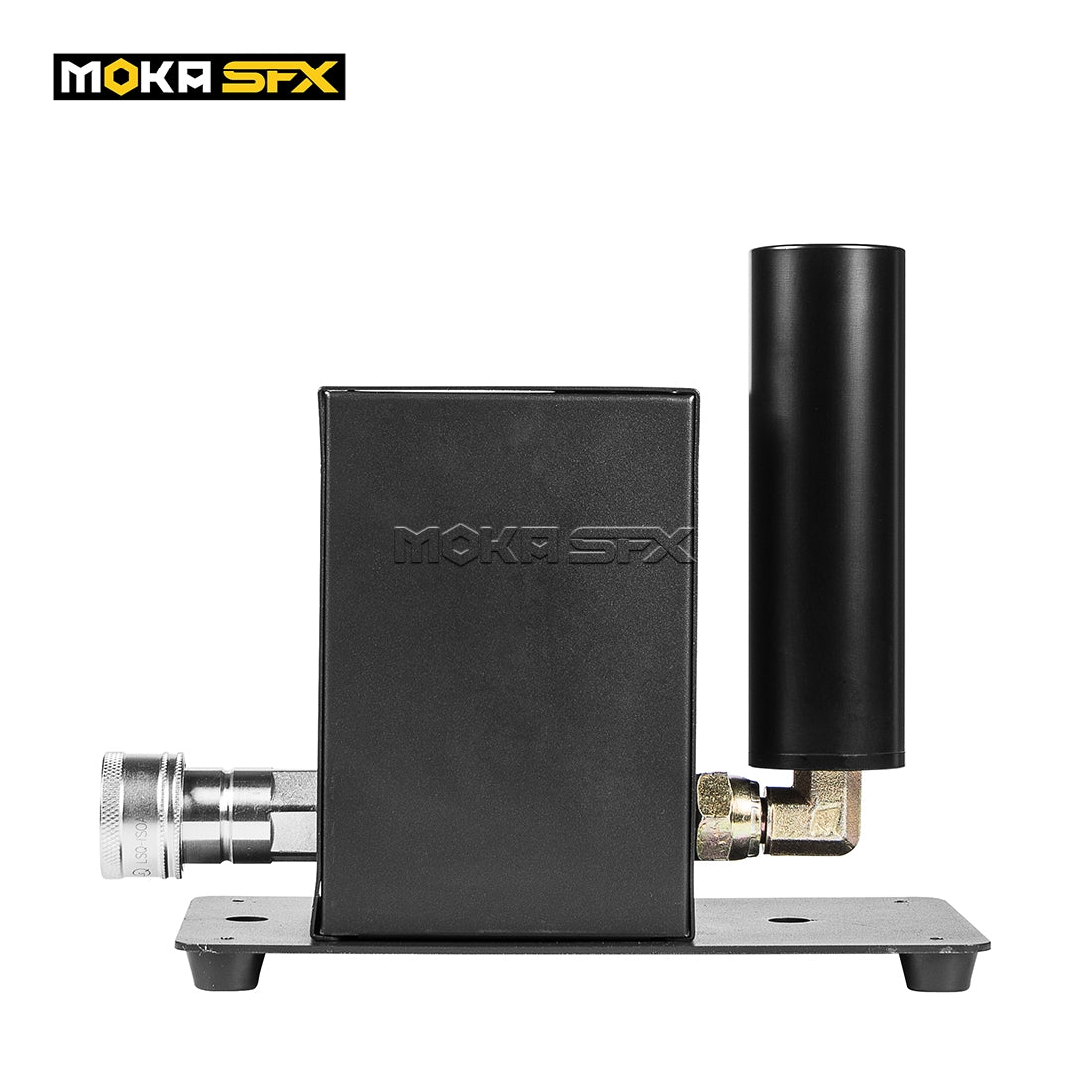

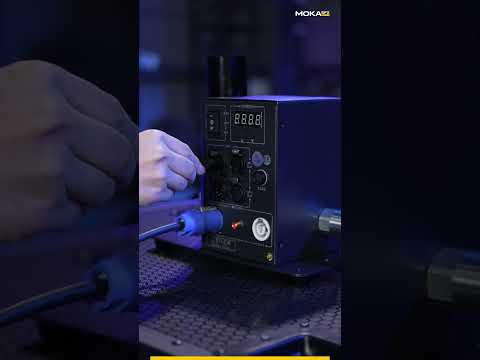

MOKA SFX MK-C09 Digital DMX CO2 Jet Cannon


Warehouse: China Warehouse
Plug: US
Quantity: 1 unit
Prix:
Prix réduit$235.00

Description

Description

  • Classic high-performance display CO2 jet
  • Spraying range up to 8-10m.
  • Dmx512 and manual control are two kinds of control.
  • 6 Meters hose length with quick connector.
  • High-quality material, good effect, and long service life.
  • Applicable for Dj, bands, bars, pubs, clubs, skating rinks, KTV, family party, birthday, celebration, wedding, festival.
CO2 jet


    Technical Parameter

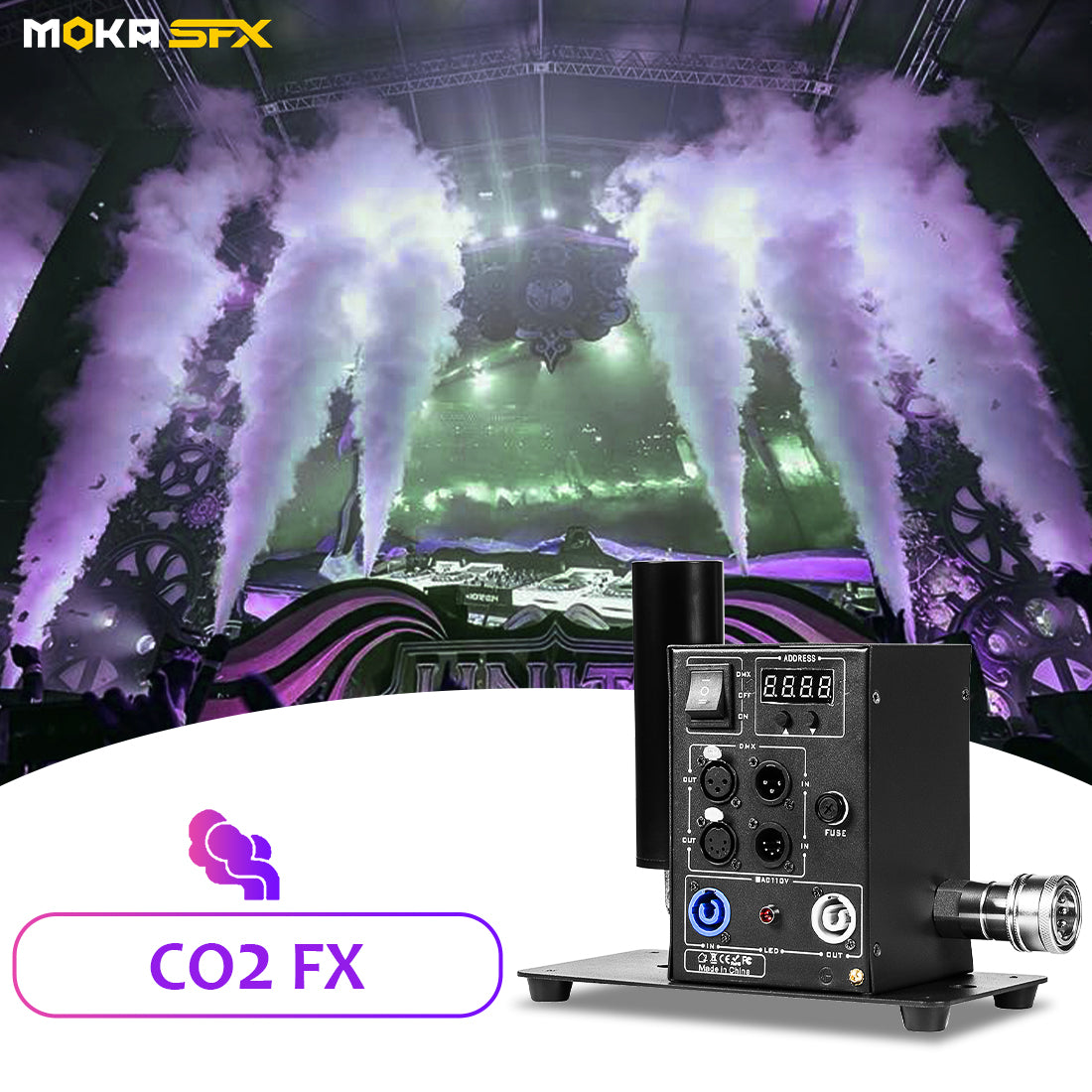

    • The hose connector can fit every co2 tank! This co2 jet shoots a 25-35 feet (7.6-10.6 meters) high stream of co2, which is about 4-6 feet wide.
    • Specification :

                Output: high output CO2 gas

                Dmx channels: 1 channel co2 spray (0-255) on

                Control Mode: dmx512 control and manual control

                Power: 30w

                Range: 8-10 meters

                Resin hose pressure rating: up to 300bar(4350psi)

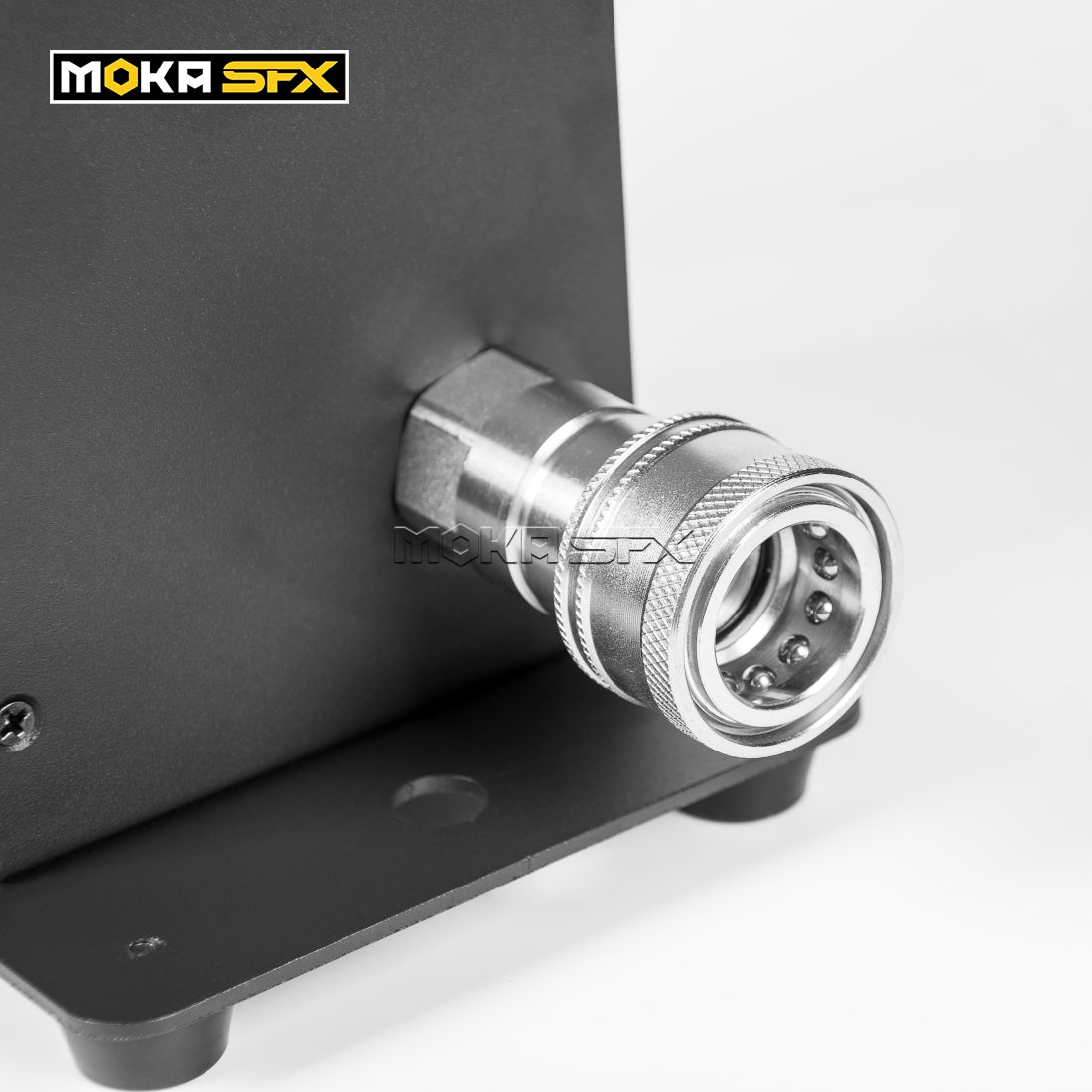

               Hose length: 6 meters with quick connector

               Product warranty: 1 year


    • Package Included :

               Co2 jetting machine

               6-meter high pressure resin co2 gas hose

               2 meter dmx cable

               1.5 meter power cable

               Manual book


    • Attention :

               1. Co2 blasts cannot exceed 3 seconds in length for each blast, two jet time intervals cannot be short by 5 seconds

               2. Before connecting the power, make sure that each part of the co2 column is already connected to the operation

               3. The bottle must be placed and held horizontally if not the co2 gas cannot come out

              4. When not using the machine, the nozzle, the steel bottle inlet should be envelope, to avoid getting into something else.

    How To Use

    • Installation:

              1.Places the large CO2 cannon on the corresponding position

              2.Connect the co2 hose to CO2 gas bottle

              3.Tilt or invert gas cylinder to increase pressure

              4.Connect the machine with the gas bottle via the hose, hose one side connect with tank, the other side connect with the machine

             5.Turn on the valve of the gas bottle

             6.Connect the machine and the console.

             7.Before disassembling, firstly turn off the bottle valve, let out the gas which remain in the pipe, then turn off the power, lastly separate the connector of the gas bottle.

    Shipping

    • U.S. warehouse: 2-5 working days in the U.S., 7-12 working days in other areas.
    • Spain warehouse: 2-4 working days in Spain, 7-12 working days in other EU regions.
    • Poland warehouse: 2-4 working days in Poland, 7-12 working days in the rest of the EU.
    • China warehouse: 7-20 working days for direct shipment from China.
    • The transportation type depends on the region, and it is uniformly displayed as international shipping.
    • The goods will be sent out within 1-5 working days.After the logistics order number is generated, the customer service will send an email to notify you. Please pay attention to the delivery status.
    • If you have any questions, please leave a message.

    Q&A

    • Q: How long can the hose be customized?

                A: The length can be customized according to your needs. The longest is generally not recommended to be over 35 meters, but we also have customers who have made a length of about 50 meters,  the longer the pipe, the more gas will be used in the pipe during use. This will waste more gas and affect the use effect. How long do you need to make?

    • Q: How is the effect, can you jet against people, will it have any effect?

                A: We have many clients who get the machine, the effect is not bad, and the price is not expensive.

    The gas used is medical grade carbon dioxide, which is harmless to the human body, and it is pure without odor, impurities;

    excessive gas impurities may cause the solenoid valve or spool to be blocked. No dross, can be sprayed on people. Therefore, it is recommended to use high-purity CO2 gas

    • Q: Where to buy carbon dioxide gas?

                A:This gas can generally be purchased at your local store.

                   All CO2 Cannon can be used with any Siphon CO2 Tank (Sometime referred to as a Siphon Tube or Dip Tank)



    • Q: Is there any requirement for the gas used?

                A: Generally, the 40L gas cylinders used in our factory are about 6.5-7 pressures, and the pressure will rise again under high temperature conditions. It can fill up to 24KG of gas. Generally, it is 23KG, but not less than 18KG, you can let your supplier refer to these values.


    • Q: How long can an air column gun spray and can it continue to spray?

                A: Gas column machine can not continue jetting. If the jetting time is too long and the air pressure is too high, the valve may be damaged. In order to ensure that the machine parts have a normal service life, we recommend that each jet be controlled at about 10 seconds, it takes five seconds in the middle to blow again. This way, you can avoid damage to the accessories due to improper operation.

    • Q: How long is your product warranty? If it’s quality problem, who undertake the freight ?

                A: The co2 jet machine warranty is one year. Two of the accessories have the following conditions. The warranty will be different.

    1. The connector is consumable. If the customer does not know how to use it, forced to connect these two connectors. It is very easy to damage the joint.
    2. The valve because the spool hole in the valve is very small, even if there are very small iron pieces or impurities in the gas, it will cause the plug of the spool. This situation belongs to the gas reason. So if you want to replace the accessories, the cost will have to be paid by the user.



    • Q: How far can this machine spray?

                A: The spray height of the machine is affected by the pressure of the cylinder. Normally, it can spray 6-8 meters.

    • Q: Is there a relevant certificate?

                A: Yes, all of our products are CE FCC ROSH certified and can be exported.



    • Q: Will there be ice residue from your guns?

               A: The co2 jet machine is the newest type of ice-slag free air column machine we have designed, with an ice-slag free design to provide your audience with an ice-free shot.



    •  Q: Do you sell small gas cylinders, how long can a bottle be sprayed?

    •  A: Sorry,We can't export gas cylinders, you need to buy them locally

           A 5L CO2 tank can spray for about 10 seconds.


    • Q:What to do if the machine does not blow air.

                A: In this case, please provide the video? I can give feedback to our technical department and to see if I can guide you to solve the problem.



    • Q: Can the machine continue to spray smoke?

                A: We updated the new control board, now the machine can keep spraying all the way, but in order to ensure that the machine valve have a normal service life, it is recommended to control the continuous spraying time at about 15 seconds each time.



    • Q: What does the Co2 cannon work with? How long does one bottle of gas last to use?

               A: MOKA SFX Signal Head Co2 jet machines work with Co2.Normally 5L gas can spray about 10 S, 8L cylinder is about 12-15S, and 40L cylinder is about 40 seconds.
