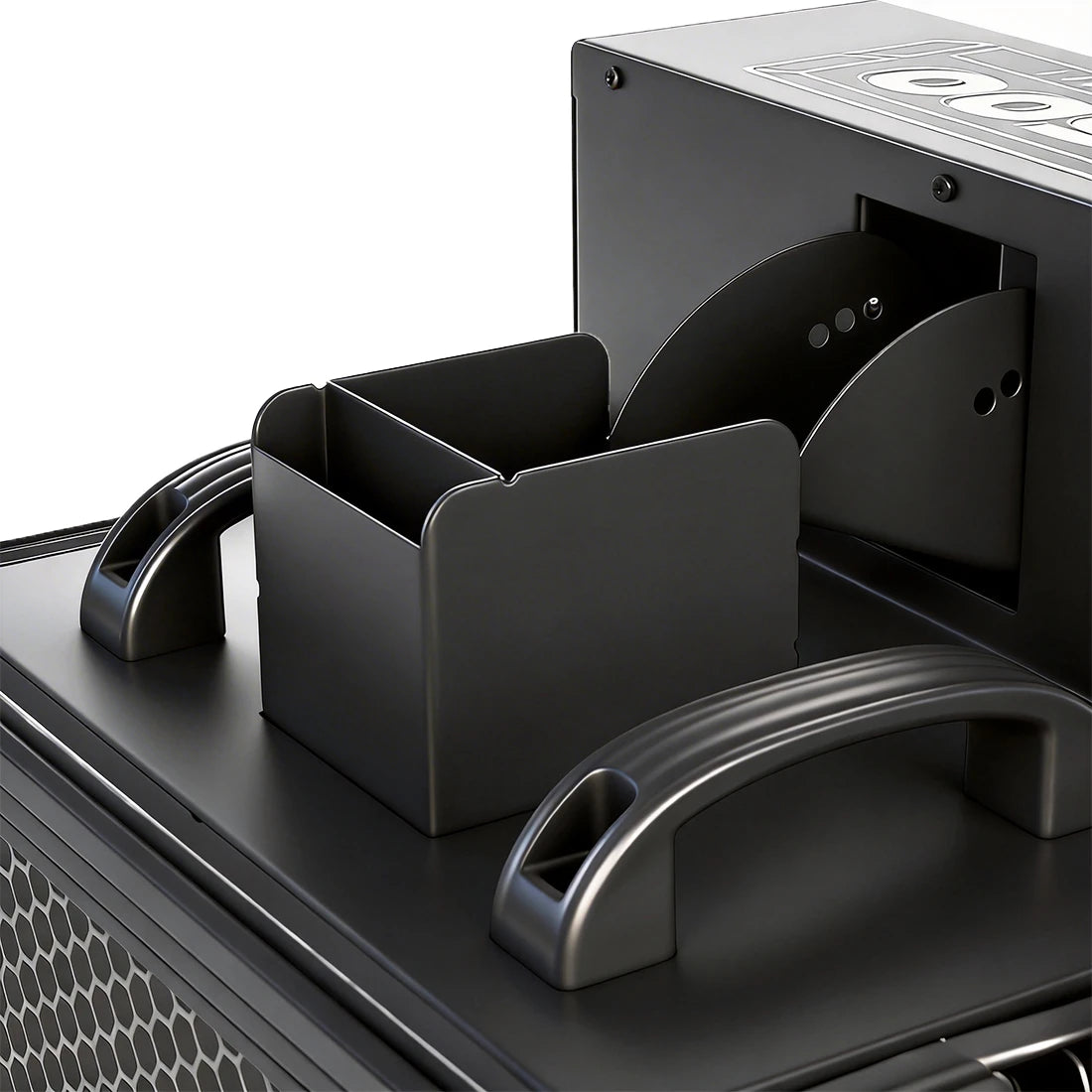

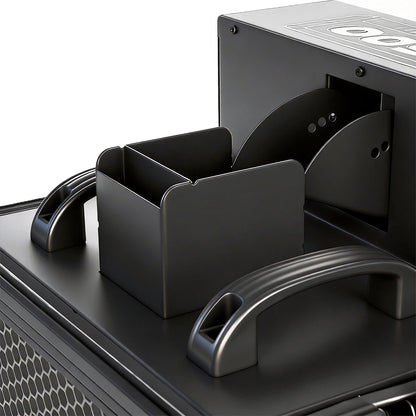

MOKA SFX MK-F14 600W Oil-based Haze Smoke Machine

Warehouse: China Warehouse
Plug: EU
样式: Single output
Prix réduit$599.00



  • Haze fog machine Maximum output coverage can reach 100 ㎡.
  • Haze smoke machine has three operational modes, DMX512, panel control, and remote control, easy to operate.
  • There is no need to heat, you just need to turn on the power, press the work button, and it will spray smoke immediately.
  • One bottle of oil is 1L, can last 24hours constantly, and you can check the oil quantity indicator on the side of the machine to know the oil situation.
  • Oil-based haze machine also has a timing function that enables it for perfect timing. This timing function helps you control the rate of smoke output when spraying and stopping.

Technical Parameter

  • Features:

            1. no need for heating, the special liquid;

            2. energy saving,1 liquid stretcher can be lasting working at least 35 hours;

            3. Dry and fine mist without moisture spreads fast.

            4. No smell, and mix with perfume moisture;

            5. 0 second set-up time;

  • Specifications:

             Voltage: AC220V/240 V 50/60Hz AC100V/120 V 50/60Hz

             Power: 600 W

             Tank volume: 1.7L

             Fans 3 Angle: Adjustable

             Wind Turbine output adjustment: Support

             Control method: DMX 512 / Remote control

             Channel: 2 channels

             The angle of 3 fans: adjustable

             Wind turbine regulation output: support

             Maximum continuous output duration: 24 hours

             Fuel consumption: 1L / 24 Hours

             Maximum output coverage: 100 ㎡

             Controller: LCD controller

             Preheating time: 0 second setting time

             Net weight: 31kg

             Gross weight: 32kg

              Product size: lwh 46*32*30cm

              Packing size: lwh 52*40*45cm (with flight case)

  • Packing list for each unit:

              1 pcs Double fog machine

              1 pcs wireless remote controller

              1 pcs power cord

              1 pcs manual book

How To Use

  • Steps To Use:

             1. Place the machine on a firm-level and use it to adjust the angle of the mouthpiece as required. First, open the oil lid, add 1 liter of haze oil.

             2. Plug the power cord into a grounded 12 amp socket, ground fault interrupt socket will be the primary choice.

             3. If you use the remote control, please connect the remote control receiver, turn on the power switch, the Remote control button closes turn off the machine, and the button opens to turn on.

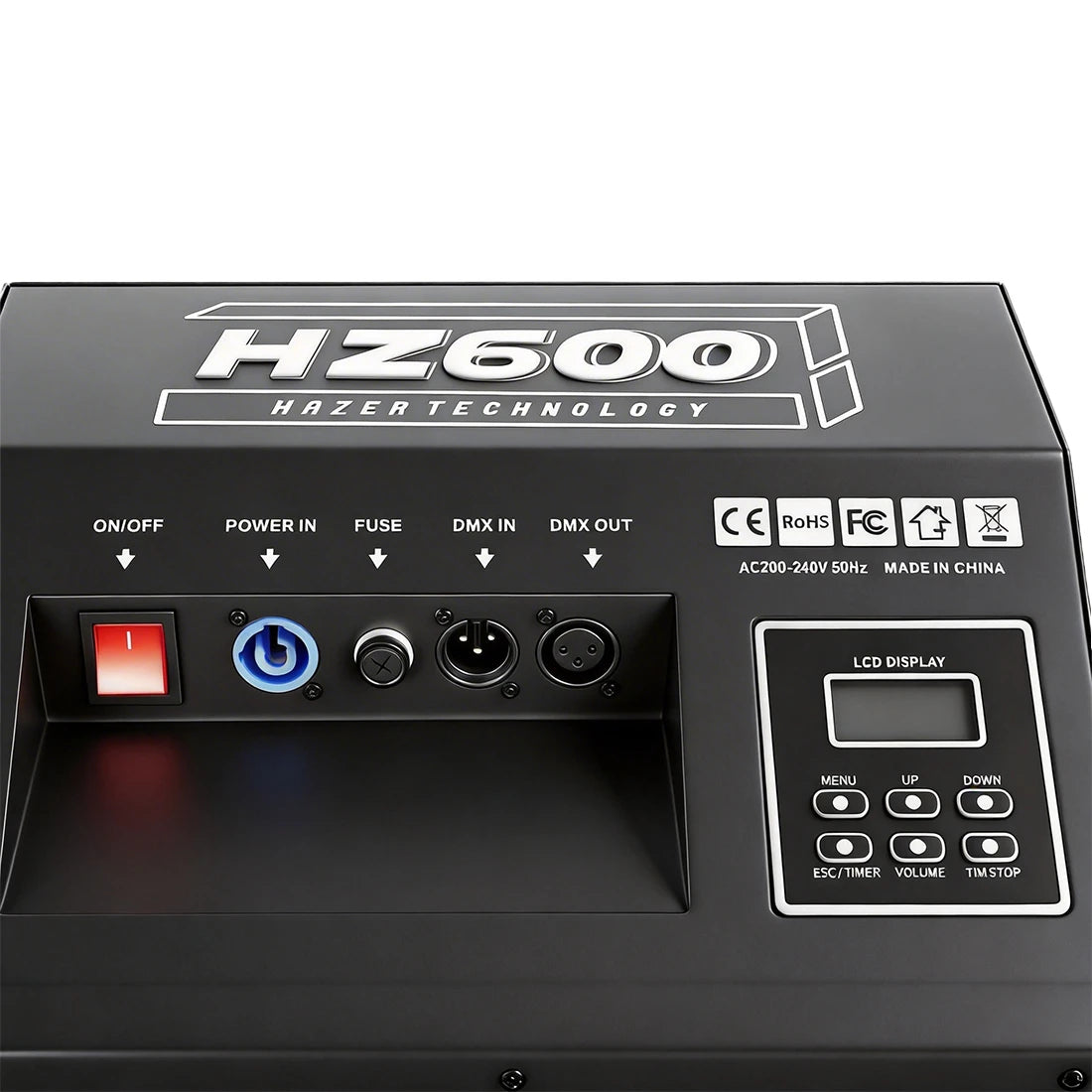

             4. If using the DMX512 control mode, the display shows HAZE READY, channel 1 controls the haze, 2-channel adjusts the fan speed.


  • U.S. warehouse: 2-5 working days in the U.S., 7-12 working days in other areas.
  • Spain warehouse: 2-4 working days in Spain, 7-12 working days in other EU regions.
  • Poland warehouse: 2-4 working days in Poland, 7-12 working days in the rest of the EU.
  • China warehouse: 7-20 working days for direct shipment from China.
  • The transportation type depends on the region, and it is uniformly displayed as international shipping.
  • The goods will be sent out within 1-5 working days.After the logistics order number is generated, the customer service will send an email to notify you. Please pay attention to the delivery status.
  • If you have any questions, please leave a message.


  • Q: What kind of liquid it can use?

            A: It uses oil-based haze liquid.


  • Q: How much fuel tank capacity?

            A: The max capacity is 1.5L


  • Q: It needs heat-up?

            A: It requires no warm-up time


  • Q: How long can I use after filling up liquid?

            A: Super low haze liquid consumption rate is about 20h/1.5L. But we suggest that you don’t fill up liquid at once, and add the relative liquid according to the event time you need.


  • Q: It can use indoor and outdoor?

            A: It can only be used outdoors because it’s oil-based. If it’s used indoors for a long time, it’ll cause oil stains in the room. If there have lights, it will pollute the light.


  • Q: What are the control methods?

            A: Full control with 2 channels of DMX, wireless remote control, and digital timer control


  • Q: What is the difference between single output and dual-way output?

            A: Dual-way output will create more haze and quickly cover the haze on the stage.


  • Q: How many watts?

            A: 600w. The heater core is Stainless Steel instead of industry-standard aluminum. The stainless steel prevents pitting and clogging.


  • Q: The haze output can be timed and quantified?

            A: It has an easy-to-read LED function display with a built-in timer, complete fog output, and fan speed control via Timer button, continuous, intermittent, or manually-triggered hazing. Allows for the perfect speed of output and thickness of fog effects for any application.


  • Q: How to use the machine?

            A: Its operation is very simple, just need the following 3 steps:

                1. Please open the machine, and put oil-base haze liquid into the output nozzle. Max capacity is 1.5L

                2. And then connect the power cable, if you need DMX512 control, then connect the signal cable

                3. Open the power switch to ON. So you can start controlling it via wireless remote or DMX512


  • Q: What is the difference between water-based liquid and oil-based liquid?

            A: If the oil-based liquid is used indoors for a long time, it’ll cause oil stains in the room. If there is light, it will pollute the light. But it doesn’t need to be heated, it can be used as soon as it is turned on.

                But for water-based liquid, you don't need to worry about this. It can be used outdoors and indoors, but it requires heating.


  • Q: How many DMX channels?

            A: It has 2 channels, channel 1 controls the amount of haze, and channel 2 controls the fan speed


  • Q: Is there any oil level display?

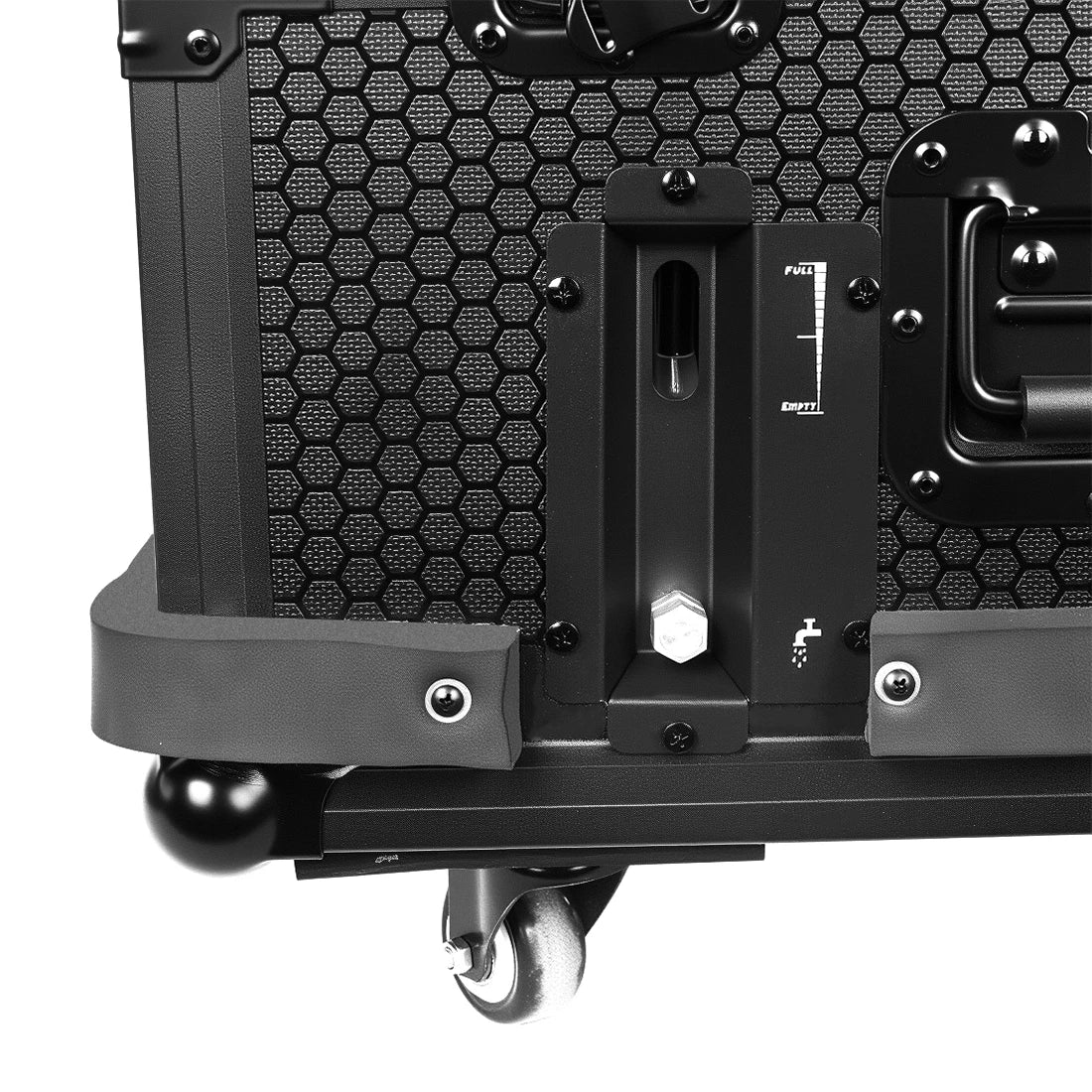

            A: Sure, it has a liquid layer display. Pls, see the picture.


  • Q: Where can I put the liquid? what about the unused liquid?

            A: Unscrew the cap of the haze outlet and pour oil-based liquid. (with photo)


  • Q: What is the area covered by haze?

            A: 3500ft per mins


  • Q: Can make the fan be bigger? Or external fan?

            A: Not. It comes with 3 fans. If you feel that the wind is not enough, you can use it with stage fans.

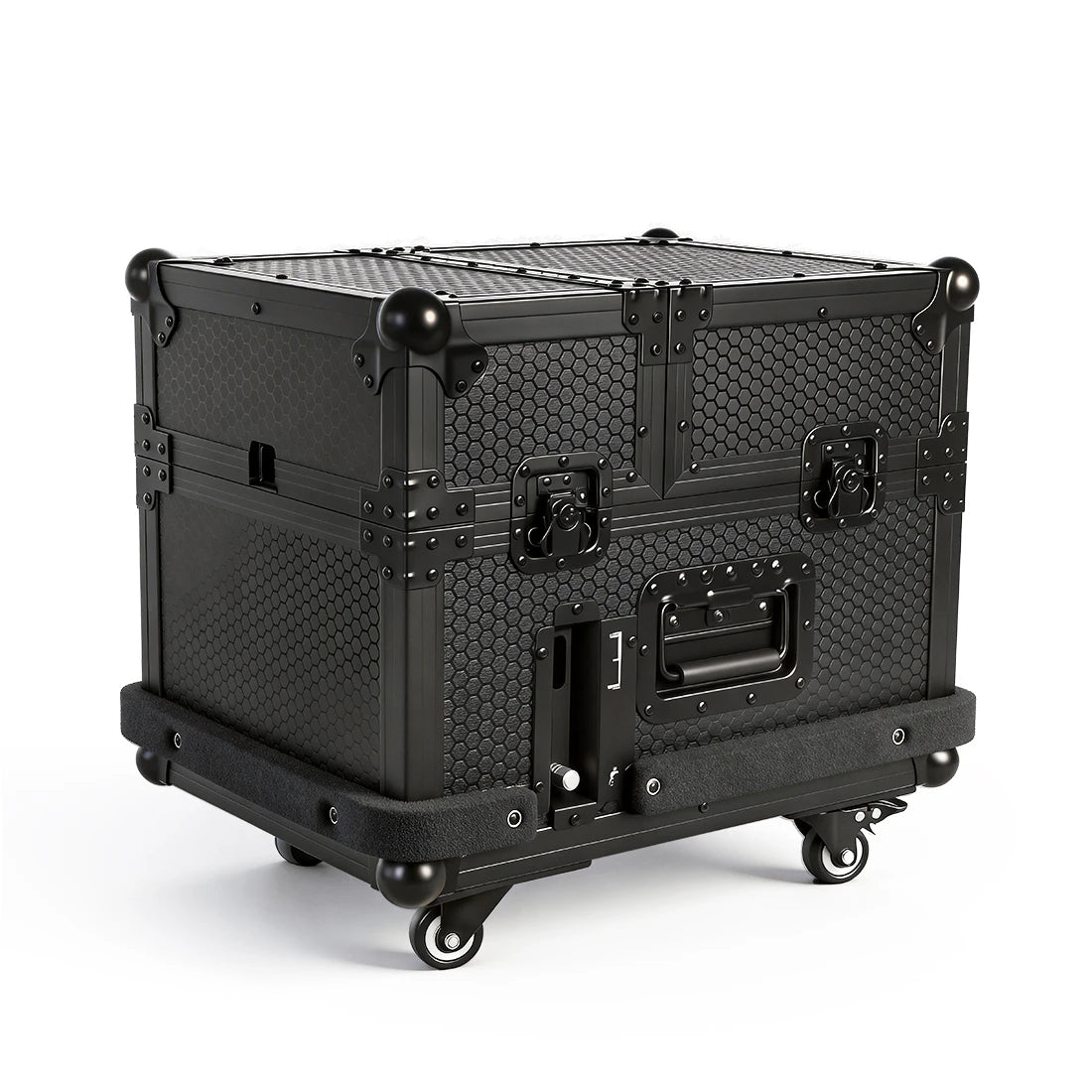

  • Q: The wheels of the flight case are too small and difficult to move. Can you make it bigger?

            A: At present, The flight case can’t be changed, because the space for the flight case is limited, it can only be made into such small wheels.


  • Q: Why Choose Us as Oil Based Haze Machine Manufacturers?

            A: 1. The MK-F14 oil-based haze machine is manufactured by the leading producer MOKA SFX. We have employed highly skilled personnel who manufactures these products. Our products are available in the market, even in peak seasons, even being the leading producer.

                2. MOKA SFX has been in the market since 2013, and this means we have quite an experience in producing such oil-based haze machines of high quality. People who have used this product before from MOKA SFX company have shown a high level of satisfaction. So, we are not only leading special effects manufacturers but we have strong and satisfied customer support on our back as well. We offer quality products with amazing features which make us a special and leading manufacturer in this industry.

               3. MOKA SFX company being the leading manufacturer in the market, has all the CE/ROHS/FCC certifications’ satisfaction. We offer, besides the MK-F14 oil-based haze machine, many other types of equipment like the H-C03 Hi-LED CO2 jet machine, and H-EO3 Triple-Way Flame Projector.
