Description
Description
- 360 degree light emission, uniform light emission
-
high color rendering index, long battery life
-
Bright and saturated colors
-

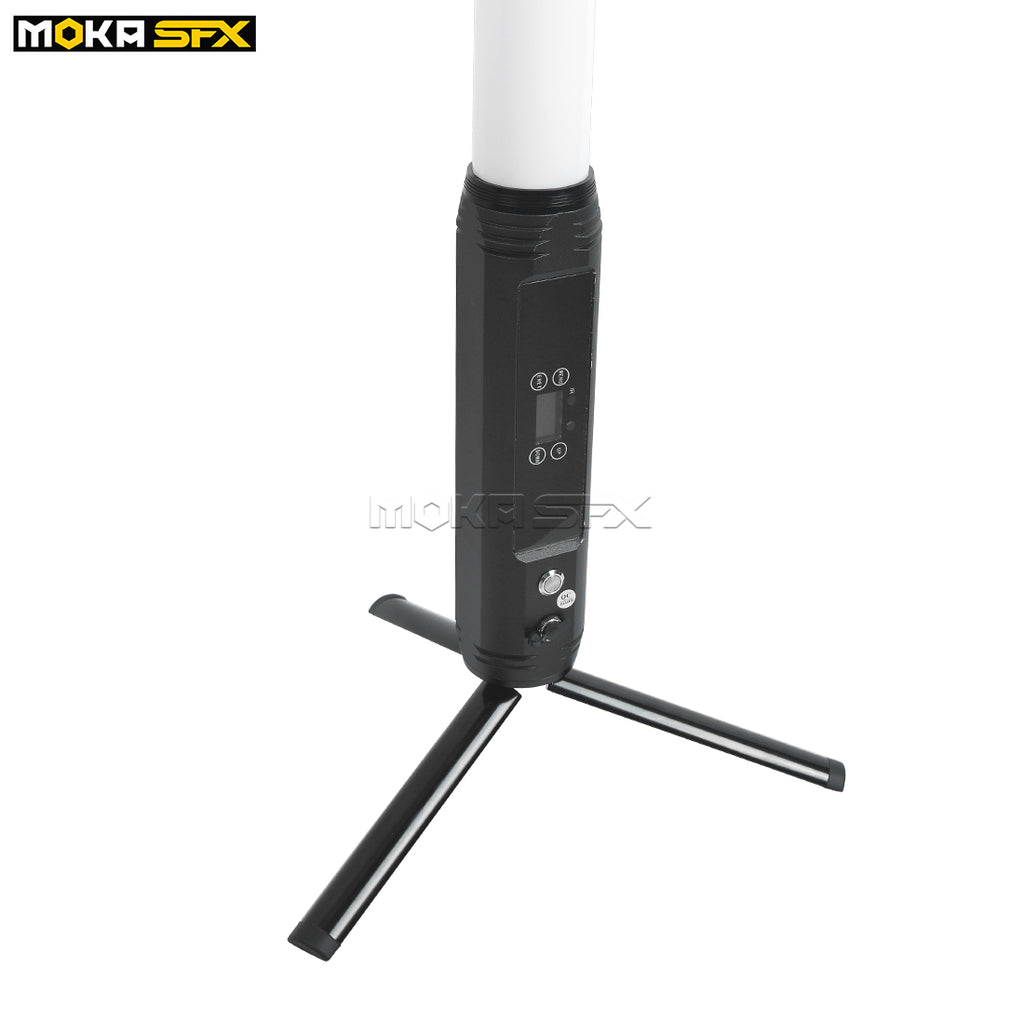

Aluminum alloy shell, firm body, compact structure, excellent heat dissipation, equipped with eyebolt and foldable base, and easy installation
-
The color temperature of 1750K-10000K (unit is 250K) can be adjusted
-
32 pixels, which can be individually controlled
-
OLED touch screen, easy to operate
-
Support wireless DMX (compatible with Swedish wireless), mobile APP, remote control
-
Single lamp control, multi-lamp combination master-slave control, remote control, console control, APP control, etc.
Technical Parameter
Specification:

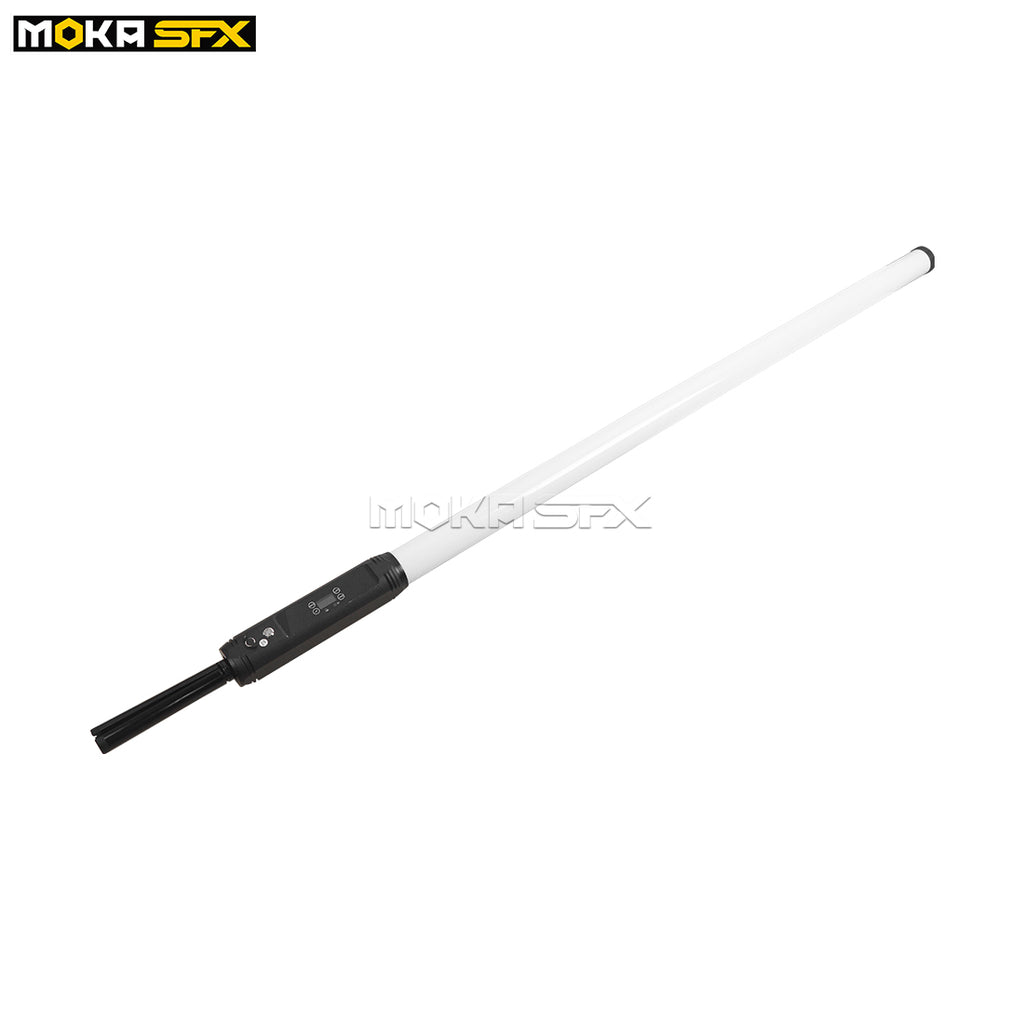

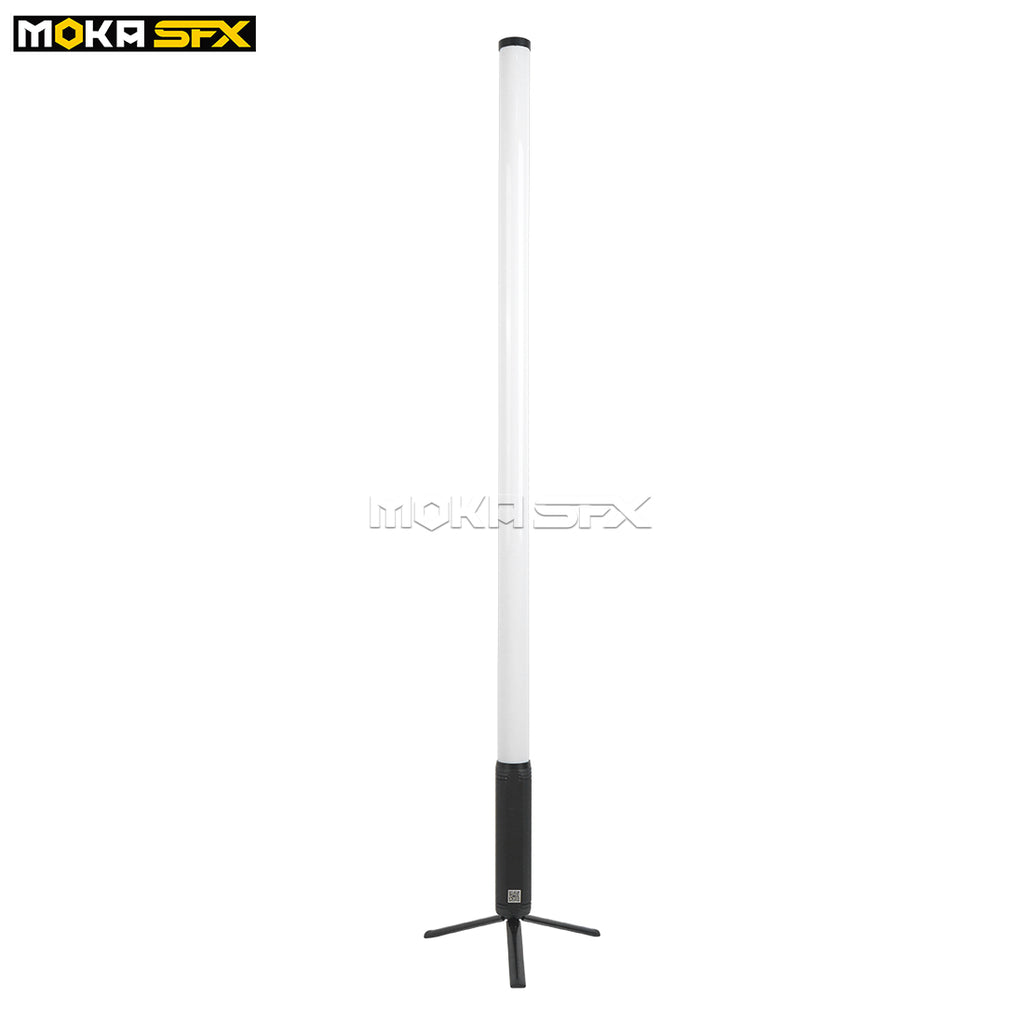

LED Tube Light
| Parameter | Specification |
|---|---|
| Light Source | 28W LED |
| Color System | RGBWA Color Mixing |
| Maximum Running Time | Selectable Modes: 1-12 hours (Full Light) |
| Maximum Runtime | Up to 8 hours (Monochromatic Bright) |
| Charging Time | 7 hours |
| Strobe | 0-30Hz |
| Dimming | 4 Dimming Modes |
| Control Method | Wireless DMX, Mobile Phone App, Remote Control |
| Channel | 4CH/5CH/6CH/7CH/12CH/40CH/80CH/160CH |
| Display | OLED Display |
| Input Voltage and Frequency | 100-240VAC, 50/60Hz |
| Power Connection | Charging interface in air box, Adapter Charging Option |
| Signal Connection | 2.4G Wireless Connection (within effective distance) |
| Battery | Lithium Electronic Battery, 9600mAh |
| Size | 1435mm (Length) × 50mm (Diameter) |
| Weight | 2.5kg |

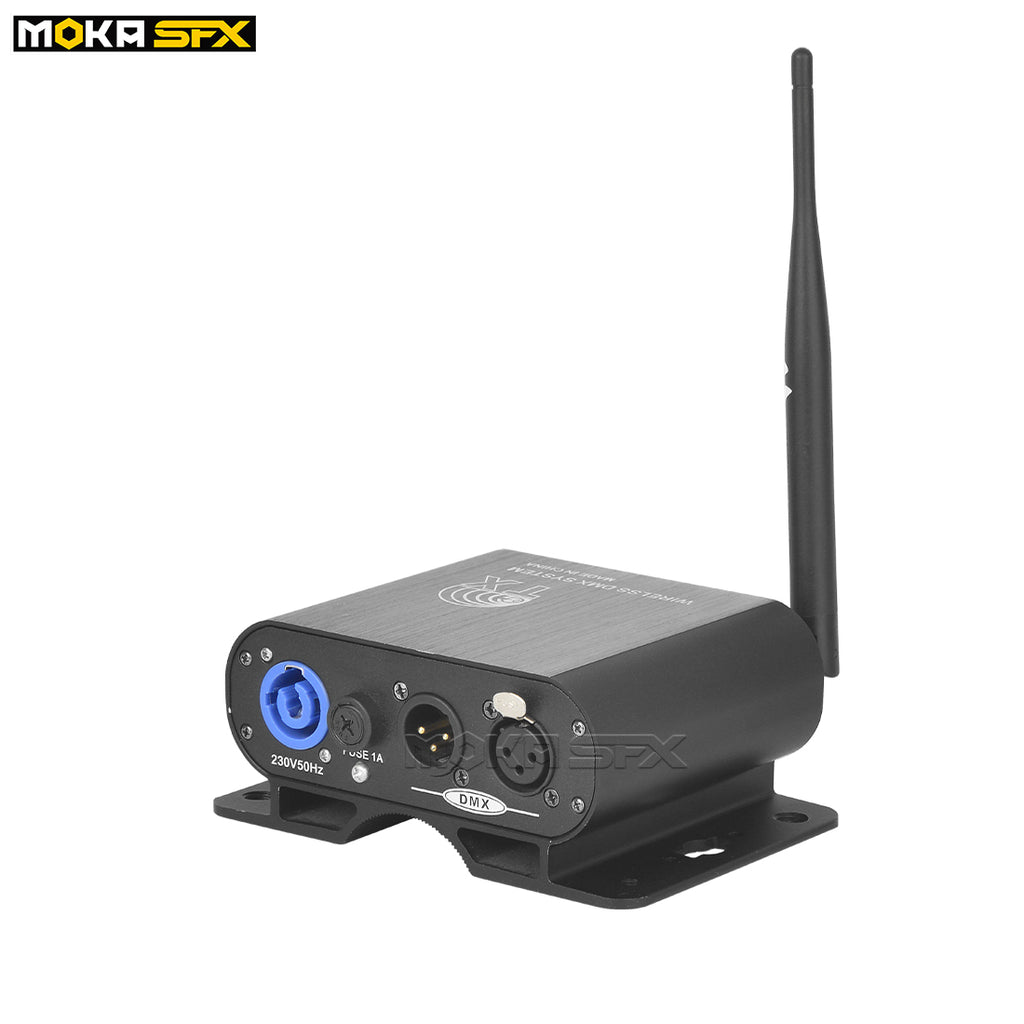

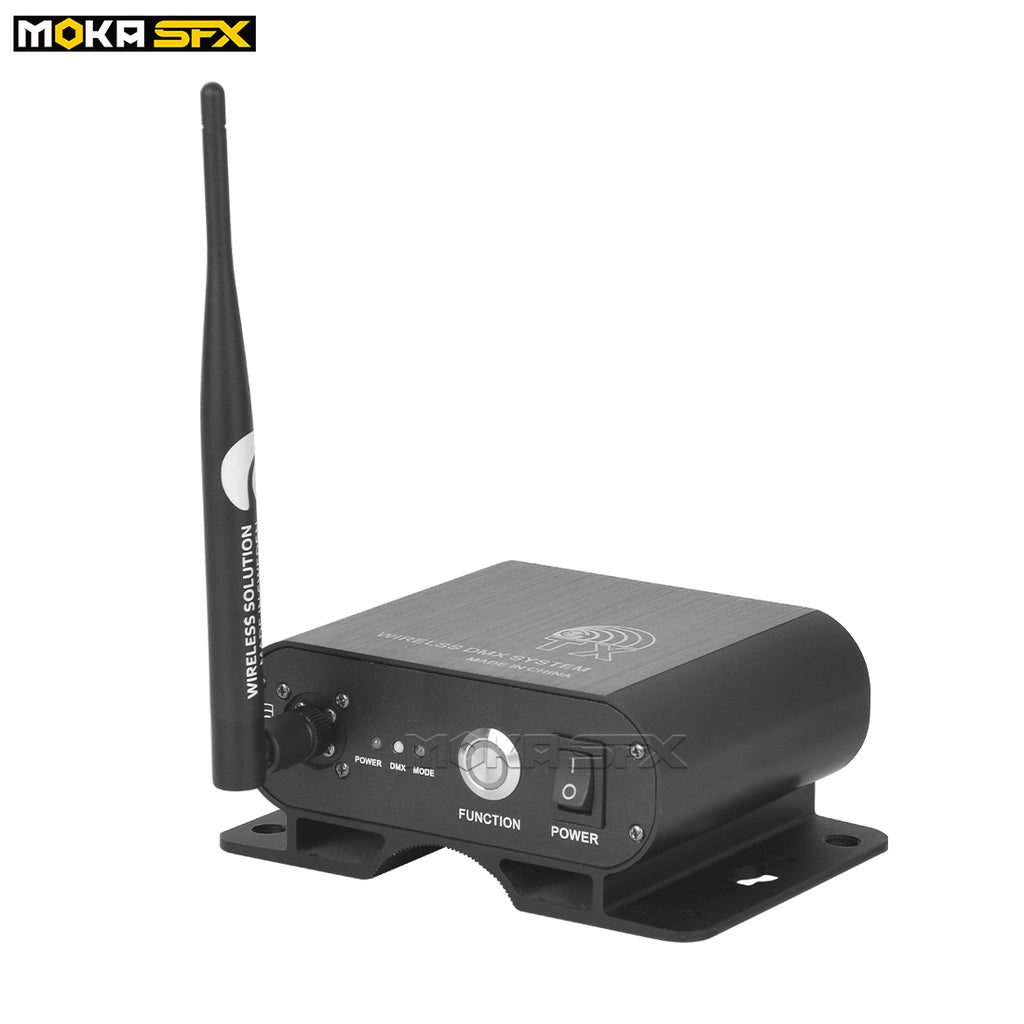

DMX console
| Parameter | Specification |
|---|---|
| Voltage | 110/230V, 50/60Hz |
| Power | 6W |
| Wireless | 2.4G |
| Weight | 1kg |
| Dimensions | 145mm x 120mm x 60mm |
| Package List | Wireless DMX controller, Power Cord, C-fixing Part |
Please Note:
- Built-in battery, away from fire and water sources. If water enters, do not use it again to prevent danger.
- Please do not disassemble the product for maintenance, please contact the agent who purchased the product.
How To Use
WIFI control operation steps：
Step1：The mobile phone first installs the APP of this software (LED LAMP)
Step2：The lamp display function is switched to WIFI mode. After confirmation, LED-XXX will appear, (XXX represents 3 digits)
Step3：Click the setting icon on the phone, turn on the WIFI, and search for the WIFI address, the word LED appears. Such as "LED-XXX", click the link, and exit this interface after the connection is successful.
Step4：Click the LED LAMP icon on the mobile phone, it shows that the connection is successful and you can control it. (This lighting APP control software can only use LED LIGHT control software）
The manual will be with the machine, if the manual is missing, please leave a message on the website, and we will contact you as soon as possible
Shipping
- China warehouse: 7-20 working days for direct shipment from China.
- The transportation type depends on the region, and it is uniformly displayed as international shipping.
- The goods will be sent out within 1-5 working days. After the logistics order number is generated, customer service will send an email to notify you. Please pay attention to the delivery status.
- If you have any questions, please leave a message.
