Description
Description

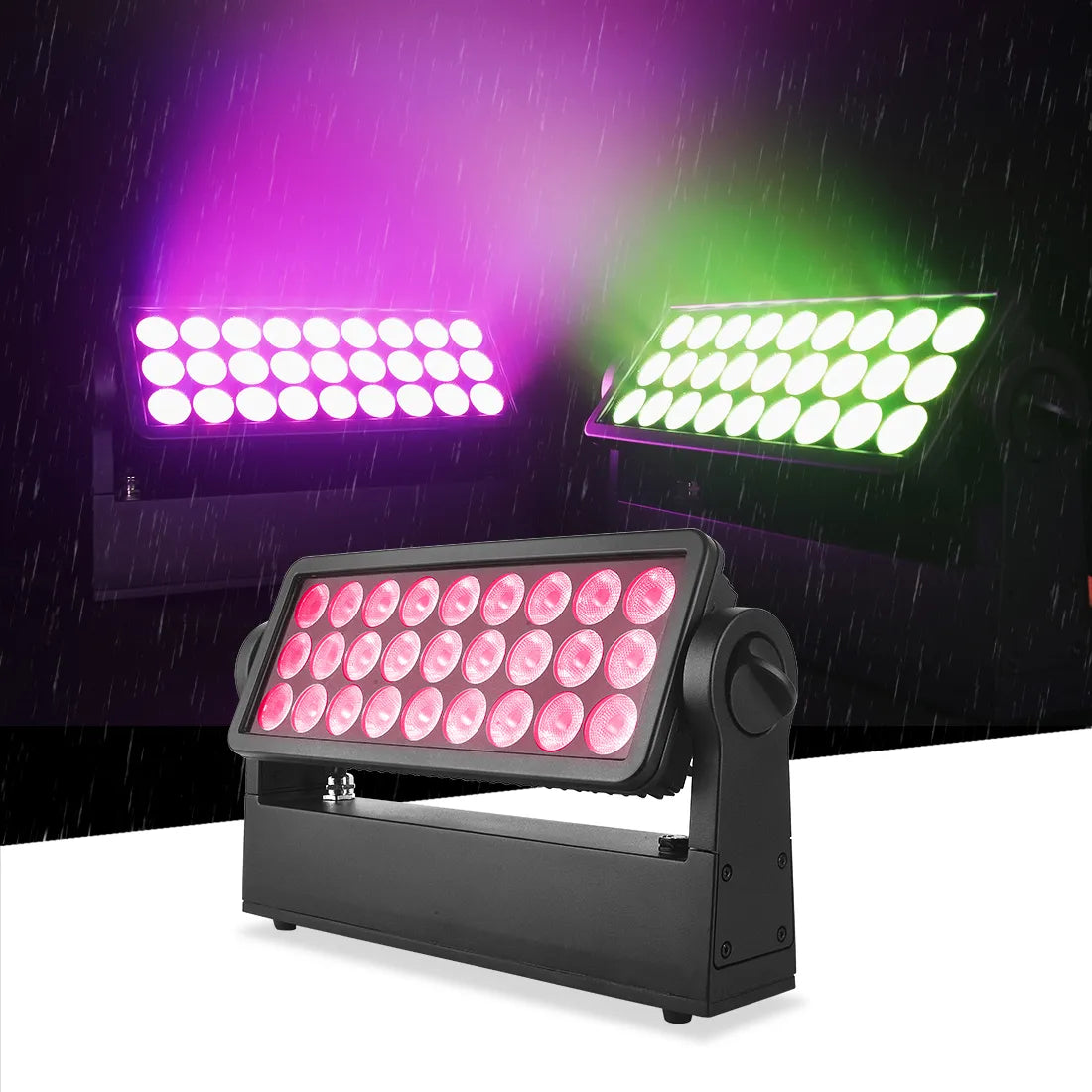

- IP grade IP65, super waterproof performance can adapt to various harsh outdoor conditions.

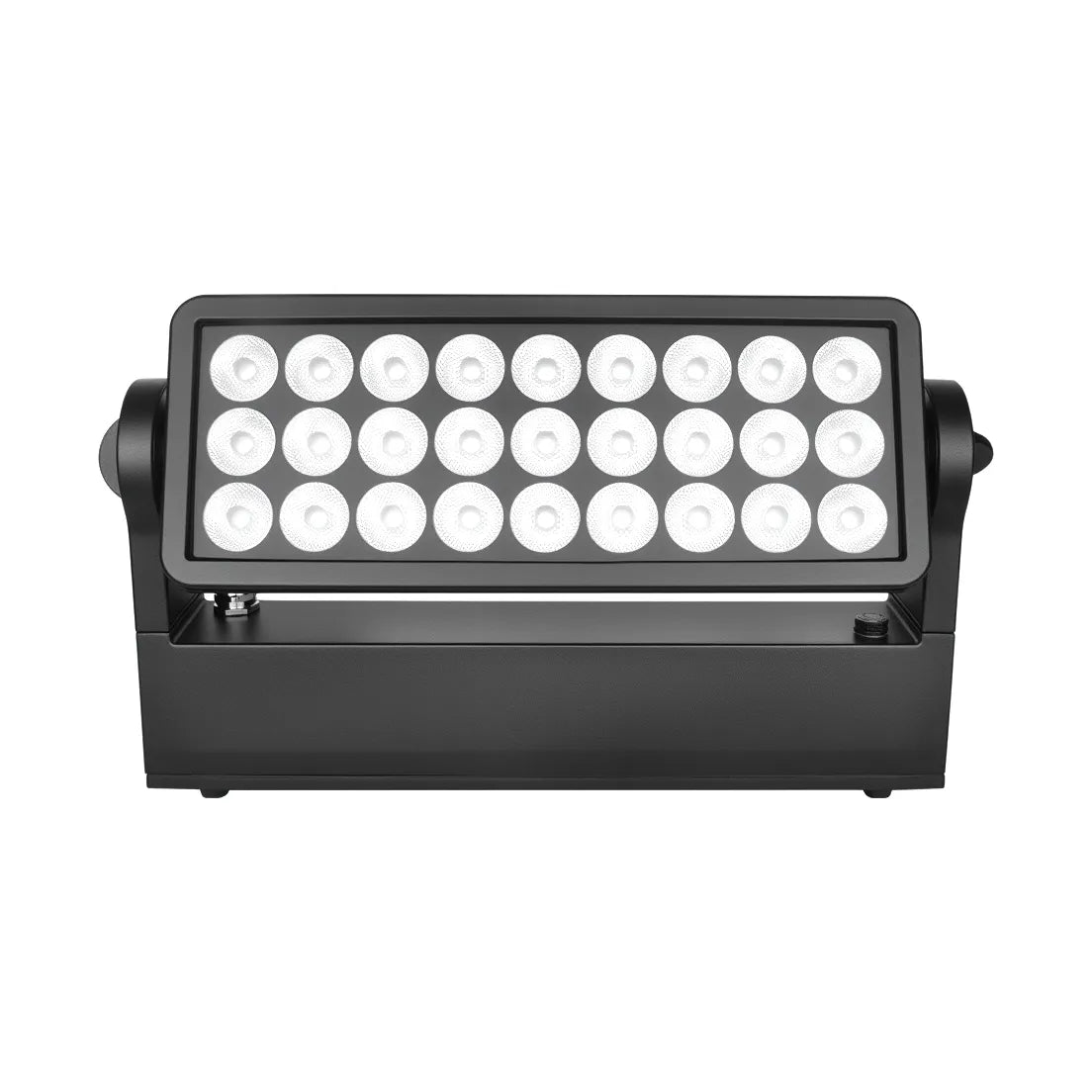

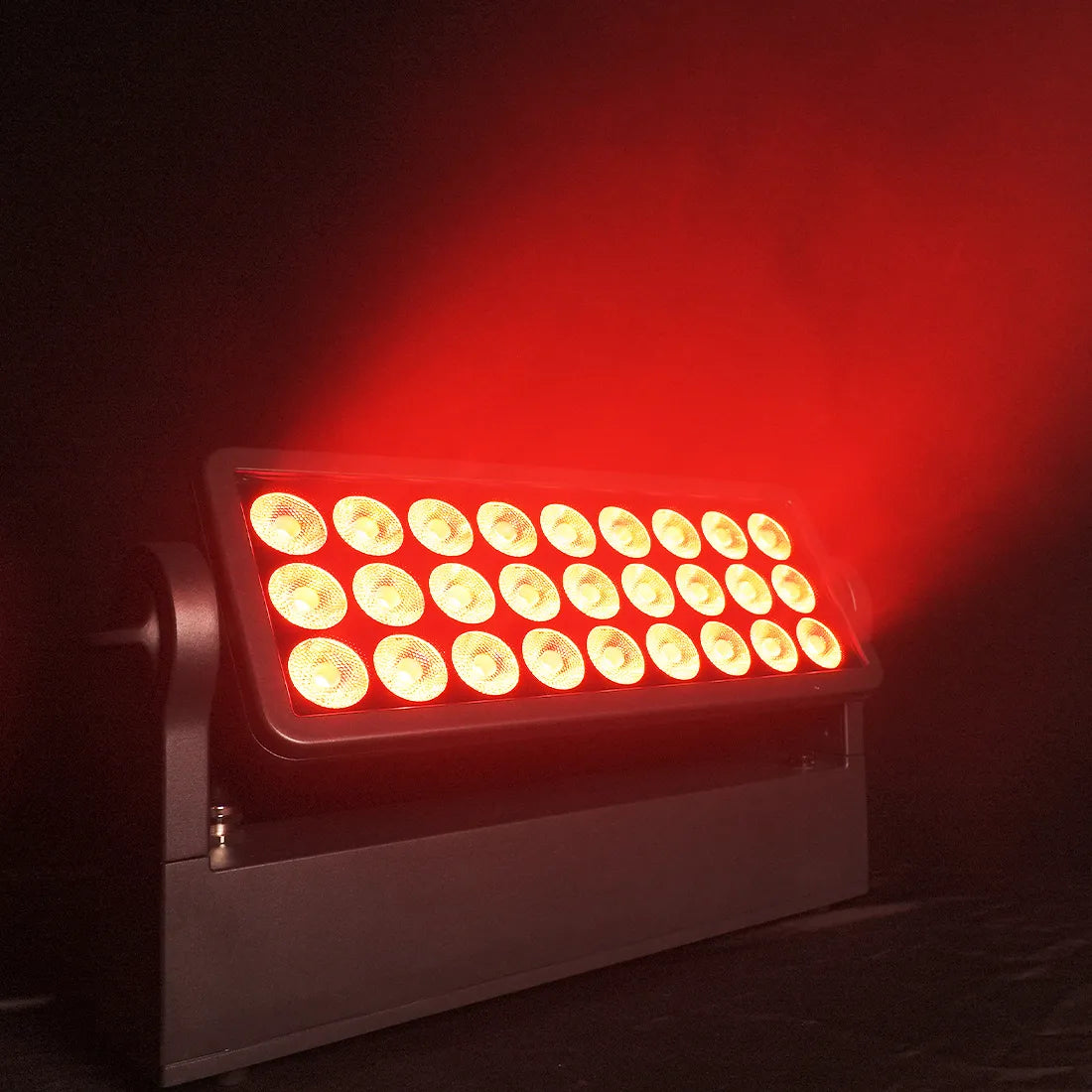

- 27*15W high-quality RGBW LED light sources, the light output of the whole machine can reach 2400k~8000k.

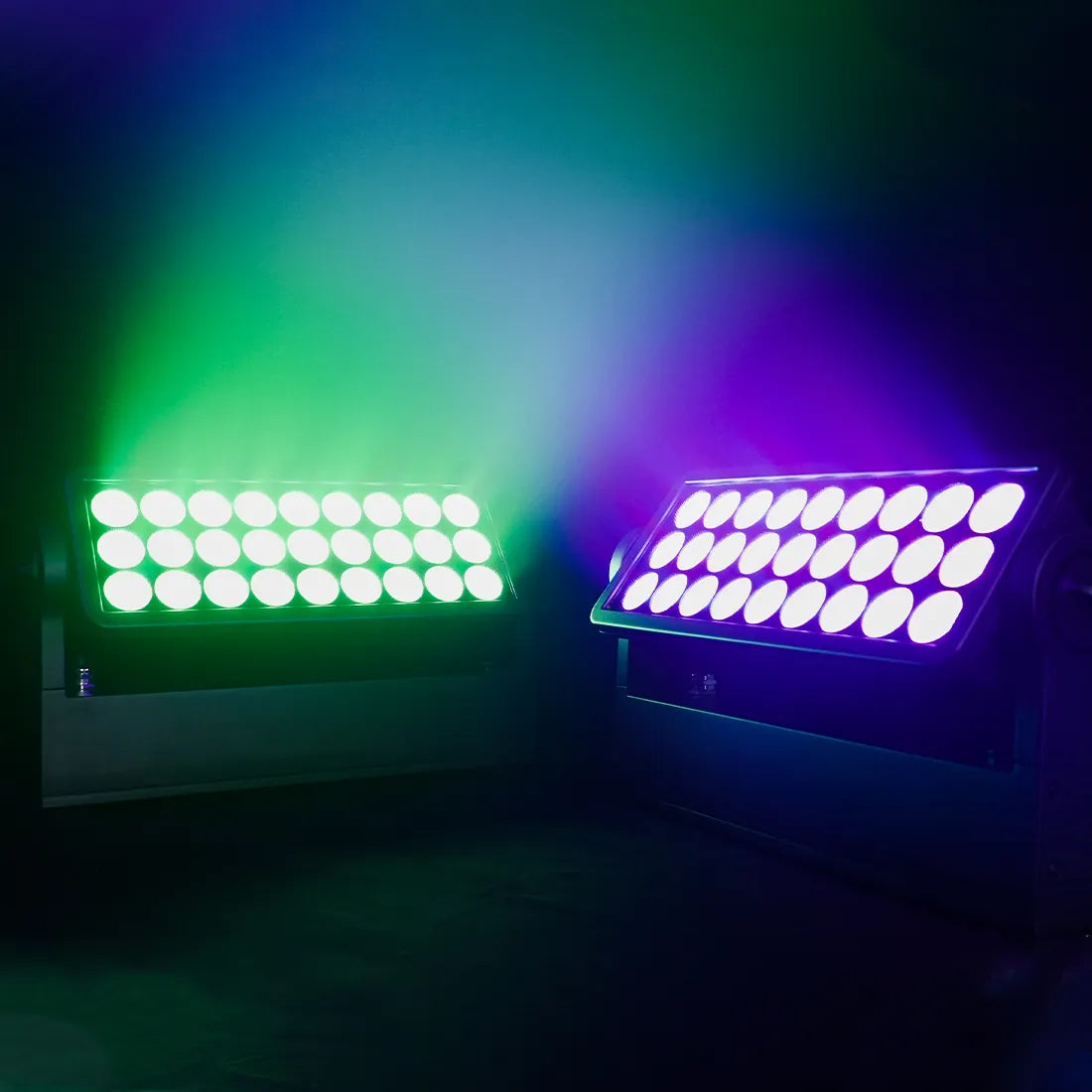

- Uniform RGBW color mixing and CMY color mixing system can modulate any color you want.

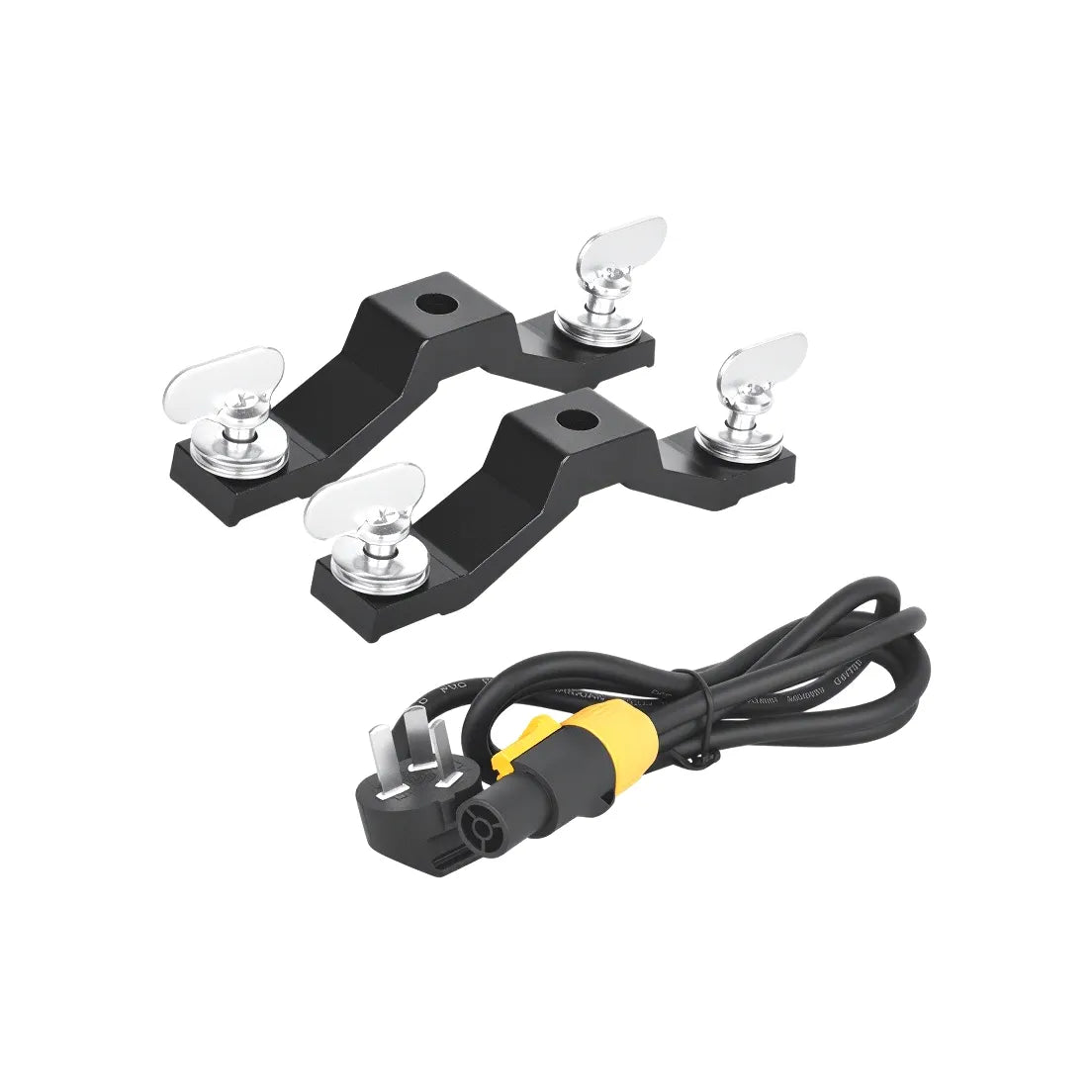

- The power supply can be connected in series, multiple units can be used at the same time, and a 1.5 square power cord can connect up to 6 units at the same time (230V).

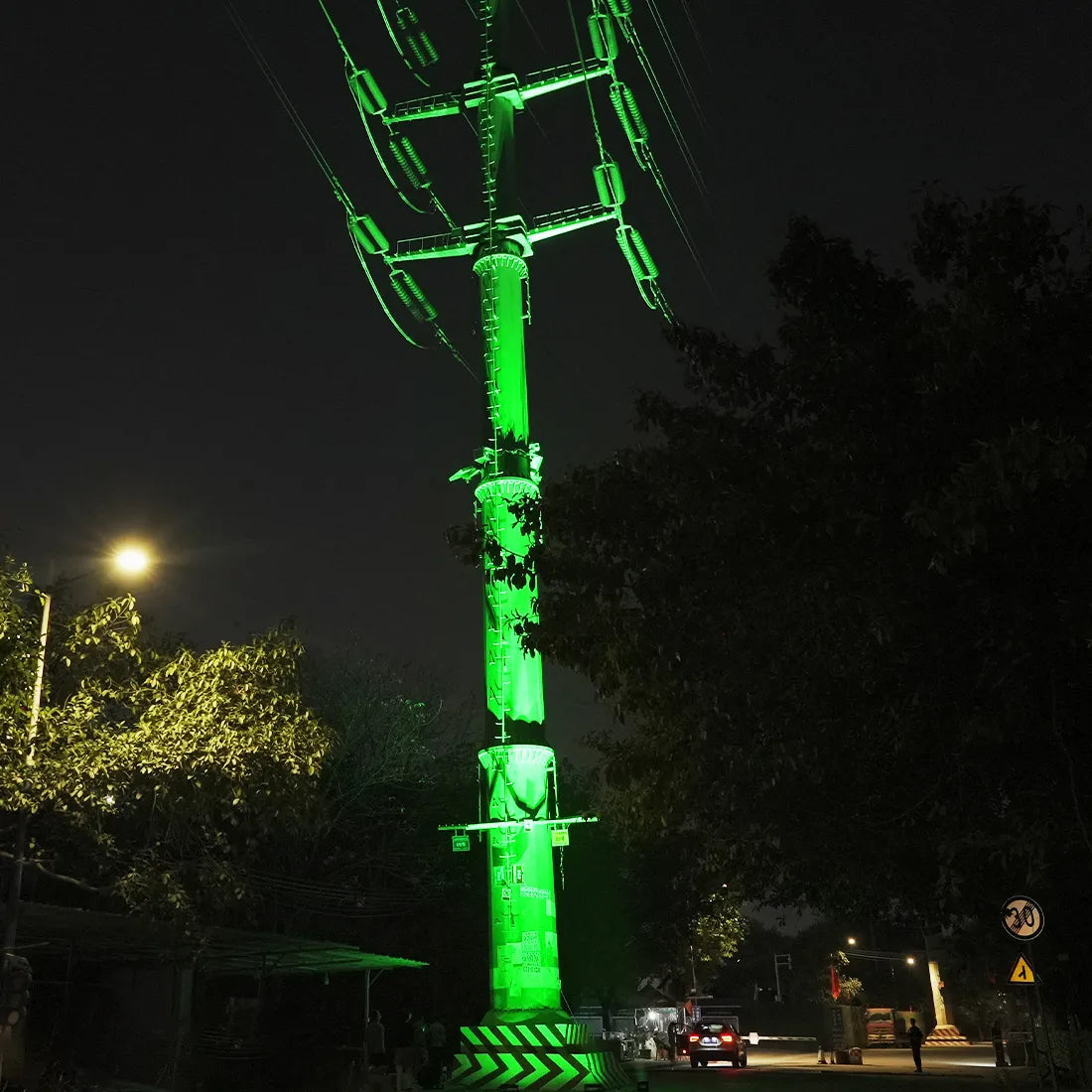

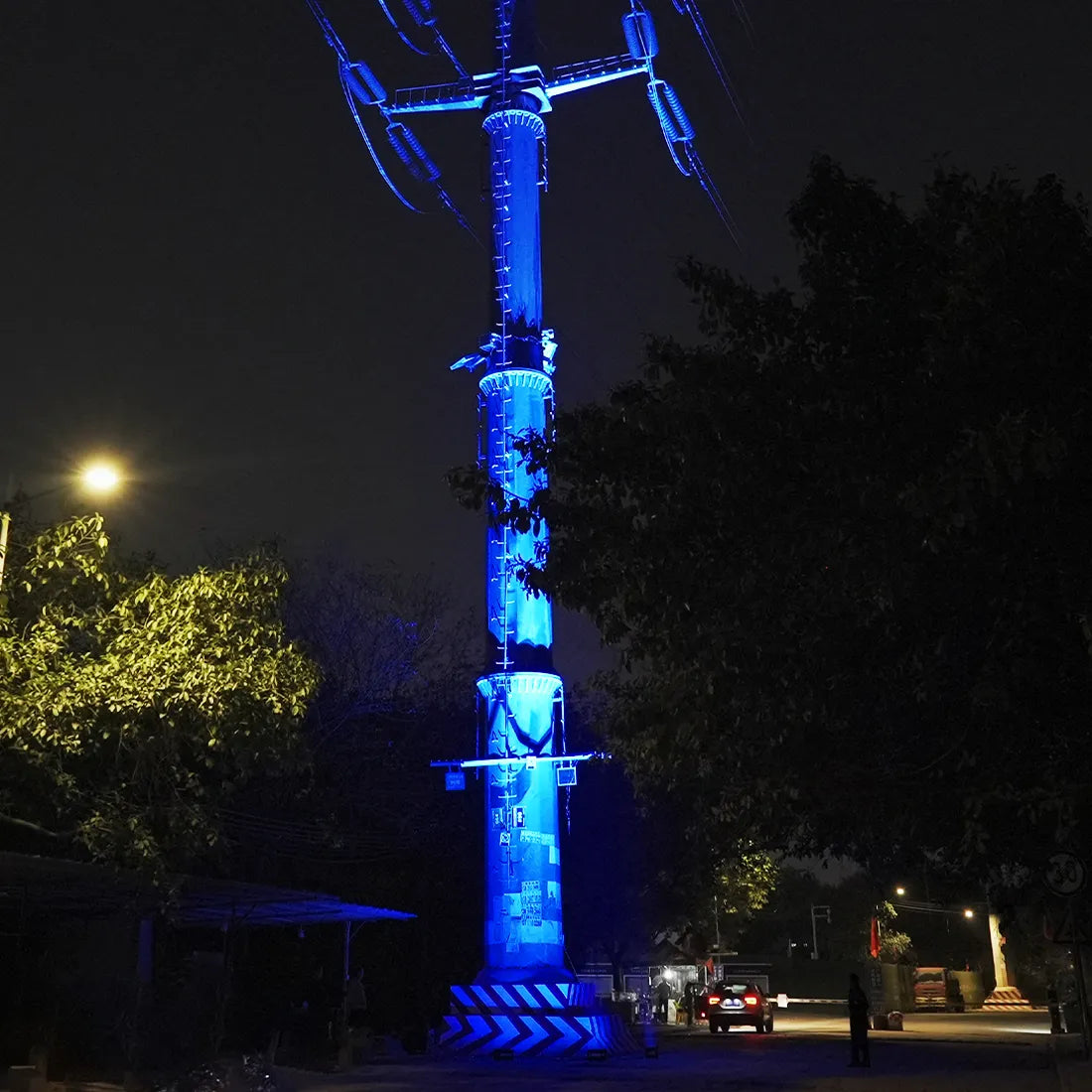

- Whether it's a skyscraper, billboard, bridge, or other structure, this LED wash light creates stunning lighting effects.
Technical Parameter
Specification：
| Category | Item | Specifications |
|---|---|---|
| Electrical | Voltage | 100～240VAC, 50～60Hz |
| Power Rating | 280W @ 230V | |
| Light Source | Light Source | 280W RGBW LED |
| Luminous Flux | 14800Lm (25°) | |
| Color Temperature | 2400K～8000K | |
| Optical | Beam Angle | 8° / 15° / 25° / 45° |
| Strobe | 0～20Hz | |
| Control | Control Mode | DMX512 / Wired RDM / W-DMX |
| DMX Channel | 4CH / 7CH / 8CH | |
| Environment | Working Environment | -20～45℃ |
| Protection Grade | IP65 | |
| Dimensions & Weight | Product Size | 46580.3239.8mm |
| Package Size | 538320180mm | |
| Net Weight (N.W.) | 6.6 kg | |
| Gross Weight (G.W.) | 7.62 kg |
OPTICS
| Feature | Details |
|---|---|
| Light Source | 27pcs 15W RGBW LED |
| Average Lifespan | 50,000 H |
| Color Temperature | 7000K |
| Light Output of the Whole Machine | 15,000Lm |
| Beam Angle | 8° / 15° / 25° / 45° (optional) |
| Dominant Wavelength | R: 623nm; G: 530 nm; B: 455 nm |
EFFECT
| Feature | Details |
|---|---|
| Color Mixing System | Uniform RGBW, CTO: 2400~8500K, CMY |
| Strobe | Fast electronic strobe 1 ~ 20 Hz |
| Refresh Rate | 600 ~ 25K Hz |
| Dimming Curve | Four types |
| Pixel Matrix | Full segment control |
CONTROL AND PROGRAMMING
| Feature | Details |
|---|---|
| Protocol | Standard DMX512 / RDM protocol |

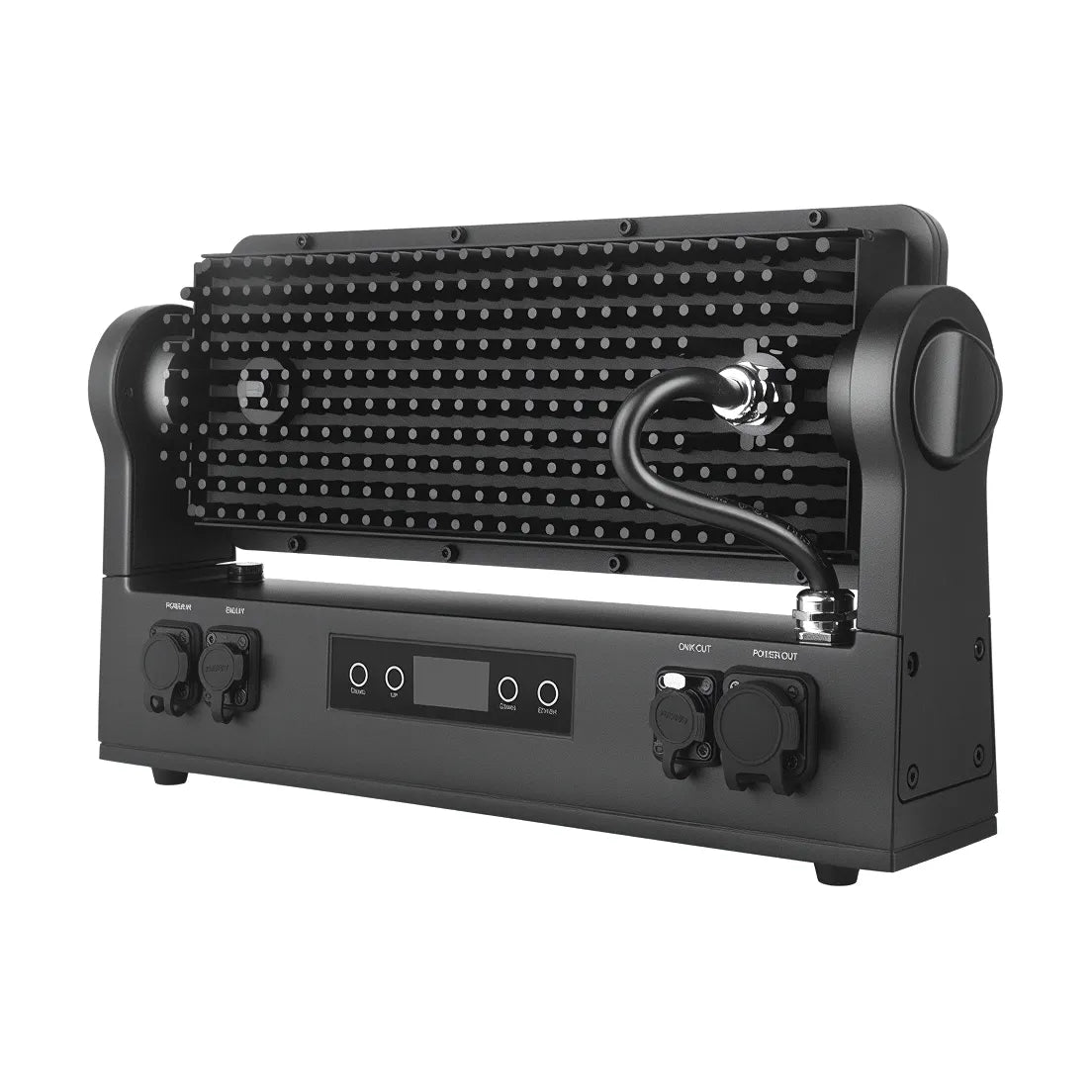

| Data Connection | 3-core or 5-core waterproof signal line I/O |
| DMX Channel | 4CH / 7CH / 8CH |
| Display | 1.8-inch OLED display |
OTHER
| Feature | Details |
|---|---|
| Software Update | Easy and fast via DMX signal |
| Temperature Protection | Intelligent to ensure LED lifespan |
| Dimming | 0~100% |
| Protection Class | IP65 |
| Working Environment | -20℃～40℃ |
| Size | 454×250×80mm |
| Weight | 6.6 kg |
How To Use
The manual will be with the machine, if the manual is missing, please leave a message on the website, and we will contact you as soon as possible
Shipping
- U.S. warehouse: 2-5 working days in the U.S., 7-12 working days in other areas.
- Spain warehouse: 2-4 working days in Spain, 7-12 working days in other EU regions.
- Poland warehouse: 2-4 working days in Poland, 7-12 working days in the rest of the EU.
- China warehouse: 7-20 working days for direct shipment from China.
- The transportation type depends on the region, and it is uniformly displayed as international shipping.
- The goods will be sent out within 1-5 working days. After the logistics order number is generated, customer service will send an email to notify you. Please pay attention to the delivery status.
- If you have any questions, please leave a message.
