Description
- 0°–180° Adjustable Angle for flexible effect positioning.
- Ice-less Output Design delivers clean CO2 blasts without ice residue.

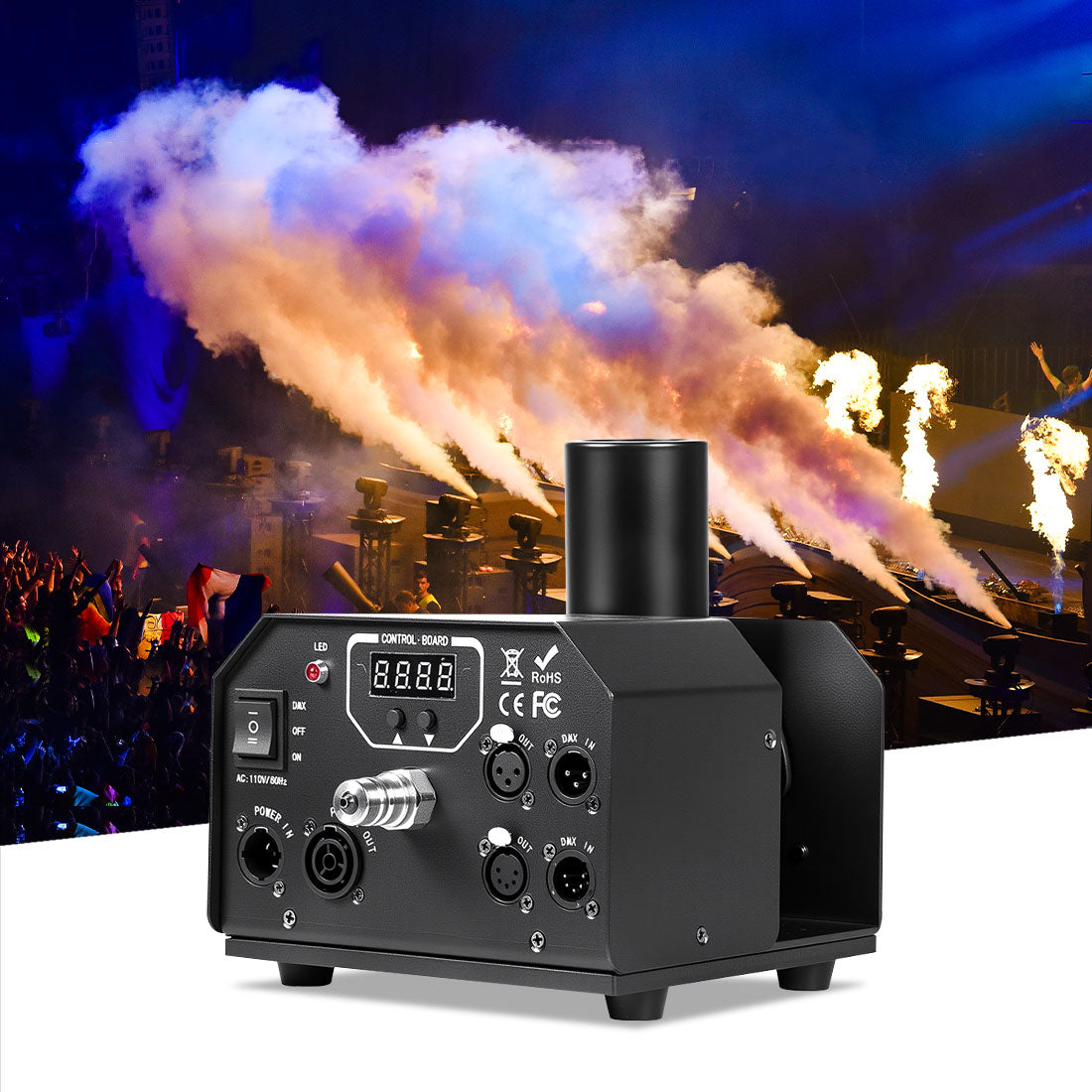

- Powerful Jet Effect reaches a spray distance of 10–12 meters.

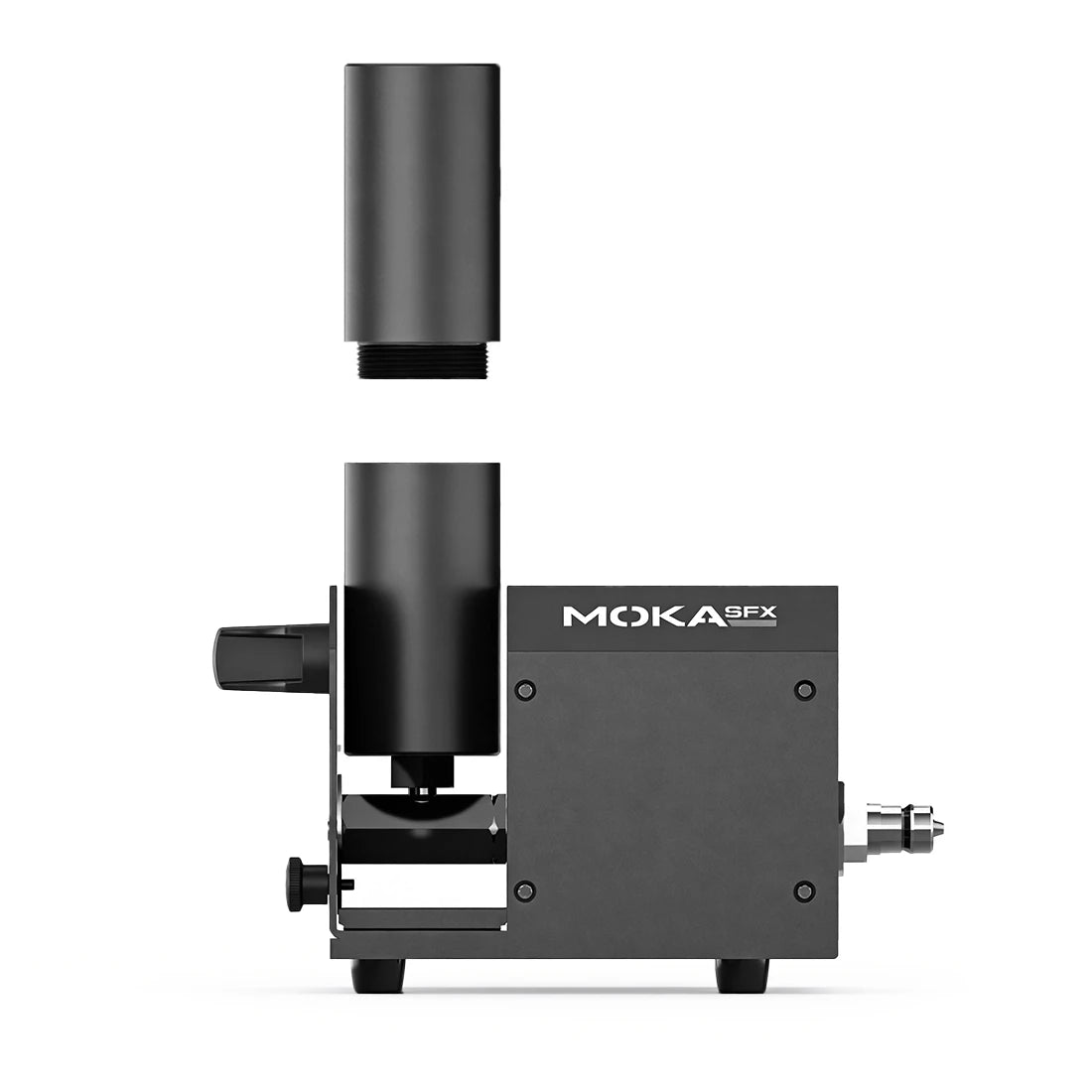

- Detachable Spray Head for flexible setup and adjustable installation height.
- Supports Floor Placement or Upside-Down Mounting to suit a wide range of applications.
Technical Parameter
- Specification ：
| Category | Specification |
| Voltage | 100~120V 60Hz / 200~240V 50Hz |
| Power | 30W |
| Adjustable Angle | 0~180° |
| Spray Height | 10m~12m |
| Maximum Pressure | 1400 Psi |
| DMX Channels | 3-CH |
| Control Modes | 1.Manual（Button/Timer&Quantity） 2.DMX Control(3-pin and 5pin) 3.RDM Protocol |
| Consumable | Food-Grade CO₂ (not included) |
| Installation Methods | Floor-Standing or Hanging |
| Certification | CE/RoHS/FCC |
| Product Size | 28.5 × 20 × 31.5 cm |
| Net Weight | 6.7kg |
| Gross Weight | 10kg |
How To Use
- Installation：
- Place the CO2 cannon in the desired position.
- Connect the CO2 hose securely to the gas bottle.
- Keep the gas bottle on a flat and stable surface.
- Connect the hose between the gas bottle and the machine.
- Open the gas bottle valve.
- Connect the machine to the control console and operate it to create the desired effect.
- Before disassembly, first close the bottle valve, release any remaining gas in the hose, turn off the power, and then disconnect the gas bottle connector.
Q&A
- Q: Can this machine be aimed at people? Is it safe?
A: Yes, but a safe operating distance must always be maintained. Please ensure that no one is within 3 meters (9.8 ft) in the spray direction during operation.
- Q: Where can I buy CO2 gas?
A: CO2 gas can usually be purchased from local gas suppliers, welding gas suppliers, or industrial gas stores.
- Q: How long can the CO2 cannon spray? Can it spray continuously?
A: This machine is not intended for continuous spraying. We recommend each spray be controlled to around 10 seconds, with at least 5 seconds between each burst to help protect the valve and internal components.
- Q: How long is the warranty? If there is a quality issue, who covers the shipping cost?
A: The product includes a 1-year warranty. If there is an issue, please contact customer service with your order number, photos, and video of the problem. During the warranty period, replacement parts are provided free of charge. Please refer to our Return Policy for details.
- Q: Are there any requirements for the CO2 gas cylinder?
A: Yes. For reference, the 40L CO2 cylinders commonly used in our factory are usually filled with about 23 kg of gas, with a recommended range of 18–24 kg. Performance may vary depending on cylinder pressure and temperature conditions.
- Q: How far can this machine spray?
A: Under normal conditions, the machine can spray approximately 10–12 meters, depending on cylinder pressure.
- Q: Does this machine have certifications?
A: Yes. Our products are certified with CE, FCC, and RoHS.
- Q: What should I do if the machine does not spray?
A: Please send us a video of the issue, and our technical team will assist you with troubleshooting. If needed, the machine may need to be returned for inspection and repair.
