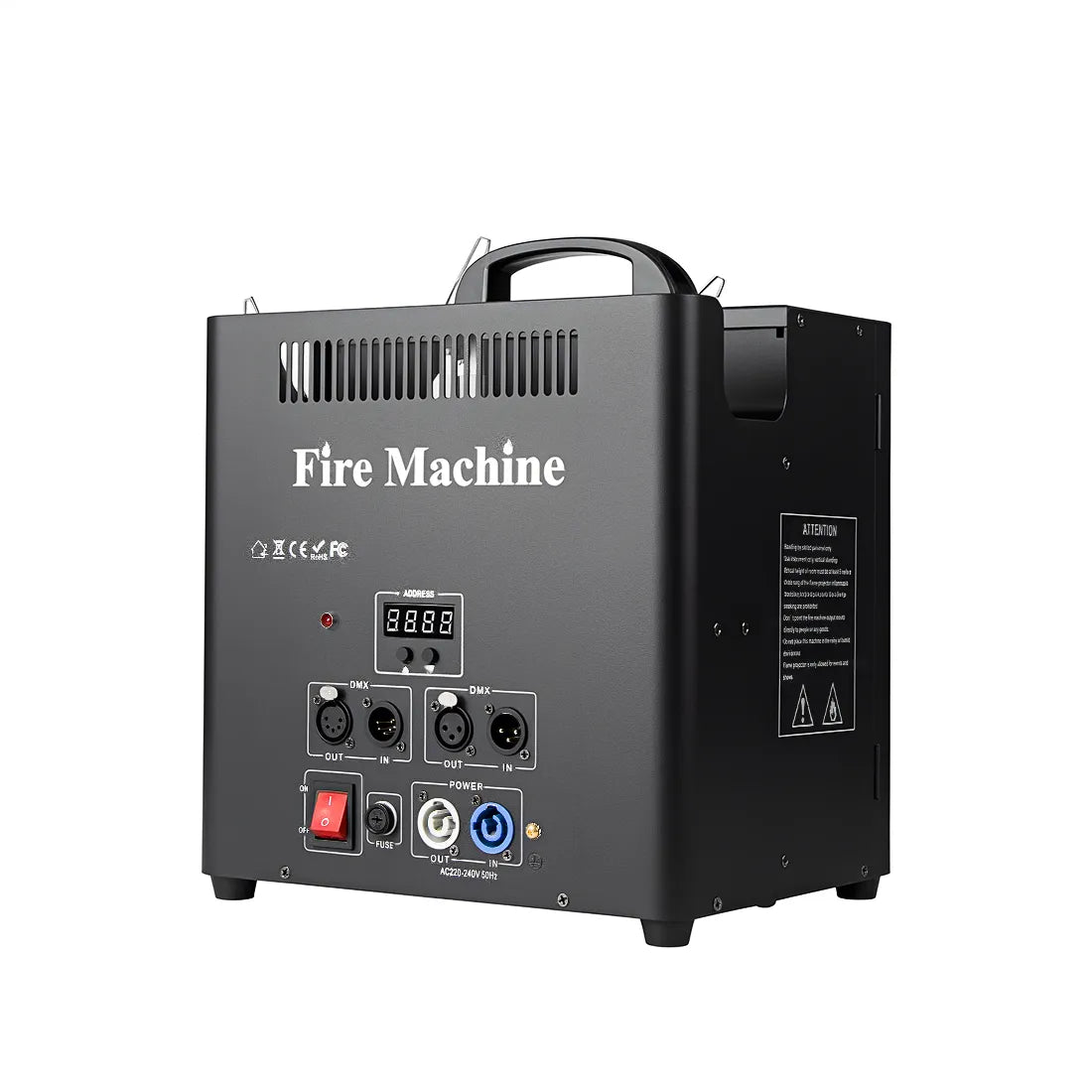

MOKA SFX H-E03 Triple Head Flame Machine

Description

• The flame machine H-E03 is professional stage effect equipment with the newest LCD design.
• The machine can be controlled by DMX 512 which is easy to operate. However, the machines are sold without a DMX 512 controller， which needs to be purchased separately.
• The flame machine has a 99% successful ignition rate with high-quality valve and ignition.

• This kind of fire machine creates a splendid and beautiful flame. The height of the flame can reach 3.2 meters( 10.5 feet). The flame projects as if the explosion of the atomic bomb which can bring the show to the climax.

• This machine can be used in various television performances, large outdoor disco shows, concerts, parties, etc. It is an important part of the stage effects.

• With a safety channel, the flame projector won’t jet the fire if you touch the DMX controller by mistake.

• With the Safety Sensor component, the power will be cut off automatically, and the flame projector will stop working instantly when it falls.

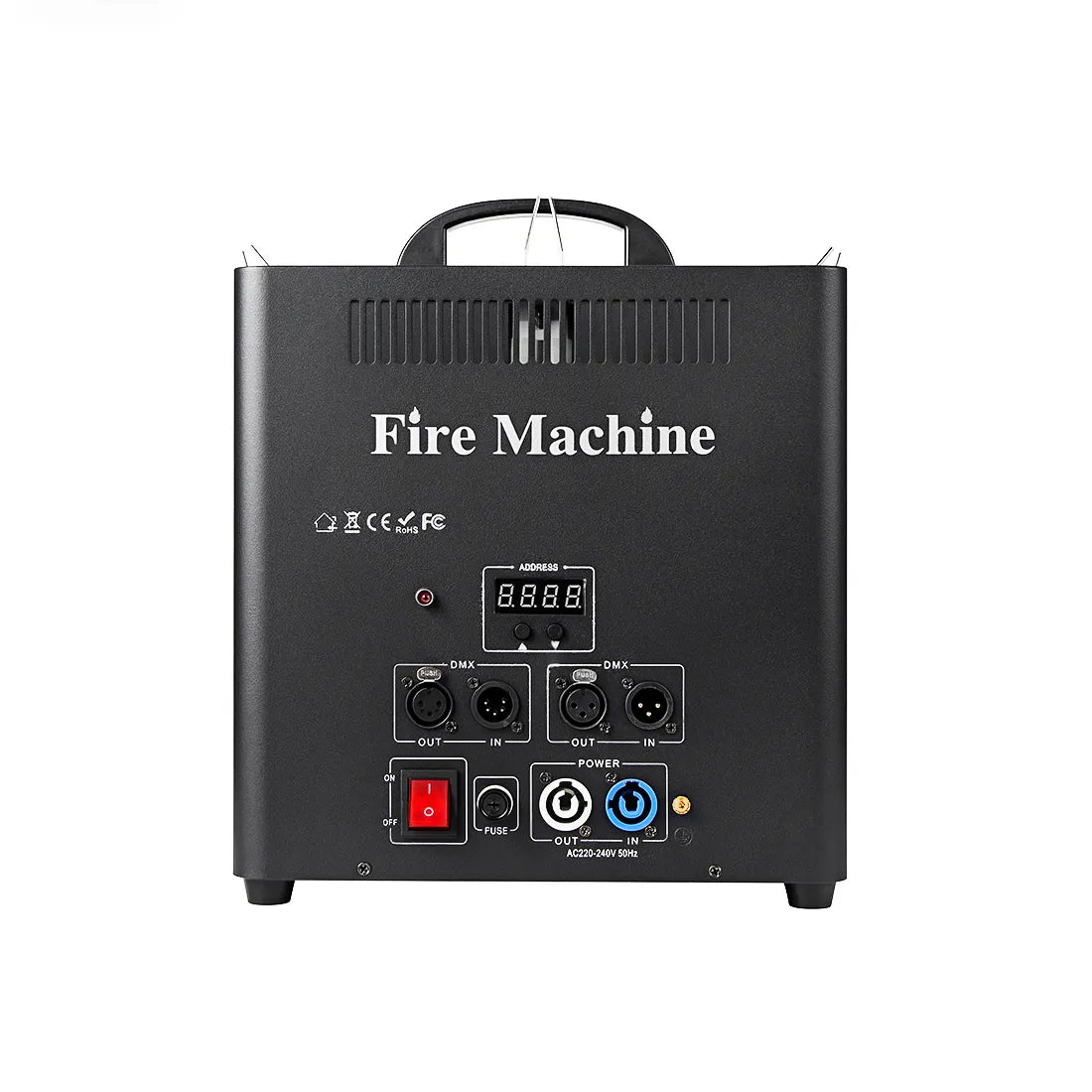

• 3-pin and 5-pin DMX in/out, enhance the signal transmission.

Please note :

The machines are sold without a DMX controller, if you need one, please purchase additionally :

Mini Battery DMX Console 24CHs Battery Controller

Technical Parameter

• Features：

            1. High-quality valves and ignitors

            2. Instant dashboard display, easy to use

            3. LCD, easy to operate

• Specification:

           Voltage: AC 110/230V 50~60Hz

           Power: 180W

           Flame height: 3 meters (10 feet)

           Control mode: DMX 512 / electronic control

           Package size: 35*29*37cm

           Net weight: 8 kg

           Gross weight: 9kg



•  Packing List :

             1 pc Flame machine

             1 pc Signal cable

             1 pc User manual

             1 pc Power cord

 How To Use

• Preparation for installation:

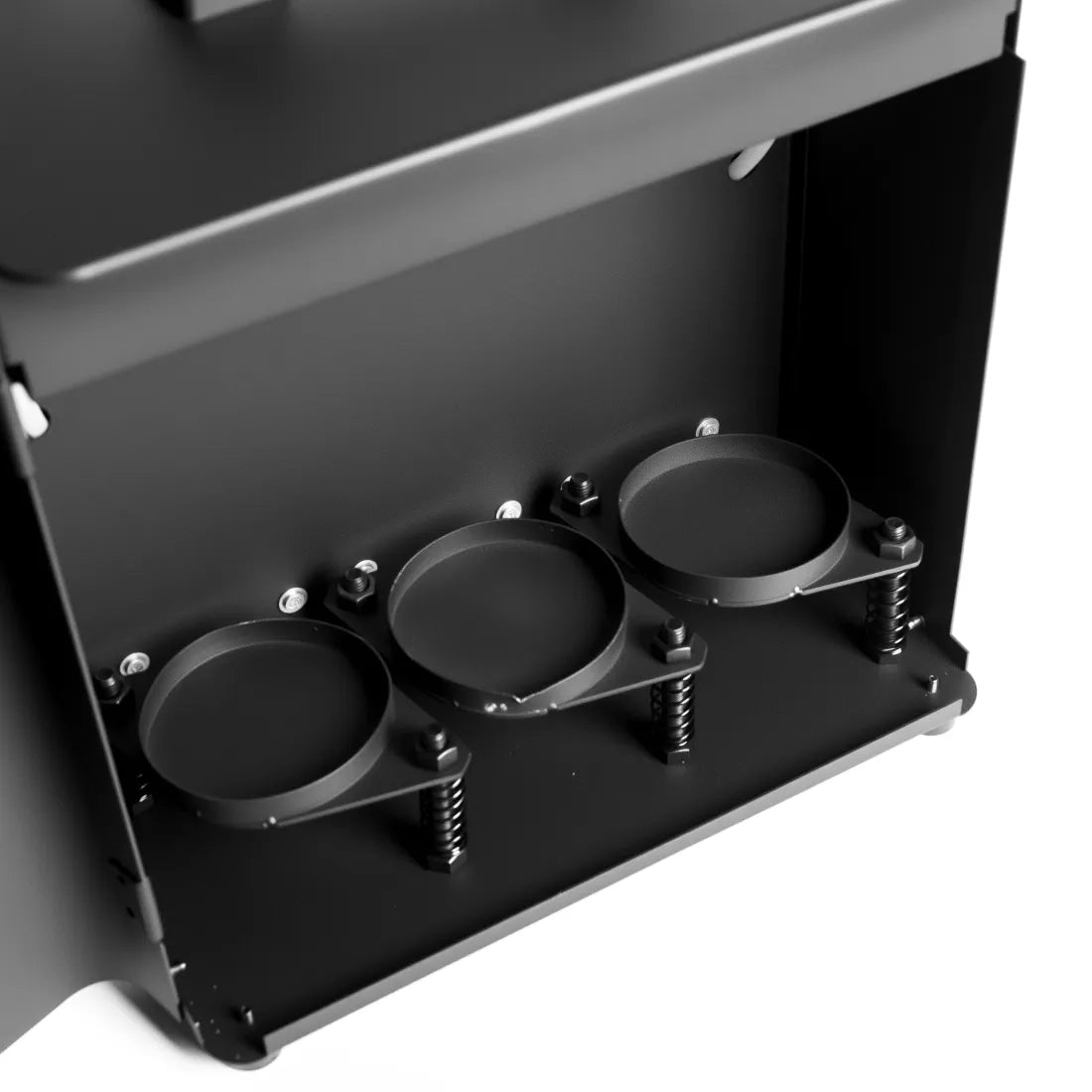

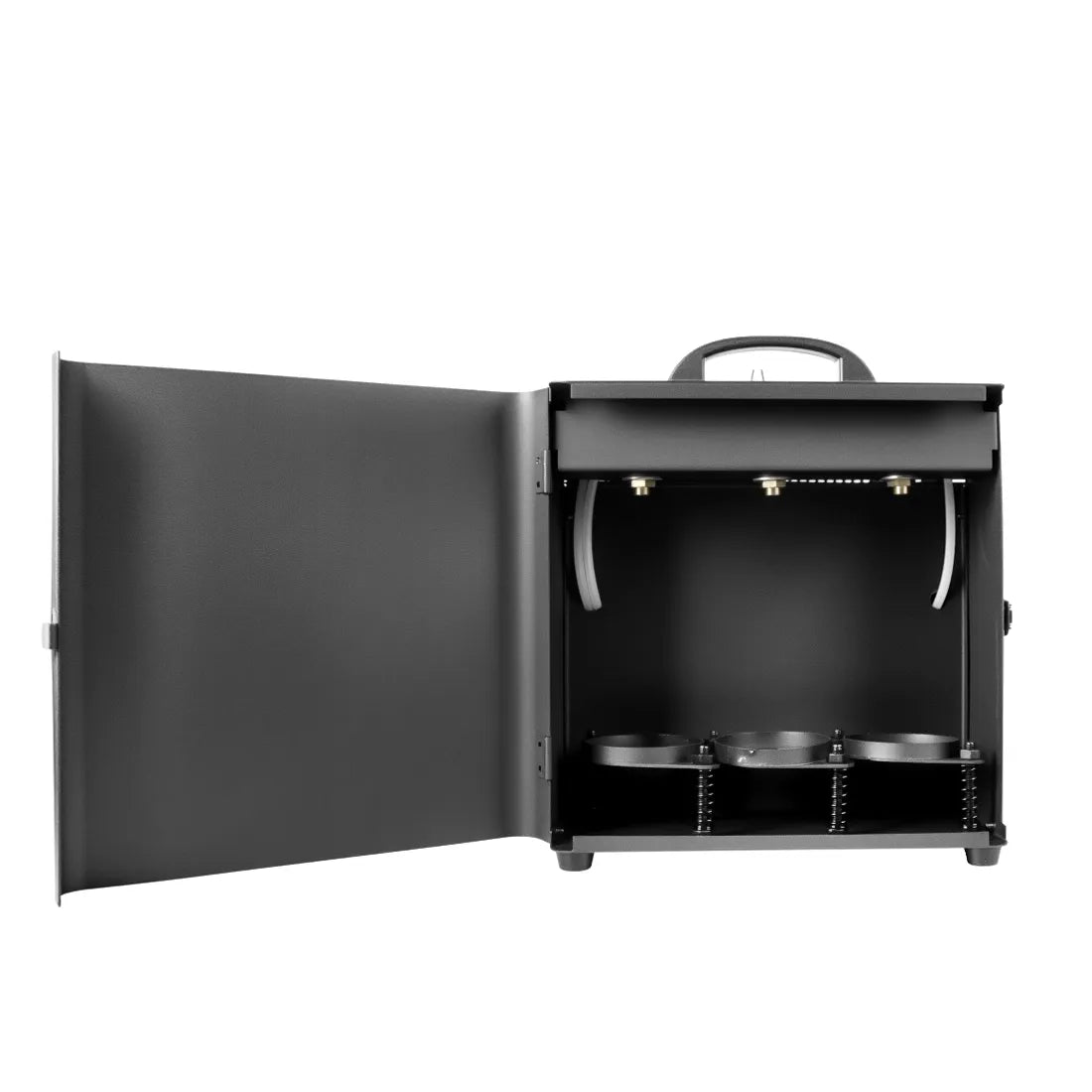

           1. Please open the door of the flame machine, put 3 bottles of the flame liquid cans on the holder, and ensure the liquid can be fixed correctly. And then closes the door of the flame machine.

            2. Please connect the power supply for the flame machine and open the switch. Connect with the DMX signal cable and DMX controller, and set the DMX address. The machine will be DMX self-inspection, and the detection lamp will flicker. When contacting with the DMX signal cable, the display will light up. Otherwise, the display will not be bright.

           3. The flame machine has a safety channel. The machine works only when the value of channel 1 is between 100 and 155. Open the safety channel and use channels 2-6 to spray the flame.

           4. After use, turn off the machine and disconnect the power and signal cables.

           5. Wait 15 minutes until the ignition needle has cooled, then remove the fire oil and wipe the machine clean.

• Caution:

         1. Before using this machine, please read this manual carefully.

         2. Only use the special 250V / 10A (110V available) three-wire power supply, it should be grounded, do not get the ground and wire together.

         3. When you are not using the machine, the power cord must be unplugged.

         4. Do not place the machine in a rainy or humid environment to use.

         5. Do not put the machine power plug, or cable in water, or other liquids.

         6. Make sure that all parts are well connected before turning on the power of the machine.

         7. To use the machine, note that the vertical height of the room must be at least 5 meters.

         8. If the machine is damaged, please disconnect the power immediately, do not disassemble the machine, and contact the supplier to repair the machine.

         9. The machine is used together with fire-breathing oil (purchased separately).

        10. Do not point the output of the machine (open flame) directly at people or any goods.



Shipping

• U.S. warehouse: 2-5 working days in the U.S., 7-12 working days in other areas.
• Spain warehouse: 2-4 working days in Spain, 7-12 working days in other EU regions.
• Poland warehouse: 2-4 working days in Poland, 7-12 working days in the rest of the EU.
• China warehouse: 7-15 working days for direct shipment from China.
• The transportation type depends on the region, and it is uniformly displayed as international shipping.
• The goods will be sent out within 1-5 working days. After the logistics order number is generated, customer service will send an email to notify you. Please pay attention to the delivery status.
• If you have any questions, please leave a message.

Q&A

• Q: Where can I buy fuel?

           A: Websites for buying starting fluid in various countries:

                USA: https://www.amazon.com/Valvoline-602373-11-Starting-Fluid/dp/B00PWLS7HU/ref=mp_s_a_1_5?ie=UTF8&qid=1545973834&sr=8-5&pi=AC_SX236_SY340_QL65&keywords=valvoline+s

                Europe: https://www.amazon.de/dp/B007VMGD7E/ref=cm_sw_r_wa_api_i_Y-R5CbDJ8WX0E

                France: https://france-effect.com/recharge-flamme/recharge-dragon-tower-iii.html



• Q: What's the fuel called? Chemical composition?

           A: Flame Oil, Flame Liquid, Starting liquid.

                The main ingredient in the car starting fluid is Diethyl Ether, with some  Petroleum Distillates, Propane or Butane, Lubricants, and CO2 added. Colored starting fluid has more Organic dyes added.



• Q: How long does a bottle last?

           A: A 200ml fuel bottle will last approximately 60-70 seconds.



• Q: If I use this flamethrower, will it cause a fire, or cause the smoke alarm to go off?

           A: Our flame machine can be used indoors or outdoors, as long as it is kept at a relatively safe distance, it will not cause a fire or cause the smoke alarm to go off. And our machine is equipped with a safety channel, when the machine is tilted more than 45 degrees, the flamethrower will immediately stop working to improve the safety of use.



• Q: Do I need to get a security clearance to use your flame machine or spark machine?

           A: From the customers we have worked with in Europe, America, and other countries, there is no need to obtain security clearance to use our machines.



• Q: What should I do if the machine keeps working?

           A: First of all, please confirm that all procedures with normal operation. It is recommended to cut off the power and operate it again, if fails again, the cause may be the valve is broken. Please cut off the power, and replace a new valve.



• Q: What should I do if the machine just sprays oil and doesn’t catch fire?

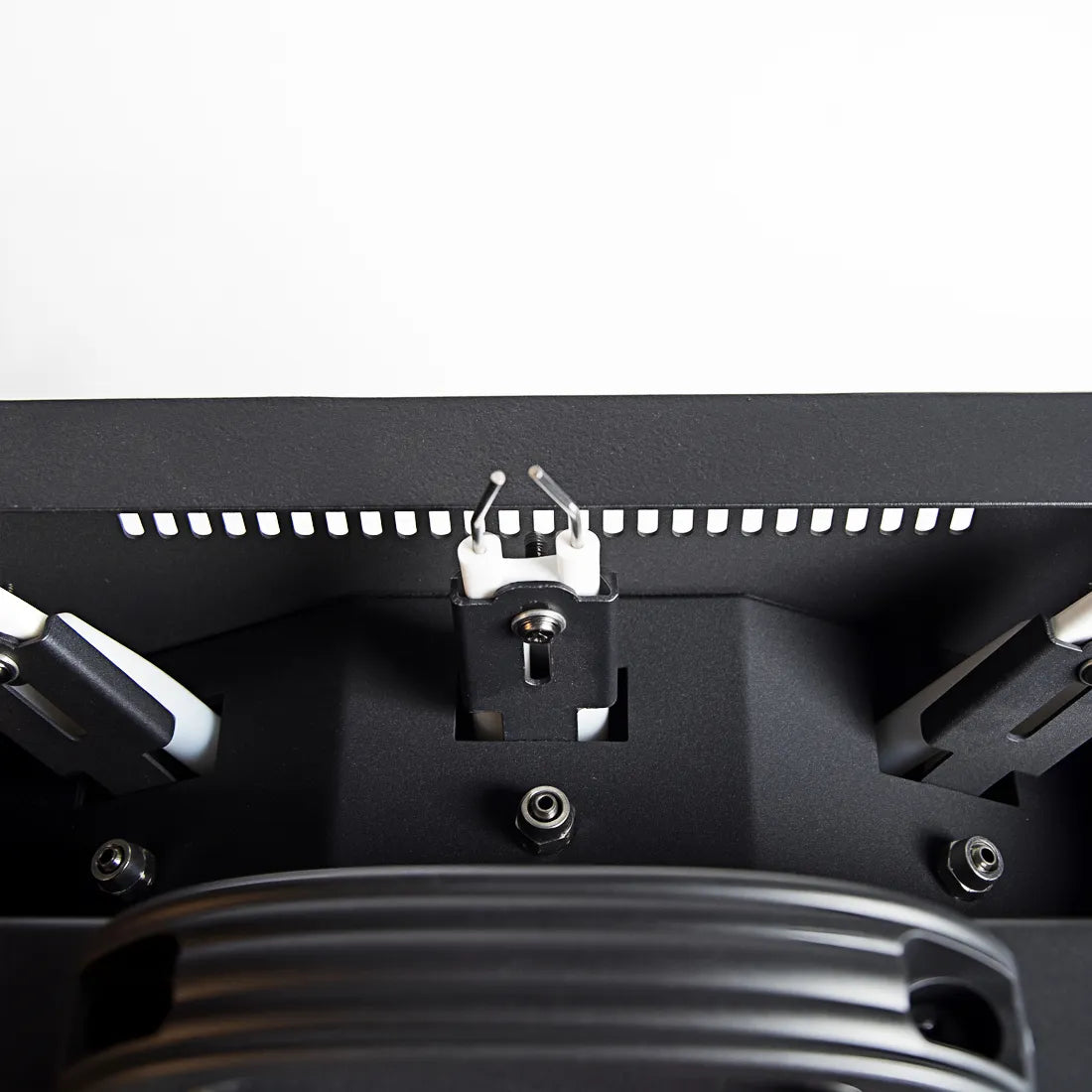

           A: In this case, the angle of the ignition pin may be distorted, and the spray nozzle may not be aligned so that the spark cannot be ignited by the ignition pin when the fire spark comes out. Please try to adjust the angle of the ignition pin to align the nozzle and try again.



• Q: If the products are broken during the warranty, what should I do?

           A: Don’t worry, MOKA SFX has a professional foreign trade team and helps you to solve all problems with our products in time. Please send us pictures or videos if there is a problem with the products. We will guide you on how to fix it and provide spare parts for free if needed.



• Q: What are the control modes of the flame machines?

           A: DMX Control and Electric control (H-E01, H-E02)

                  DMX control means connecting the DMX cable and then through the DMX controller to control the machine.

                  Electric control means turning on power then working, turning off power then stopping working.



• Q: What is the control mode of H-E04?

           A: Control by DMX.



• Q: What is the safe channel?

   A: When you use the DMX controller to control the machine, channel 1 is a safety channel with values of 102-153 open, indicating the fire projector safe channel is open and the machine can work.



• Q: What is the dumping switch?

   A: When the machine tilts over 45°, the power will be cut off automatically and the flame projector stop working instantly, ensuring the security of the event.



• Q: How high can the spray be?

            A: H-E01: Spray1-3M;

                 H-E02: Spray2-4M;

                 H-E03: Spray1-3M;

                 H-E04: Spray5-6M;

                 H-E05: Spray1-3M;

                 H-E01A: Spray1-2(LPG Flame machine);

                 H-E03A: Spray1-2M(LPG Triple-head flame machine ).



• Q: Which flame machine can spray the highest? How many meters can it reach?

   A: New Four Heads Flame Machine H-E04. 4 bottles of flame oil working together, enough pressure can spray 5-6M.
