Description
Description
- The flame machine is a professional phase effect equipment with the newest design of 4 shots with DMX 512 control.
- The fire machine has high-quality valves and ignition with a 99% successful ignition rate.
- With a safety channel, the flame projector will not jet the fire if you touch the DMX controller by mistake.

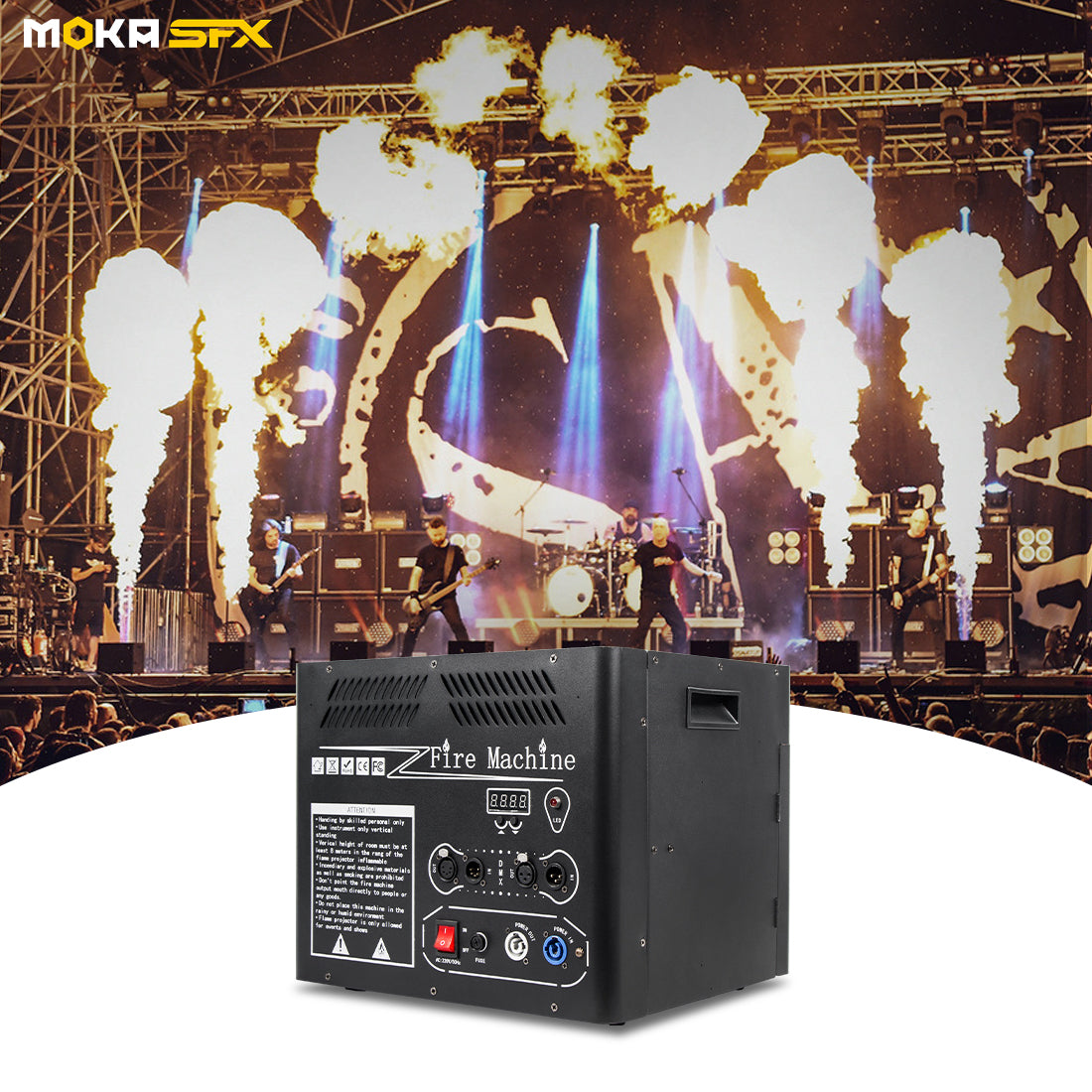

- The flame machine H-E04 creates a splendid and beautiful flame, the height of the flame can reach 6 meters (19.7 feet).
- With the Safety Sensor component, the power will be cut off automatically and the flame projector will stop working instantly when it drops down.
PLEASE NOTE :
ALL THE MACHINES ARE SOLD WITHOUT DMX CONTROLLER, IF YOU NEED ONE, PLEASE PURCHASE ADDITIONALLY :
MINI BATTERY DMX CONSOLE 24CHS BATTERY CONTROLLER
Technical Parameter
- Product Features:
1. The flame machine is a professional phase effect equipment with the newest design of 4 shots with DMX 512 control, which is easy to control.
2. With high-quality valves and ignition, the fire machine has a 99% successful ignition rate.
3. The fire machine H-E04 creates a splendid and beautiful flame, with the height of the flame reaching 6 meters (19.7 feet). Its flames are designed as if the explosion of the atomic bomb can bring the show to the climax.
4. This machine can be suitable for various television performances, large outdoor disco shows, concerts, parties, etc. It is an important part of stage effects.
5. With a safety channel, the flame projector will not jet the fire if you touch the DMX controller by mistake.
6. With the Safety Sensor component, the power will be cut off automatically and the flame projector will stop working instantly when it drops.
7. 3-pin and 5-pin DMX in/out improve signal transmission.
- Specifications :
Power: 180 W
Voltage: AC 110/220V 60/50Hz
Control Mode: DMX512
Sprayer flame height: 5-6 m
Package dimensions: 45x40x39cm
Gross weight: 13 kg
Color: fire red (depends on the color of the fire oil)
Product Warranty: 1 year
Certificate: CE, RoHS, FCC certified
Dmx channel: 7 CHS
Channel 1: safety channel (value 100-150, the safety channel will be on)
Channel 2: No. 1 Spray
Channel 3: No. 2 Spray
Channel 4: No. 3 Spray
Channel 5: No. 4 Spray
Channel 6: 4 flames spray together
Channel 7:
Value 1-125: No. 1 No. 2 No. 3 and No.4 spray from slow to fast
Value 126-255: No. 4, No. 3, No. 2, and No.1 spray from slow to fast
- Packing List:
1pc Flame machine
1pc Power cord
1pc DMX cable
1pc Manual book
- Hot Tip:
The fire machine can work with fire oil. However, fire oil is defined as a flammable and explosive item, so we are forbidden to ship it. You can get the fire oil in your own country.
How To Use
- Steps To Use :
1. Please open the door of the flame machine, put 4 bottles of flame liquid cans on the holder, and ensure the liquid can be fixed correctly. And then closes the door of the flame machine.
2. Please connect the power supply for the flame machine and open the switch. Connect with the DMX signal cable and DMX controller, and set the DMX address. The machine will be DMX self-inspection, and the detection lamp will flicker. When contacting with the DMX signal cable, the display will light up. Otherwise, the display will not be bright.
3. The flame machine has a safety channel. The machine works only when the value of channel 1 is between 100 and 155. Open the safety channel and use channels 2-7 to spray the flame.
4. After use, turn off the machine and disconnect the power and signal cables.
5. Wait 15 minutes until the ignition needle has cooled, then remove the fire oil and wipe the machine clean.
- Attention:
Before using this product please first read the operating guide.
Shipping
- U.S. warehouse: 2-5 working days in the U.S., 7-12 working days in other areas.
- Spain warehouse: 2-4 working days in Spain, 7-12 working days in other EU regions.
- Poland warehouse: 2-4 working days in Poland, 7-12 working days in the rest of the EU.
- China warehouse: 7-20 working days for direct shipment from China.
- The transportation type depends on the region, and it is uniformly displayed as international shipping.
- The goods will be sent out within 1-5 working days. After the logistics order number is generated, customer service will send an email to notify you. Please pay attention to the delivery status.
- If you have any questions, please leave a message.
Q&A
- Q: Where can I buy fuel?
A: Websites for buying starting fluid in various countries:
USA: https://www.amazon.com/Valvoline-602373-11-Starting-Fluid/dp/B00PWLS7HU/ref=mp_s_a_1_5?ie=UTF8&qid=1545973834&sr=8-5&pi=AC_SX236_SY340_QL65&keywords=valvoline+s
Europe: https://www.amazon.de/dp/B007VMGD7E/ref=cm_sw_r_wa_api_i_Y-R5CbDJ8WX0E
France: https://france-effect.com/recharge-flamme/recharge-dragon-tower-iii.html
- Q: What's the fuel called? Chemical composition?
A: Flame Oil, Flame Liquid, starting fluid.
The main ingredient in the car starting fluid is Diethyl Ether, with some Petroleum Distillates, Propane or Butane, Lubricants, and CO2 added. Colored starting fluid has more Organic dyes added.
-
Q: How long does a bottle last?
A: A 200ml fuel bottle will last approximately 60-70 seconds.
-
Q: If I use this flamethrower, will it cause a fire, or cause the smoke alarm to go off?
A: Our flame machine can be used indoors or outdoors, as long as it is kept at a relatively safe distance, it will not cause a fire or cause the smoke alarm to go off. And our machine is equipped with a safety channel, when the machine is tilted more than 45 degrees, the flamethrower will immediately stop working to improve the safety of use.
-
Q: Do I need to get a security clearance to use your flame machine or spark machine?
A: From the customers we have worked with in Europe, America, and other countries, there is no need to obtain security clearance to use our machines.
-
Q: What should I do if the machine keeps working?
A: First of all, please confirm that all procedures with normal operation. It is recommended to cut off the power and operate it again, if fails again, the cause may be the valve is broken. Please cut off the power, and replace a new valve.
-
Q: What should I do if the machine just sprays oil and doesn’t catch fire?
A: In this case, the angle of the ignition pin may be distorted, and the spray nozzle may not be aligned so that the spark cannot be ignited by the ignition pin when the fire spark comes out. Please try to adjust the angle of the ignition pin to align the nozzle and try again.
-
Q: If the products are broken during the warranty, what should I do?
A: Don’t worry, MOKA SFX has a professional foreign trade team and helps you to solve all problems with our products in time. Please send us pictures or videos if there is a problem with the products. We will guide you on how to fix it and provide spare parts for free if needed.
-
Q: What are the control modes of the flame machines?
A: DMX Control and Electric control (H-E01, H-E02)
DMX control means connecting the DMX cable and then through the DMX controller to control the machine.
Electric control means turning on power then working, turning off power then stopping working.
-
Q: What is the control mode of H-E04?
A: Control by DMX.
-
Q: What is the safe channel?
A: When you use the DMX controller to control the machine, channel 1 is a safety channel with values of 102-153 open, indicating the fire projector safe channel is open and the machine can work.
-
Q: What is the dumping switch?
A: When the machine tilts over 45°, the power will be cut off automatically and the flame projector stop working instantly, ensuring the security of the event.
-
Q: How high can the spray be?
A: H-E01: Spray1-3M;
H-E02: Spray2-4M;
H-E03: Spray1-3M;
H-E04: Spray5-6M;
H-E05: Spray1-3M;
H-E01A: Spray1-2(LPG Flame machine);
H-E03A: Spray1-2M(LPG Triple-head flame machine ).
-
Q: Which flame machine can spray the highest? How many meters can it reach?
A: New Four Heads Flame Machine H-E04. 4 bottles of flame oil working together, enough pressure can spray 5-6M.
