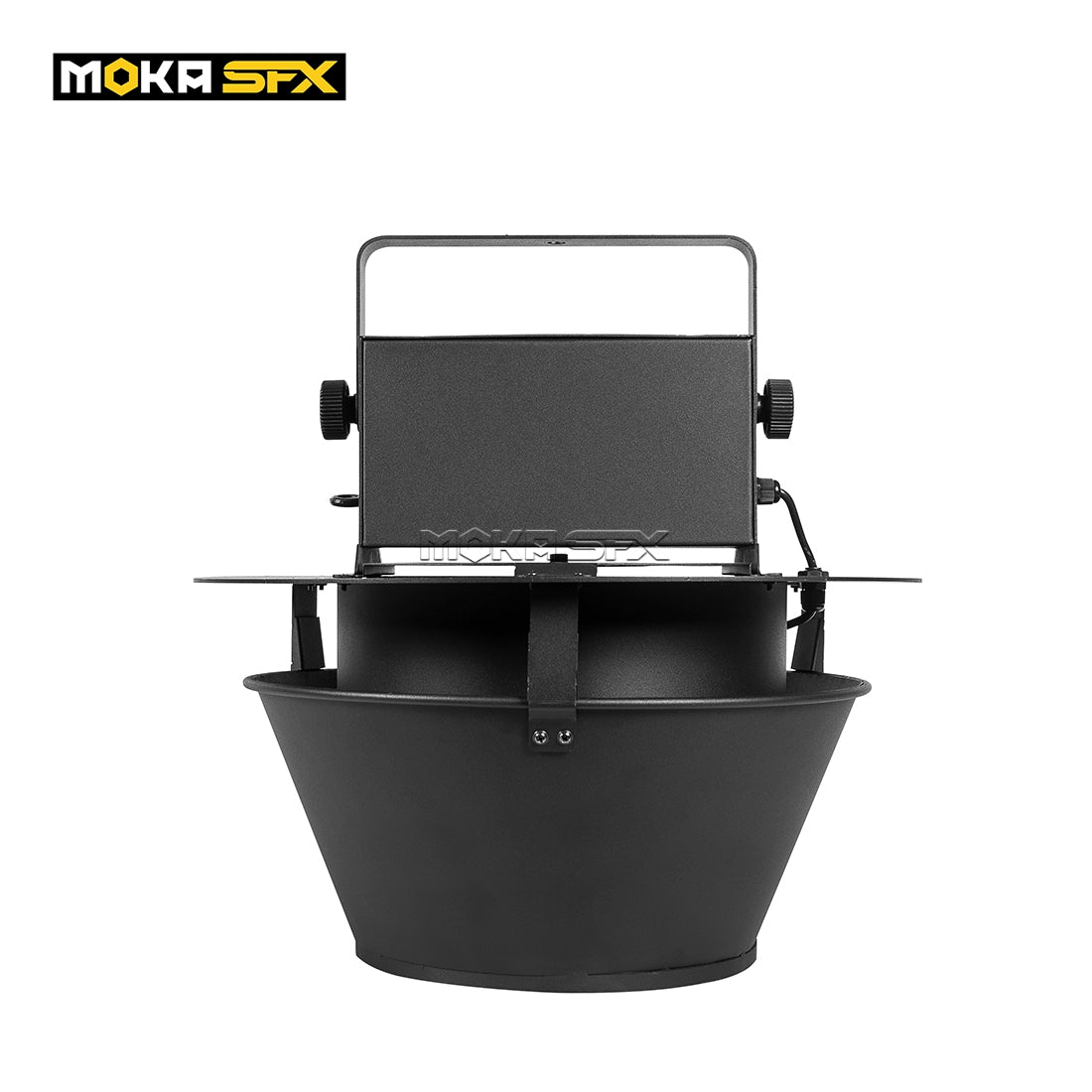

MOKA SFX MK-CN08 Dmx/Remote Control Hanging Swirl Confetti Machine

Description

• DMX 512 connector we use is 3 PIN or 5PIN signal plug.
• Controlled by DMX 512 control and wireless remote control.
• The Confetti machine can conveniently hold up to 0.5kg of colorful papers and streamers.
• Dmx512 remote controller is 60 square meters. When hanging to 10 meters high, the confetti can cover about 80 square meters.
• Compact design and Lightweight features without thinking of how much space it might occupy.

Technical Parameter

• Product Specification:

            Voltage: ac220v, 50hz

            Fuse: 10A

            Power: 100W

            Control: remote/dmx512

            DMX Channel: 1

             Capacity: 1kg confetti

             Coverage Output:² 60m

             N.W: 9.55kg

             G.W: 11.9kg

             Product Size: 45*45*46cm

             Packing size: 51*51*44cm

• Packing list for each unit:

            1pcs confetti machine

            1pcs DMX cable

            1pcs Power Cable

            1pcs Manual Book

            1pcs remote no-battery inside



How To Use

• Step to use :

            1. Use the light hook to fix the machine and hang it up. The higher the machine is hung, the larger the area covered.

            2. The machine is hung and the safety rope is passed through the lifting ring.

            3. Insert the corresponding power line signal cable, and the line control does not need to connect the signal line.

            4. Open the liquid cover of the machine on the colored paper, turn the fan blade by hand, and transfer the colored paper to the bottom of the fan blade.

            5. Dmx control or remote control will switch the switch to dmx file. dmx control must connect the machine to the console with a signal line, and the address code is matched to the console. The remote control does not need to be connected to the signal line and can be directly controlled by remote control.

            6. The line control will switch the switch to the on file, and the power can work.





Shipping

• U.S. warehouse: 2-5 working days in the U.S., 7-12 working days in other areas.
• Spain warehouse: 2-4 working days in Spain, 7-12 working days in other EU regions.
• Poland warehouse: 2-4 working days in Poland, 7-12 working days in the rest of the EU.
• China warehouse: 7-20 working days for direct shipment from China.
• The transportation type depends on the region, and it is uniformly displayed as international shipping.
• The goods will be sent out within 1-5 working days. After the logistics order number is generated, customer service will send an email to notify you. Please pay attention to the delivery status.
• If you have any questions, please leave a message.

Q&A

• Q: What consumables does this machine use? How many bags need to be used one time? And what is the coverage area?

            A: This machine needs to work with confetti paper. put 1kg confetti paper one time. It covers about 50m2 if hangs 10m. The coverage area will be bigger if hangs higher.



• Q: Where should I put the confetti paper in? What confetti paper do you recommend?

            A: Open the net cover of the machine and put in confetti paper. Turn the fan leaf by hand and turn the confetti paper under the fan leaf. Better to use confetti paper smaller than 2x5cm.



• Q: I see there are MOKA logo on the machine, can be removed?

            A: Yes, the LOGO can be removed, our standard equipment is with the MOKA logo, pls tell us before shipping if do not need it.



• Q: How to control this machine?

            A: Can be controlled by remote control, wire control, and dmx control.



• Q: Can be controlled by dmx controller? How many DMX channels?

            A: Yes, it has one dmx channel.



• Q: What is the remote controller control distance?

            A: The remote control can be controlled in about 50 meters.



• Q: Can be used outdoors?

            A: Also can be used outdoors. But better to cover it with a Waterproof cover.



• Q: What is the difference with another supplier?

            A: 1. Other suppliers' machines only can have DMX control and wire control, we added the remote control. Spray out when pressed by the remote controller and stop when released. Very convenient to operate.

                2.  Exquisite appearance with both 3 pins and 5 pins, not only can connect normal DMX controller, but also can connect professional audio equipment, hard to fall off, enhance the signal transmission.



• Q: Must use Safety rope? Do you equip Safety rope and light clamp？

            A: Yes, must use a safety rope when installing. Our standard equipment is not equipped with a light clamp and safety rope, but you can buy it from us.



• Q: What packing way do you have? Can make a flight case for me?

            A: This machine is packed with cartons, we also can customize flight cases.



• Q: How long is the warranty？ How do you deal with the problem?

            A: We have a year's warranty. If there are any problems, pls send me a video first, and we will check and detailed analysis of the problem and give a solution to you. If quality problem, we will send parts to you free of charge.  You do not need to worry about quality problems. Our team will provide you with great service.



• Q: 110v is available?

            A: Now only 220v is available.



• Q: Only a fan inside the machine?

            A: In addition to the fan, there is a shaded pole motor inside the machine. Produce strong wind, blowing confetti paper into the air quickly.



• Q: The speed can be adjustable?

            A: The speed can not be adjusted. Confetti paper Sprays out when pressed by the remote controller and stops when released.



• Q: Will the confetti paper block the machine?

            A: The machine may be blocked if the confetti paper is too big, better to use smaller than 2x5cm confetti paper.
