Description
-

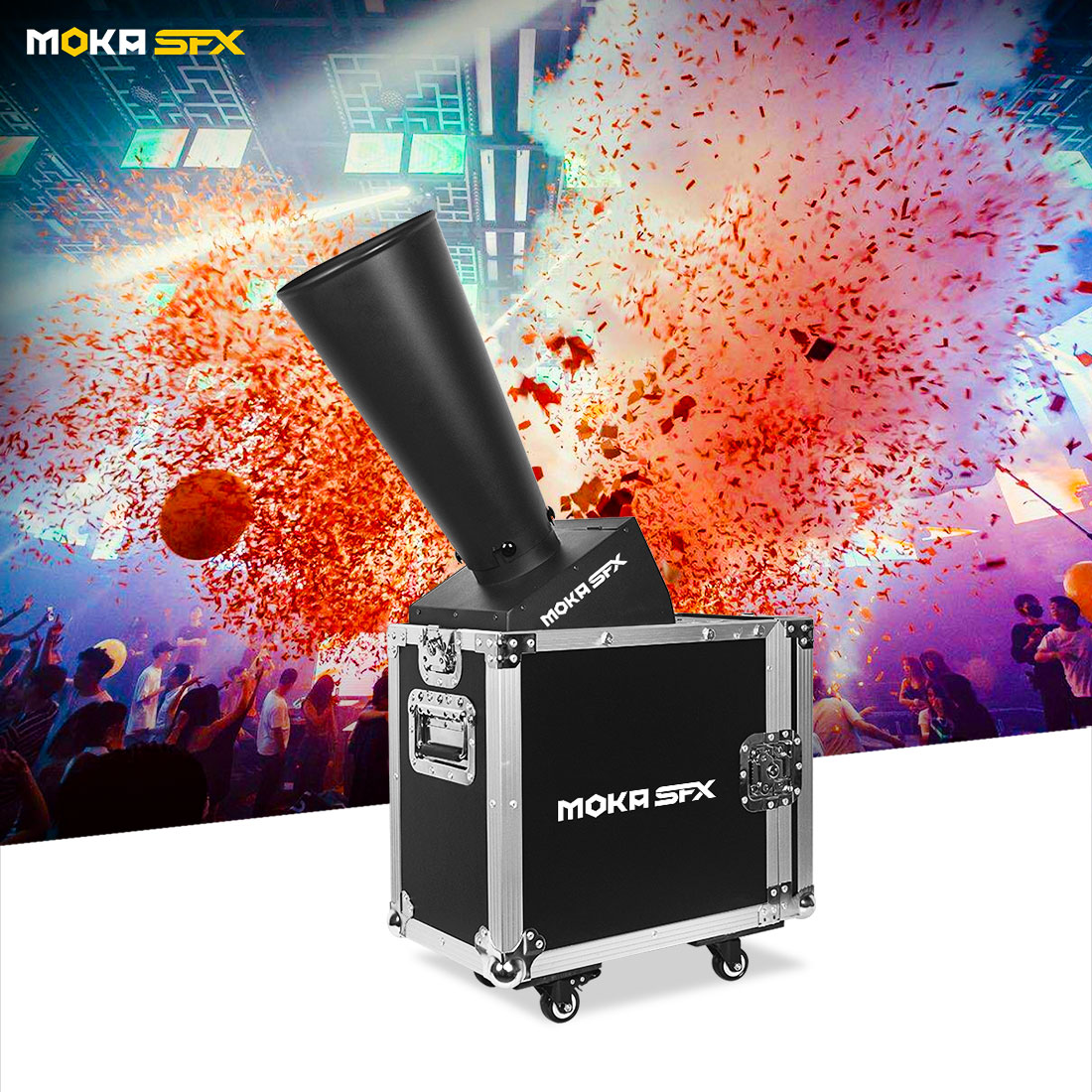

10-13m CO2 Confetti Cannon
Launches confetti up to 13m high for powerful stage and event effects. -
200-300㎡ Wide Coverage
Creates large-area confetti effects for outdoor concerts, festivals, and celebrations. -
DMX512 & Electronic Control
Supports synchronized operation and easy multi-machine control for professional events. -
45-90° Adjustable Spray Angle
Adjust the launch direction for flexible stage layouts and wider coverage. -
Up to 2kg Confetti Capacity
Holds up to 1kg of confetti or 2kg of metallic confetti.
-
Quick-Connect Design
Fast horn installation without complicated screw connections for quicker setup. -
Compact & Portable Design
Built with wheels and a compact flight-case design for easier transport between venues.
Technical Parameter
- Specification:
| Specification | Details |
|---|---|
| Voltage | AC 110-220V, 50-60Hz |
| Spray Height | 10-13m |
| Horn Width | Minimum diameter 120mm, maximum diameter 205mm |
| Coverage | 200-300m² outdoor |
| Control Mode | DMX Control / Electronic Control |
| DMX Channel | 1 channel |
| Confetti Capacity | About 1kg of confetti / 2kg of metallic confetti |
| Angle Adjustment | 45-90° |
| Product Size | 54 × 29 × 100.5cm |
| Packing Size | 54 × 29 × 68.5cm |
| Net Weight | 18.5kg |
| Gross Weight | 21kg |
| High-Pressure Pipe Connection | 3/8 quick connector, standard 3m high-pressure pipe |
Package Included
| Item | Quantity |
|---|---|
| MINI CO2 Confetti Machine | 1 pc |
| DMX Cable | 1 pc |
| Manual | 1 pc |
| 3m Gas Hose | 1 pc |
How to Use
Installation Preparation:
- Open the package, check all accessories, and read the user manual carefully.
- Prepare suitable confetti or metallic confetti, as well as a CO₂ or N₂ gas cylinder.
- Make sure all machine components are intact before use.
- Check that the gas cylinder complies with the applicable local standards and regulations.
Installation:
- Place the machine in the desired location and lock the wheels securely.
- Connect the gas cylinder to the machine using the high-pressure hose.
- Connect one end of the hose to the gas cylinder and the other end to the machine.
- Secure the gas cylinder properly and keep it in the recommended position.
- Load the machine with approximately 2kg of metallic confetti or 1kg of confetti, then adjust the spray angle.
- Slowly open the gas cylinder valve and check the connections before operation.
Q&A
Q: Can the MK-CN16 be used indoors?
A: Yes. The MK-CN16 is a mini DMX confetti blaster suited for small and medium-sized indoor and outdoor venues, with a 10-13m spray distance and 200-300m² outdoor coverage.
Q: Which models support DMX control in the confetti blaster range?
A: MK-CN05A and MK-CN16 support DMX control. MK-CN05 and MK-CN09 are manual versions.
Q: How long can one 40L CO₂ gas cylinder power the confetti blaster?
A: A 40L CO₂ gas cylinder can provide approximately 40 seconds of continuous confetti spraying for one machine, depending on operating conditions.
Q: How long can the CO₂ hose be?
A: We recommend keeping the hose length within 25m (80ft) when using a 40L CO₂ gas cylinder.
Q: Can I use powder in a confetti blaster?
A: Not recommended. Powder can create dust and safety risks. Please use confetti or paper scraps only.
Q: Does the MK-CN16/MK-CN09 differ from the MK-CN05/CN05A only in size?
A: No. The MK-CN16/MK-CN09 are smaller and use a different working principle. The MK-CN05/CN05A use a cast-aluminium Venturi structure for longer and higher shots, while the MK-CN16/MK-CN09 use a straight nozzle and are better suited to smaller venues.
