- MOKA SFX MK-C12 LED CO2 Jet Machine has 12 pieces of 3W RGB LEDs that can be used to color your smoke when you use it in motion to create a cool effect.
- Spray height up to 8-10m.
- Red, yellow, blue, green, cyan, orange, purple color available can be chose.
- Dmx512 control ,support co2 dmx series machine connection function input/output.
- High-quality material, good effect, and long service life.
- Applicable for Dj, bands, bars, pubs, clubs, skating rinks, KTV, family party, birthday, celebration, wedding, festival.
- This is a stage-led co2 jet disc, a party-led co2 jet machine, Dmx control stage co2 jet. The color-changing light integrates co2 gas that makes magical effects. With Dmx control, the machine can spray colored co2 gas for 8 to 10 meters. There are red, yellow, blue, green, cyan, orange, purple color available, making the co2 mist variously colored, is easy to operate, but creates various effects. They are widely used in concerts, stages, clubs, etc.
Power supply: ac100v/220v, 50/60hz
Screen color: 3-in-1 r/g/b color mixing
Light resource: high-bright led
Quantity (led unit): 12*3w led bulbs
Material: co2 gas tank
Height of CO2 gas: 8-10 meters
Control Mode: dmx control
Channel: 6 channel dmx

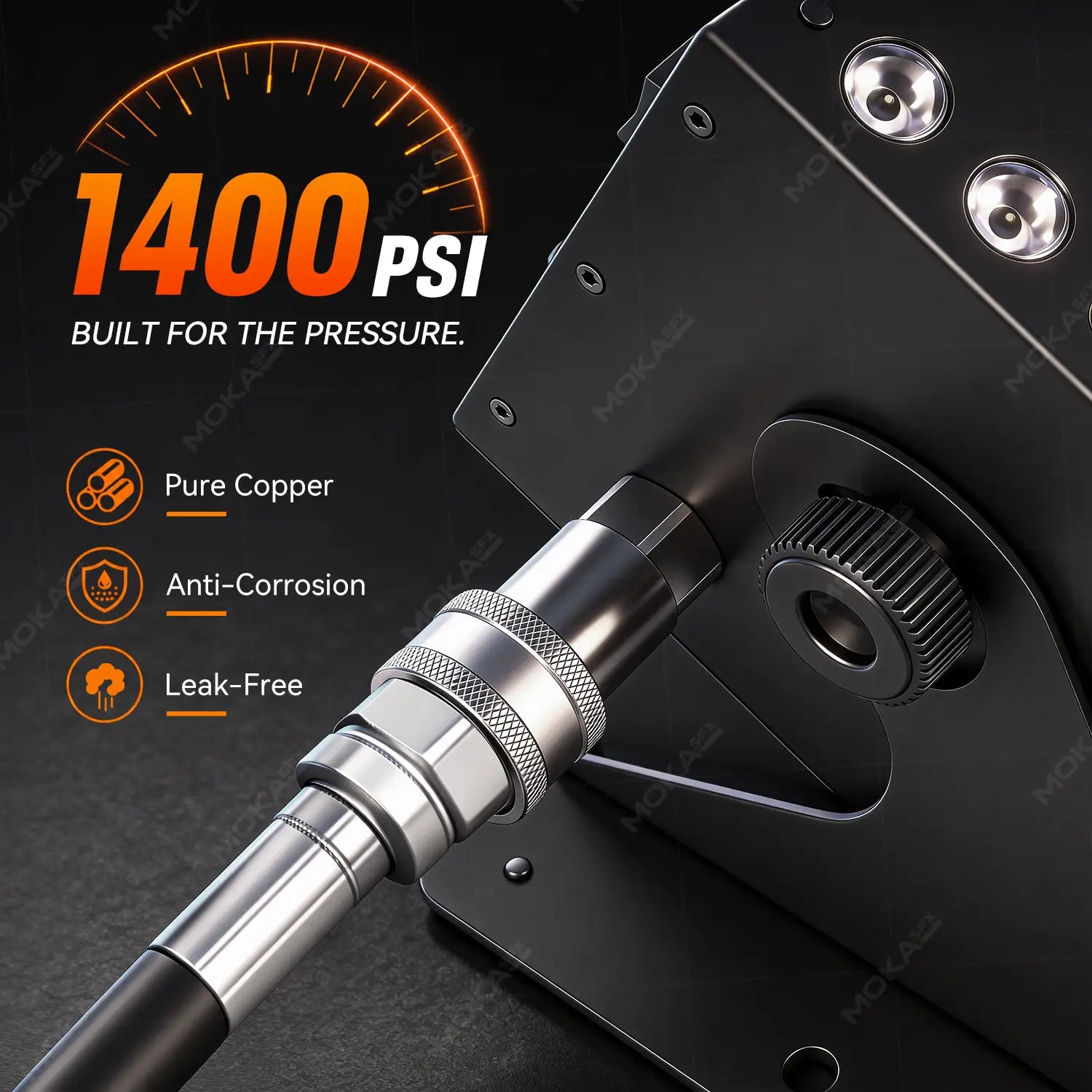

Pressure Rating: up to 1400 psi
Packaging Shape: cardboard box with foam inside
Packing Size: 32*32*43cm
Light weight: 5kg
Packing weight: 9kg
- 6 Dmx channels:
Channel 1: co2 spray (0-255) on.
Channel 2: color mixing led, (0-255) the color led is mixing.
Channel 3: led in blue, (0-255) led lights up gradually.
Channel 4: led on the green, (0-255) led turns on gradually.
Channel 5: led on red, (0-255) led turns on gradually.
Channel 6: strobe led, (0-255) led getting faster.

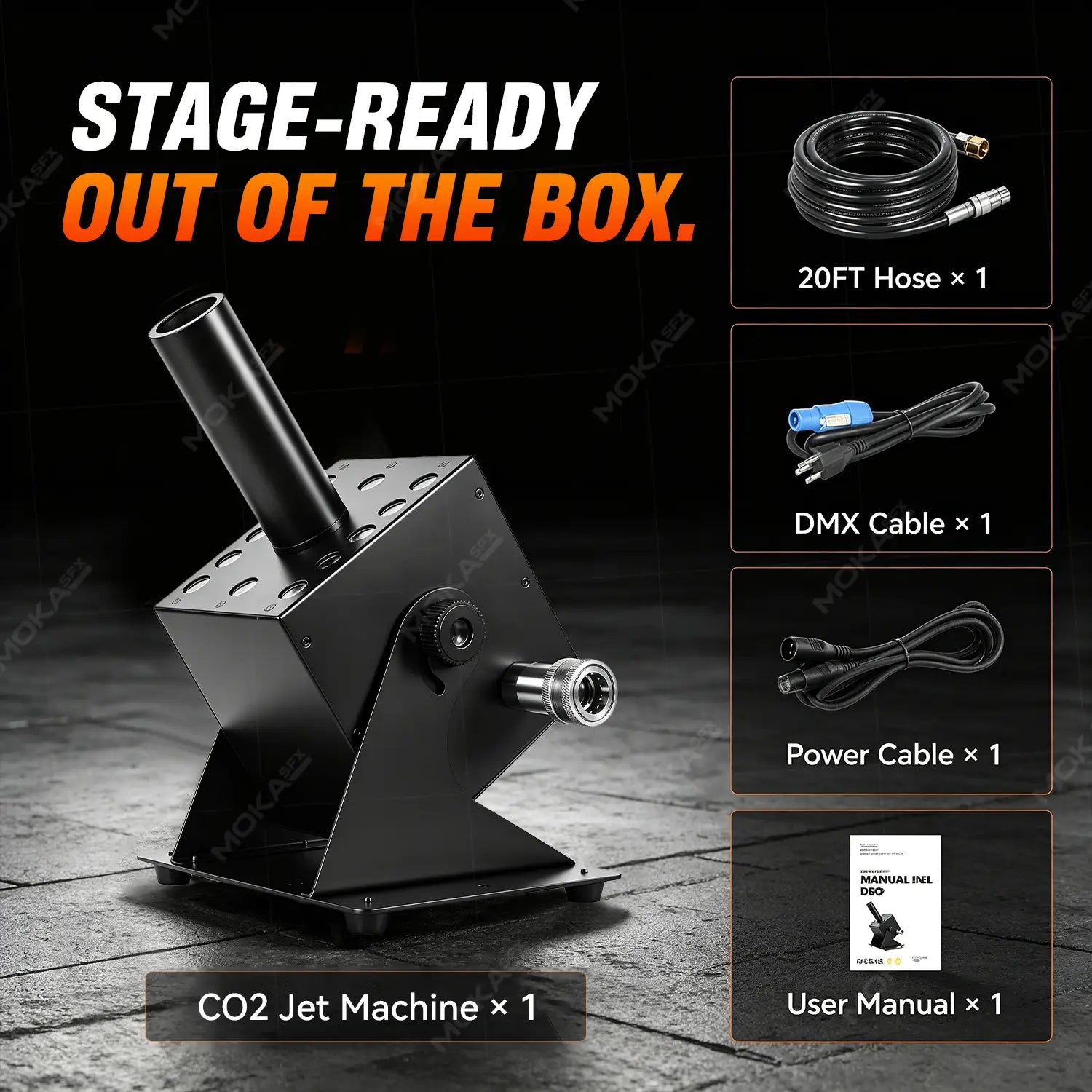

- Packing Include:
Led co2 jet machine
Resin hose 6m
2m Dmx cable
How To Use
- Steps To Use :
1. Electric control: The operation of the machine is very simple to Connect the Co2 cannon to the electric control button, Then connect the machine to the Co2 gas tank via a high-pressure hose Switch the machine to the "ON" position, open the valve of the cylinder. Press the control button, the machine will spray.
2. DMX512 control: Connect Co2 jet cannon to the power supply via power cable, DMX to DMX controller via DMX cable Then connect the machine to Co2 gas tank via a high-pressure hose, Switch the bottom to"DMX position, the machine has only one channel. After setting Dmx address, operate your console, The machine will spray.
3. In order to ensure that the machine parts have a normal service life. it is recommended to control the continuous spraying time at about 10 seconds each time When the machine is not needed, and if the high-pressure pipe needs to be removed. it needs to be sure to turn off the gas cylinder switch first, and then evacuate the residual gas in the machine before removing the tube, otherwise, either end of the tube and the gas cylinder cannot be pulled out.
- U.S. warehouse: 2-5 working days in the U.S., 7-12 working days in other areas.
- Spain warehouse: 2-4 working days in Spain, 7-12 working days in other EU regions.
- Poland warehouse: 2-4 working days in Poland, 7-12 working days in the rest of the EU.
- China warehouse: 7-20 working days for direct shipment from China.
- The transportation type depends on the region, and it is uniformly displayed as international shipping.
- The goods will be sent out within 1-5 working days.After the logistics order number is generated, the customer service will send an email to notify you. Please pay attention to the delivery status.
- If you have any questions, please leave a message.
Q: How long can the hose be customized?
A: The length can be customized according to your needs. The longest is generally not recommended to be over 35 meters, but we also have customers who have made a length of about 50 meters, the longer the pipe, the more gas will be used in the pipe during use. This will waste more gas and affect the use effect. How long do you need to make?
- Q: How is the effect, can you jet against people, will it have any effect?
A: We have many clients who get the machine, the effect is not bad, and the price is not expensive.
The gas used is medical grade carbon dioxide, which is harmless to the human body, and it is pure without odor, impurities;
excessive gas impurities may cause the solenoid valve or spool to be blocked. No dross, can be sprayed on people. Therefore, it is recommended to use high-purity CO2 gas
- Q: Where to buy carbon dioxide gas?
A: This gas can generally be purchased at your local store.
All CO2 Cannon can be used with any Siphon CO2 Tank (Sometime referred to as a Siphon Tube or Dip Tank)
Q: How long can an CO2 cannon spray and can it continue to spray?
A: CO2 machine can not continue jetting. If the jetting time is too long and the air pressure is too high, the valve may be damaged. In order to ensure that the machine parts have a normal service life, we recommend that each jet be controlled at about 10 seconds, it takes five seconds in the middle to blow again. This way, you can avoid damage to the accessories due to improper operation.
- Q: How long is your product warranty? If it’s quality problem, who undertake the freight ?
A: The co2 jet machine warranty is one year. Two of the accessories have the following conditions. The warranty will be different.
The connector is consumable. If the customer does not know how to use it, forced to connect these two connectors. It is very easy to damage the joint.
The valve because the spool hole in the valve is very small, even if there are very small iron pieces or impurities in the gas, it will cause the plug of the spool. This situation belongs to the gas reason. So if you want to replace the accessories, the cost will have to be paid by the user.
- Q: Is there any requirement for the gas used?
A: Generally, the 40L gas cylinders used in our factory are about 6.5-7 pressures, and the pressure will rise again under high-temperature conditions. It can fill up to 24KG of gas. Generally, it is 23KG, but not less than 18KG, you can let your supplier refer to these values. (Pearl River Delta customers can recommend the gas supplier to him, let them negotiate the price).
- Q: How far can this machine spray?
A: The spray height of the machine is affected by the pressure of the cylinder. Normally, it can spray 6-8 meters.
Q: Is there a relevant certificate?
A: Yes, all of our products are CE FCC ROSH certified and can be exported.
Q: Will there be ice residue from your guns?
A: The co2 jet machine is the newest type of ice-slag free air column machine we have designed, with an ice-slag free design to provide your audience with an ice-free shot.
Q: Do you sell small gas cylinders, how long can a bottle be sprayed?
A: Sorry，We can't export gas cylinders, you need to buy them locally
A 5L CO2 tank can spray for about 10 seconds.
Q:What to do if the machine does not blow smoke.
A: In this case, please provide the video? I can give feedback to our technical department and to see if I can guide you to solve the problem.
- Q: Can the machine continue to spray smoke?
A: We updated the new control board, now the machine can keep spraying all the way, but in order to ensure that the mechanical valve has a normal service life, it is recommended to control the continuous spraying time at about 15 seconds each time.
- Q: What does the Co2 cannon work with? How long does one bottle of gas last to use?
A: MOKA SFX Signal Head Co2 jet machines work with Co2.Normally 5L gas can spray about 10 S, 8L cylinder is about 12-15S, and 40L cylinder is about 40 seconds.
