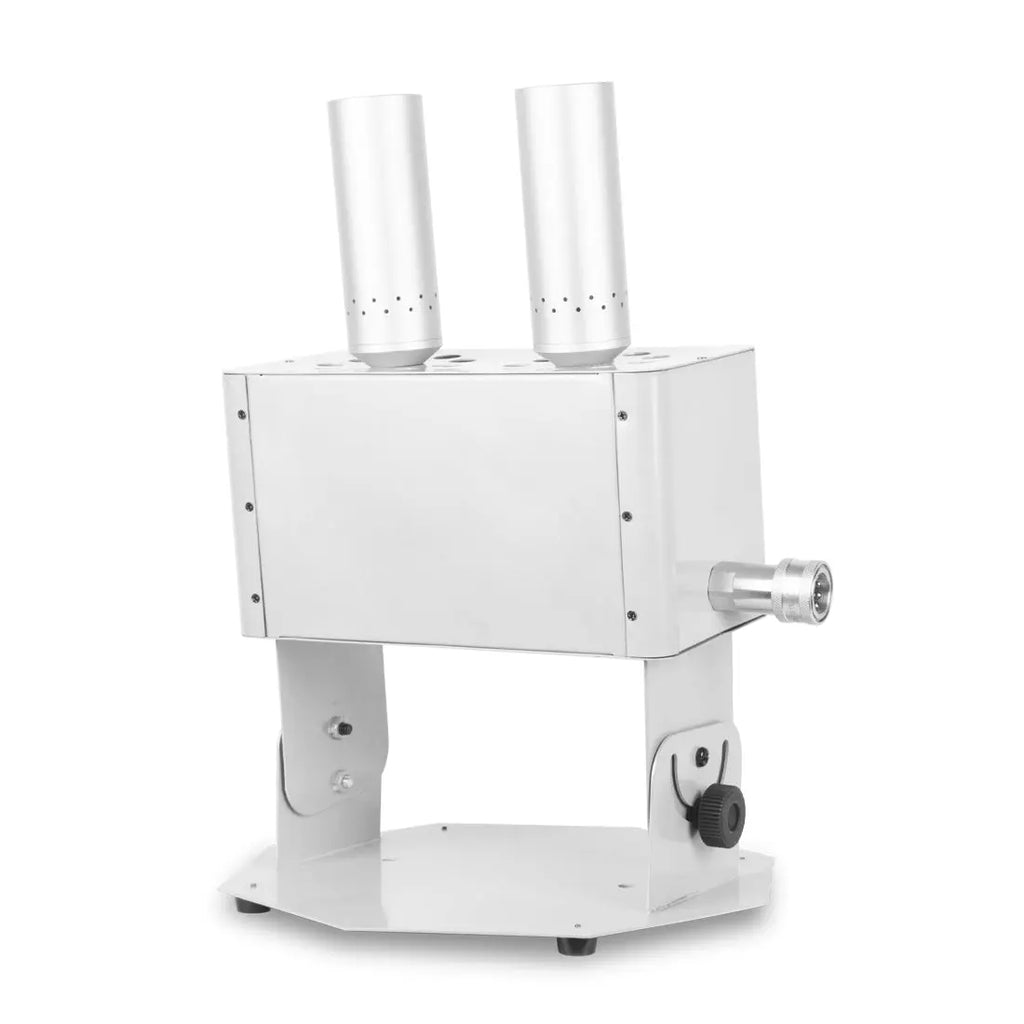

MOKA SFX MK-C19 Dual-Barrel 18w Rgb 3 in 1 LED CO2 Jet Machine

Description

• Dmx512 control.
• Spray height up to 8-12m.
• 18Pcs 3w RGB 3in1 color mixing high brightness LED.
• High-quality material, good effect, and long service life.
• Applicable for Dj, bands, bars, pubs, clubs, skating rinks, KTV, family parties, birthdays, celebrations, weddings, and festivals.

Technical Parameter

• Specification :

             Product weight: 7.3 kilograms

            Shipping weight: 11 kilograms

             Channel dmx: 6 channels

             Product dimensions: 55*37*18 cm

             Control: DMX 512/Electric Control Button

             Maximum pressure: 1400Psi

             Power: 100 watts

            Voltage: AC110V / 220V, 60Hz / 50Hz

             Spray height: 8-10 meters

            LED: 18 x 3W RGB

            (Note: Comes with 6-meter hose)



• DMX 6 Channels Instruction:

              Channel 1: CO2 spray (0-255) on.

              Channel 2: led in blue, (0-255) led turns on gradually.

              Channel 3: led on the green, (0-255) led turns on gradually.

              Channel 4: led on red, (0-255) led turns on gradually.

              Channel 5: LED color mixing, (0-255) LED color mixing.

              Channel 6: strobe led, (0-255) led getting faster.



• Please Note :

              1. We have different power plugs UK plug, AU plug, EU plug, and US plug, please tell us the power supply you need, or we will choose everything according to your country.

              2. The high-pressure tube, jet nozzle, and steel wire are susceptible to damage and are thus not covered under the free warranty. This manual contains essential information. Please make sure to read the manual carefully before using this product.

              3. The jet time of the smoke column machine must not exceed 10 seconds.

              4. The interval between two jet times must not be less than 5 seconds.

              5. When powering on, ensure that each component of the smoke column machine is operational.

1. If connecting to a lighting control console, regular lights with 6 channels are required, and a light library is not necessary.



How To Use

• Steps To Use :

           1. Electric control: The operation of the machine is very simple Connect the Co2 cannon to the electric control button, Then connect the machine to the CO2 gas tank via a high-pressure hose Switch the machine to the "ON" position, and open the valve of the cylinder. Press the control button, the machine will spray.

          2. DMX512 control: Connect the Co2 jet cannon to the power supply via the power cable, DMX to DMX controller via the DMX cable Then connect the machine to the Co2 gas tank via a high-pressure hose, Switch the button to"DMX position, the machine has only one channel. After setting the DMX address, operate your console, The machine will spray.

          3. In order to ensure that the machine parts have a normal service life. it is recommended to control the continuous spraying time at about 10 seconds each time When the machine is not needed, and if the high-pressure pipe needs to be removed. it need to be sure to turn off the gas cylinder switch first, and then evacuate the residual gas in the machine before removing the tube, otherwise, either end of the tube and the gas cylinder cannot be pulled out.

Shipping

• U.S. warehouse: 2-5 working days in the U.S., 7-12 working days in other areas.
• Spain warehouse: 2-4 working days in Spain, 7-12 working days in other EU regions.
• Poland warehouse: 2-4 working days in Poland, 7-12 working days in the rest of the EU.
• China warehouse: 7-20 working days for direct shipment from China.
• The transportation type depends on the region, and it is uniformly displayed as international shipping.
• The goods will be sent out within 1-5 working days. After the logistics order number is generated, customer service will send an email to notify you. Please pay attention to the delivery status.
• If you have any questions, please leave a message.

Q&A

• Q: Can this DJ gun be used with a cylinder connected?

            A: Yes, there is only one manual control method. Because of the special gun shape of the device, considering the presentation of the effect, only the manual model is made.

• Q: How long can the trachea be customized?

            A: The length can be customized according to your needs. The longest is generally not recommended to be over 35 meters, but we also have customers who have made a length of about 50 meters, because the longer the pipe, the more gas will be used in the pipe during use. This will waste more gas and affect the use effect. How long do you need to make it?

• Q: How is the effect, can you jet against people, will it have any effect?

            A: There are still many people who get goods with this air column gun, because the effect is not bad, and the price is not expensive. The gas used is medical grade carbon dioxide, which is harmless to the human body, and it is pure without odor, impurities, and excessive gas impurities may cause the solenoid valve or spool to be blocked. No dross can be sprayed on people.

• Q: Where to buy carbon dioxide gas?

            A: This gas can generally be purchased at your local store.

• Q: How long can an air column gun spray and can it continue to spray?

            A: The gas column machine can not continue jetting. If the jetting time is too long and the air pressure is too high, the valve may be damaged. In order to ensure that the machine parts have a normal service life, we recommend that each jet be controlled for About 10 seconds, it takes five seconds in the middle to blow again. This way, you can avoid damage to the accessories due to improper operation.

• Q: How long is your product warranty? If it’s a quality problem, who undertakes the freight out and home?

            A: Two of the accessories have the following conditions. The warranty will be different. The first is the connector. The connector is a consumable. If the customer does not how to use it, force to connect these two connectors. It is very easy to damage the joint. The second is the valve, because the spool hole in the valve is very very small, even if there are very small iron pieces or impurities in the gas, it will cause the plug of the spool. This situation belongs to the gas reason. So if you want to replace the accessories, the cost will have to be paid by the user. I also hope that you explain the situation during the communication with the customer.

• Q: Is there any requirement for the gas used?

            A: Generally, the 40L gas cylinders used in our factory are about 6.5-7 pressures, and the pressure will rise again under high-temperature conditions. It can fill up to 24 kg of gas. Generally, it is 23KG, but not less than 18KG, you can let your supplier refer to these values. (Pearl River Delta customers can recommend the gas supplier to him, and let them negotiate the price).

• Q: How far can this machine spray?

            A: The spray height of the machine is affected by the pressure of the cylinder. Normally, it can spray 6-8 meters.

• Q: Is there a relevant certificate?


            A: Yes, all of our products are CE FCC ROSH certified and can be exported.



• Q: Will there be ice residue from your guns?


           A: The CO2 jet machine is the newest type of ice-slag-free air column machine we have designed, with an ice-slag free design to provide your audience with an ice-free shot.



• Q: Is there a small gas bottle sold, how long can a bottle be sprayed?

           A: We have small cylinders that sell 5L. One bottle can spray for about 10 seconds.

• Q: What to do if the machine does not blow air?

            A: Can you provide the video? I can give feedback to our technical department and to see if I can guide you to solve the problem. If there is no way, you need to return the machine to the factory for maintenance.

• Q:Why is the gas emitted by our machine sometimes big and small?

            A: Can you describe the specific situation? I can give feedback to our technical department and to see if I can guide you to solve the problem. If there is no way, you need to return the machine to the factory for maintenance.



• Q: Can the machine continue to work and smoke continuously?

            A: We updated the new control board, now the machine can keep spraying all the way, but in order to ensure that the machine valve has a normal service life, it is recommended to control the continuous spraying time at about 15 seconds each time.



• Q: What does the Co2 cannon work with? How long does one bottle of gas last to use?

           A: MOKA SFX Signal Head Co2 jet machines work with Co2.Normally 5L gas can spray about 10 S, 8L cylinder is about 12-15S, and 40L cylinder is about 40 seconds.



• Q: Can you customize the hoses?

           A: Usually we provide free 6 meters hose. The length can also be customized according to your needs. It's not recommended to exceed 30 meters.
