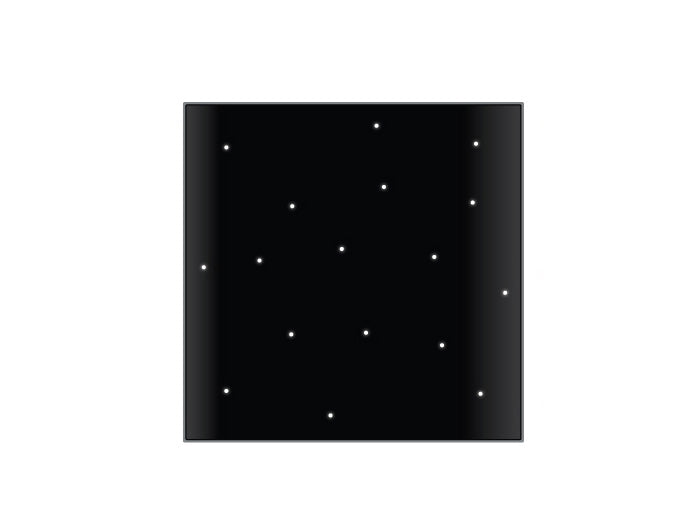

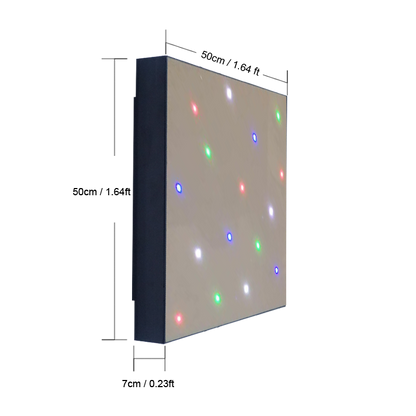

MOKA SFX MK-LD05A 50*50cm Tempered Glass Starlit LED Dance Floor (Black)

Spec: 8x8(FT)=25pcs
Connection: Wire connect
Shipment: Shipping by sea



  • Perfect Starlit effect,independent operation, give you different RGB 3IN1 color light effect, high reliability.
  • Energy-saving, no auxiliary heat sink, natural heat dissipation, no noise, seamless integration.
  • Control mode, WIFI, remote, SD and DMX function, wireless remote control, easy to use and set up.
  • With IP55-IP67 waterproof rating, suitable for indoor and outdoor use. Combined with other stage effect products, such as smoke machines, pyrotechnics, etc., it will bring an unforgettable experience to your wedding party.
  • The load-bearing capacity of 500kg/m², suitable for disco stage, concert and catwalk, various hotels, entertainment venues, theaters, live large-scale performances, and other uses.

Technical Parameter

  • Specification:

          Voltage: 90-240VAC, 50/60 Hz

          Power consumption: 5w

          Led QTY: 15 pcs 5050 SMD

          Color: RGB 3 in 1

          Life-span: ≥100000h

          Surface Board: Tempered glass

          Waterproof: IP55-IP67

          Load-bearing: 500kg/m²

          Control mode: SD controller (supply DMX, sound control, remote control) PC controller, MADRIX.

          Size: 500*500*70mm

          Package Size: 56*56*22cm (2in1)

          Package Weight: 23Kg

           Applicable place: DJs, bands, bars, pubs, clubs, skating rinks, KTV, family party, birthday, celebration, wedding, festival, shopping mall, store, store, and other designated places.

  • Please Note:

             That we have different power supply plugs, united kingdom plugs, au plugs, EU plugs, the USA plugs, please let us know the power supply you need, or we will choose everything according to your country.

Included accessories:

  • Power Supply
  • SD controller
  • Protection Edge
  • Flight case,10 in 1

The number of these accessories above, we will configure according to the number of floor tiles.

If you need special customization requirements or transportation needs, such as customs clearance and home delivery services, do not hesitate to contact customer service.

How To Use

  • How to operate your MK-LD05A LED dance floor?

          1. Make sure the dance floor tile has enough charge or connect them to a power source.
          2. Use your remote control to power them on.
          3. When you power on, you will see the dance floor light into several colors.
          4. You may now use your sound system or DMX to change the light-up dance floor color codes. Your remote control may also make it easy to change the color code offering you more choices than the RMX and sound system.

  • DMX Control Mode

          DMX is an acronym for ‘Digital Multiplex Signal.’ Also called DMX 512 because the signal controls up to 512 channels. Since the MK-LD01 3d LED dance floor possesses a 3 in 1 RGB color effect, the DMX controls 3 channels (colors).

  • Sound Control Mode

          The sound control mode is responsible for changing the 3d LED dance floor’s effects. This is made possible by sound sensors that change light as the music plays. This sound sensor feature proves useful in the cases of bars, clubs, and music events. Its remote can control the sound activation mode, sound sensitivity, and light mode.

  • Remote Control Mode

          This is a traditional way to control the 3D LED dance floor because you have to keep changing the lights, music, and effects manually. However, a remote control mode can control LED lights within the colorful dance floor to an average of 20 modes. Some of the common effects include strobe, flashing, flowing of lights, and color fixing. Despite being a manual control option for your colorful dance floor, the remote control offers more color modes than its counterparts.

  • IPad Control Mode

          This is a wireless method of controlling your MK-LD05A starlit led dance floor. It is quite similar to the remote control mode, besides the fact that it has to be connected to a wireless application. The iPad control mode assists with controlling the video display on your colorful LED dance floor. It also controls light color, contrast, brightness, and textures. Apart from the in-built modes, you can also create your custom modes depending on the application used.

          A single row of panels usually shares one control module. These control modules are then connected using USB cords to a device like a computer. Hence, these colorful LED panels join together to access the control module. Within the panels, pressure and sound sensors allow the MK-LD05A starlit led dance floor to change its lighting effects and patterns.


  • Since the floor tiles need to be customized, the processing time is about 1 month.
  • Ship by sea, and the shipping time is about 2 months.
  • Please check the port closest to you, leave a message to customer service, we will contact you in time to communicate the details of transportation.
