説明
Description

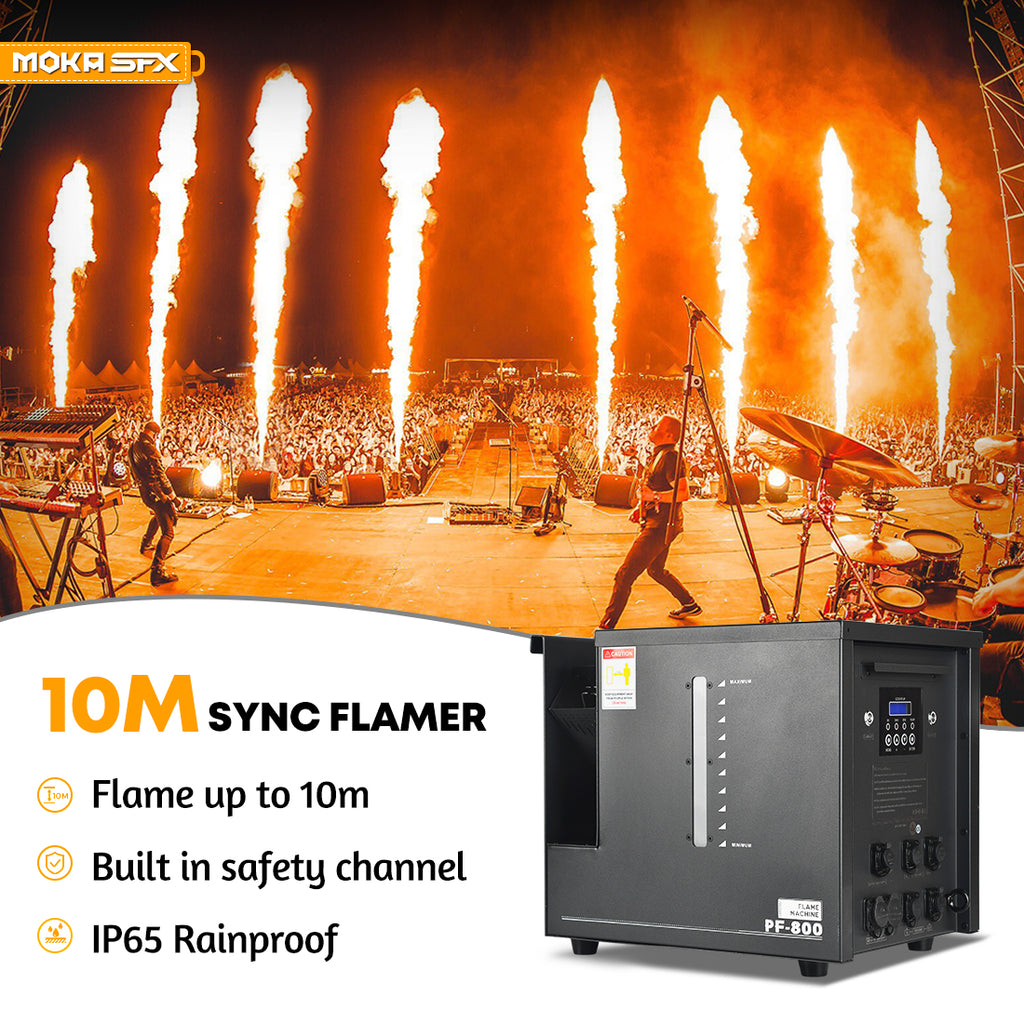

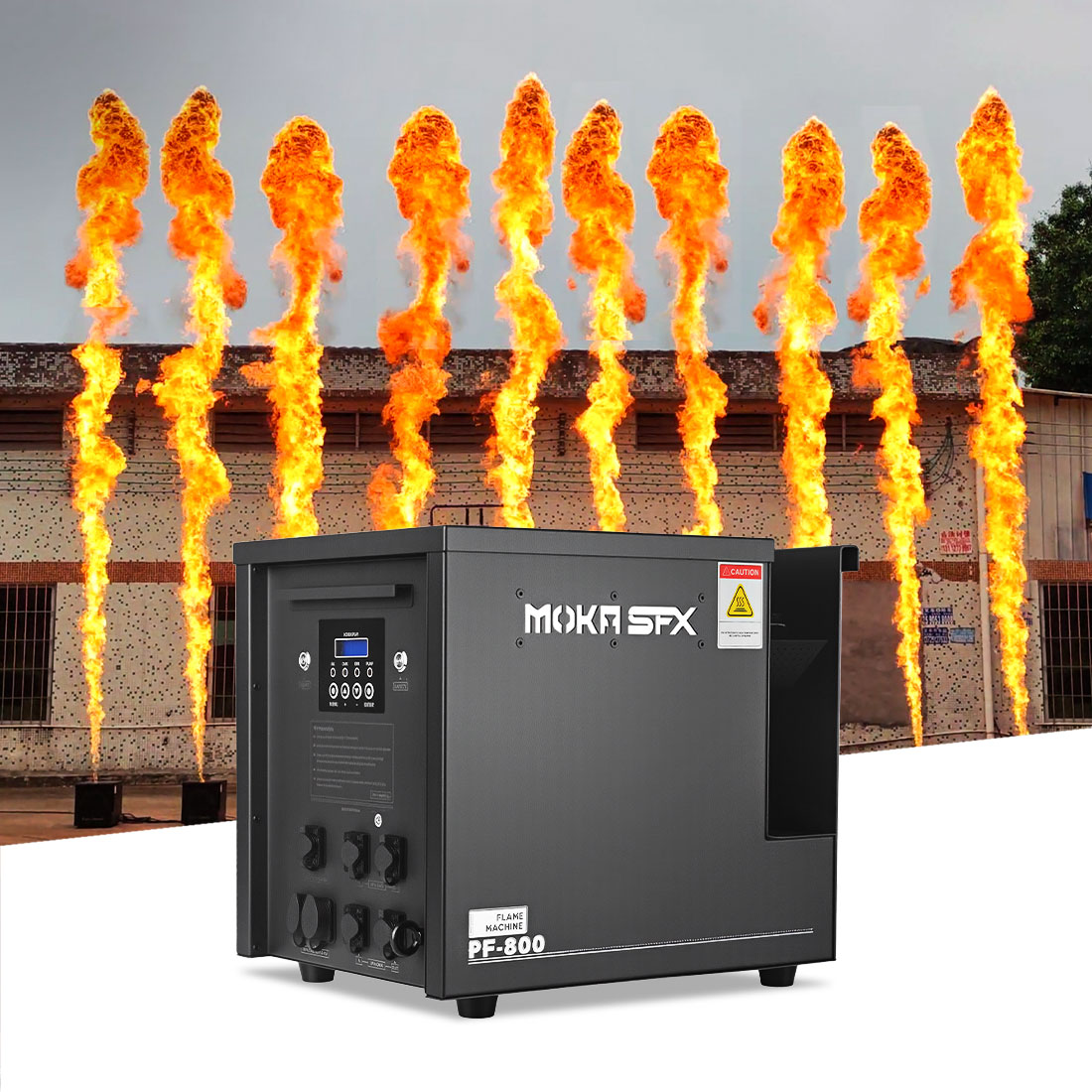

- MOKA SFX PF-800 10-meter flame machine is a versatile device designed with a 180-degree manual angle adjustment feature, allowing precise control over the flame's direction. It boasts a flame projection distance of approximately 8-10 meters, delivering rapid and high-precision flame bursts for dramatic effects.
- Equipped with a built-in pressurization system, there's no need for additional pressure tanks, ensuring convenience and efficiency. The machine also includes pre-programmed chase and spot-effect sequences for added versatility.

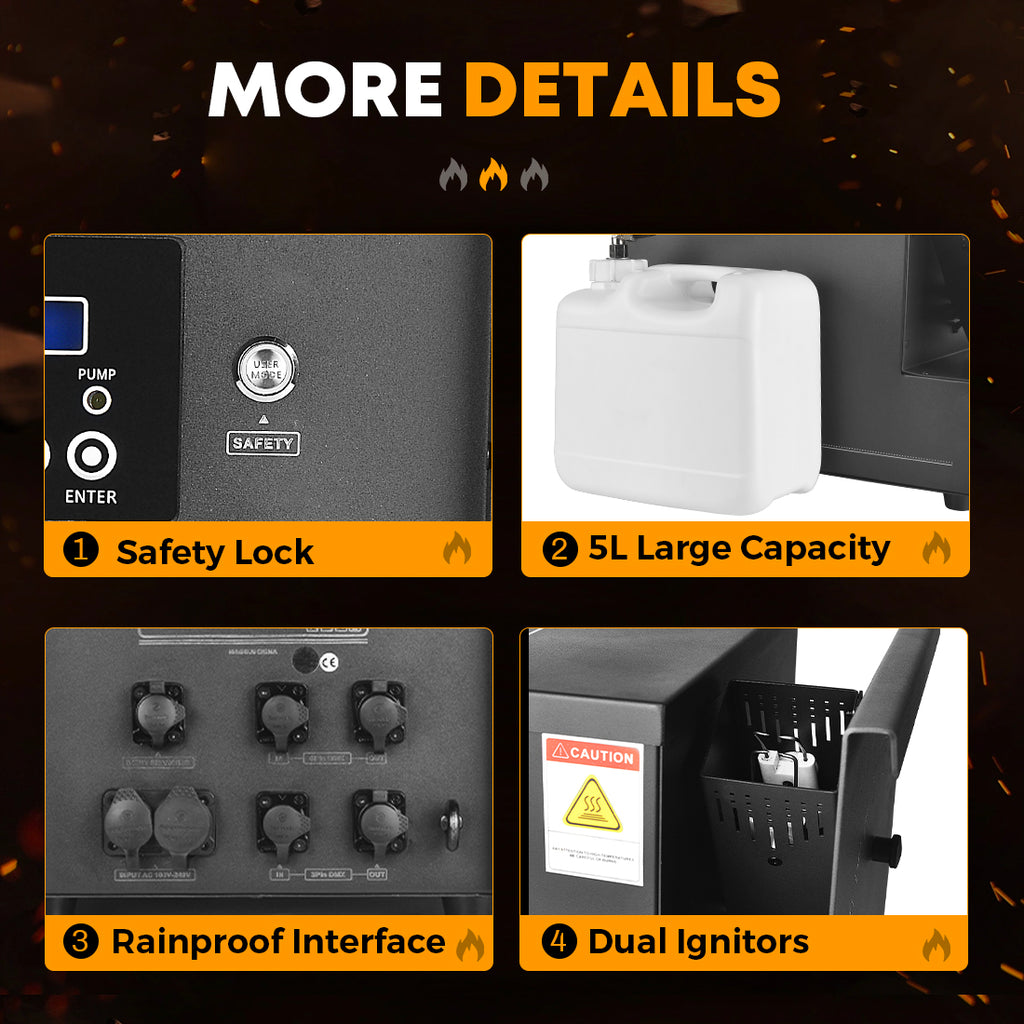

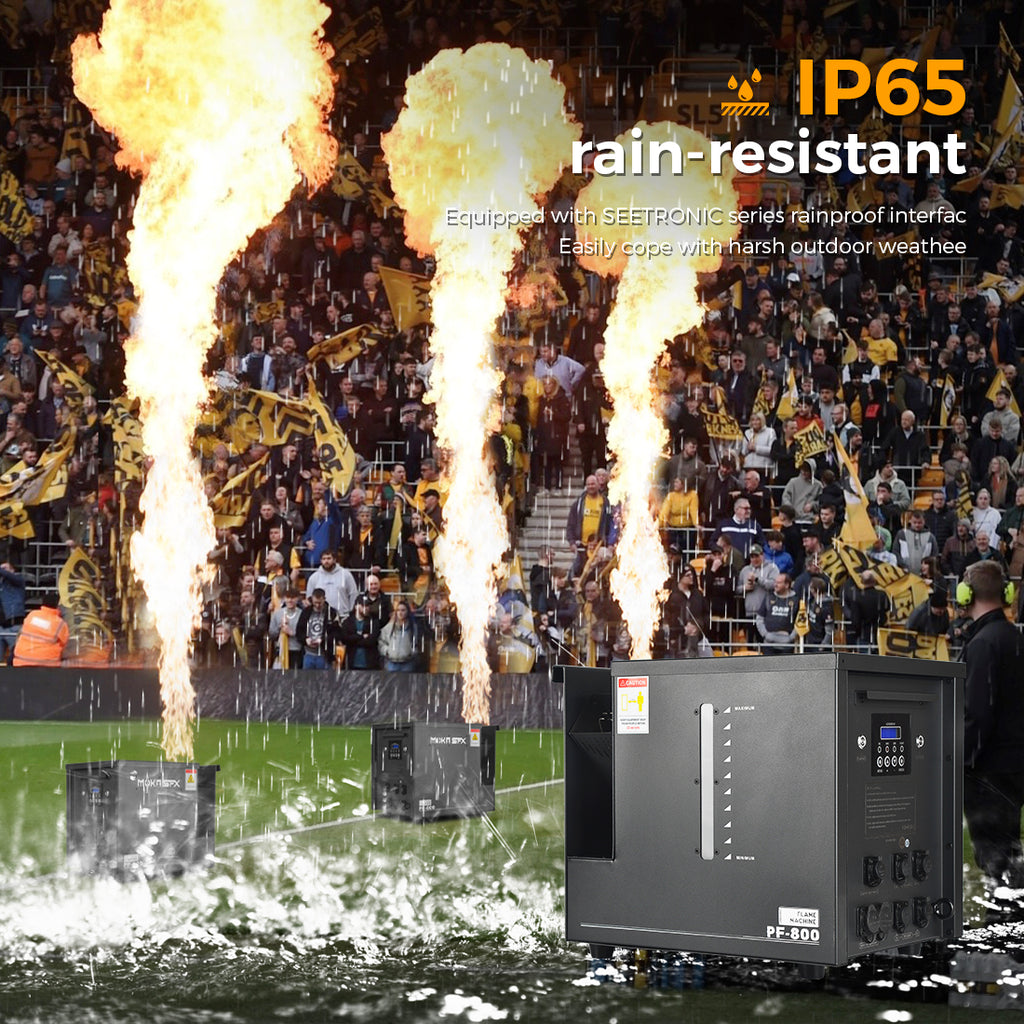

- The dual-point ignition needles enhance stability, even in adverse weather conditions like rain or strong winds. It incorporates SEETRONIC's comprehensive range of rainproof connectors, ensuring reliable quality. With its fully rainproof design and stainless steel casing, this machine is built to withstand the test of time.
- Additionally, the dual inlet valve design and unique safety lock and safety channel features provide peace of mind, preventing accidental activations. User-friendliness is further enhanced with dual-language (Chinese and English) displays.
- Moreover, the intelligent system offers real-time detection with pressure, oil status, and fault alerts, enhancing safety and performance monitoring. The quick and high-precision drive unit and control system guarantee swift and accurate flame projection, making this flame machine an ideal choice for a wide range of applications.
Please note: Due to the high value and weight of the goods, using carton packaging may cause damage. It is recommended to use flight boxes for packaging to ensure the safety of the goods.
Technical Parameter
- Specification:
Voltage: 100-240V / 50Hz60Hz
Power: 300W

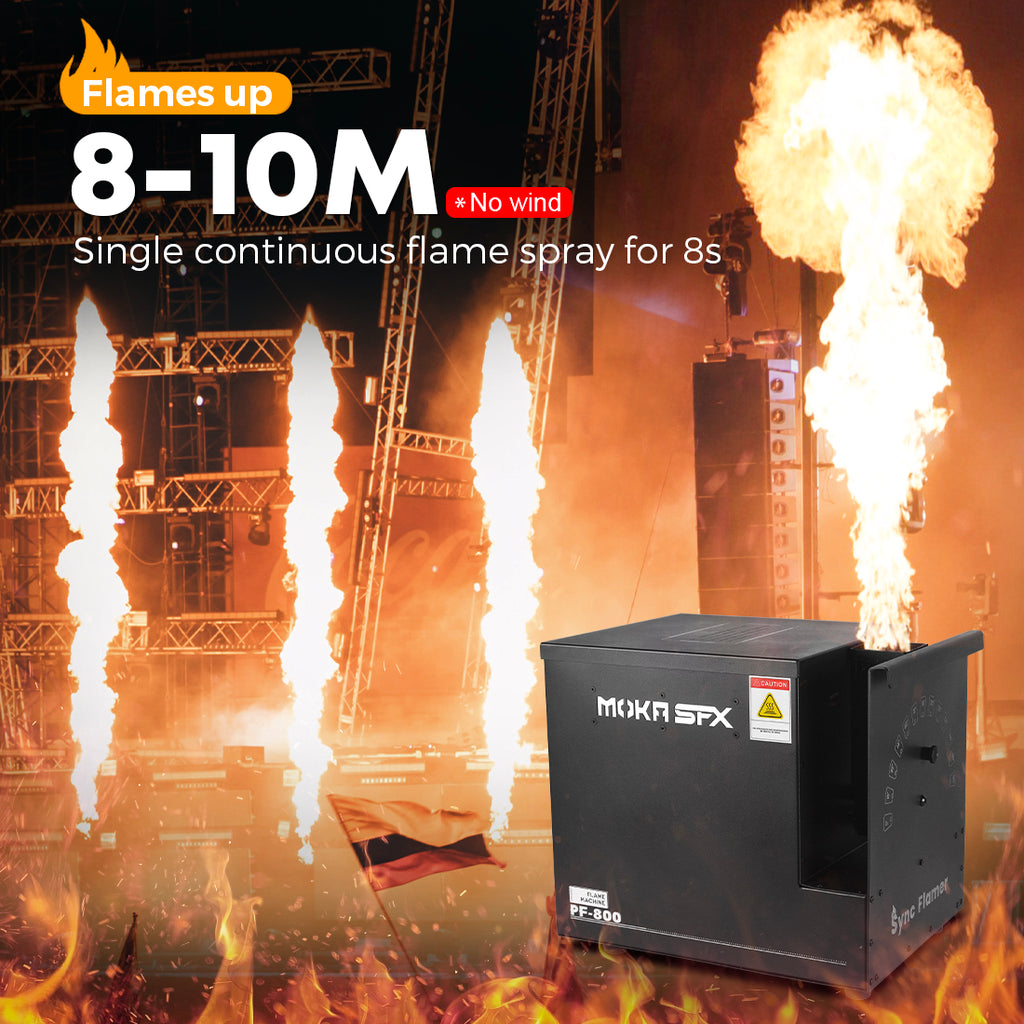

Jet distance: 8-10 meters (no wind)
Maximum pressure: 1300 Psi

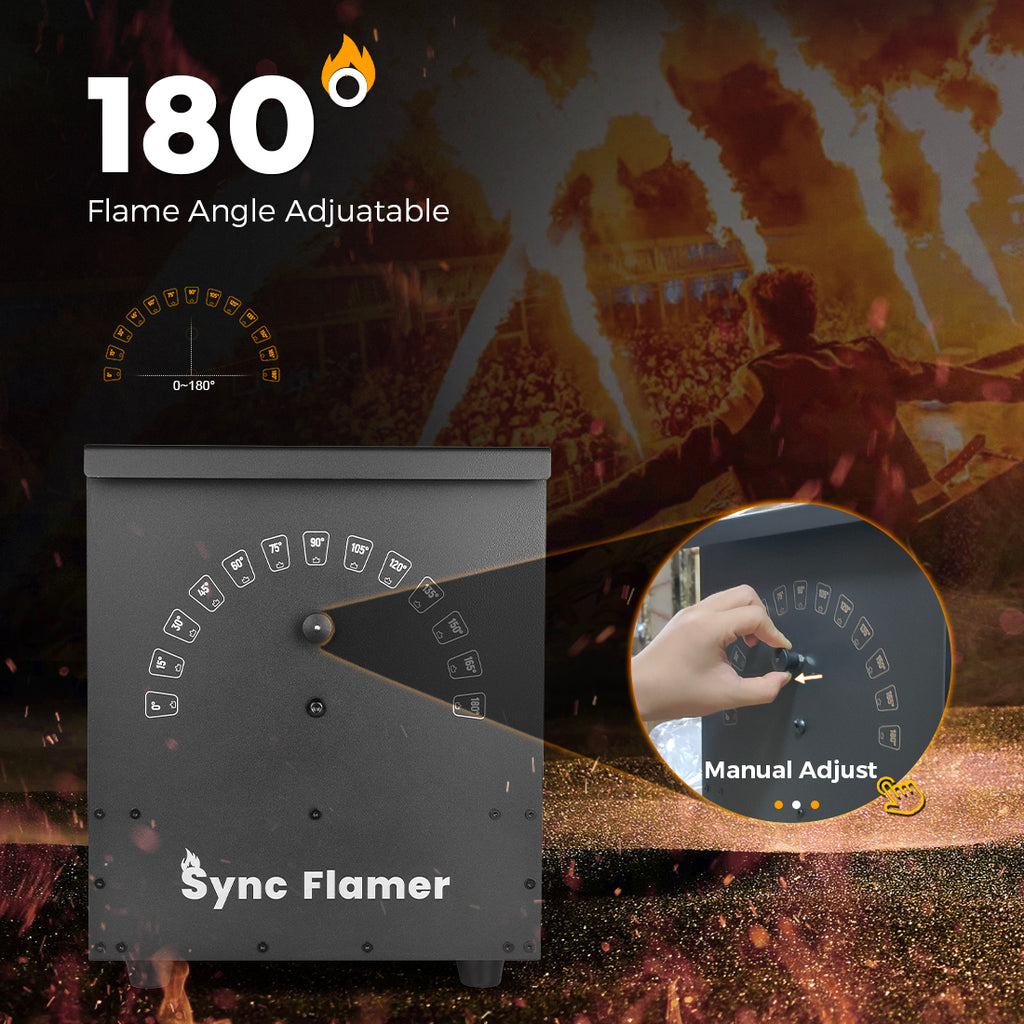

Angle adjustment: 180 degrees manual
Size: 46/33/38.7CM
Flight case size: 52/38/56.5cm with wheels
Flight case outer carton: 53.5/39.5/48.5cm
Net weight of bare metal: 21 kg
The gross weight of flight case packaging: 35.6 kg
Consumables: diesel (smoky), ISOPROPANOL/ISOPAR G, H, L, M
Fuel consumption:60ml/s
Battery use time: about 8 hours (optional)
Battery capacity: 5000MAH/60C
Charging time: about 4 hours (charger optional)
Rainproof
Fuel tank capacity: 5L
- Please Note:
1. Non-professionals are prohibited from operating.
2. No one or anything is allowed within 15 meters of the direction of the flame spray.
3. It is prohibited to add water for debugging when installing and debugging equipment. The water-adding equipment will be damaged immediately.
4. The equipment must be depressurized after use.
5. The equipment has a rainproof function. It is prohibited to soak in water or place it in a position where water accumulates.
6. The equipment should be run at least once a month to keep the equipment in optimal performance.
How To Use
Shipping
- U.S. warehouse: 2-5 working days to U.S., 7-12 working days to other areas.
- Spain warehouse: 2-4 working days to Spain, 7-12 working days to other EU regions.
- Poland warehouse: 2-4 working days to Poland, 7-12 working days to the rest of the EU.
- China warehouse: 7-20 working days for direct shipment from China.
- The transportation type depends on the region, and it is uniformly displayed as international shipping.
- The goods will be sent out within 1-5 working days. After the logistics order number is generated, customer service will send an email to notify you. Please pay attention to the delivery status.
-
If you have any questions, please leave a message.
Q&A
- Q: Do I need to get a security clearance to use your flame machine?
A: There is no need to obtain security clearance to use our machines. But this is professional stage equipment and is best used under the guidance of professionals
- Q: If the products are broken during the warranty, what should I do?
A: Don’t worry, MOKA SFX has a professional foreign trade team and helps you to solve all problems with our products in time. Please send us pictures or videos if there is a problem with the products. We will guide you on how to fix it and provide spare parts for free if needed.
- Q: What is the safe channel?
A: When you use the DMX controller to control the machine, channel 1 is a safety channel with values of 100-155 open, indicating the fire projector safe channel is open and the machine can work.
