- DMX 512 control mode，8 Dmx channels.
- Add 5 pins on the panel, which is more professional and has no signal delay.
- The machine can spray the height of the flame can reach 3.2 meters, can create a fireball effect, instantly pushing the atmosphere to the scene High Tide.
- Updated valve and igniter, the ignition success rate of up to 99%, The latest design makes the spitfire has strong stability, safe and reliable performance.
- With safety channel, The flame projector will not jet the fire if you touch the Dmx controller by mistake, with safety that is to stop function, to reduce the risk of use.
1. The flame thrower is with a safety channel, it will spray only when you open the safety channel, which prevents accidental spraying.
2. With the internal dumping device, automatically turn off the fire when the device drops, to ensure the safety of events.
3. The fire machine with a high-quality valve and ignition has a high successful ignition rate of up to 98%.
4. We added 5 pins on the panel, which is more professional and has no signal delay;
5. The machine with Dmx 512 control and LCD display, easy to operate is easy to control.
Voltage: ac 100-120v60hz/200-240v50hz
High flames: 1-3m
Control Mode: Dmx 512
Product Size: 53x31x43 cm
Package size: number
Net weight: 16.77kg
Gross weight: 18.66kg
Product Warranty Time: 1 year
Certificate: CE, Rohs, fcc certified
Color: red fire (depends on the color of the fire oil, you can put 5 bottles of colored oil in different colors, the color of the flame is colored)
- 8 DMX channels:
Channel 1: safety channel (value 100-150, the safe channel will be turned on)
Channel 2: spray no. 1
Channel 3: spray no. 2
Channel 4: spray no. 3
Channel 5: spray no. 4
Channel 6: spray n ° 5
Channel 7: spray n ° 1,2,3,4 together
Packing list for each unit:
1pc five-head flame machine
1pc pc power cable
1pc dmx cable
1pc user manual
- Application: Wedding, Exhibition booth, Music show, concerts, Mobile Dj, Studio, Theater, Ceremony, Indoor, and outdoor party, TV station, Etc.
How To Use
- Steps To Use :

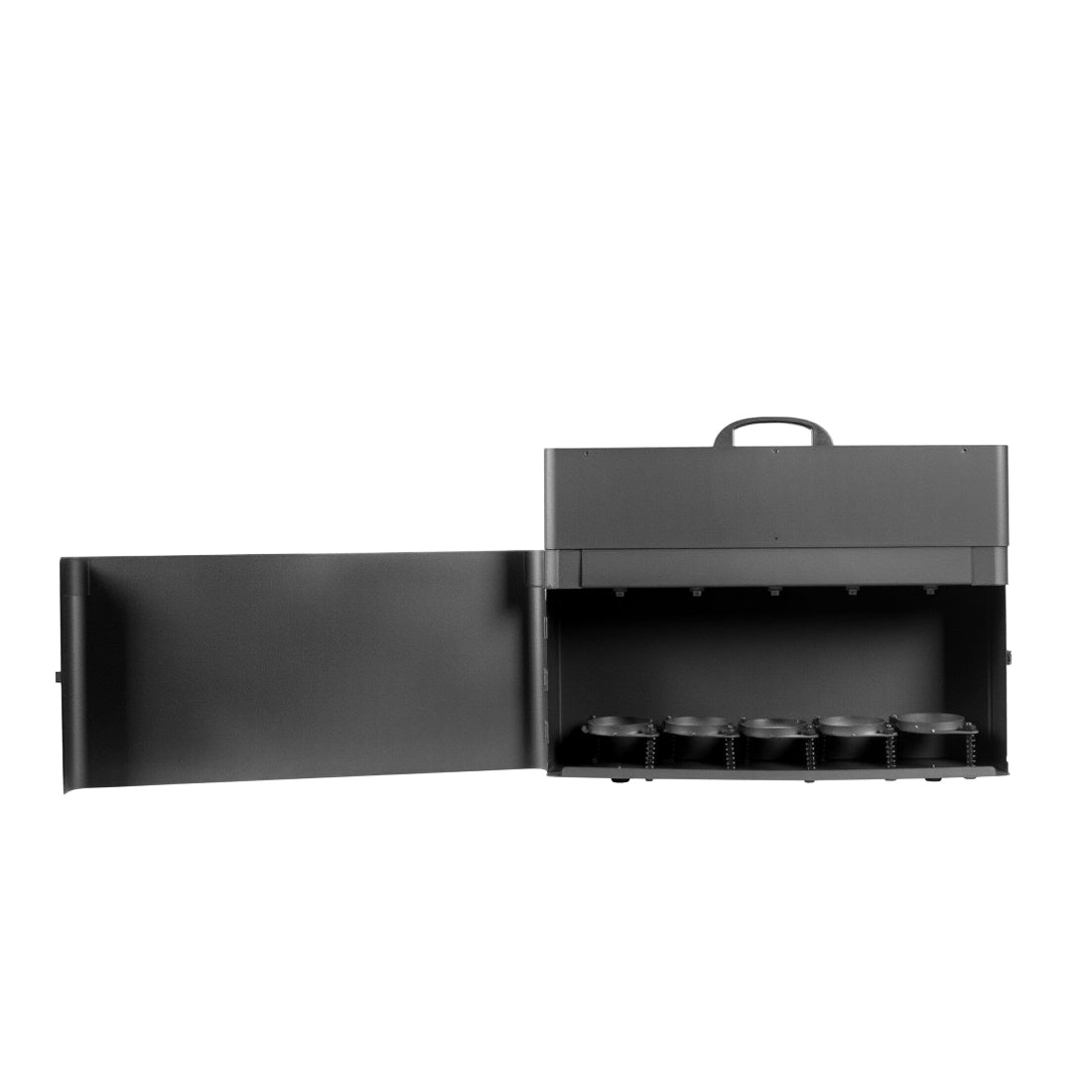

1. Please Open the door of the flame machine, put 4 bottles of flame liquid cans on the holder, ensure the liquid can be fixed correctly. The next step closes the door of the flame machine.
2. Please connect the power supply for the flame machine, Open the switch. Connect with DMX signal cable machine and DMX controller, Set the DMX address. the machine will be DMX self-inspection, and the detection lamp will flicker. When contact with the DMX signal cable, the display will light up. Otherwise, the display will not bright.
3. After you have readied the Hi Flame Machine and set the DMX addresses properly, you are clear to operate the Hi Flame Machine.
4. You previously set a “safety” channel for the Hi Flame Machine so that the device should still be in safety mode. You now take it out of safety mode by setting channel 1 to between 100 and 155. The Indicator light of the Hi Flame Machine will start blinking in turn.
- Attention: Before using this product please first read the operating guide.
- U.S. warehouse: 2-5 working days in the U.S., 7-12 working days in other areas.
- Spain warehouse: 2-4 working days in Spain, 7-12 working days in other EU regions.
- Poland warehouse: 2-4 working days in Poland, 7-12 working days in the rest of the EU.
- China warehouse: 7-20 working days for direct shipment from China.
- The transportation type depends on the region, and it is uniformly displayed as international shipping.
- The goods will be sent out within 1-5 working days.After the logistics order number is generated, the customer service will send an email to notify you. Please pay attention to the delivery status.
- If you have any questions, please leave a message.
- Q:Where can I buy fuel?
A:Websites for buying kerosene in various countries:
- Q: If I use this flamethrower, will it cause a fire, or cause the smoke alarm to go off?
A: Our fire-breather can be used indoors or outdoors, as long as it is kept at a relatively safe distance, it will not cause a fire or cause the smoke alarm to go off. And our machine is equipped with a safety channel, when the machine is tilted more than 45 degrees, the flamethrower will immediately stop working to improve the safety of use.
- Q: Do I need to get a security clearance to use your flame machine or floral sprayers?
A: From the customers, we have worked within Europe, America, and other countries, there is no need to obtain security clearance to use our machines.
- Q: If the products are broken during the warranty, what should I do?
A: Don’t worry, MOKA SFX has a professional foreign trade team and helps you to solve all problems about our products in time, first please send us pictures or videos If there is a problem with the products. We will guide you on how to fix it and provide spare parts for free if needed.
- Q: What is a safe channel?
A: When you use the Dmx controller to control machine, The channel 1 is a safety channel which values of 102-153 open, when the fire projector safe channel open. By the way, MK-E06 H-E02, H-E01 H-E01A, MK-E02 MK-E02A, these items need to turn on the power first.
- Q: What's the spray called? Chemical composition?
A: Flame Oil, Flame Liquid Animal repellent Air freshener.
Flame oil composition： Methanol 60%, White mineral oil 20%, Butane 15%, Spices 5%.
Color Flame oil composition: glycerin 40% ,Silicone oil 30% , Butane 20% , Pigment 5% , Spices 5%.
- Q: How long will spray for one bottle can be used?
A: After confirming with the factory,200ml for one flame bottle = Approx 60-70 seconds of output.
- Q: What is the dump switch?
A: The power will be cut off automatically and the flame projector stop working instantly when it falls down, ensuring the safety of the event.
- Q: Where can I buy flame oil?
A: Can be purchased from your local market and Amazon,eBay.
①USA Market: pls check the link from amazon https://www.amazon.com/Valvoline-602373-11-Starting Fluid/dp/B00PWLS7HU/ref=mp_s_a_1_5?ie=UTF8&qid=1545973834&sr=8-5&pi=AC_SX236_SY340_QL65&keywords=valvoline+starting+fluid&dpPl=1&dpID=31dshM48ZhL&ref=plSrch
②Europe: pls check the link from amazon for reference https://www.amazon.de/dp/B007VMGD7E/ref=cm_sw_r_wa_api_i_Y-R5CbDJ8WX0E
- Q: What should I do if the machine keeps working?
A: First of all, please confirm that all procedures with normal operation, it is recommended to cut off the power and operate again, If fail again, The cause may be a broken valve, please cut off the power, Replace the new valve.
- Q: What should I do if the machine just sprays oil and doesn’t catch fire?

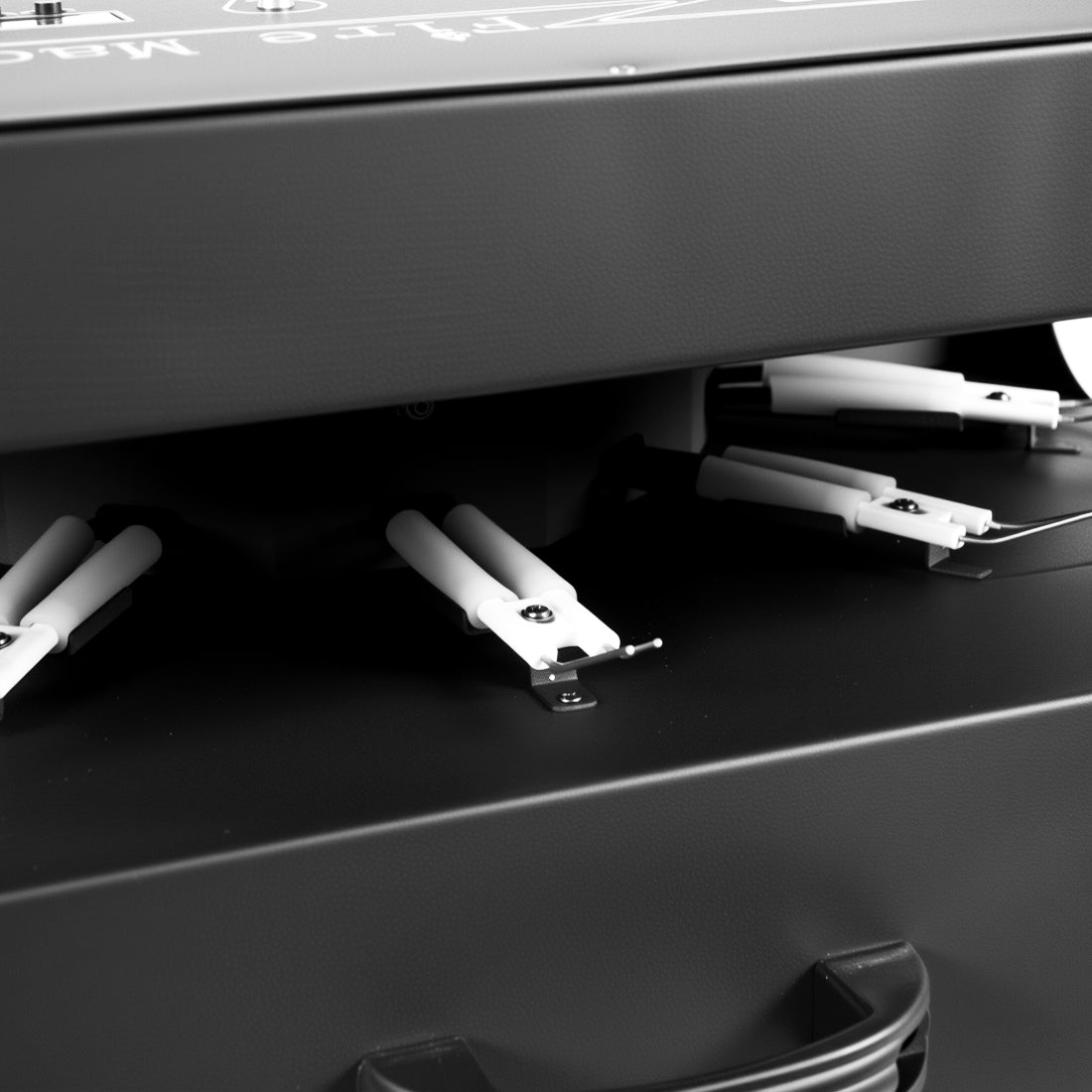

A: In this case, the angle of the ignition pin may be distorted, and the spray nozzle may not be aligned so that the spark cannot be ignited by the ignition pin when the fire spark comes out. Please try to adjust the angle of the ignition pin to align the nozzle and try again.
- Q: What is the control mode of H-E04?
A: Control by DMX
