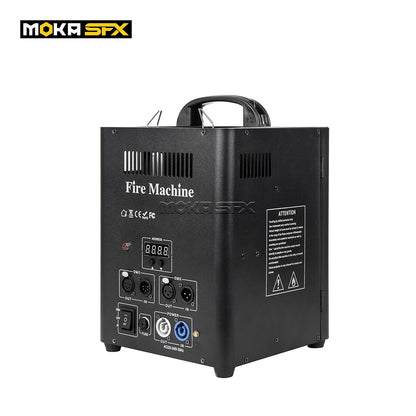

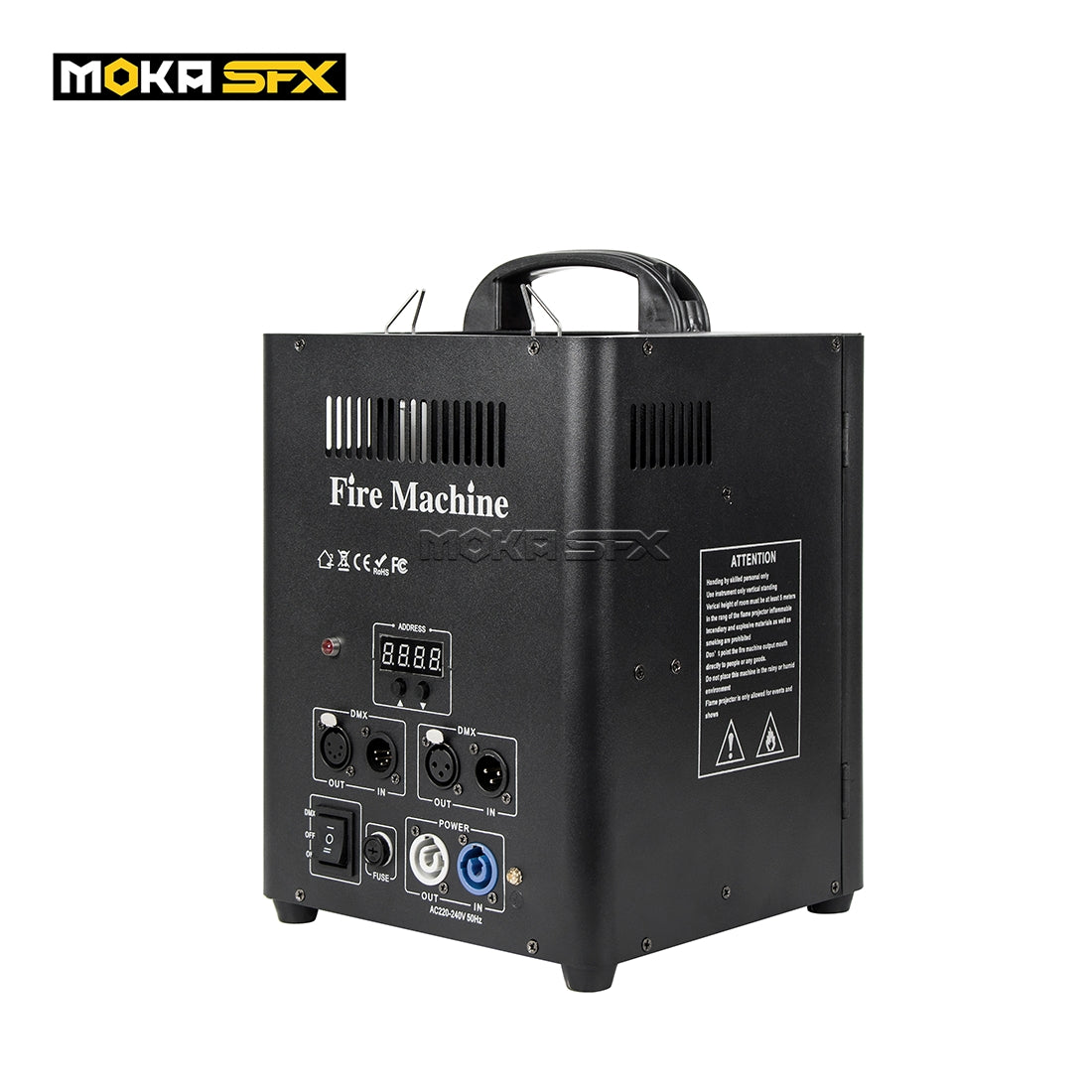

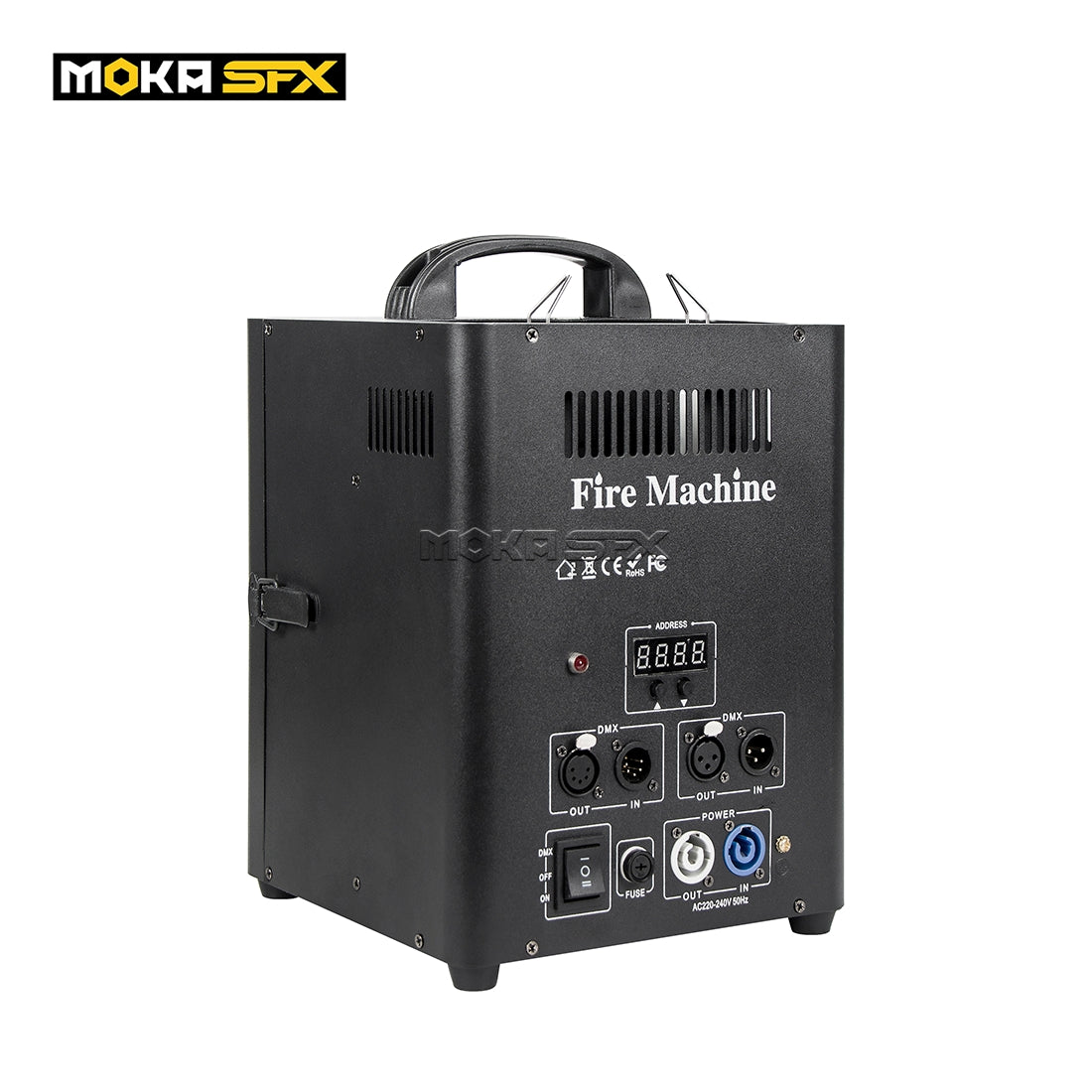

- Flame machine using DMX512 control / manual control.
- The flame can reach 3 meters can bring the show to the climax.

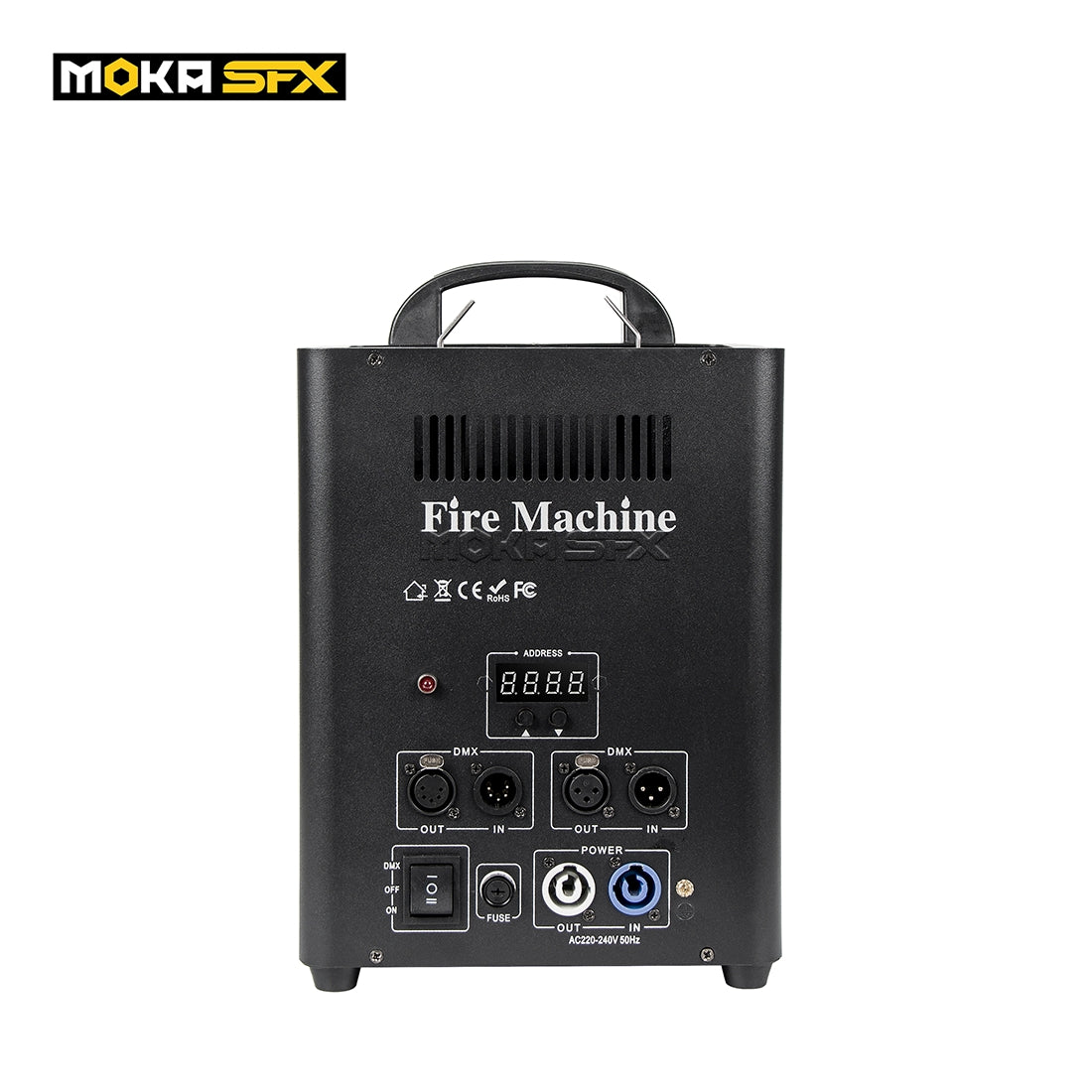

- Using LCD screen display to adjust the address code, easy to operate.
- Small size, with safety that is to stop function, to reduce the risk of use.
- High-quality valve and pulse igniter, the ignition success rate of up to 99%.
Voltage: ac110/230v 50-60hz
Sprayer flame height: 3m
Dmx channel: 2 channels
Channel 1: safety
Channel 2: spray
Control: sd control, power switch
Net weight: 6kg
Gross weight: 7kg
Package size: 29*29*39cm
Color: fire red (depends on the color of the fire oil)
Product Warranty Time: 1 year
Certificate: CE, Rohs, fcc certified
- Packing List :
Fire machine Dmx 1 piece
Power cord 1 piece
Dmx Cable 1 piece
Manual book 1 piece
- Hot Tips:
Shipping does not include fire oil, The fire machine can work with the fire oil. however, fire oil is defined as flammable and explosive items, so they are prohibited to ship, you can get the fire oil in your own country.
How To Use
- Steps To Use：

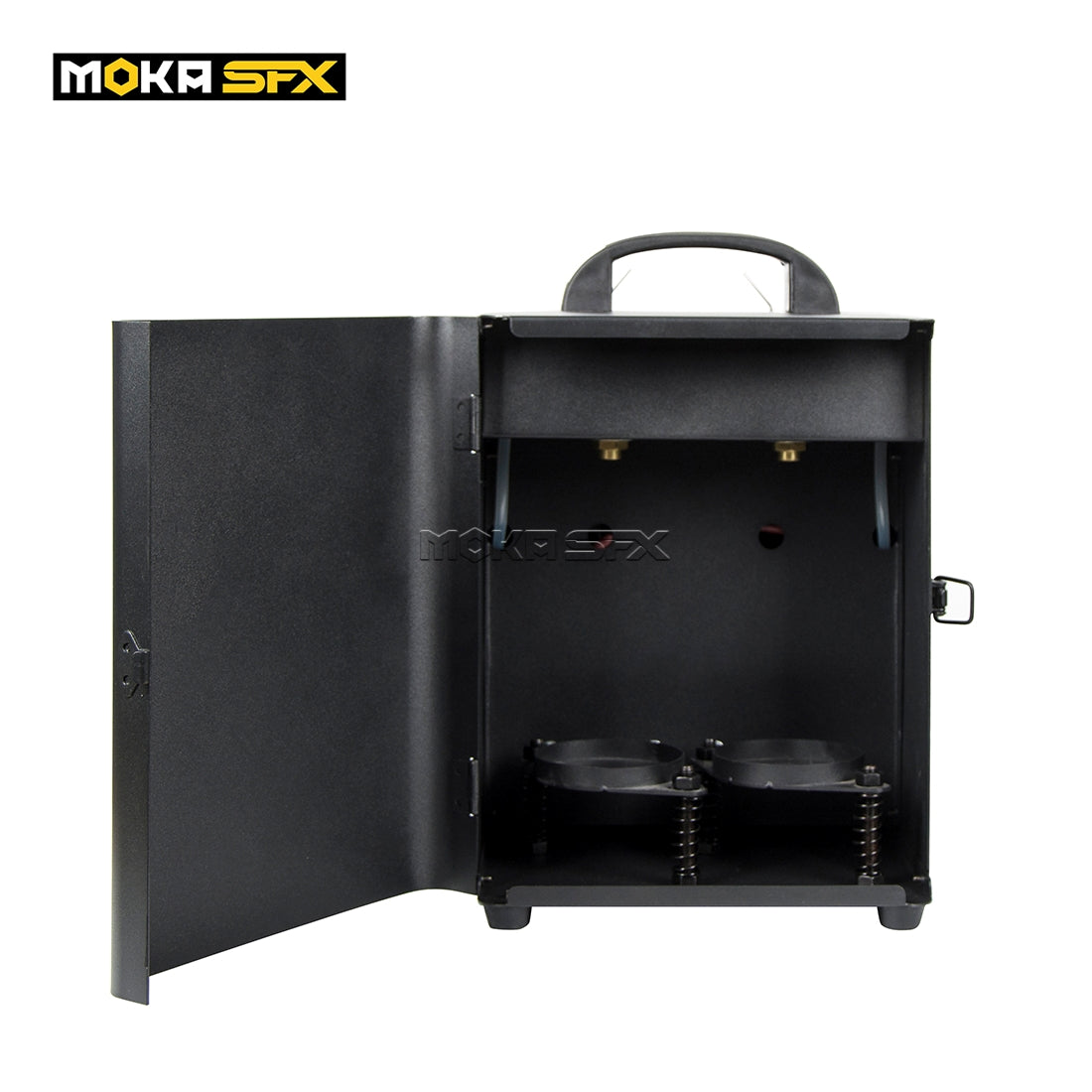

1. Please open the door of the flame machine, put the flame liquid cans to a machine inside, please make sure the liquid can is correct to fix. After finishing, close the door of the flame machine and put the machine in its proper place.
2. Please connect the power supply for the flame machine, Open the switch. Setting the DMX address, connect with DMX signal cable machine and DMX controller. the machine will be DMX self-inspection, and the detection lamp will flicker. When contacting the DMX signal cable, usually the “d” will incessant flickering. Otherwise, the “d” will not flicker.
3. After you have readied the Triple Flame and set the DMX addresses properly, you are clear to operate the Triple Flame.
4. You previously set a “safety” channel for the Stage Flame so that the device should still be in safe mode. You now take it out of safety mode by setting channel 1 to between 40% and 60%. The Indicator light on the back of the Stage Flame will start blinking in turn.
5. Finally, you can control the machine channel 2-6, it has 5 channel spray models.
Before using this product please first read the operating guide.
- U.S. warehouse: 2-5 working days in the U.S., 7-12 working days in other areas.
- Spain warehouse: 2-4 working days in Spain, 7-12 working days in other EU regions.
- Poland warehouse: 2-4 working days in Poland, 7-12 working days in the rest of the EU.
- China warehouse: 7-20 working days for direct shipment from China.
- Q: If the products are broken during the warranty, what should I do?
A: Don’t worry, MOKA SFX has a professional foreign trade team and helps you to solve all problems about our products in time, first please send us pictures or videos If there is a problem with the products. We will guide you on how to fix it and provide spare parts for free if needed.
- Q: How high can spray?
H-E01A:Spray1-2(LPG Flame machine);
H-E03A:Spray1-2M(LPG Triple-head flame machine )
- Q: What are the control modes?
A: DMX Control and Electric control
DMX control means connecting the Dmx cable and then through the Dmx controller to control the machine
Electric control means turn on power then working, turn off power then stop working
- Q: What is a safe channel?
A: When you use the Dmx controller to control machine, The channel 1 is a safety channel which values of 102-153 open, when the fire projector safe channel open. By the way, MK-E06 H-E02, H-E01 H-E01A, MK-E02 MK-E02A, these items need to turn on the power first.
- Q: What's the spray called? Chemical composition?
A: Flame Oil, Flame Liquid Animal repellent Air freshener.
Flame oil composition： Methanol 60%, White mineral oil 20%, Butane 15%, Spices 5%.
Color Flame oil composition: glycerin 40% ,Silicone oil 30% , Butane 20% , Pigment 5% , Spices 5%.
- Q: How long will spray for one bottle can be used?
A: After confirming with the factory,200ml for one flame bottle = Approx 60-70 seconds of output.
- Q: What is the dump switch?
A: The power will be cut off automatically and the flame projector stop working instantly when it falls down, ensuring the safety of the event.
- Q: Where can I buy flame oil?
A: Can be purchased from your local market and Amazon,eBay.
①USA Market: pls check the link from amazon https://www.amazon.com/Valvoline-602373-11-Starting Fluid/dp/B00PWLS7HU/ref=mp_s_a_1_5?ie=UTF8&qid=1545973834&sr=8-5&pi=AC_SX236_SY340_QL65&keywords=valvoline+starting+fluid&dpPl=1&dpID=31dshM48ZhL&ref=plSrch
②Europe: pls check the link from amazon for reference https://www.amazon.de/dp/B007VMGD7E/ref=cm_sw_r_wa_api_i_Y-R5CbDJ8WX0E
- Q: What should I do if the machine keeps working?
A: First of all, please confirm that all procedures with normal operation, it is recommended to cut off the power and operate again, If fail again, The cause may be a broken valve, please cut off the power, Replace the new valve.
- Q: What should I do if the machine just sprays oil and doesn’t catch fire?

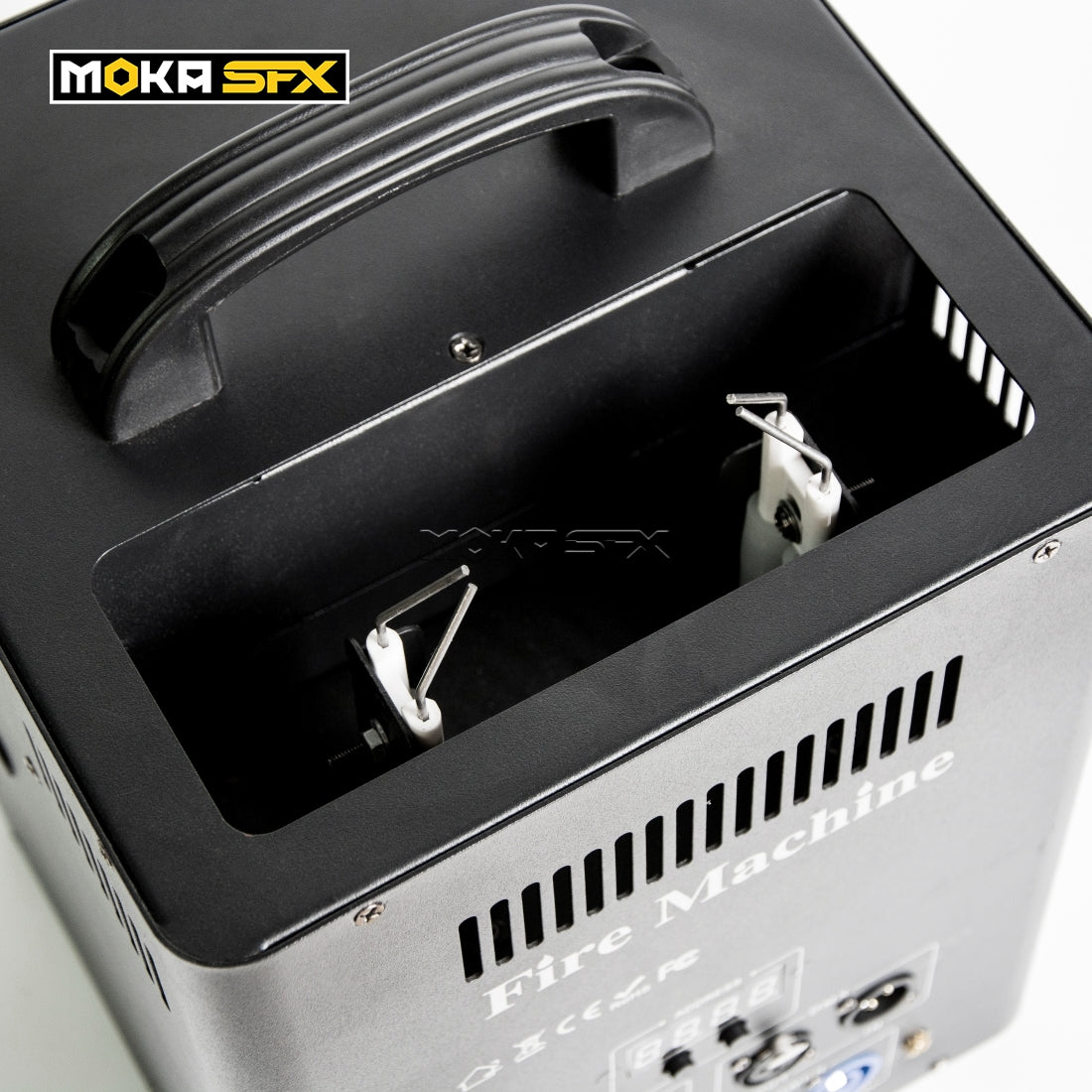

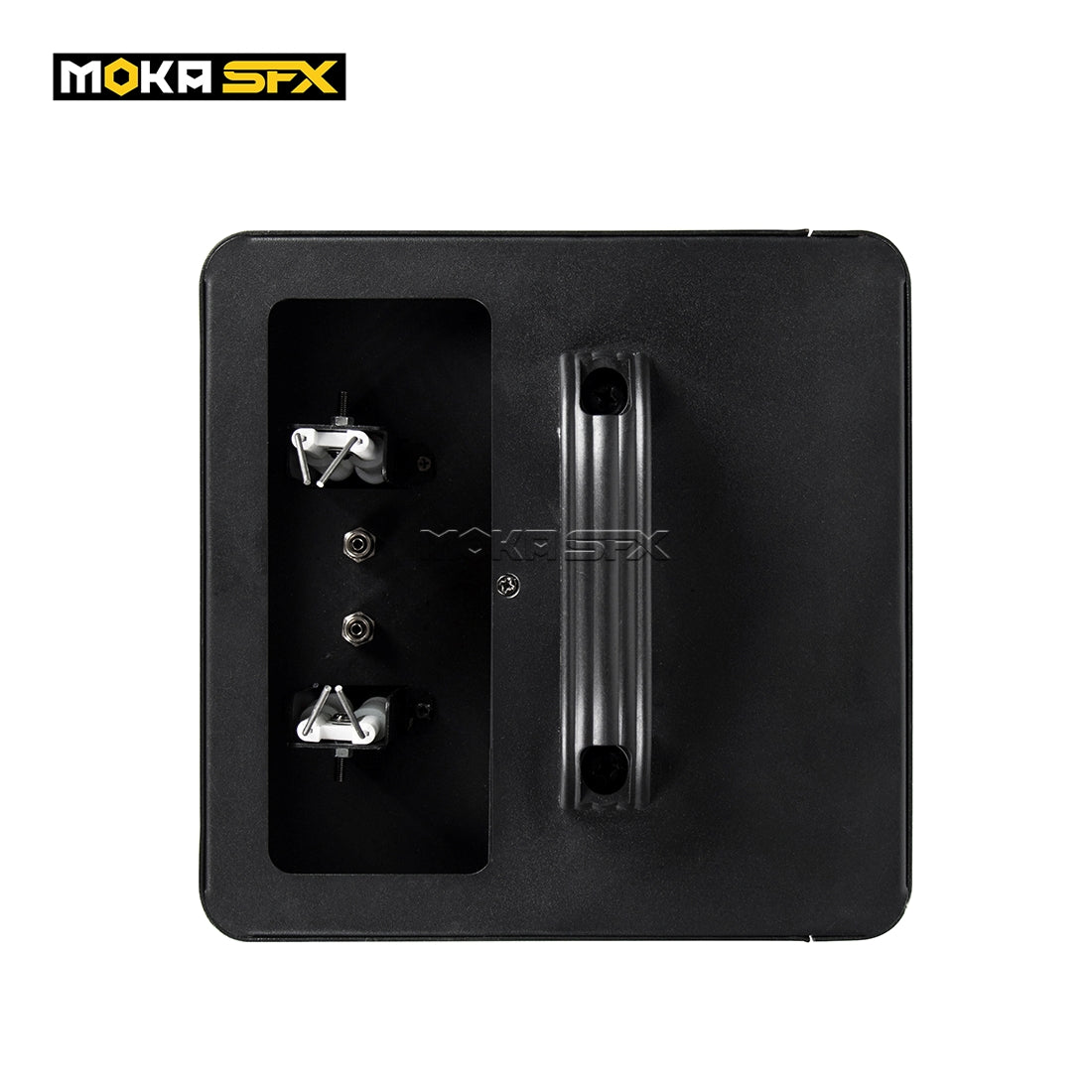

A: In this case, the angle of the ignition pin may be distorted, and the spray nozzle may not be aligned so that the spark cannot be ignited by the ignition pin when the fire spark comes out. Please try to adjust the angle of the ignition pin to align the nozzle and try again.
