Description
-
4-Head Fire Machine for Stage Effects
Four independent flame heads create powerful and dynamic stage effects. -
5-6m Real Flame Height
Creates powerful, high-impact flame effects. -
Independent 4-Head Control
Control each flame head individually or fire all four simultaneously. -
98% Ignition Success Rate
High-quality valves and ignition system deliver fast, reliable flame activation. -
DMX512 Control
Precise control of individual flames, simultaneous output, and sequential effects. -
Safety Channel Protection
Built with a safety channel to help prevent accidental flame output caused by mistaken DMX operation. -
Tip-Over Auto Shutoff Protection
Automatically stops flame output when the machine tilts or falls, helping improve event safety. -
Uses Flame Liquid & Starting Liquid
Designed to create stable real flame effects with Flame Liquid & Starting Liquid, ideal for stage fire machine applications.
Please Note：
All the machines are sold without a DMX controller, if you need one, please purchase additionally:
MINI BATTERY DMX CONSOLE 24CHS BATTERY CONTROLLER
Technical Parameter
- Specification:
| Specification | Details |
|---|---|
| Power | 180W |
| Voltage | AC 110/220V, 50/60Hz |
| Control Mode | DMX512 |
| Flame Height | 5-6m |
| Package Size | 45 × 40 × 39cm |
| Gross Weight | 13kg |
| Flame Color | Fire red, depending on the color of the fire oil |
| Product Warranty | 1 year |
| Certification | CE, RoHS, FCC |
| DMX Channels | 7 channels |
| Channel 1 | Safety channel — Value 100-150: safety channel ON |
| Channel 2 | No. 1 spray |
| Channel 3 | No. 2 spray |
| Channel 4 | No. 3 spray |
| Channel 5 | No. 4 spray |
| Channel 6 | 4 flames spray together |
| Channel 7 | Value 1-125: No. 1, No. 2, No. 3, and No. 4 spray from slow to fast; Value 126-255: No. 4, No. 3, No. 2, and No. 1 spray from slow to fast |
Packing List
| Item | Quantity / Details |
|---|---|
| Flame Machine | 1 pc |
| Power Cord | 1 pc |
| DMX Cable | 1 pc |
| Manual Book | 1 pc |
| Hot Tip | The fire machine can work with fire oil. However, fire oil is classified as a flammable and explosive item, so it cannot be shipped with the machine. Please purchase suitable fire oil locally. |
How to Use
Steps to Use:
-

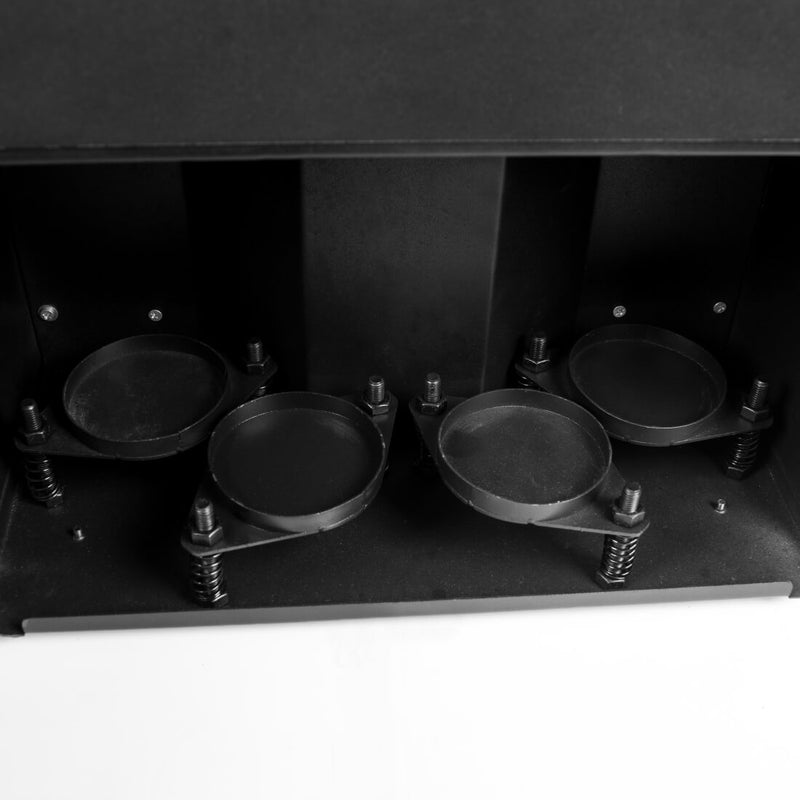

Open the flame machine door, place 4 flame liquid cans on the holders, and make sure they are securely fixed. Then close the door.
-
Connect the flame machine to the power supply and turn on the power switch. Connect the DMX signal cable to the machine and DMX controller, then set the DMX address. The machine will perform a DMX self-check, and the indicator light will flash. Once the DMX signal cable is connected properly, the display will light up.
-
The flame machine is equipped with a safety channel. The machine can only operate when Channel 1 is set between 100 and 155. Activate the safety channel, then use Channels 2-7 to control the flame effects.
-
After use, turn off the machine and disconnect the power cord and DMX signal cable.
-
Wait 15 minutes until the ignition needle has cooled down. Then remove the flame liquid cans and wipe the machine clean.
Attention:
Please read the operating guide carefully before using this product.
Q&A
Q: Where can I buy fuel?
A: Here are some reference websites for purchasing starting fluid in different countries:
Europe: https://www.amazon.de/dp/B007VMGD7E/ref=cm_sw_r_wa_api_i_Y-R5CbDJ8WX0E
France: https://france-effect.com/recharge-flamme/recharge-dragon-tower-iii.html
Please make sure the fuel is suitable for the flame machine before use.
Q: What is the fuel called?
A: It is commonly called Flame Oil, Flame Liquid, or Starting Fluid.
Q: What is the main ingredient?
A: Canister fuel is based mainly on methanol and butane. Car starting fluid typically contains diethyl ether, along with petroleum distillates, propane or butane, lubricants, and CO2. Coloured variants contain additional organic dyes.
Q: How long does one bottle last?
A: A 400ml fuel bottle provides approximately 60-70 seconds of continuous flame, or roughly 70 individual bursts, depending on the duration and number of bursts and on the operating conditions.
Q: How high can the flame spray?
A:
H-E01: 1-3m
H-E02: 2-4m
H-E03: 1-3m
H-E04: 5-6m
H-E05: 1-3m
H-E01A: 1-2m (LPG Flame Machine)
H-E03A: 1-2m (LPG Triple-Head Flame Machine)
Q: Which flame machine has the highest spray height?
A: The H-E04 Four-Head Flame Machine can reach 5-6m when four bottles of flame oil are used simultaneously with sufficient pressure.
Q: What is the dumping switch?
A: When you use the DMX controller to control the machine, Channel 1 is a safety channel. Values of 100-155 activate the safety channel, allowing the flame projector to operate.
Q: If I use this flame machine, will it cause a fire or trigger the smoke alarm?
A: The flame machine can be used indoors or outdoors when operated by trained personnel with proper safety measures. Real flames may trigger smoke alarms or fire detection systems depending on the venue and detector settings. Please maintain the required safety distance and confirm the venue's fire safety requirements before use.
Q: Do I need safety approval to use your flame or spark machines?
A: Permit and licensing requirements vary by country, region, venue, and event type. Please confirm the local requirements with the relevant authority or venue before use.
Q: What should I do if the machine keeps working?
A: First, confirm that the machine has been operated correctly according to the user manual. If the machine continues to operate abnormally, turn off the power immediately and contact MOKA SFX for technical support.
Q: What should I do if the machine sprays oil but does not ignite?
A: The ignition pin may be misaligned, or the spray nozzle may not be properly aligned with the ignition pin. Turn off the machine and allow it to cool before checking the ignition pin and nozzle alignment. If the problem persists, please contact MOKA SFX for assistance.
Q: What should I do if the product is damaged during the warranty period?
A: Please don't worry. Send us clear pictures or videos showing the problem. Our professional support team will help diagnose the issue and provide guidance or spare parts when needed.
