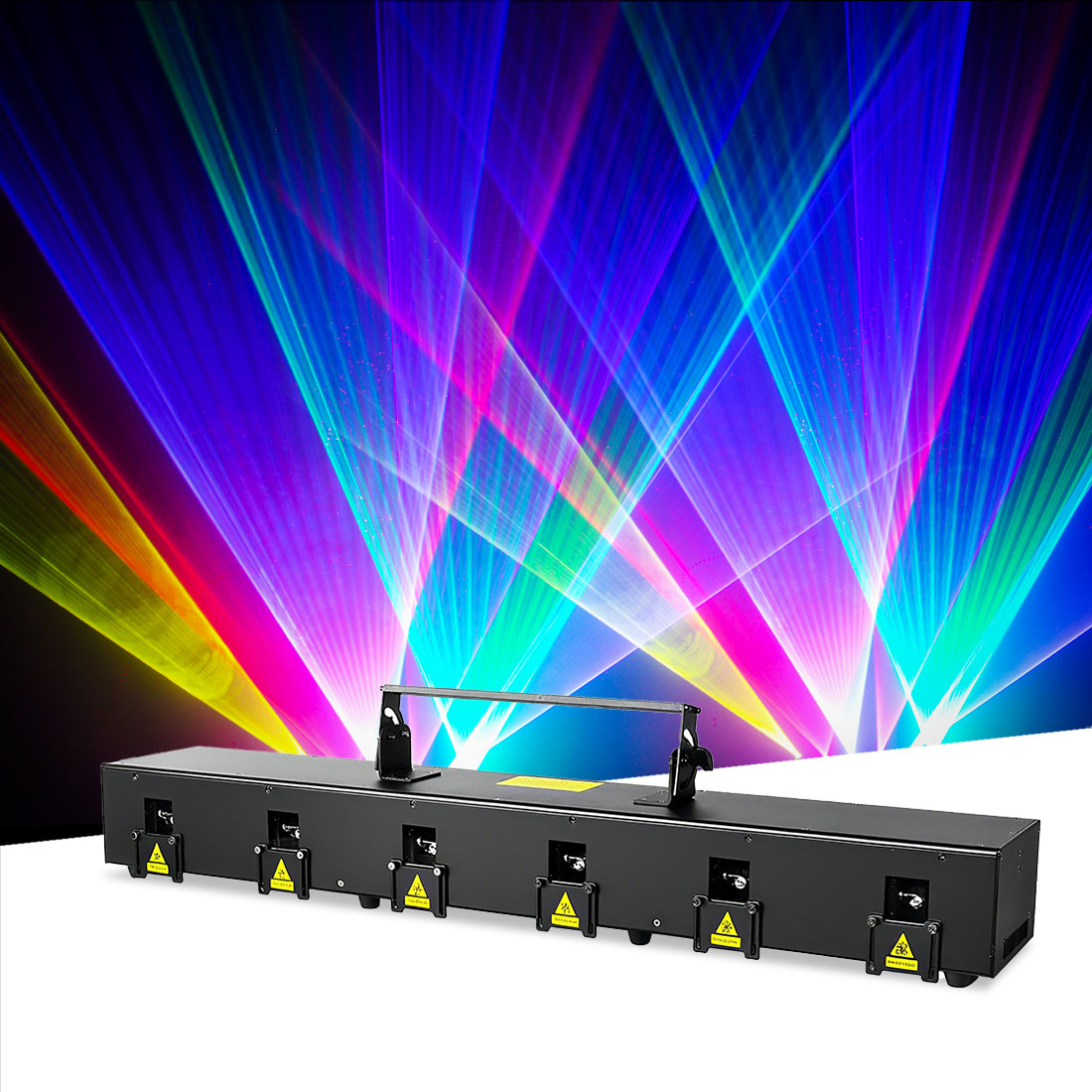

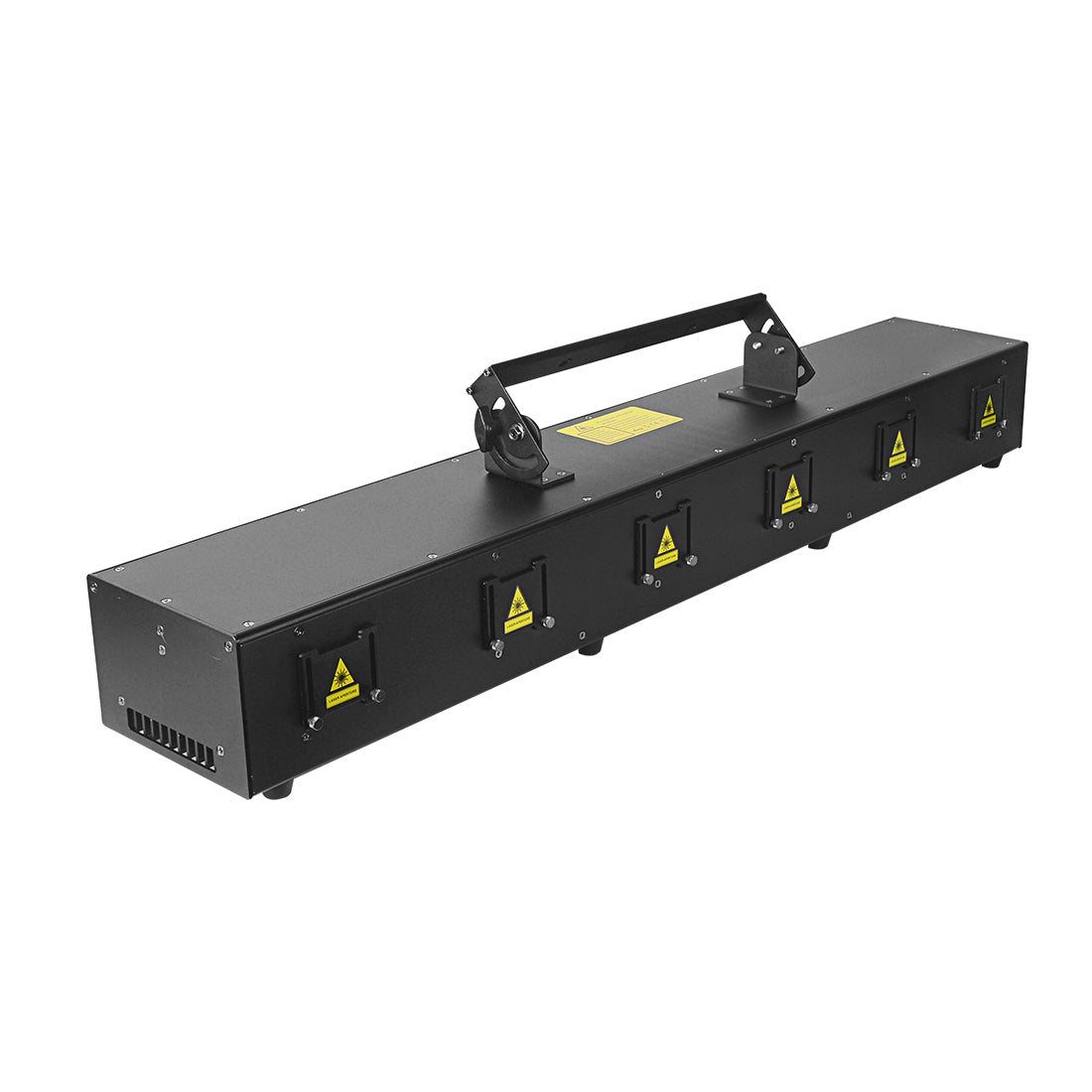

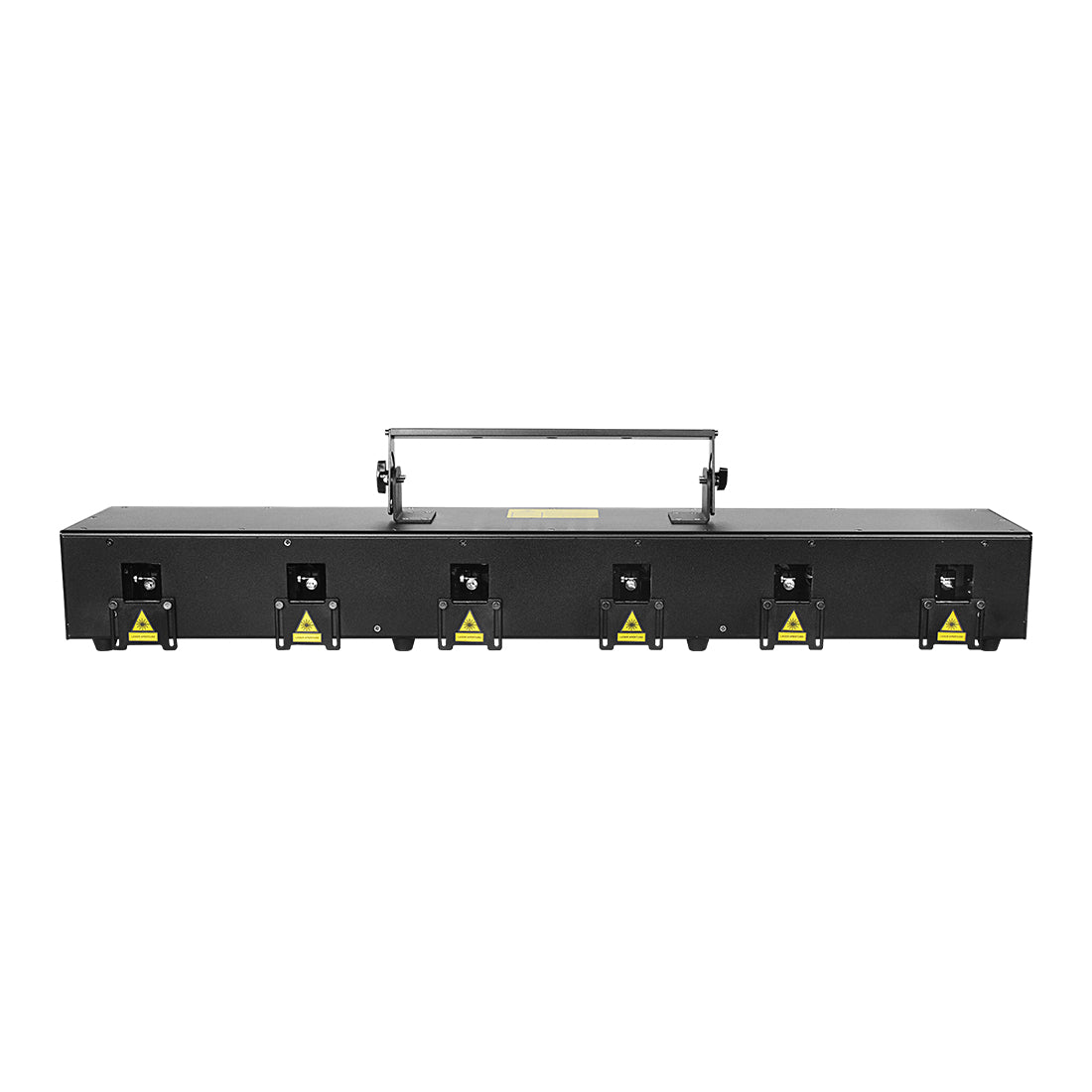

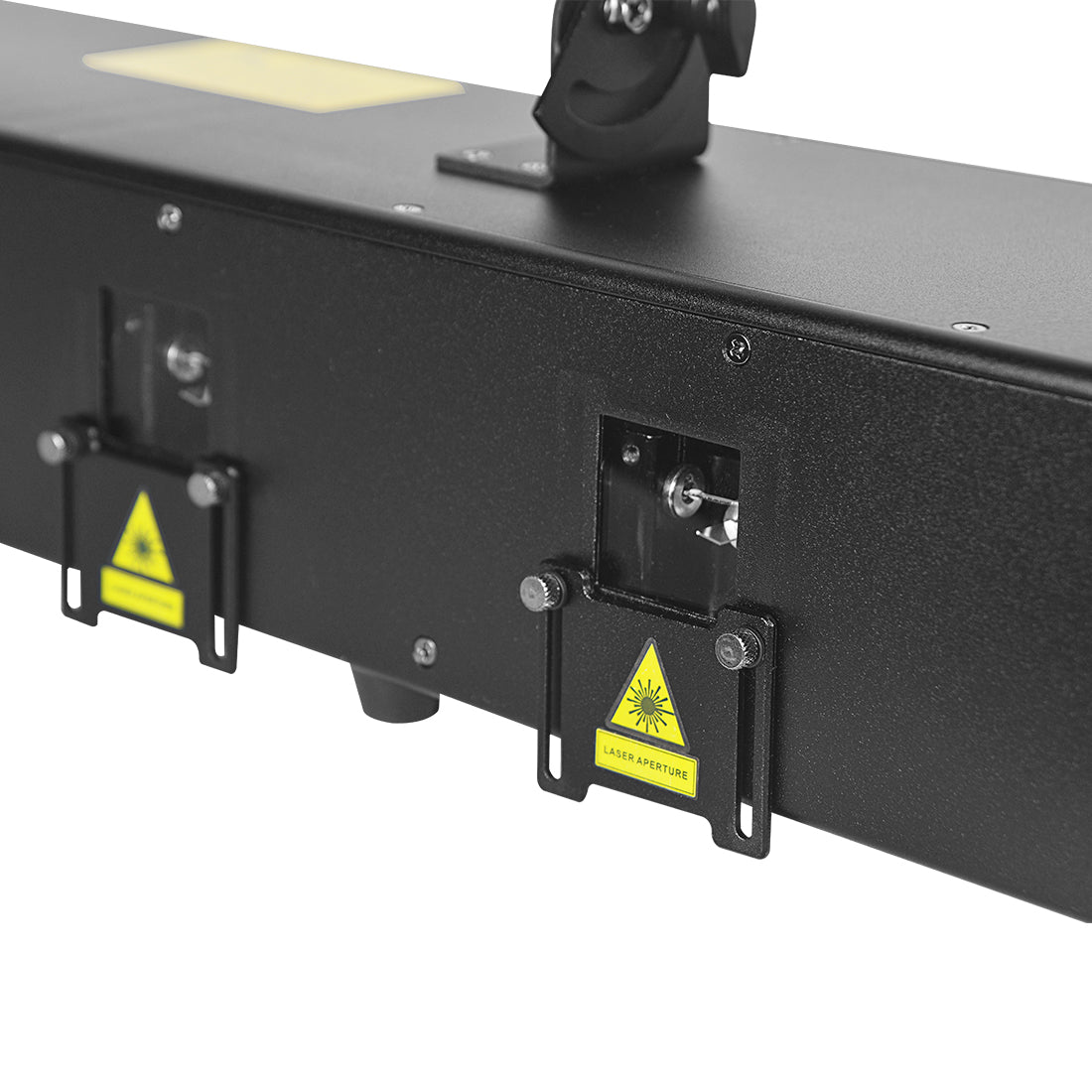

- 6 Head RGB animation laser matrix. Built-in nearly a hundred patterns and beam effects.
- Individual control of each head (such as pattern, effect, color, brightness and position control) can be realized through the console, so as to combine the same effect or different super shocking effects.
- Dust-proof structure design.The protection level reaches IP61 level, which can effectively prevent dust and smoke oil from entering the machine, ensuring the life of the laser and reducing maintenance costs.
- The RGB lasers all use high-stability and long-life semiconductor green laser (Diode Solid-State Laser), and the laser diode (Laser Diode) directly emits laser light, and the working environment is -30°C to 40°C.
- The laser adopts TTL modulation mode, with bright colors.
- Adopt LCD graphic display, pattern size, voice control sensitivity, color setting, galvanometer speed, pattern mirroring, etc.
- Our Advantages:
1. Integrated module, module driver board, and power supply are integrated which makes the light small volume, save transportation cost, and easy to move.
2. The whole exterior of the light body uses hexagon socket screws, which make the body plane smooth and bring a good tactile impression. What's more, it is less prone to wear and rust.
3. Aluminum case, which does not rust and is more durable.
4. Logo was printed by laser, not easy to fall off.
5. Silent fan each Moka laser light with 3 silent fans of the 12v pieces make the laser run smoothly, extend the service life.
Voltage: AC90~250V/AC, 50HZ/60HZ
Rated Power: 100W~200W
Waterproof Level: IP61
Work Environment: outdoor and indoor, -30 °C --40 °C
Scanner: 20K optical scanner, ±20° angle scanning
Laser: RGB analog modulate, 30KHZ frequency
A620RGB: Red laser 400mW@638nm
Green laser 600mW@520nm
Blue laser 1000mW@450nm
Beam Diameter＜6mm, Divergence＜1.5mrad
Working Modes: DMX512 (Normal mode 12CH/ Expert mode 62CH )
MUSIC(Sound Active) Mode
ILDA Mode (optional)
Safety Configure: Security protection, Laser key switch, laser remote interlock, flying rings bolt

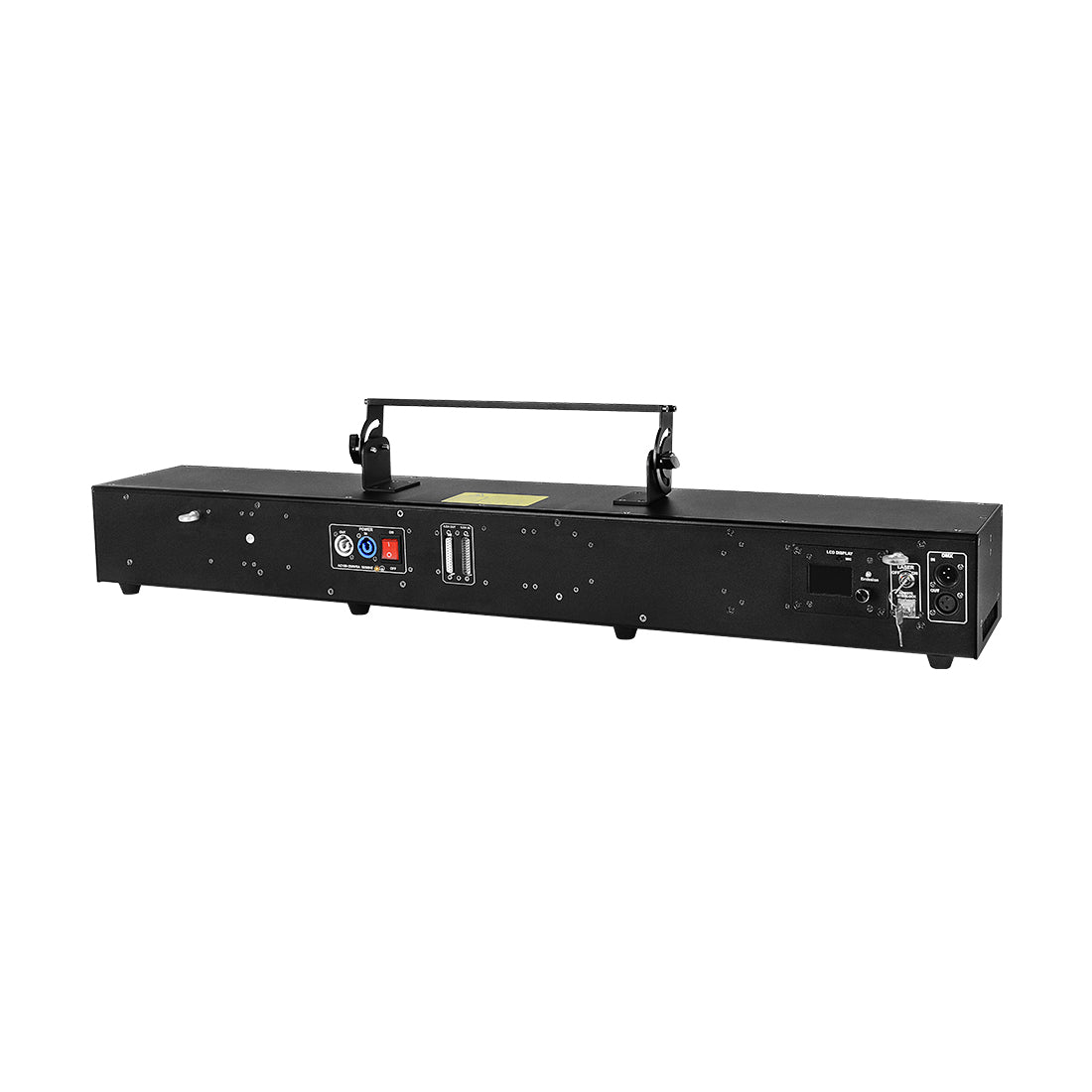

Interface: 3 pins XLR jack for DMX, PowerCON for power
Machine dimension: 1000(L)*167(W)*115(H)mm
Machine Weight: 12Kg
Gross Weight: 16Kg
Applicable place: DJs, bands, bars, pubs, clubs, skating rinks, KTV, family party, birthday, celebration, wedding, festival, shopping mall, store, store, and other designated places.
- Packing list for each unit:
1pc laser projector
1 pc power cable
1 pc DMX cable
1pc user manual
- Please Note:
That we have different power supply plugs, united kingdom plugs, au plugs, EU plugs, the USA plugs, please let us know the power supply you need, or we will choose everything according to your country.
How To Use
The manual will be with the machine, if the manual is missing, please leave a message on the website, we will contact you as soon as possible
- U.S. warehouse: 2-5 working days in the U.S., 7-12 working days in other areas.
- Spain warehouse: 2-4 working days in Spain, 7-12 working days in other EU regions.
- Poland warehouse: 2-4 working days in Poland, 7-12 working days in the rest of the EU.
- China warehouse: 7-20 working days for direct shipment from China.
- The transportation type depends on the region, and it is uniformly displayed as international shipping.
- The goods will be sent out within 1-5 working days.After the logistics order number is generated, the customer service will send an email to notify you. Please pay attention to the delivery status.
- If you have any questions, please leave a message.
- Q: How to choose a laser light？
A: According to the different usage scenarios, use different power laser lights.
- For small parties and family gatherings, 1W, 2W, 3W, 5W laser lights can be enough, because the price is cheap and the operation method is simple.
- For a bar or a club, it is recommended to choose a 10W laser light. According to the area of the bar, it can be equipped with 2-6 sets of equipment. The 10W laser light can carry out complex requirements such as laser engraving patterns, which can basically meet all the needs of the bar.
- For a concerts, music festivals, celebrations and other activities, it is recommended to choose 20W, 30W laser lights, which can perform laser engraving and other effects.
-For urban outdoor landmarks, it is recommended to choose high-power laser lights, 30W-100W, depending on specific requirements, if you need more professional guidance, please contact our customer service .
- Q: Do your laser lights have a security key?
A: Yes, we have standard interlock
- Q: Do I need to buy FB4 ?
A: The laser light has a self-propelled mode with various changes, which can meet most usage scenarios. If you need to customize the effect, you can buy FB4 on the local professional website.
Recommended website: https://pangolin.com/
