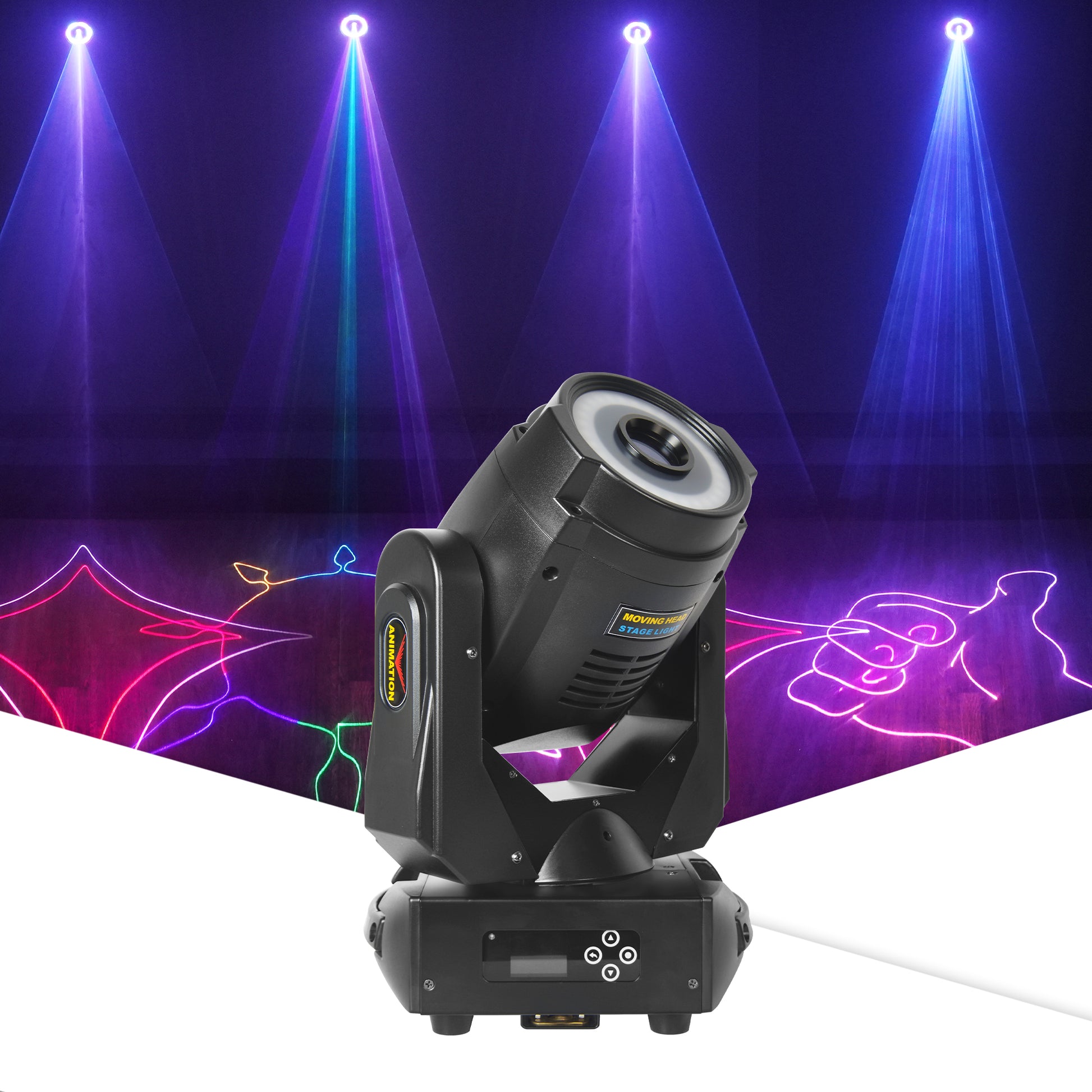

- This 3W moving head laser light system features multiple control modes, including DMX with 6/40 channels and an ILDA interface, allowing for customized effects.
- Built in 140 patterns and 5 pages of animation and a self-walking mode, it easily meets the requirements for ordinary operations.
- The moving head laser light also offers a master-slave control mode, making it simple and easy to operate multiple units.
- The laser light is equipped with touch keys, making debugging more efficient and effortless.
The laser light system includes a scanner protection feature, ensuring automatic light avoidance for single beam projections, thus enhancing safety during usage.
Power supply: AC 110~220V 50/60Hz
lamp diode color: RGB
Rated Power: 120W@220V
Working mode: Auto/DMX512/master-slave/ILDA/user mode
DMX Control Channel: 6CH/40CH
Cool system: forced air cooling system
Working environment: indoor
Working temperature: 0℃ - 35℃
Package size: 34.5*23*48cm
Scanner: 25kpps , scan angle:max±30°;Input signal:±5V;Linearity distortion<2%
Motor: 3 phase 42 motor 2pcs
X-axis 540° rotation, Y-axis 270° rotation
Beam diameter and divergence:3*6.5mm;1.5mrad
Control mode: music (blackout)/ automatic/master-slave/DMX512(6/40CH)/ILDA
Control interface:3 pin DMX512/25DB ILDA
Demonstration effect: built-in 140 patterns and 5 pages of animation
DMX effect: Single pattern mode, with the function of unique blanking, strobe, rotation, movement, billowing, zoom, write-in, speed, color, etc.
Operating requirement: dry, less dust, 0~35℃(environmental temperature), which will reduce the attenuation of the diode and extend the life of the light.
Application: disco, club, concert, medium indoor venue, festival

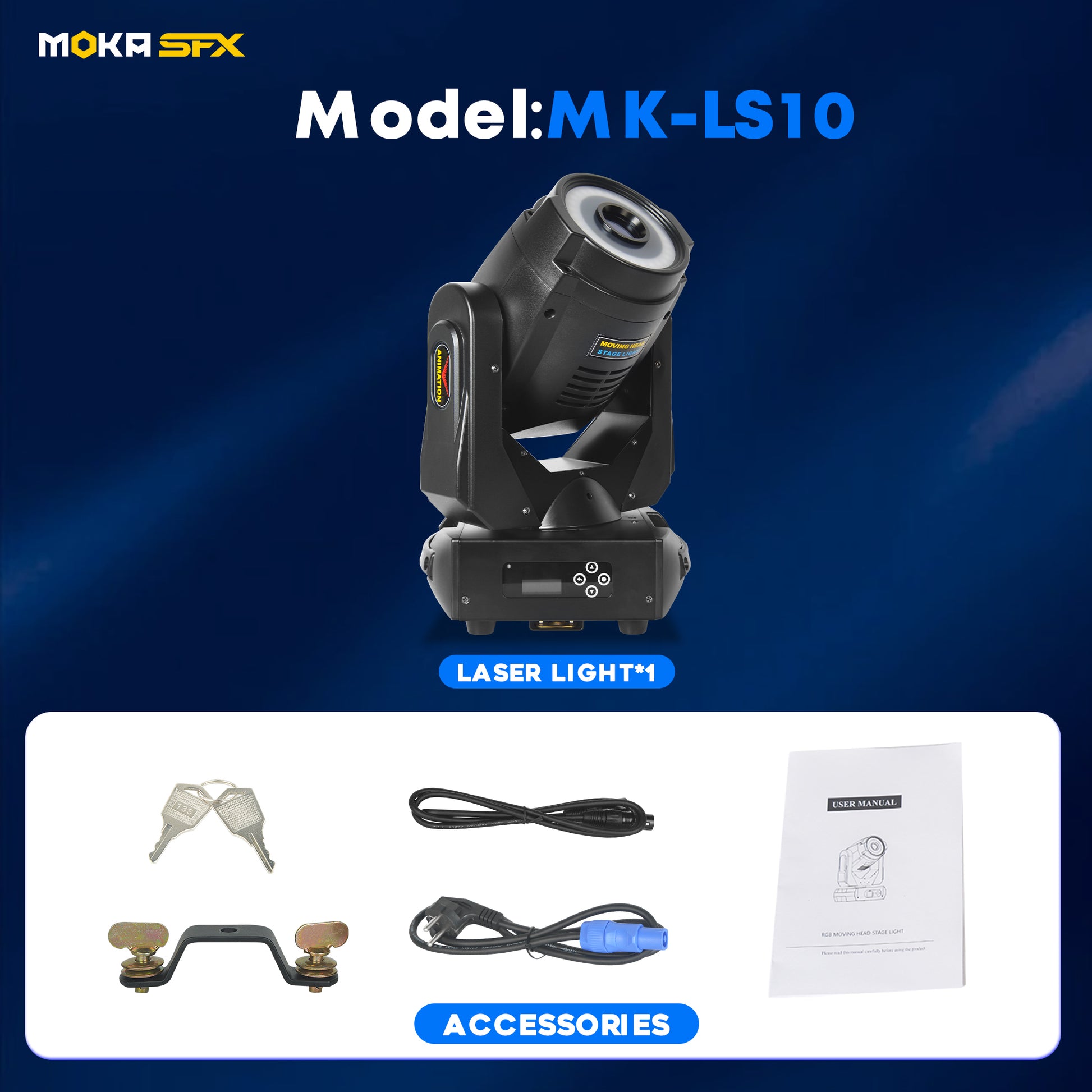

- Packing list for each unit:
1pc laser projector
1pc power cable
1pc user manual
- Please Note:
That we have different power supply plugs, united kingdom plugs, au plugs, EU plugs, the USA plugs, please let us know the power supply you need, or we will choose everything according to your country.
How To Use
- Using the touch button and LCD menu display function, the menu operation is simple and easy to use, the system software is automatically loaded when it is turned on, and the main menu interface is displayed.
- Use the ▲UP, ▼DOWN touch buttons to select the desired function menu icon.
- Confirm the selected function or return to the previous menu by pressing the ENTER and MENU touch buttons.
- (After the screen is powered on, there is no key operation for a long time, and the screen enters the standby state only by long pressing the ENTER button to wake up and unlock.)
