Description
Description

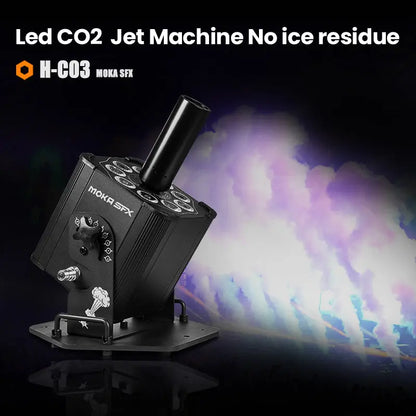

- No ice slag design, Ice-less shots for your audience.

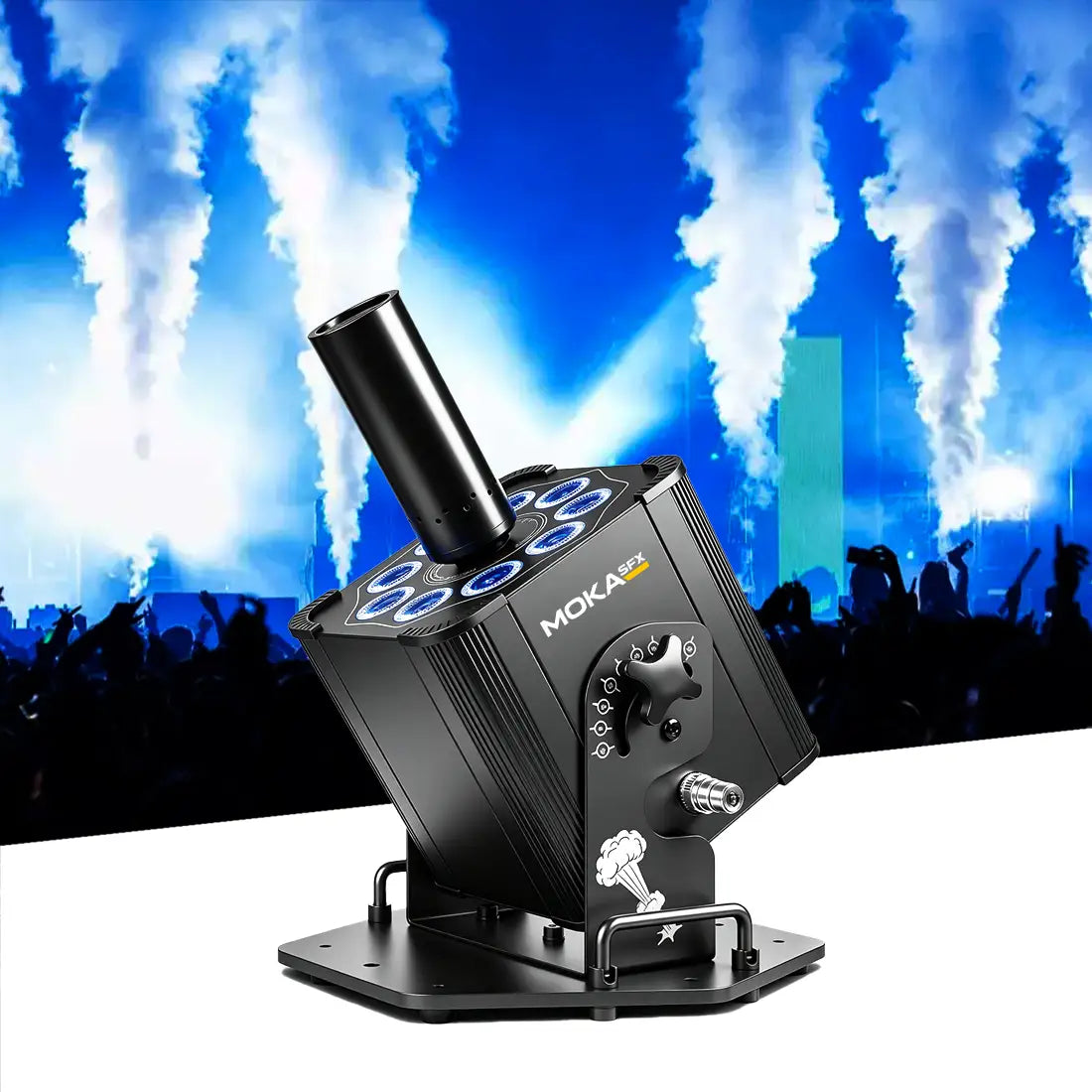

- The far-reaching jet smoke distance can reach 10-12M.

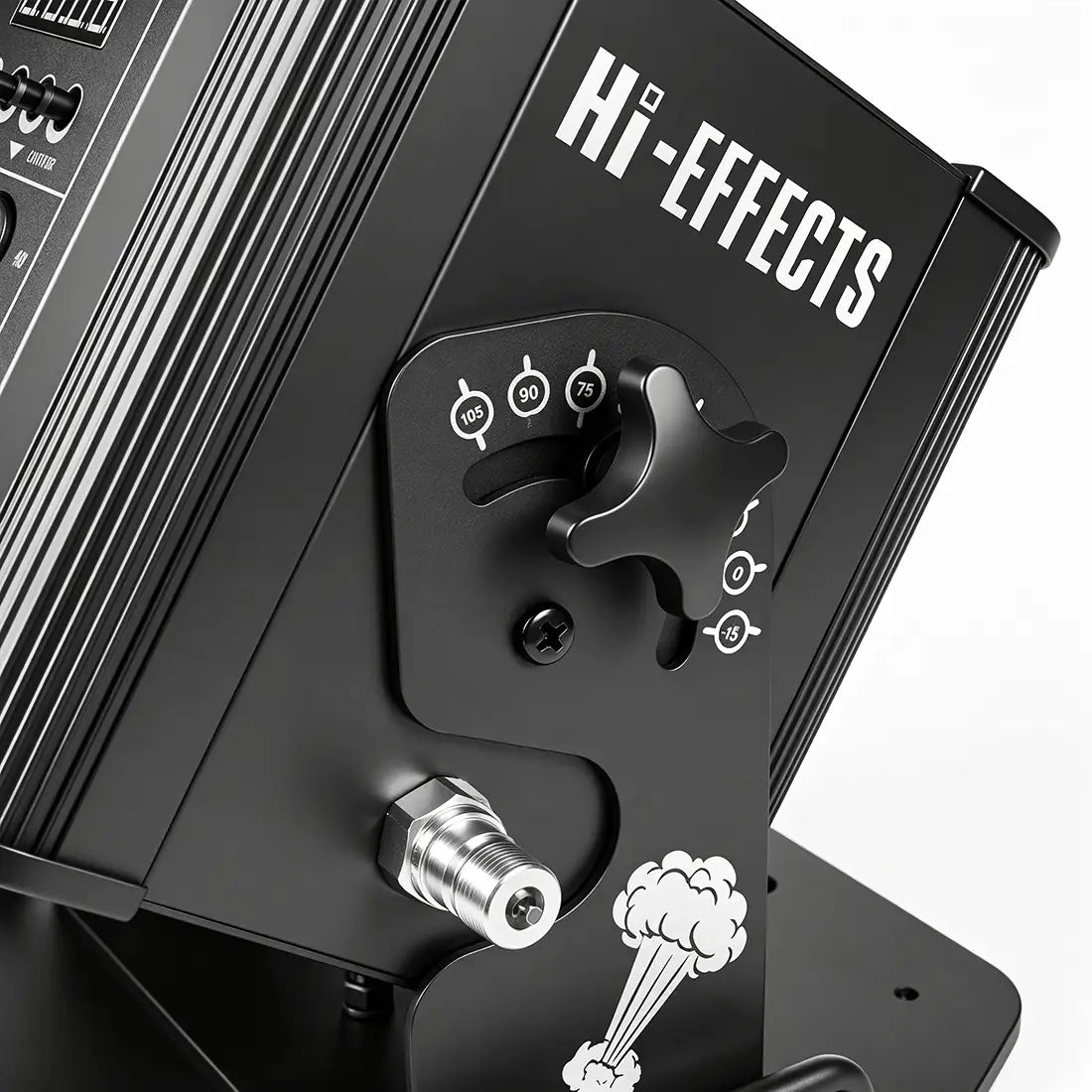

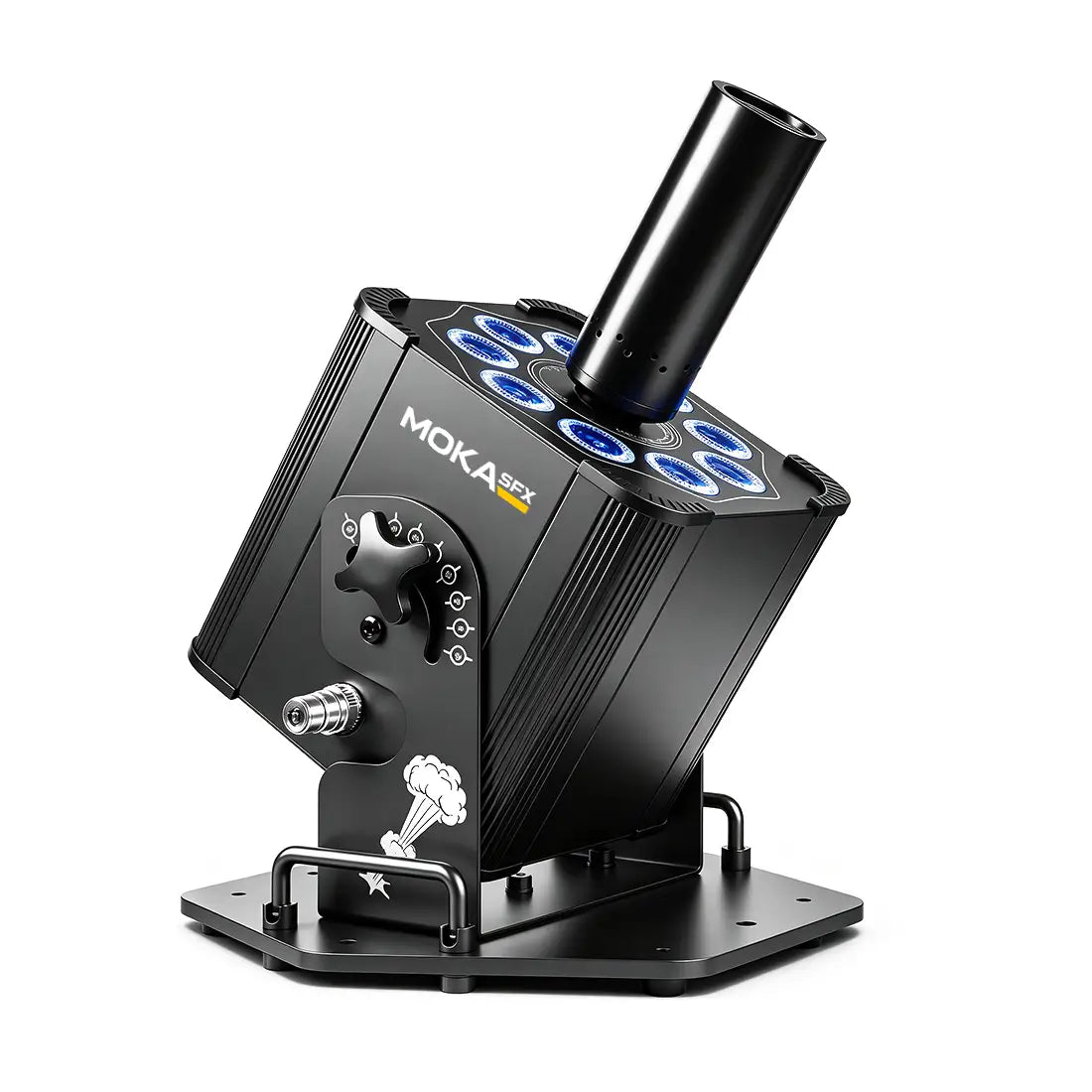

- With a new design, 0° to 90° adjustable angles for high flexibility.

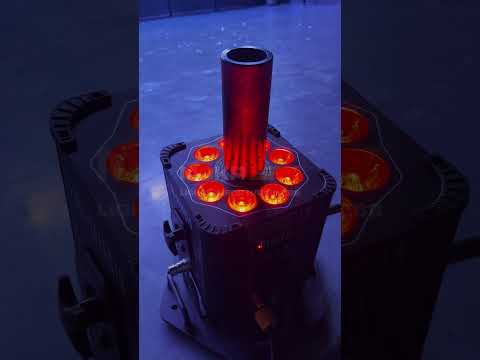

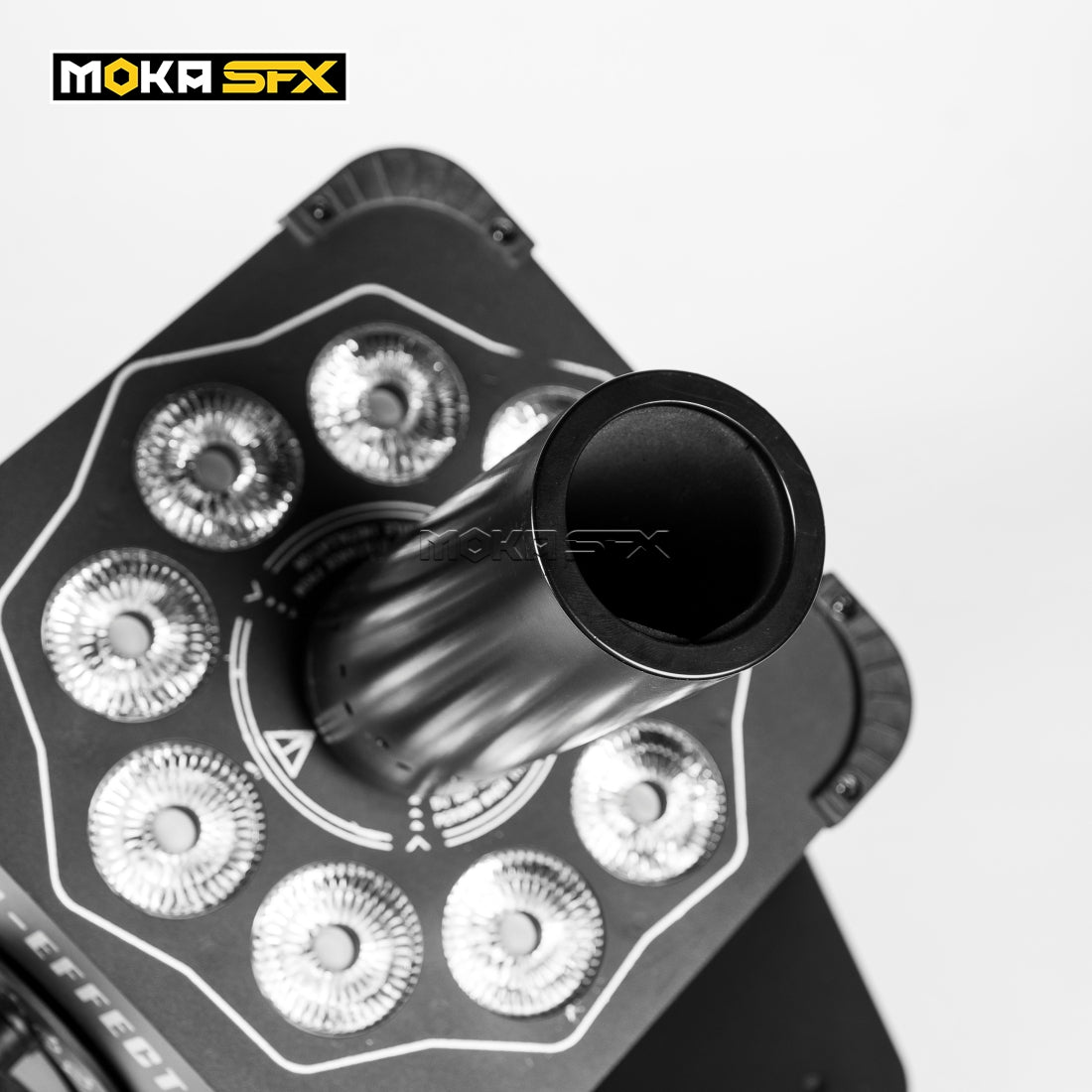

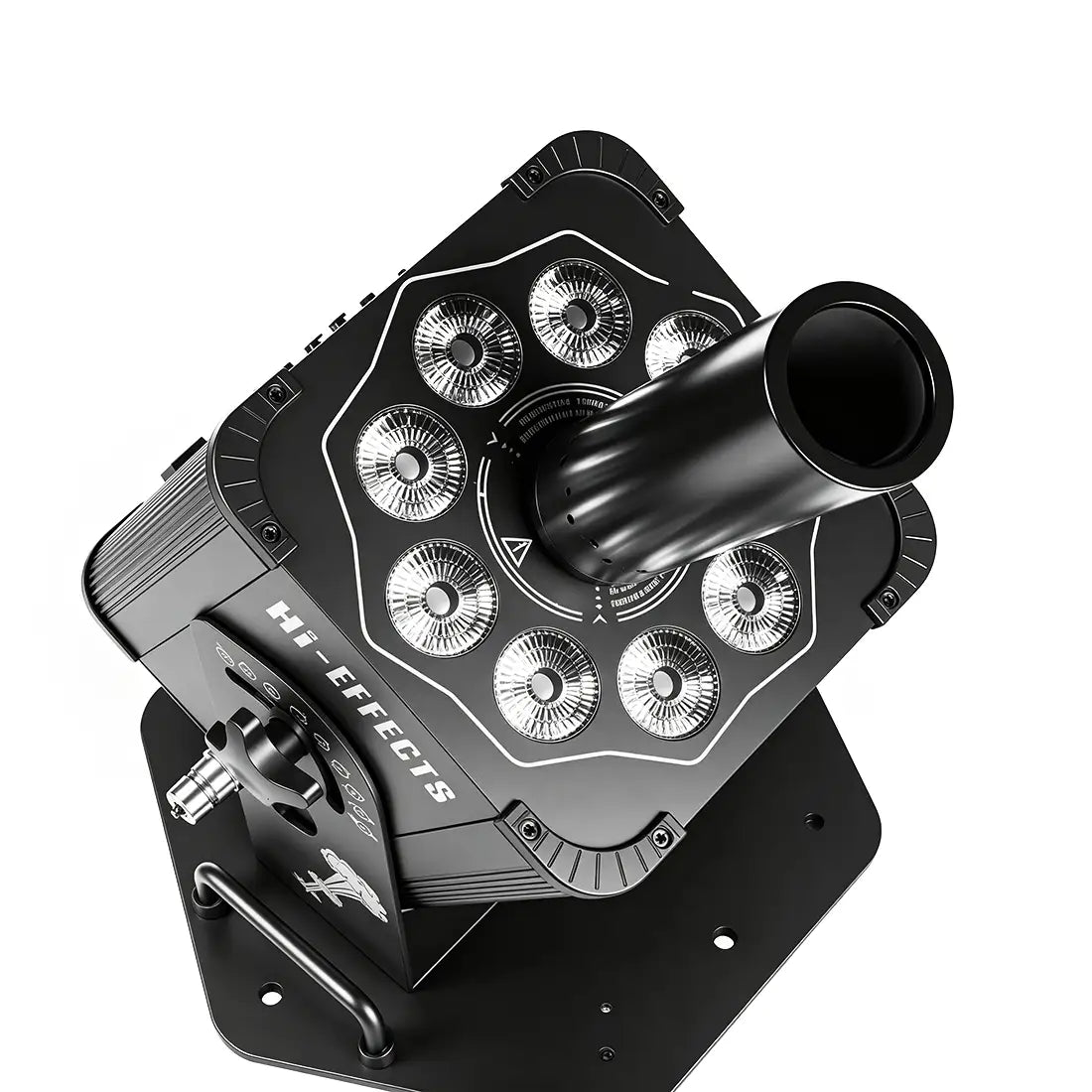

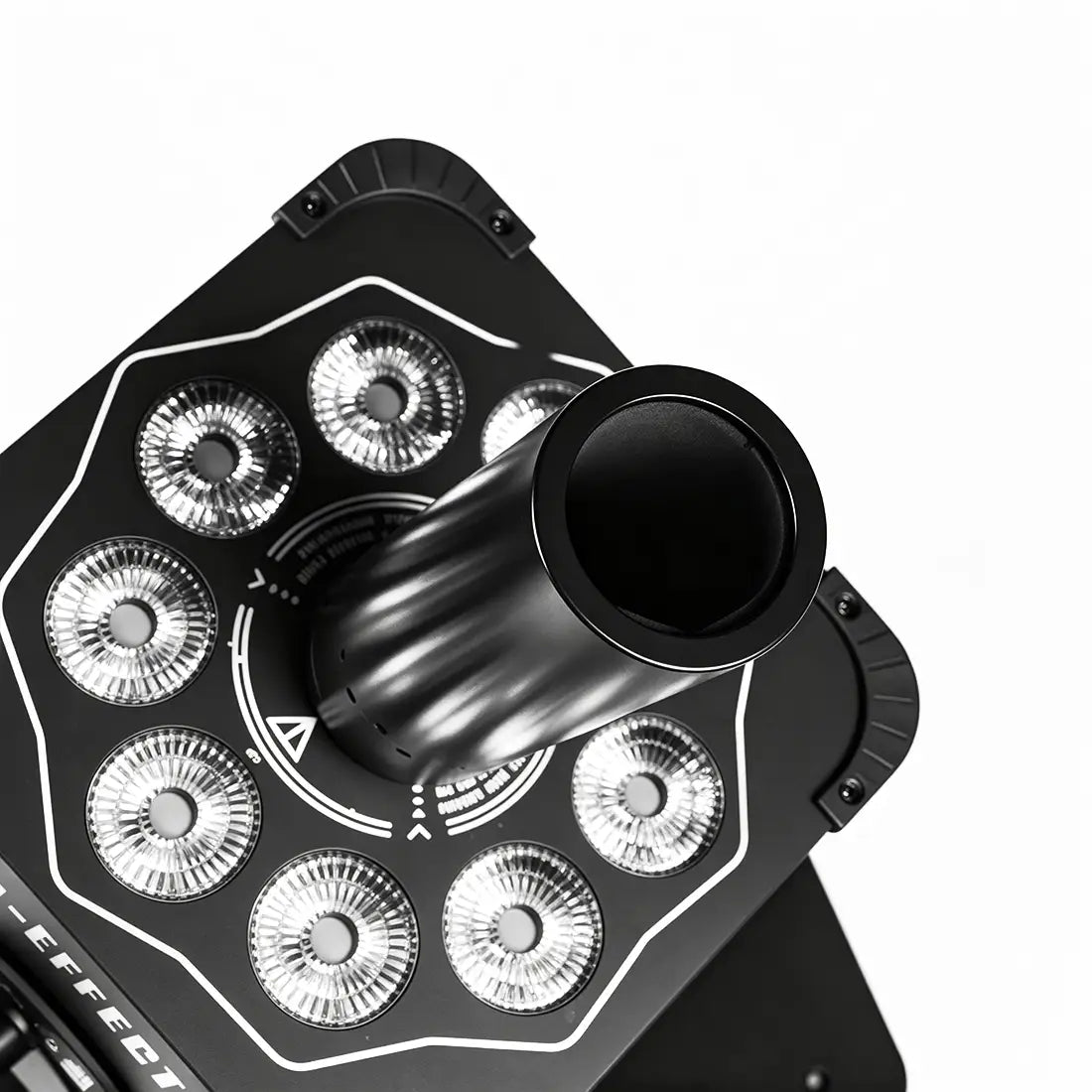

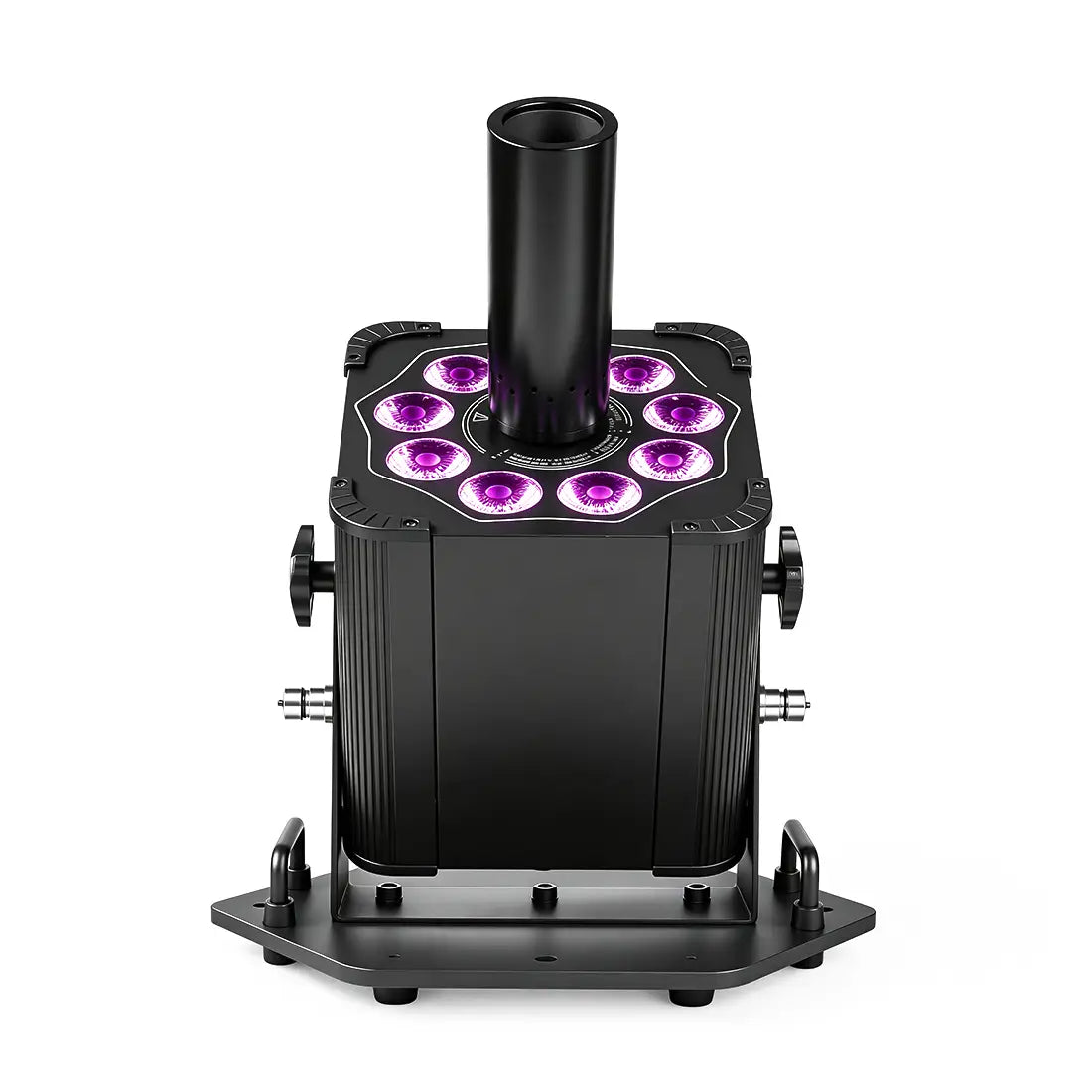

- 9x3W RGB Colorful Lamp Beads, the color mixes with the fog perfectly.
- The machine will spray only when you open the safety channel which avoids accident spraying.
Technical Parameter
- Product Specification:
Voltage: ac110v/220v, 60hz/50hz
Power: 100w
Hose: 6m resin hose (customizable length)
Feature: no ice foam design
Channel: 6 dmx channels
Hose Pressure Valve: 2600 psi
Control Mode: dmx512 and manual control
Pray time: continuous injection (suggestions for 20 seconds)
Angle: 0-90 degrees adjustable
Max pressure: 1400psi
Spray height: 10-12m
Gross weight: 10kg
Shipping weight: 13kg
Product Size: 36*30*48cm
Certification: CE/Rohs/fcc
Warranty writing time: 1 year
Dmx has 6 channels, see the following:
Channel 1: CO2 spray (0-255) on.
Channel 2: color mixing led, (0-255) the color led is mixing.
Channel 3: led in blue, (0-255) led lights up gradually.
Channel 4: led on the green, (0-255) led turns on gradually.
Channel 5: led on red, (0-255) led turns on gradually.
Channel 6: strobe led, (0-255) led getting faster.
- Packing Included Each Unit :
Co2 jetting machine
6-meter gas hose
2-meter dmx cable
Power cable
Manual book
- Please Note :
Shipping does not include confetti paper, if you need it, please contact us before ordering.
We have different power supply plugs, United Kingdom plugs, AU plugs, EU plugs, the USA plugs, please let us know the power supply you need, or we will choose everything according to your country.
How To Use
- Installation:
1. place the large CO2 column in the corresponding position.
2. connect the c02 hose to the gas bottle.
3. place the bottle and keep it flat.
4. connect the machine with the gas bottle through the hose, the hose on one side connects to the tank, and the other side connects to the machine.
5. connect the valve of the gas bottle.
6. connect the machine and the console.
7. Before disassembling, first turn off the bottle valve, let out the gas remaining in the tube, then turn off the power, and finally separate the connector of the gas bottle.
- Operation Easy:
1. The operation of the machine is very simple. After receiving the machine, if it is directly controlled by electricity, turn on the machine's power, turn the machine switch to the "ON" position, and turn on the gas cylinder to spray. However, the lamp beads of the machine are not on during the electronic control, that is to say, you can’t control the lamp beads of the machine in electronic control.

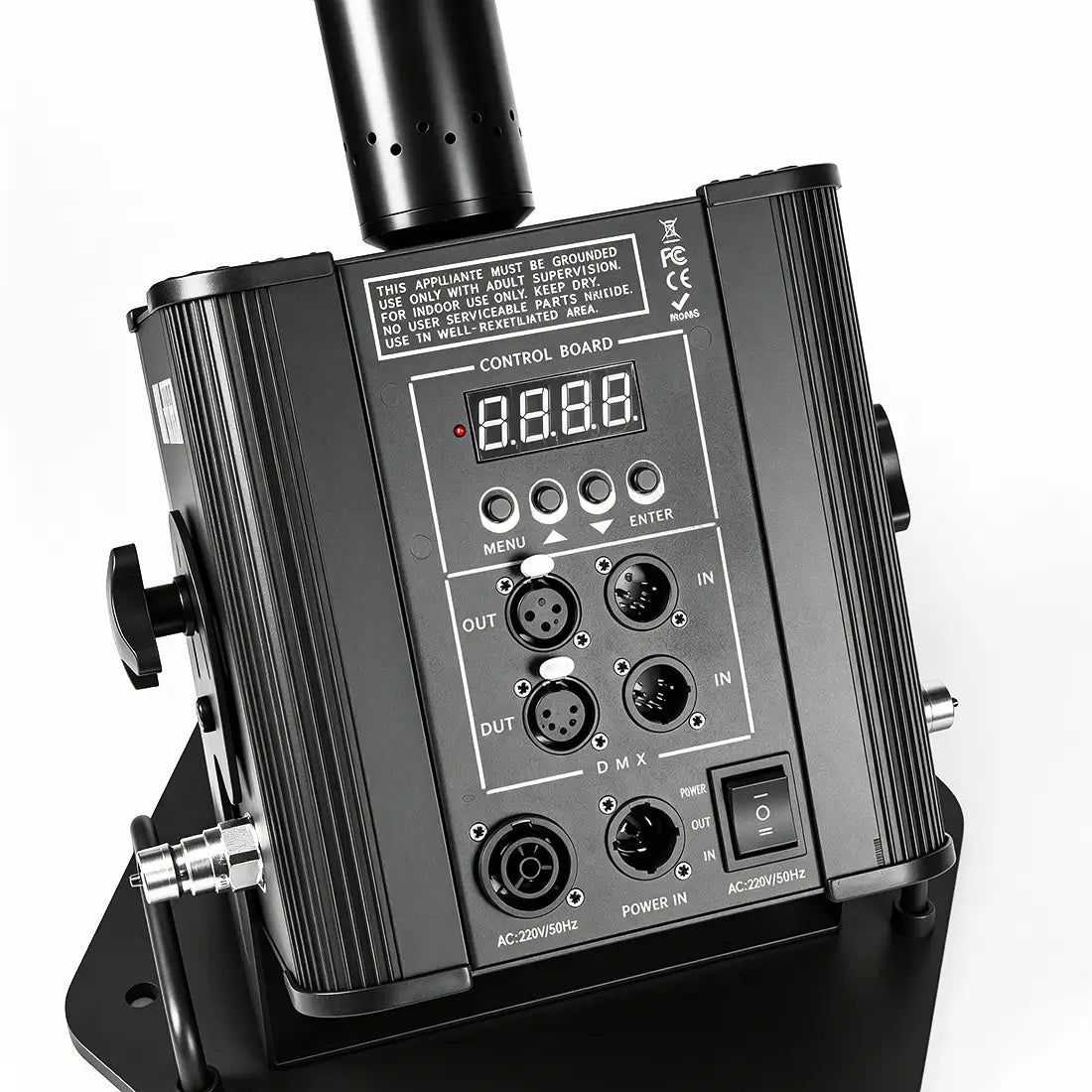

2. DMX512 control: First turn on the power and signal of the machine, set the machine switch to the "DMX" position, and open the safety channel of the first channel. Just operate the remaining 7 channels to control the corresponding functions of the machine.
1 channel security channel (Value is 100-155, other values are closed)
2 channel jet
3 channel LED lights to travel from slow to fast
4 channel bright red, light from dark to bright
5 channel bright green, light from dark to bright
6 channel bright blue, light from dark to bright
7 channel bright white, light from dark to bright
8-channel speed from slow to fast.
3. After the address code is set, the channel with the same value on the console will use the channel for this machine. As long as you operate these 8 channels, you can control the corresponding function of the machine.
4. In order to ensure that the machine accessories have a normal service life, it is recommended to control the continuous spraying time at about 10 seconds each time. When the machine is not needed, if you need to disconnect the air pipe, you must first turn off the gas cylinder switch, and then the tube can only be removed after venting the residual gas in the machine, otherwise, either end of the tube or the gas cylinder cannot be pulled out
Shipping
- U.S. warehouse: 2-5 working days in the U.S., 7-12 working days in other areas.
- Spain warehouse: 2-4 working days in Spain, 7-12 working days in other EU regions.
- Poland warehouse: 2-4 working days in Poland, 7-12 working days in the rest of the EU.
- China warehouse: 7-20 working days for direct shipment from China.
- The transportation type depends on the region, and it is uniformly displayed as international shipping.
- The goods will be sent out within 1-5 working days. After the logistics order number is generated, customer service will send an email to notify you. Please pay attention to the delivery status.
- If you have any questions, please leave a message.
Q&A
- Q: How to control it, can you control it remotely?
A: The machine supports DMX512 and electronic control. There is no remote control function currently.
- Q: How to operate the machine in electronic control mode?
A: The electronically controlled machine only needs to turn on the machine's power, switch the machine to the "ON" position, and turn on the gas cylinder to spray. However, the lamp beads cannot be controlled in the electronically controlled mode, that is, the timing of the electronically controlled machine, the lamp beads are not on. So it is generally not recommended to use electronic control.
- Q: How to control DMX and how to set the address code?
A: First turn on the power and signal of the machine, and switch the machine to the "DMX" position. As long as these 8 channels are operated, the corresponding functions of the machine can be controlled. After the address code is set, the channel with the same value on the console will use the channel for this machine. As long as you operate these 8 channels, you can control the corresponding function of the machine.
- Q: Is it sure that the sprayed gas is free of slag?
A: Yes, there is absolutely no scum. This completely avoids the discomfort caused by scum.
- Q: Can I turn off the lamp effect if I don't want it?
A: Yes, the switch and color change of the machine's lamp beads have their own channels. If you do not need the lamp beads, you can turn off the channels that control the lamp beads.
- Q: How many meters can the pipe be equipped with? How long can it be made according to the length I need?
A: A 6-meter tube is provided at random. The length can also be customized according to your needs. The longest is generally not recommended to exceed 35 meters, but we also have customers who have made a length of about 50 meters. Because the longer the tube, the more process the gas occupied in the middle tube will be more, which will waste more gas and affect the use effect. How long do you need to make the tube?
- Q: The pipe joint of this machine seems to be different from yours.

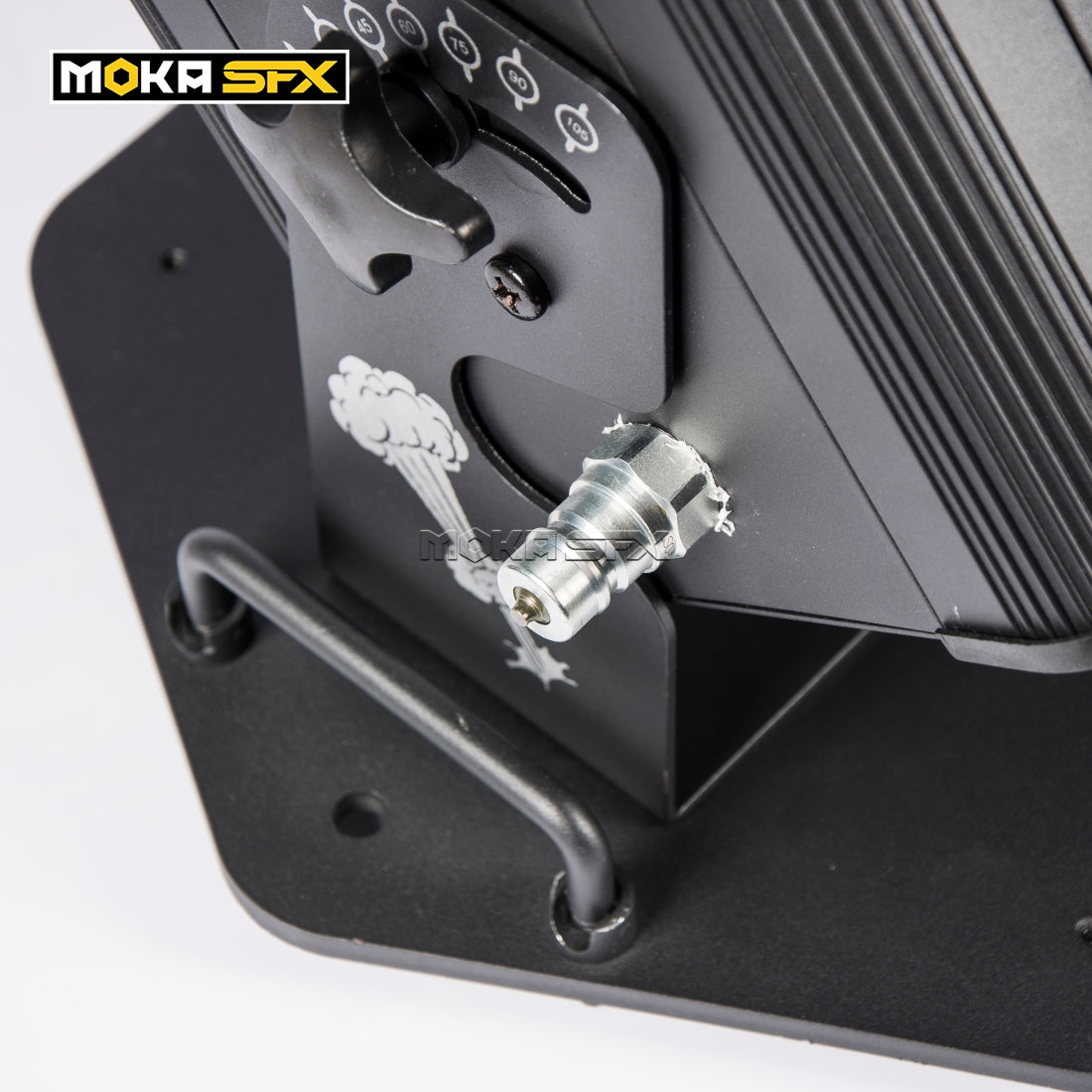

A: Yes, you have observed it very carefully. The joint used by this machine is the LSQ-S1-03SF 3/8 model, which is different from the joints of our other machines, so the pipe of this machine and other machines cannot be used universally.
- Q: Do you need a cylinder for each of your machines? How big is the cylinder?
A: We generally use 40L gas cylinders. In order to achieve the best results, we recommend one gas cylinder.
- Q: How long can a 40L cylinder be sprayed?
A: The test can be continued for about 40 seconds under the full pressure of a 40L cylinder.
- Q: What kind of gas is in the cylinder, is it safe and harmful to the human body?
A: Medical grade carbon dioxide is used, which is harmless to the human body, and it is pure and has no odor and impurities. It will not cause the possibility of clogging the solenoid valve or the valve core because of too many gas impurities.
- Q: Can I share several cylinders?
A: It is also possible, as long as one machine is connected to the gas cylinder, and then the joints between the machines are connected by gas pipes, one gas cylinder can be supplied to multiple machines. Generally, it is best not to exceed 3, otherwise, The one farthest from the cylinder will not reach the standard jet height, which will affect the use effect.
Moreover, we do not recommend that several machines share a single gas cylinder. The length of time a 40L gas bottle can spray is limited, and the use of several machines together will affect the presentation of the effect.
- Q: How long is the machine warranty?
A: The air column machine warranty is one year. Two of the accessories have the following conditions. The warranty will be different. The first is the connector. The connector is consumable. If the customer will not use it, force docking these two connectors. It is very easy to damage the joint if it is docked. The second is the valve because the spool hole in the valve is very very small, even if there are very small iron pieces or impurities in the gas, it will cause the plug of the spool. Gas reasons, so if the warranty needs to be replaced, this cost must be paid by the user. I also hope that you explain the situation during the communication with the customer.
