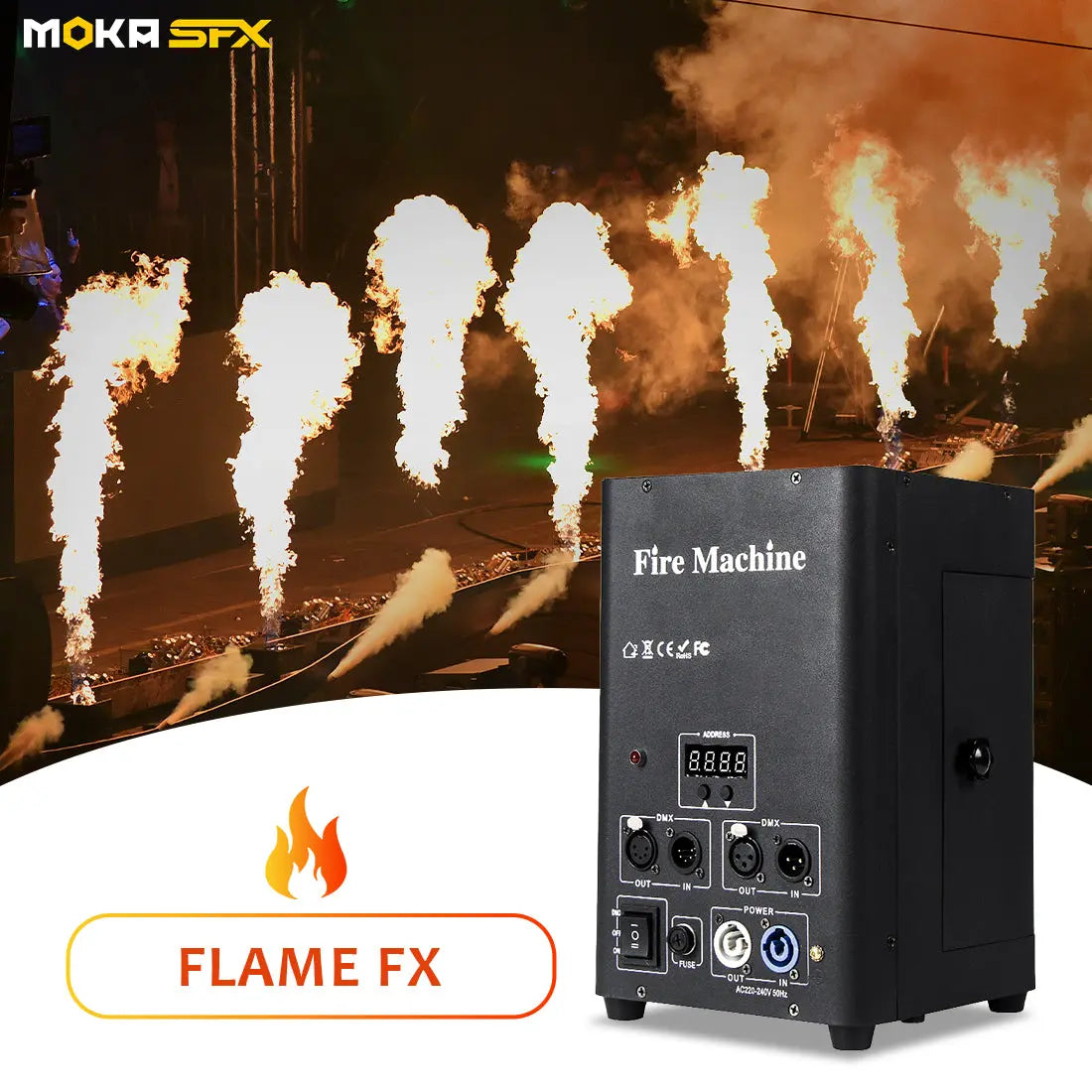

MOKA SFX H-E01 Single Head Flamethrower Machine


Warehouse: China Warehouse
Style: 1 unit
Price:
Sale price$195.00

Description

Description

  • Flame machine DMX512 control / electric control.
  • The latest design makes the spitfire have strong stability.
  • With a safety channel, with safety that is to stop function.
  • The height of the flame can reach 3 meters.
  • High-quality valve and pulse igniter, the ignition success rate of up to 99%.

PLEASE NOTE :

ALL THE MACHINES ARE SOLD WITHOUT A DMX CONTROLLER, IF YOU NEED ONE, PLEASE PURCHASE ADDITIONALLY :

MINI BATTERY DMX CONSOLE 24CHS BATTERY CONTROLLER

Technical Parameter

  • Features:

            1. High-quality valves and ontóris

            2. Instant dashboard display, easy to use

            3. LCD display, easy to operate

  • Specification:

            Voltage: AC 110/230V 60/50Hz

            Power: 80W

            Control method: DMX 512 / electronic control

            DMX Channel: 2

            Fire fuel: flame oil

            Jet flame height: 3 m

            Net Weight: 4.1Kg

            Gross weight: 5 kg

            Package: 26 * 26 * 35 cm

            Color: red fire (depending on the color of kerosene)

             Product shelf life: 1 year

             Certification: CE, ROHS, FCC certification

  •  Packing List :

             Elf spitfire 1 set

             A signal cable (2 meters)

             A manual

             Power cord 1 (1.5 m)

  • Please Note:

         The flame machine can be used with 14 kerosene. Edible a14 kerosene is defined as flammable and explosive, so we prohibit its use. Please use kerosene in your own country.

         The default standard packaging of the product is carton packaging, if you need a fly case, please select the corresponding option.

 How To Use

  • Steps To Use :

            1. Please Open the door of the flame machine, put the flame liquid cans on the holder, and ensure the liquid can be fixed correctly. The next step closes the door of the flame machine.

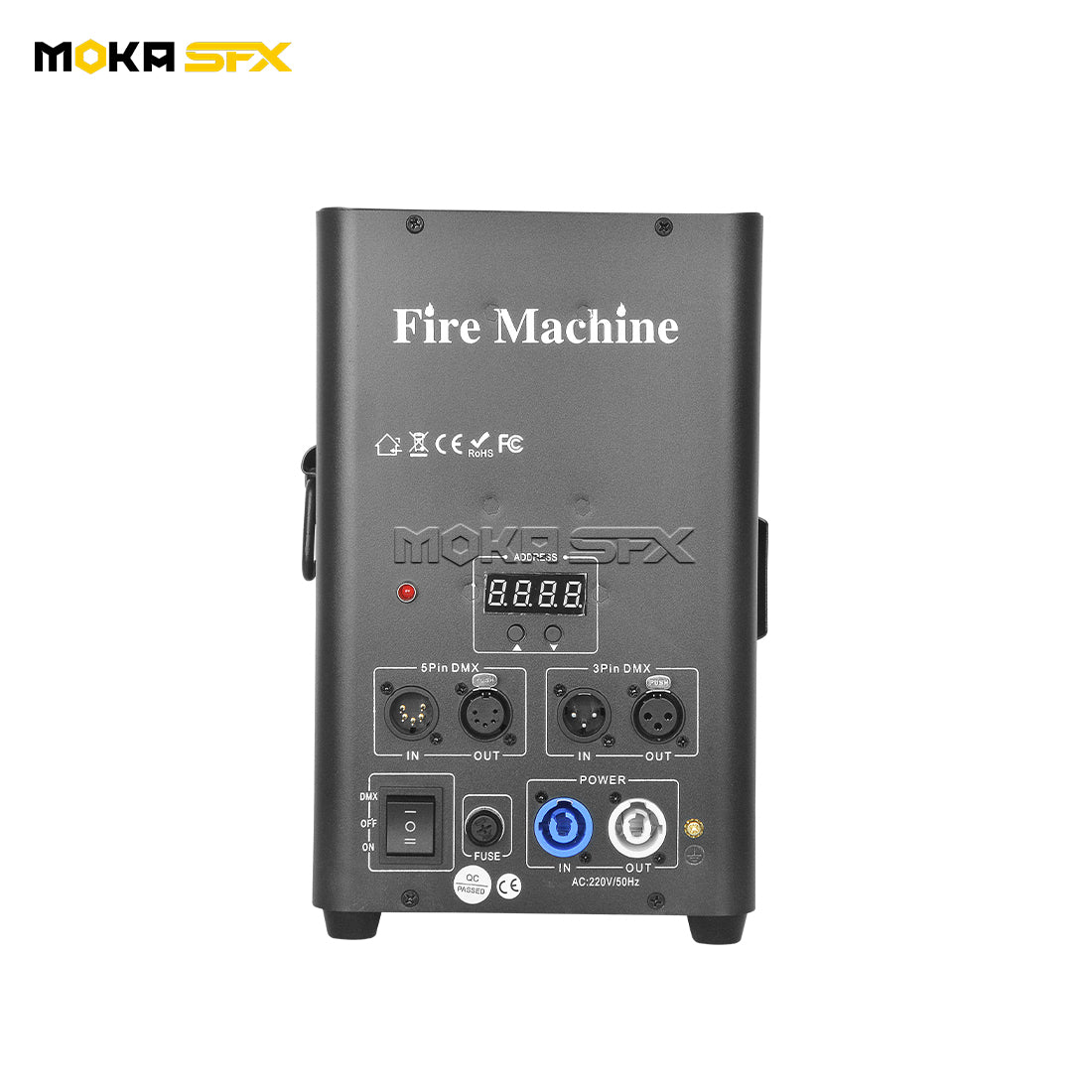

            2. Please connect the power supply for the flame machine and open the switch. Connect with the DMX signal cable machine and DMX controller, and Set the DMX address. the machine will be DMX self-inspection, and the detection lamp will flicker. When contact with the DMX signal cable, the display will light up. Otherwise, the display will not be bright.

           3. After you have readied the Genius Flame and set the DMX addresses properly, you are clear to operate the Genius Flame.

           4. You previously set a “safety” channel for the Genius Flame so that the device should still be in safety mode. You now take it out of safety mode by setting channel 1 to between 102 and 153. The Indicator light of the Genius Flame will start blinking in turn.

  • Attention :

           Before using this product please first read the operating guide.

    Shipping

    • U.S. warehouse: 2-5 working days in the U.S., 7-12 working days in other areas.
    • Spain warehouse: 2-4 working days in Spain, 7-12 working days in other EU regions.
    • Poland warehouse: 2-4 working days in Poland, 7-12 working days in the rest of the EU.
    • China warehouse: 7-20 working days for direct shipment from China.
    • The transportation type depends on the region, and it is uniformly displayed as international shipping.
    • The goods will be sent out within 1-5 working days. After the logistics order number is generated, customer service will send an email to notify you. Please pay attention to the delivery status.
    • If you have any questions, please leave a message.

    Q&A

    • Q: Where can I buy fuel?

                A: Websites for buying kerosene in various countries:
                USA:https://www.amazon.com/Valvoline-602373-11-Starting-Fluid/dp/B00PWLS7HU/ref=mp_s_a_1_5?ie=UTF8&qid=1545973834&sr=8-5&pi=AC_SX236_SY340_QL65&keywords=valvoline+starting+fluid&dpPl=1&dpID=31dshM48ZhL&ref=plSrch

                Europe:  https://www.amazon.de/dp/B007VMGD7E/ref=cm_sw_r_wa_api_i_Y-R5CbDJ8WX0E

                France:https://france-effect.com/recharge-flamme/recharge-dragon-tower-iii.html



    • Q: If I use this flamethrower, will it cause a fire, or cause the smoke alarm to go off?

                 A: Our fire-breather can be used indoors or outdoors, as long as it is kept at a relatively safe distance, it will not cause a fire or cause the smoke alarm to go off. And our machine is equipped with a safety channel, when the machine is tilted more than 45 degrees, the flamethrower will immediately stop working to improve the safety of use.



    • Q: Do I need to get a security clearance to use your flame machine or floral sprayers?

    A: From the customers, we have worked with in Europe, America, and other countries, there is no need to obtain security clearance to use our machines.



    •  Q: If the products are broken during the warranty, what should I do?

                 A: Don’t worry, MOKA SFX has a professional foreign trade team and helps you to solve all problems with our products in time, first please send us pictures or videos If there is a problem with the products. We will guide you on how to fix it and provide spare parts for free if needed.



    • Q: How high can the spray be?

                A: H-E01:Spray1-3M;

                    H-E02:Spray2-4M;

                    H-E03:Spray1-3M;

                    H-E04:Spray5-6M;

                    H-E01A:Spray1-2(LPG Flame machine);

                    H-E03A:Spray1-2M(LPG Triple-head flame machine )



    •  Q: What are the control modes?

                 A: DMX Control and Electric control

                      DMX control means connecting the Dmx cable and then through the Dmx controller to control the machine

                      Electric control means turning on power then working, turning off power then stopping working



    •  Q: What is a safe channel?

                 A: When you use the Dmx controller to control the machine, channel 1 is a safety channel whose values of 102-153 open, when the fire projector safe channel opens. By the way, MK-E06 H-E02, H-E01 H-E01A, MK-E02 MK-E02A, these items need to turn on the power first.



    •  Q: What's the spray called? Chemical composition?

                 A: Flame Oil, Flame Liquid Animal repellent Air freshener.

                      Flame oil composition: Methanol 60%, White mineral oil 20%, Butane 15%, Spices 5%.

                      Color Flame oil composition: glycerin 40%, Silicone oil 30%, Butane 20%, Pigment 5%, Spices 5%.



    • Q: How long will spray for one bottle can be used?

                A: After confirming with the factory,200ml for one flame bottle = Approximately 60-70 seconds of output.



    • Q: What is the dump switch?

                A: The power will be cut off automatically and the flame projector stop working instantly when it falls down, ensuring the safety of the event.



    • Q: Where can I buy flame oil?

                A: Can be purchased from your local market and Amazon, or eBay.

                     ①USA Market: pls check the link from amazon https://www.amazon.com/Valvoline-602373-11-Starting Fluid/dp/B00PWLS7HU/ref=mp_s_a_1_5?ie=UTF8&qid=1545973834&sr=8-5&pi=AC_SX236_SY340_QL65&keywords=valvoline+starting+fluid&dpPl=1&dpID=31dshM48ZhL&ref=plSrch

                     ②Europe: pls check the link from Amazon for reference https://www.amazon.de/dp/B007VMGD7E/ref=cm_sw_r_wa_api_i_Y-R5CbDJ8WX0E



    • Q: What should I do if the machine keeps working?

                A: First of all, please confirm that all procedures with normal operation, it is recommended to cut off the power and operate it again, If fails again, The cause may be a broken valve, please cut off the power, Replace the new valve.



    • Q: What should I do if the machine just sprays oil and doesn’t catch fire?

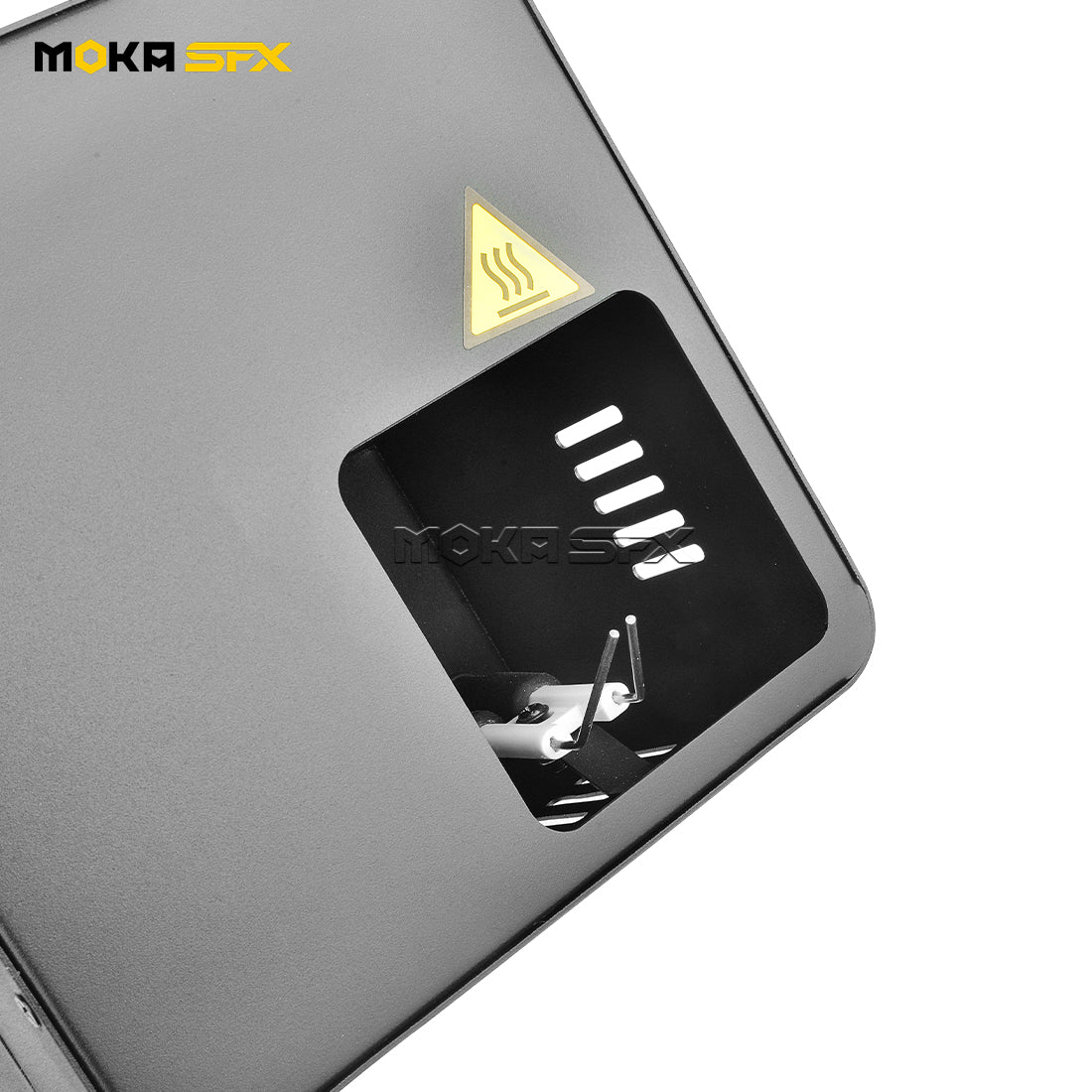

                A: In this case, the angle of the ignition pin may be distorted, and the spray nozzle may not be aligned so that the spark cannot be ignited by the ignition pin when the fire spark comes out. Please try to adjust the angle of the ignition pin to align the nozzle and try again.
