Description
Description
- Super Jet Fog Machine has three operational modes, panel control, remote control, and DMX control.
- The smoke machine is equipped with 32pces 3w RGB lights, which can change the color of the smoke so that the smoke emitted will be brighter and more colorful.
- Machine warm-up time takes 4 minutes, the smoke output will reach 32000cuft/min, and the reheating time only takes 40 seconds.
- The spraying distance can be up to 6-8 meters, bringing you a powerful charming effect.
- The led machine has fluid consumption of 1L/hour, which shows that one-liter fluid can help you enjoy about 60 minutes of your event.
Technical Parameter
- Features:
1. Research and development independent mainboard, anti-signal interference.
2. Oil-free protection device, will not damage the machine.
3. Bigger oil pump, the smoke output is bigger and faster. using the rapid dispersion smoke oil, the effect is better, can be quickly sprayed.
4. With its own temperature control patch, the temperature control is more accurate.
5. Preheating time only needs 4 minutes, the amount of smoke, the smoke column can reach 8 meters.
6. 32 Pcs 3w high bright, you can set the remote control of the color of the smoke spray, bright and colorful bead.
7. Lcd operation panel, more convenient operation, can be sprayed on, can also be hung upside down, side hanging use.
8. With smoke immediately stopping function, the smoke sprays and stops freely, with no residual smoke, closer to the gas column effect.
- Specifications:
Power: 1500W
Voltage: 110v 50hz/220v 60hz
Heating time: 5 minutes
Tank capacity: 2.5 liter
Fuse: 10a, 15a
Fluid consumption (100% output): 18000cuft/min
Control Mode: dmx 512, wireless remote control
Smoke distance: 8-10 meters
Net weight: 12kg
Gross weight: 13.5kg
Smoke: 8 seconds
Dimension: 49*42*20cm
Packing size: 55.5*49*28cm
- Remote Control Function:
1. press the mist work of the press a machine with red color;
2. press the mist work of b b machine; with green color;
3. press the fog job of c c machine; with blue color;
4. press the fog work of d machine with RGB color;
- DMX Channel:
1. fog work, value 0-9 stop work, 10-255 adjust fog output
2. color full, value 0-9 close all colors, 10-255 adjust brightness
3. circle red color, color 0-9 close, 10-255 adjust circle red color
4. circle green color, color 0-9 next, 10-255 adjust circle green color
5. blue color of the circle, color 0-9 next to it, 10-255 adjust the blue color of the circle
6. red color of the line, color 0-9 next, 10-255 adjusts the red color of the line
7. line green color, color 0-9 next, 10-255 adjusts the line green color
8. blue color of the line, color 0-9 next, 10-255 adjust the blue color of the line
9. gradual color change, stop work 0-9, light 10-255 faster
10. color jump change, stop work 0-9, light 10-255 faster
11. Strobe function, 0-9 stop work, 10-255 light faster 11,
How To Use
- Steps To Use:
1. The first step is waiting for a warm-up time of 4 minutes, and the interval reheating just requires the 40s.
2. Connect the remote control to the connector socket on the operating panel of the device.
3. Press the button for the LED effect ring’s desired color to trigger a fog blast in conjunction with the desired color. The output duration is approx 12-15 seconds.
4. To stop fog output earlier, press any button on the remote control.
5. Switch off the power while applying the main switch.
- Hot Tips:
Shipping
- U.S. warehouse: 2-5 working days in the U.S., 7-12 working days in other areas.
- Spain warehouse: 2-4 working days in Spain, 7-12 working days in other EU regions.
- Poland warehouse: 2-4 working days in Poland, 7-12 working days in the rest of the EU.
- China warehouse: 7-20 working days for direct shipment from China.
- The transportation type depends on the region, and it is uniformly displayed as international shipping.
- The goods will be sent out within 1-5 working days.After the logistics order number is generated, the customer service will send an email to notify you. Please pay attention to the delivery status.
- If you have any questions, please leave a message.
Q&A
- Q: Can I use normal fog liquid?
A: Yes, but usually MK-F01use heavy smoke liquid. H-F01 uses fast dissipating fog liquid. The effect will be better.
- Q: How long is the heating time?
A: MK-F01 the heat-up time is 7mins.
H-F01 the heat-up time is 4mins.
- Q: Can you spray all the time?
A: No, MK-F01 can spray for 10-15s continuously, the interval heating time is 4mins.
H-F01 can spray 8 seconds for each time and 20 seconds for interval heating.
- Q: What is the spray height?
A: The spray distance is 8-10m.
- Q: What is the fuel tank capacity?
A: MK-F01 max liquid capacity is 2.5L.
H-F01max liquid capacity is 2.5L. Liquid consumption is 200ml / min.
- Q: Can it be hung upside down from a truss? Will it leak?

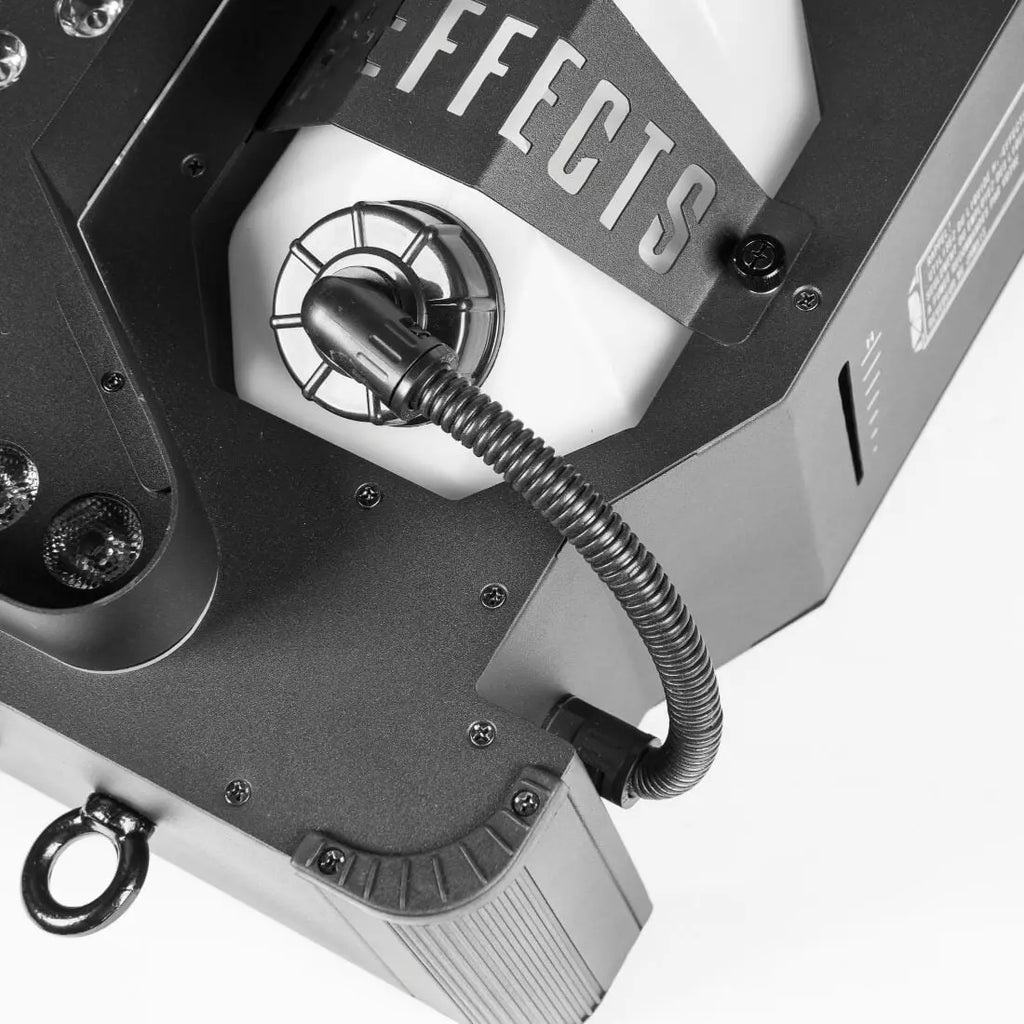

A: It can. The oil tank is reversible tank mounting. Flexible mounting solutions offer you more freedom in your setup.
The super fog machine may be used vertically or horizontally. The reservoir tank may be mounted in the front or rear of the unit so the machine may be pointed up or down.
- Q: What are the control methods?
A: Full control with 8 channels of DMX and wireless remote control.
- Q: How many channels does it has?
A: MK-F01 and H-F01 has 8 channels:
Channel 1 controls the amount of smoke
Channel 2 adjusts LED brightness,
Channel 3 red LED switch,
Channel 4 green LED switch,
Channel 5 blue LED switch,
Channel 6 RGB color gradient,
Channel 7 RGB color transition,
Channel 8 RGB strobe function.
- Q: What is different for H-F01 and MK-F01?
A: H-F01 machines go when you say “go” and stop when you say “stop.” Stop your fog effects as quickly as you start them. Just need 1s. It has 27pcs led, More LEDs means more powerful and intense lighting effects. I use professional quick dissipating vertical fog fluid, It’ll better light transmission feature, producing a much brighter burst of fog and dissipating in seconds, is perfect for creating instantaneous atmospheric columns. The heating time is only 4 minutes, the spray time is 8-10 seconds, and the interval heating time is only 20 seconds.
MK-F01, the heating time is 7 minutes, every spray is 10-15 seconds, and the interval heating time is 4 minutes.
- Q: How much power? Can it be bigger, such as 3000W?
A: The power is 1500W, At present, this is the maximum power. It may be a high-powered machine in the future.
- Q: Do you have liquid? How much?
A: It’s used pro-morning haze liquid. You can buy it locally. We also have to sell liquids, but liquids are dangerous and can only be shipped by sea. The minimum order is 200 bottles.
- Q: If the liquid runs out, will it continue to heat up?
A: No. Double temperature control protection, when the oil is used up, the machine will automatically stop working to protect the machine, and there is a temperature control device, when the temperature reaches 180 degrees, the machine will automatically stop working to avoid unnecessary losses.
- Q: The price is so expensive
A: H-F01: The main feature of this model is when you say “go” and stop when you say “stop.” Stop your fog effects as quickly as you start them. Just need 1s. it has 27 RGB LED lights and is protected by a lampshade to prevent dust from entering and better protect the machine. The heating time is only 4 minutes. New appearance design, it will look more beautiful.
- Q: How many LEDs? What color? How much power?
A: MK-F01 has 24pcs*3w RGB 3in1 LED lights.
H-F01 has 27pcs*3w RGB 3in1 LED lights.
- Q: Can I use one remote control multiple machines at the same time?
A: Yes, as long as the machine is powered on, the remote control will automatically detect the signal received from the machine.
- Q: How to control multiple machines with one DMX?
A: Please connect the DMX signal cable to each machine; if you want all machines to be synchronized, set the same dmx address of all machines. If you need different machines to show different effects, you can set them according to different dmx channel effects.
- Q: Why Choose H-F01 DJ Fog Machine？
A: When preparing to purchase the best fog machine that would lighten the deeper emotions within people, creating a DREAM event should be all about the machine that does it all! Here are just a few reasons why the H-F01 DJ fog machine should be on your bucket list.
- Q: What is the DMX control and wireless control of this machine respectively?
A: DMX channel： 1. Fog work, Value 0-9 Stop work,10-255 Adjust Fog Output
2. Full Color, Value 0-9 close all color,10-255 adjust the Brightness.
3. Circle RED Color,0-9 close color,10-255 adjust circle RED Color.
4. Circle GREEN Color,0-9 close color,10-255 adjust circle GREEN Color.
5. Circle BLUE Color,0-9 close color,10-255 adjust circle BLUE Color.
6. Color gradual change,0-9 stop work,10-255 Light faster
7. Color Jump change,0-9 stop work,10-255 Light faster
8. Strobe Function,0-9 stop work,10-255 strobe faster
Remote control： 1. Press “A”, machine fog work with Red Color；
2. Press “B” machine fog work with Green Color；
3. Press “C” machine fog work with Blue Color；
4. Press “D”machine fog work with RGB Color；
