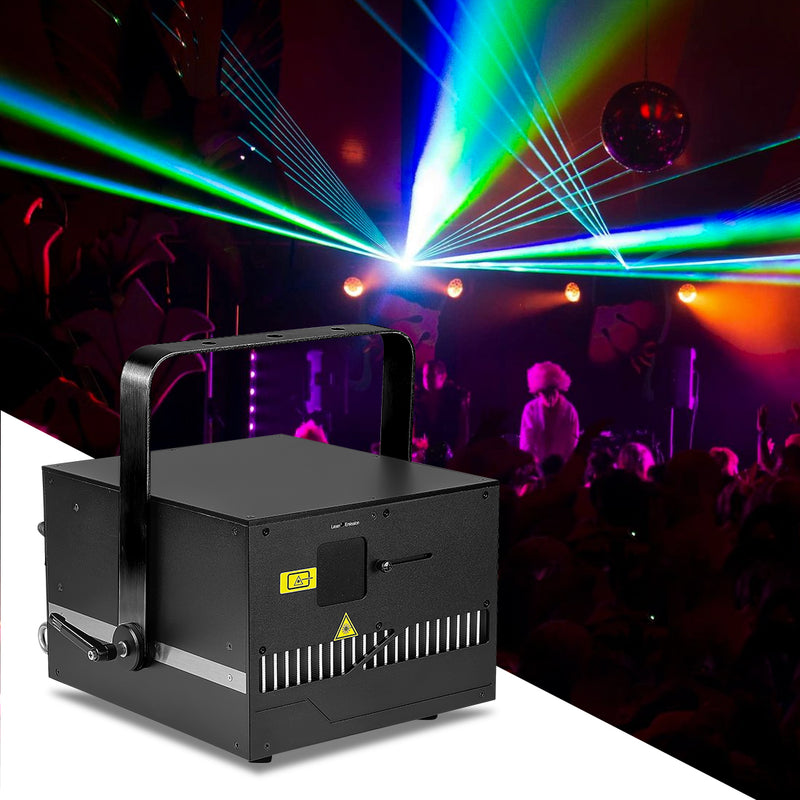

MOKA SFX MK-HLS10A New Model - Full-color Animated Laser 10W (Performance Edition)

Save 5%

From: China
Plug: US
Unit: 1 unit
Sale price$1,270.00 Regular price$1,340.00



  • The oscilloscope scanning speed is 35Kpps.
  • With a high brightness 10W RGB 3in1 single beam, the range can reach up to 20m.
  • It can control the brightness of the beam and output text, graphics, and animations.
  • Designed and produced independently with integrated power supply, driver, and module.
  • The control system includes ILDA, DMX512, sound control, automatic, and master-slave modes for flexible operation.

Technical Specifications

  • Our Advantages

             1、Integrated module, module driver board, and power supply, compact size, saving transportation costs, and convenient for mobility.

             2、The lamp body adopts internal hexagon screws for a smooth surface, providing a good touch. More importantly, it is resistant to wear and rust.

             3. Aluminum shell, rust-proof, and more durable.

             4. Logo printed with a laser, not easy to fall off.

             5. Silent fan: Each Moka laser light is equipped with three 12V silent fans, ensuring stable operation and extending the lifespan of the laser device.


  • Specifications

          Voltage: 100V – 240V/AC, 50/60Hz

           Power: 148W

            Scanning System: 35kpps ±30°

            Power: R (Red): 3000mW 638nm

            G (Green): 3000mW 520nm

            B (Blue): 4000mW 455nm

            Modulation Mode: Analog modulation 100Khz

             Optimal Divergence Angle: ca.5.5mm/1.1mrad

             Laser Light Source: Imported semiconductor devices

            Control Modes: ILDA, DMX512, SOUND (Voice Control), AUTO (Self-Propelled),  RJ45

            Cooling Method: Air cooling + TEC refrigeration

            Product Size:265mm (Length) x 230mm (Width) x 190mm (Height)

 Weight: 9.2kg

Carton Packaging:420mm (L) x 380mm (W) x 240mm (H)

Weight: 10.2kg

Flight Box Packaging:440mm (L) x 410mm (W) x 260mm (H)

Weight: 16kg

The flight case needs to be customized, please contact us

          Application Places: DJ, bands, bars, pubs, clubs, skating rinks, KTVs, family gatherings, birthdays, celebrations, weddings, festivals, shopping malls, specialty stores, and other designated locations.


  • Packing List for Each Unit

          1 laser projector

          1 power cord

          1 key

          1 interlock connector

           1 user manual


  • Please Note

            We offer different power plugs, including UK, AU, EU, and US plugs. Kindly let us know your power requirements; otherwise, we will select based on your country/region.

How to Use


  • Shipping from China: Express delivery in Europe, America, and North America usually takes 6-10 days to arrive.
  • Other areas usually take 10-15 days to arrive.
  • Products will be shipped in 5-10 days.
  • The tracking number will be provided within 2 days of shipment.
  • If you have any questions, please leave a message.


  • Q: How do you choose a laser light?

           A: Different power laser lights are recommended for different usage scenarios.

- For small gatherings and home parties, 1W, 2W, 3W, and 5W laser lights are sufficient due to their affordable prices and simple operation.

- For bars or clubs, it is recommended to choose a 10W laser light. Depending on the area of the bar, 2-6 sets of equipment can be equipped. A 10W laser light can meet various demands such as laser engraving patterns and other complex requirements, basically fulfilling all the needs of the bar.

- For events like concerts, music festivals, and celebrations, it is advisable to choose 20W or 30W laser lights, which can create laser engraving effects and other effects.

-For urban outdoor landmarks, it is recommended to choose high-power laser lights ranging from 30W to 100W, depending on specific requirements. For more professional guidance, please contact our customer service.


  • Q: Do your laser lights have a safety key?

           A: Yes, we have standard interlock devices.


  • Q: Do I need to buy FB4?

           A: Our laser lights come with various automated modes, which can meet the needs of most scenarios. If you require customized effects, you can purchase FB4 from a local professional website.
