- 24 Full 3W high brightness lamp beads, full-color color, automatic change.

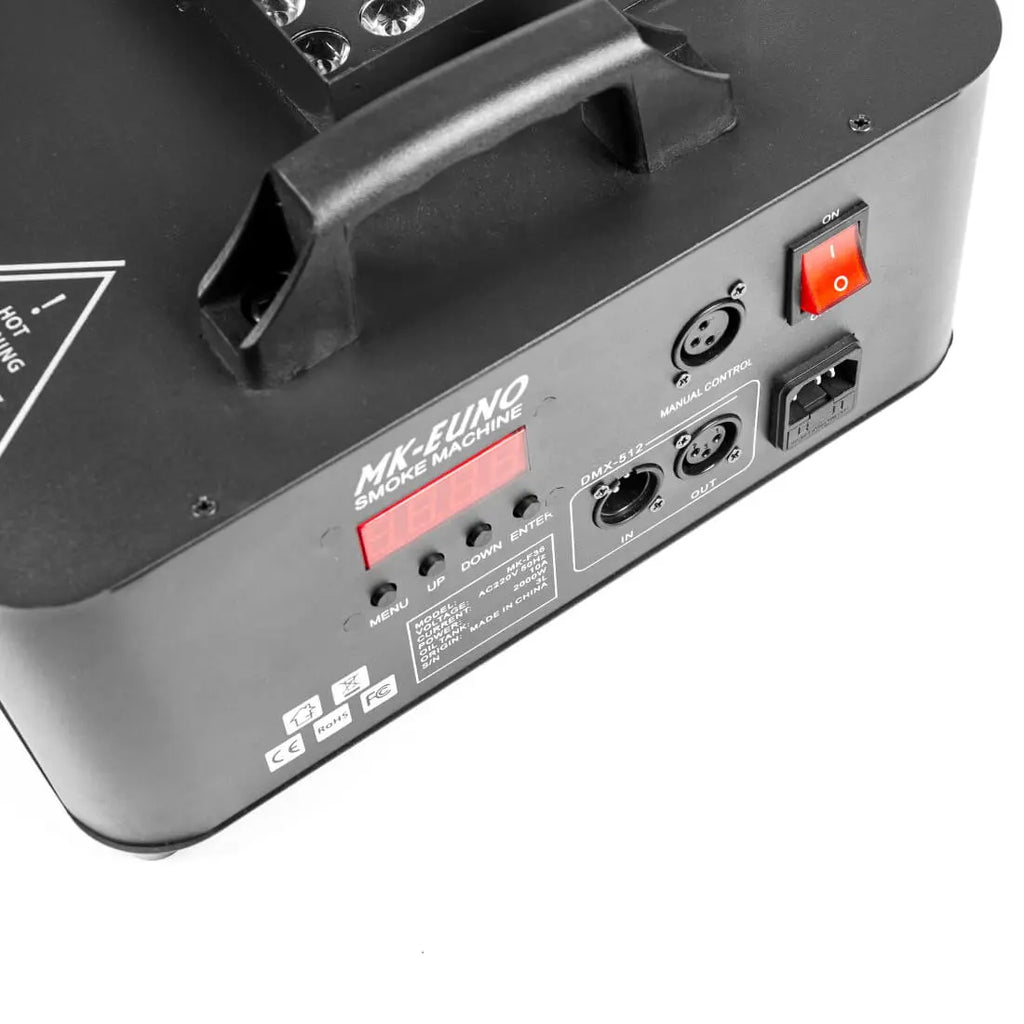

- The use of digital tube controls the entire interface, supports DMX512, remote control, easy and fast operation.
- Short heating time, only about 5 minutes, double temperature control design, can better protect the machine, prevent dry burning.

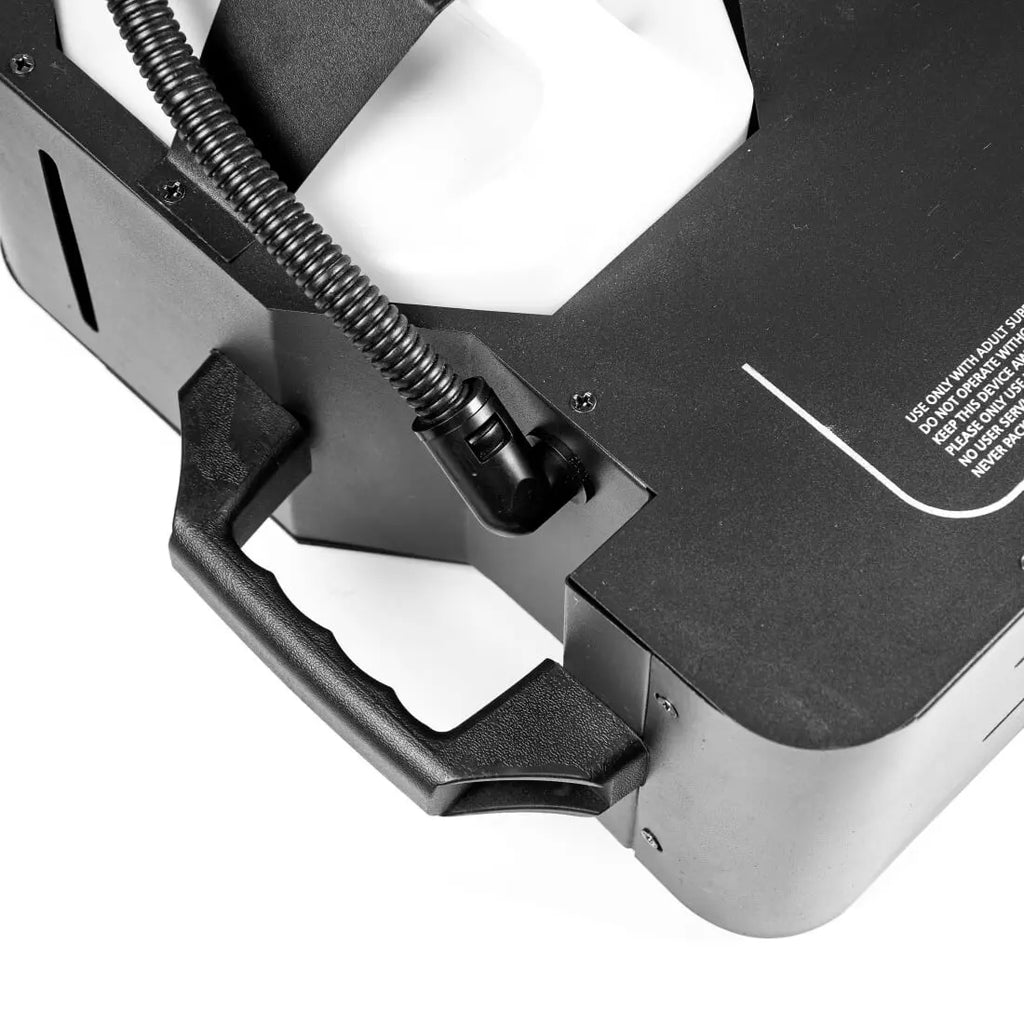

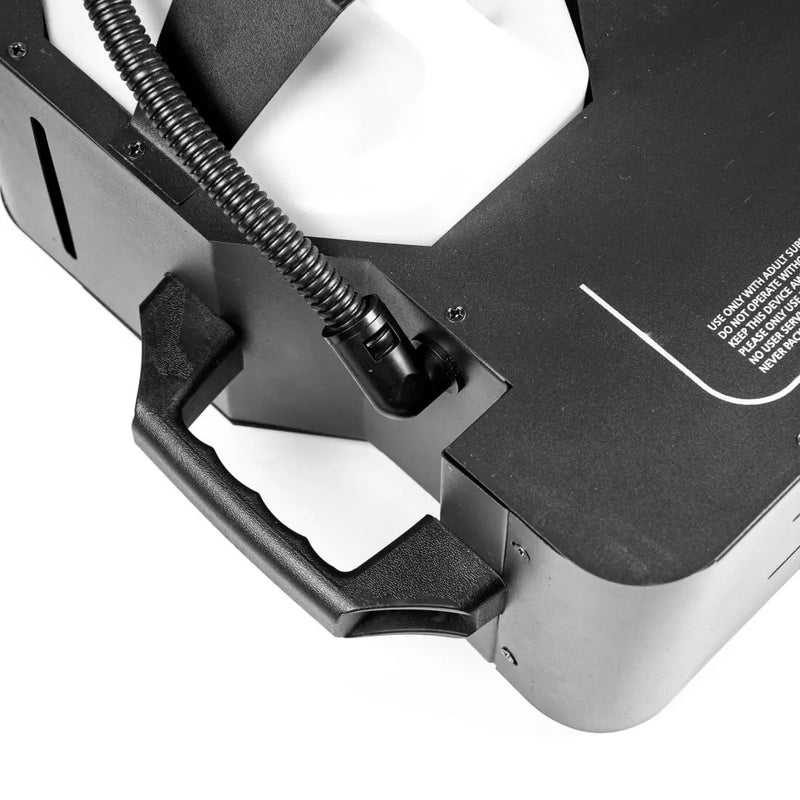

- The use of 2.5-liter leak-proof oil pot, long life, smoke fast, the height of the jet up to about 10 meters.
- Support upside down, so that the jet effect is cooler, can be multiple tandems, save time and effort.
1. To reduce the failure rate of the machine extremely by adding the fluid sensor.
2. In case of controller loss, please use the smoke button on the machine for emergency use.
3. Equipped with W-4 wireless remote control, and remote control support.
4. The heating system used mirror patent technology function, smoke spray freely.
Voltage: AC110V-120V 220v-240v 50/60hz
DMX channel: 6CHs
Heating: 7 minutes
Tank capacity: 2.5L
Color: 24 pces rgb color leds
Control: dmx control, wireless remote control
Packing size: 50×43×27cm
- DMX Channel: 1. Fog work
6. LED autorun
7. LED autorun speed
- Remote Control： 1. Press “FOG” the machine fog work；
2. Press “R” LED red and fog work；
3. Press “G” LED green and fog work；
4. Press “B” LED blue and fog work；
How To Use
- Steps To Use:
1. Press the up (on/off) key to work/stop.
2. Press Menu key to display P, then press Up or Down key, 1-100 range adjustment, then press OK key to save.
3. DMX: Press the menu key to display A, then press the up or down key to adjust the range of 1-512, then press OK to save.
4. Press the Menu key to display R, then press the Up or Down key to adjust the red brightness in the range of 1-255, then press the OK key to save.
5. Press the Menu key to display G, then press Up or Down to adjust the green brightness in the range of 1-255, then press OK to save.
6. Press the Menu key to display B, then press the Up or Down key to adjust blue brightness in the range of 1-255, then press the OK key to save.
- Remote Control Method: 1. Press the FOG key, individual smoke; (smoke according to the set smoke parameters)
2. press the R key, the red light will be on and smoke will be emitted.
3. press the G key, the green light is on and smoke is emitted
4. press the B key, the blue light is on and smoke is emitted.
- DMX Channel Control Method:
Press the Menu key and then press the Up or Down key to set the address code and press OK to save.
DMX channels: 1. Smoke spraying
5. Fast and slow flash (brightness controlled by R, G, B)
6. LED is divided into three functional modes: (10 - 99) fade, (100 - 199) jump, (200 - 255) pulse change.
7. LED for mode speed.
- U.S. warehouse: 2-5 working days in the U.S., 7-12 working days in other areas.
- Spain warehouse: 2-4 working days in Spain, 7-12 working days in other EU regions.
- Poland warehouse: 2-4 working days in Poland, 7-12 working days in the rest of the EU.
- China warehouse: 7-20 working days for direct shipment from China.
- The transportation type depends on the region, and it is uniformly displayed as international shipping.
- The goods will be sent out within 1-5 working days.After the logistics order number is generated, the customer service will send an email to notify you. Please pay attention to the delivery status.
- If you have any questions, please leave a message.
- Q: Can I use normal fog liquid?
A: Yes, but usually MK-F01use heavy smoke liquid. H-F01 uses fast dissipating fog liquid. The effect will be better.
- Q: How long is the heating time?
A: MK-F01 the heat-up time is 7mins.
H-F01 the heat-up time is 4mins.
- Q: Can you spray all the time?
A: No, MK-F01 can spray for 10-15s continuously, the interval heating time is 4mins.
H-F01 it can spray 8 seconds for each time and 20 seconds for interval heating.
- Q: What is the spray height?
A: The spray distance is 8-10m.
- Q: What is the fuel tank capacity?
A: MK-F01 max liquid capacity is 2.5L.
H-F01max liquid capacity is 2.5L. Liquid consumption is 200ml / min.

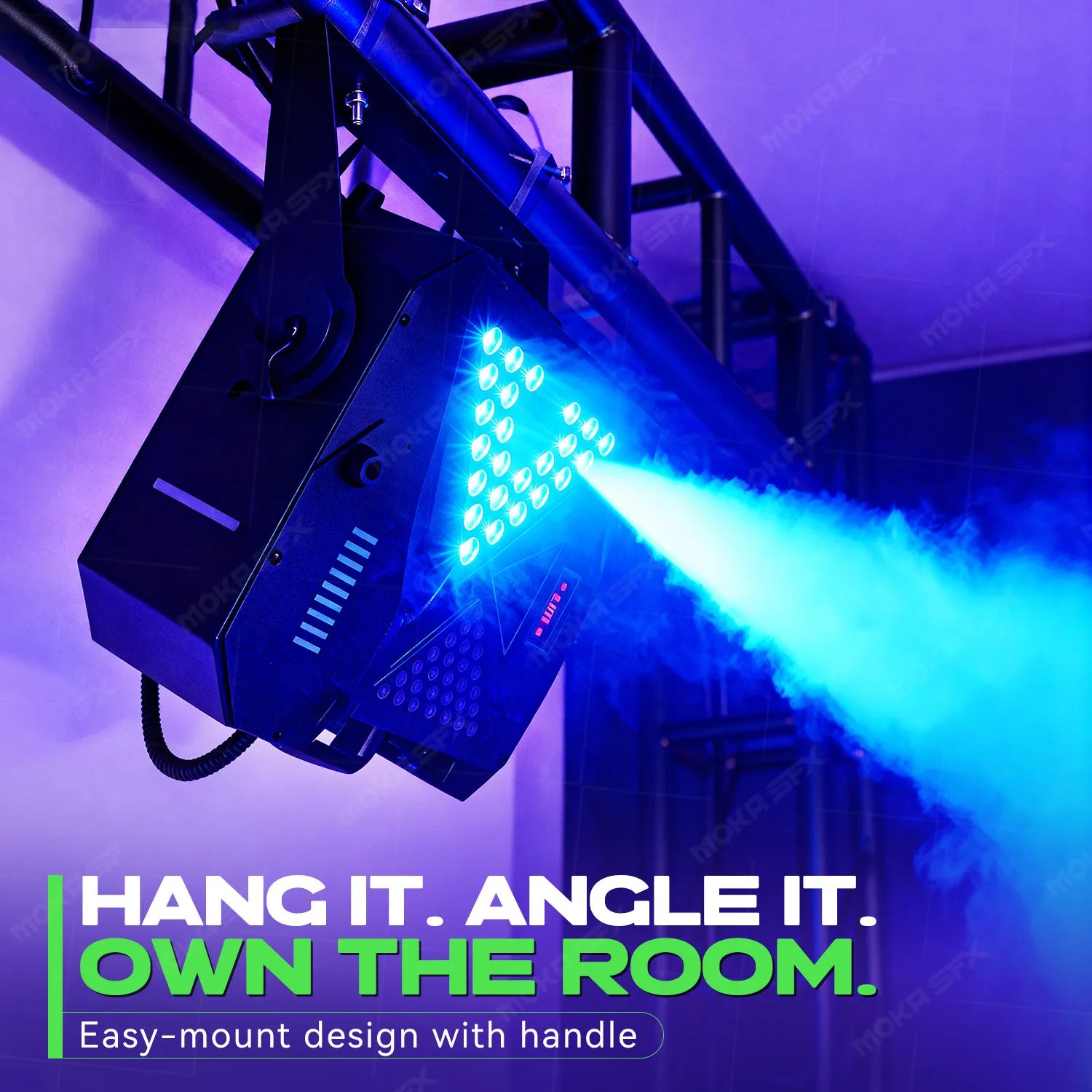

- Q: Can it be hung upside down from a truss? Will it leak?
A: It can. The oil tank is reversible tank mounting. Flexible mounting solutions offer you more freedom in your setup.
The super fog machine may be used vertically or horizontally. The reservoir tank may be mounted in the front or rear of the unit so the machine may be pointed up or down.

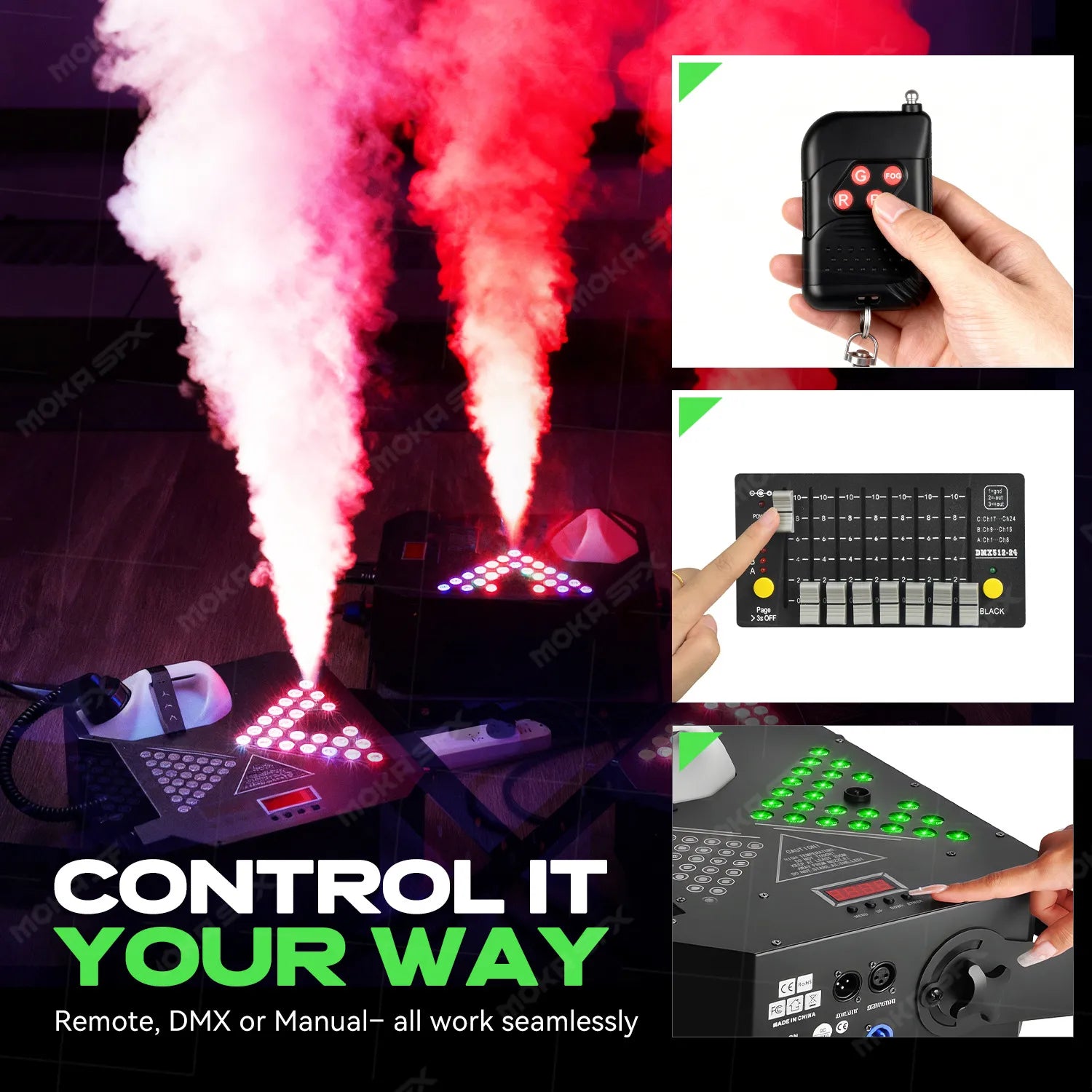

- Q: What are the control methods?
A: Full control with 8 channels of DMX and wireless remote control.
- Q: How many channels it have?
A: MK-F01 and H-F01 has 8 channels:
Channel 1 controls the amount of smoke
Channel 2 adjusts LED brightness,
Channel 3 red LED switch,
Channel 4 green LED switch,
Channel 5 blue LED switch,
Channel 6 RGB color gradient,
Channel 7 RGB color transition,
Channel 8 RGB strobe function.
- Q: What is different for H-F01 and MK-F01?
A: H-F01 machines go when you say “go” and stop when you say “stop.” Stop your fog effects as quickly as you start them. Just need 1s. It has 27pcs led, More LEDs means more powerful and intense lighting effects. If use professional quick dissipating vertical fog fluid, It’ll better light transmission feature, producing a much brighter burst of fog and dissipating in seconds, which is perfect for creating instantaneous atmospheric columns. The heating time is only 4 minutes, the spray time is 8-10 seconds, and the interval heating time is only 20 seconds.
MK-F01, the heating time is 7 minutes, every spray is 10-15 seconds, and the interval heating time is 4 minutes.
- Q: How much power? Can it be bigger, such as 3000W?
A: The power is 1500W, At present, this is the maximum power. It may be a high-powered machine in the future.
- Q: Do you have liquid? How much?
A: It’s used pro-morning haze liquid. You can buy it locally. We also have to sell liquids, but liquids are dangerous and can only be shipped by sea. The minimum order is 200 bottles.
- Q: If the liquid runs out, will it continue to heat up?
A: No. Double temperature control protection, when the oil is used up, the machine will automatically stop working to protect the machine, and there is a temperature control device, when the temperature reaches 180 degrees, the machine will automatically stop working to avoid unnecessary losses.
- Q: The price is so expensive
A: H-F01: The main feature of this model is when you say “go” and stop when you say “stop.” Stop your fog effects as quickly as you start them. Just need 1s. it has 27 RGB LED lights and is protected by a lampshade to prevent dust from entering and better protect the machine. The heating time is only 4 minutes. New appearance design, it will look more beautiful.
- Q:How many leds? What color? How many power?
A: MK-F01 has 24pcs*3w RGB 3in1 LED lights.
H-F01 has 27pcs*3w RGB 3in1 LED lights.
- Q: Can I use one remote control multiple machines at the same time?
A: Yes, as long as the machine is powered on, the remote control will automatically detect the signal received from the machine.
- Q: How to control multiple machines with one DMX?
A: Please connect DMX signal cable to each machine; if you want all machines to be synchronized, set the same dmx address of all machines. If you need different machines to show different effects, you can set them according to different dmx channel effects.
- Q: Why Choose H-F01 DJ Fog Machine？
A: When preparing to purchase the best fog machine that would lighten the deeper emotions within people, creating a DREAM event should be all about the machine that does it all! Here are just a few reasons why the H-F01 Dj fog machine should be on your bucket list.
- Q: What is the DMX control and wireless control of this machine respectively?
A: DMX channel： 1. Fog work, Value 0-9 Stop work,10-255 Adjust Fog Output
2. Full Color,Value 0-9 close all color,10-255 adjust the Brightness.
3. Circle RED Color,0-9 close color,10-255 adjust circle RED Color .
4. Circle GREEN Color,0-9 close color,10-255 adjust circle GREEN Color .
5. Circle BLUE Color,0-9 close color,10-255 adjust circle BLUE Color .
6. Color gradual change,0-9 stop work,10-255 Light faster
7. Color Jump change,0-9 stop work,10-255 Light faster
8. Strobe Function,0-9 stop work,10-255 strobe faster
Remote control： 1. Press “A”, machine fog work with Red Color；
2. Press “B” machine fog work with Green Color；
3. Press “C” machine fog work with Blue Color；
4. Press “D”machine fog work with RGB Color；
