- Dmx/Wireless remote control.
- Smoke area coverage 180s can reach to 70㎡.
- Built-in high-powered smoke heating rod, preheating time of only 136s.

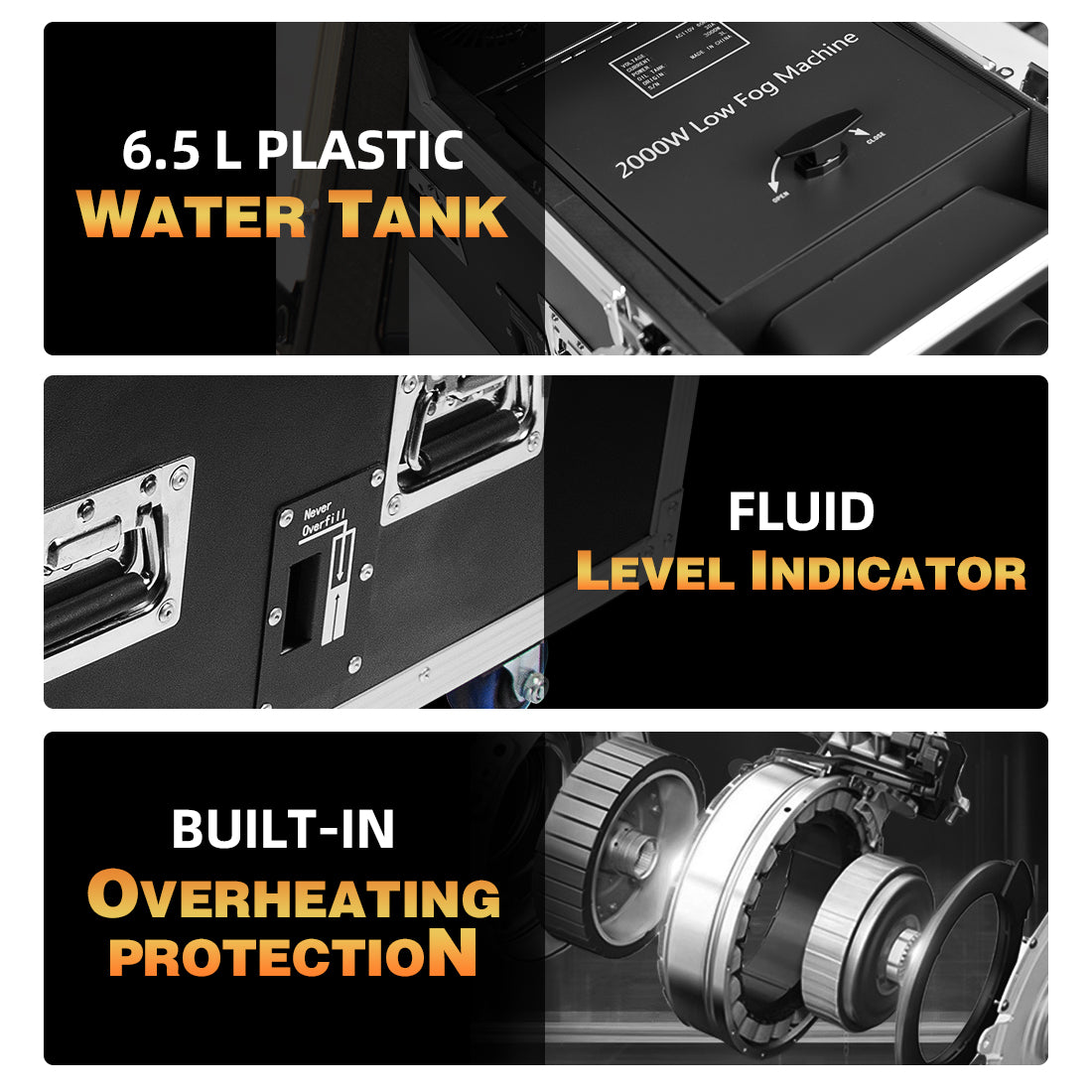

- Low fog machine has overheating protection to increase the service life of the machine.

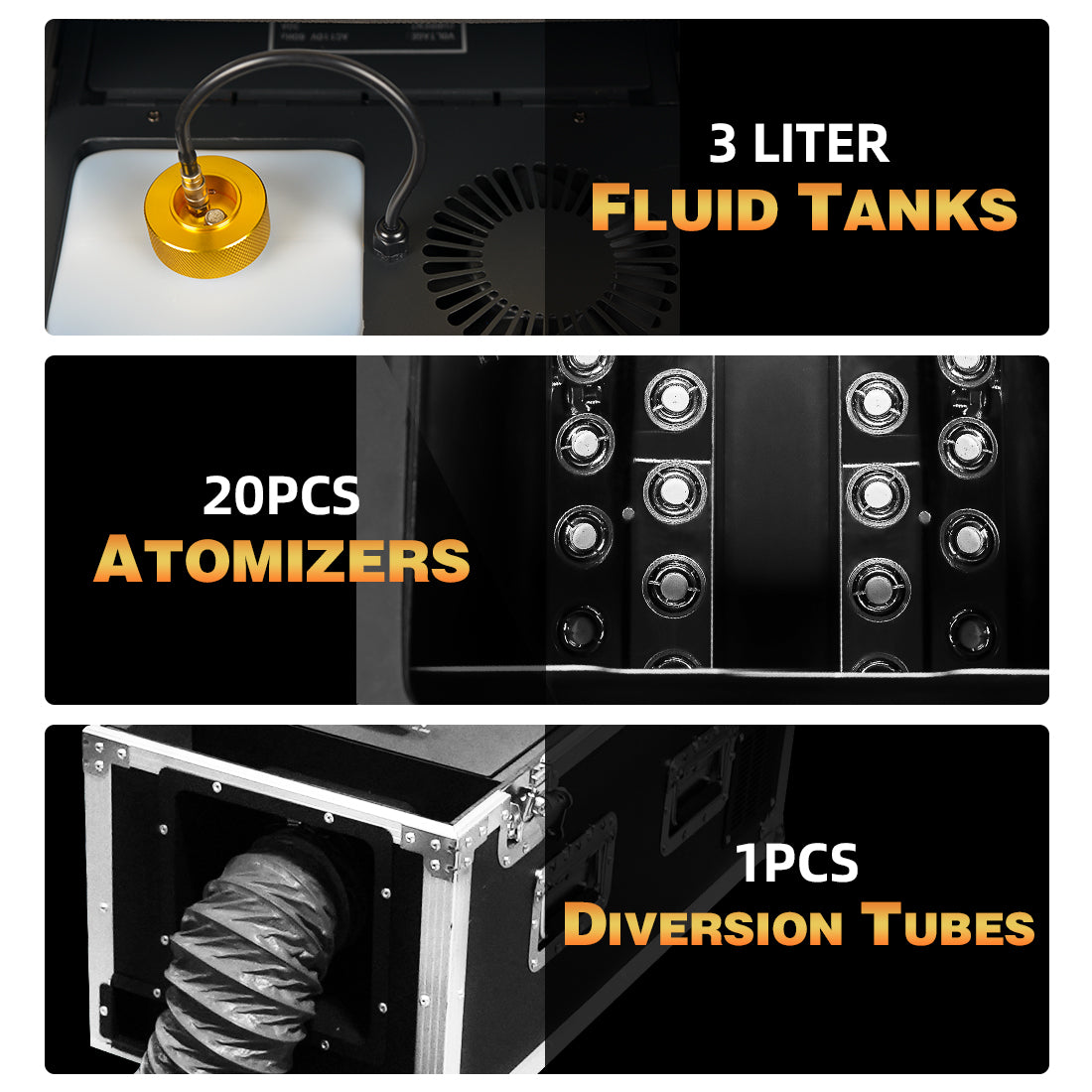

- Water Fog Machine uses 20 ultrasonic atomizers, which make the spray mist more delicate and the smoke thicker.
Heat-up Time: 136s
Control Method: DMX512 and Remote
DMX Connectors: 3pin XLR
Oil Tank Capacity: 3L
Water Tank Capacity: 6.5L
Voltage Input (Vac): 100-120V or 200- 240 Vac
Voltage Frequency: 50 or 60 Hz
Electric Current: 110V 18A / 220V 9A
DMX Channel: 2
Power Consumption (Vac): 2000W
Consumable (s) Low Fog Fluid and Water
Water Consumption (L/H): 6L
Fluid Consumption (L/H): 1L

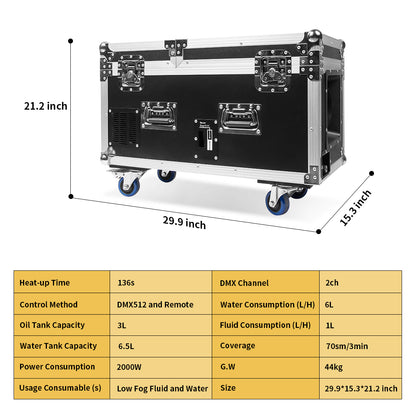

Machine Size: 76*39*54cm
Machine: N.W 40kg
Machine: G.W 43kg
How To Use
- Steps To Use:
1. Place the machine on a flat surface and in a suitable large area with at least 50 cm, Open space around the machine.
2. Fill the fluid tank with our approved fluid and clean water.
3. Connect the machine to suitable rated power supply.To determine the power requirement for the machine refer to the label on the machine. Always connect the machine to a protected circuit and ensure it is properly Grounded to avoid risk of electrocution.
4. Turn on the machine and allow it to heat up. Heat up takes approximatly 136s. Once the machine has reached operating temperature, the display will show Ready Haze. Now the machine is ready for operation.
5. To start making fog, press the VOLUME button on the control panel.
- U.S. warehouse: 2-5 working days in the U.S., 7-12 working days in other areas.
- Spain warehouse: 2-4 working days in Spain, 7-12 working days in other EU regions.
- Poland warehouse: 2-4 working days in Poland, 7-12 working days in the rest of the EU.
- China warehouse: 7-20 working days for direct shipment from China.
- The transportation type depends on the region, and it is uniformly displayed as international shipping.
- The goods will be sent out within 1-5 working days.After the logistics order number is generated, the customer service will send an email to notify you. Please pay attention to the delivery status.
- If you have any questions, please leave a message.
- Q: Can you print my logo on the machine?
A: Yes, you can send us final artwork of the logo when you order, so we can check if it could be printed on the machine.
- Q: Do you have a certificate for your product? How about the warranty?
A: We all machines pass the ce rohs fcc eu quality certificate. We guarantee our product for one year from the date of purchase.
- Q: Can you use normal fog liquid?
A: No. If you use normal fog liquid, it creates fog that floats up. Use only the water base fog liquid or the low fog liquid.
- Q: How can i get the water base fog fluid/low fog fluid?
A: You can buy it on site. We have waterbase fog liquid/low fog liquid, but it only ship by to the sea. The moq is 200 bottles.
- Q: How long is the heating time?
A: Only 136 seconds to preheat the water.
- Q: Does it have water level display?
A: Yes. clear water level display. you can see on the side of the machine.
- Q: How long can I use it after filling with water and liquid?
A: The 10l clear water tank allows 50 minutes of continuous production at 100% without refilling.
The 3l fluid tank allows 3 hours of continuous production at 100% without refilling.
- Q: If the machine runs out of water, will it stop working automatically?
A: Yes, it has auto senses low water and low fluid mist. When the water runs out, the machine makes a didididi. sound to remind you. There is no need to worry about machines running dry, the machine has built-in sensors to detect low fluid levels.
- Q: Can be controlled by remote control?
A: right, full control with 2 dmx channels, wireless remote control and digital timer control.
- Q: How long the tube?
A: We will send the 4m tube for each machine for free. But if you need a longer tube, we can do it. But it will incur additional cost.
