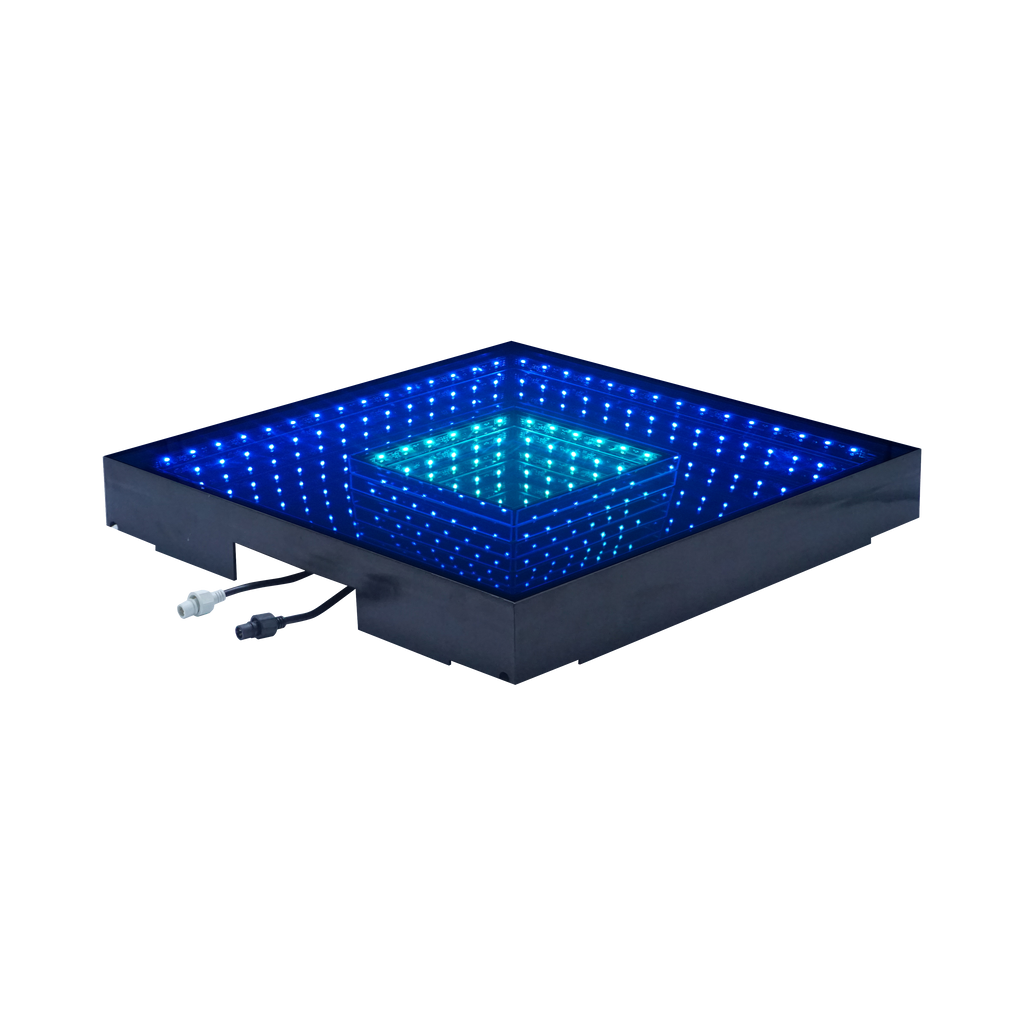

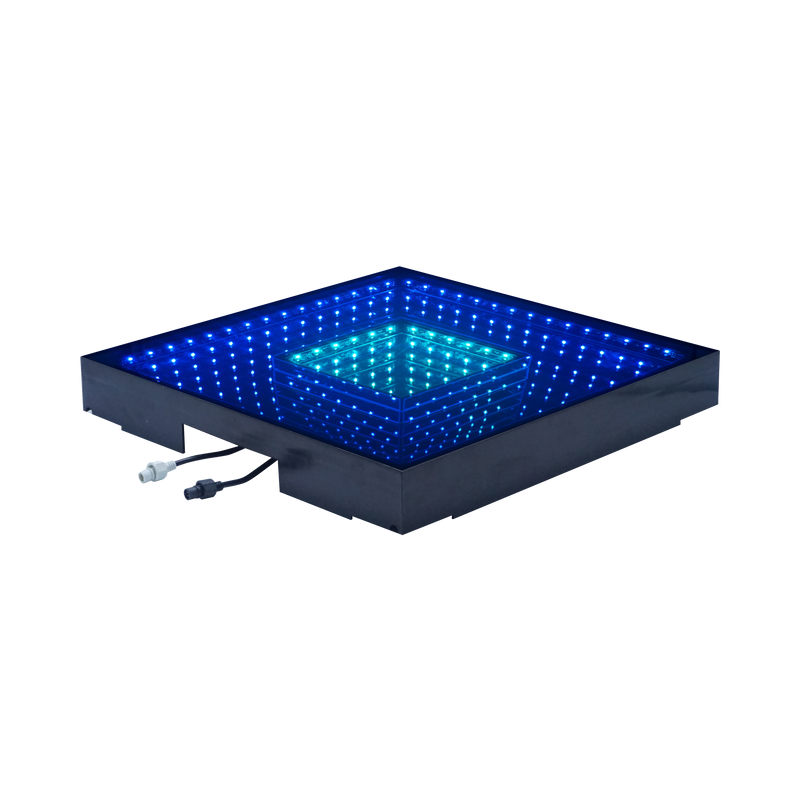

MOKA SFX MK-LD03D Wired/Magnet Double Abyss Infinity 3D LED Dance Floor

Shipment: Shipping by sea
Spec: 8x8(FT)
Connection: Magnet connection
Sale price$2,850.00



  • The perfect 3D effect, independent operation, give you different RGB 3IN1 color light effect, high reliability.
  • Energy-saving, no auxiliary heat sink, natural heat dissipation, no noise, seamless integration.
  • Control mode, SD and DMX function, easy to set up.
  • With IP55 waterproof rating, suitable for indoor and outdoor use. Combined with other stage effect products, such as smoke machines, cold spark machines, etc., it will bring an unforgettable experience to your wedding party.
  • The load-bearing capacity of 500kg/m², is suitable for disco stages, concerts, and catwalks, various hotels, entertainment venues, theaters, live large-scale performances, and other uses.

Please note:

The size of each tile of the magnet model is 60*60*7cm
The size of each tile of the wiring model is 50*50*7cm

Therefore, the same area uses fewer magnet models, so it is recommended that you choose magnet models

Technical Parameter

  • Specification:

           Voltage: 90-240VAC, 50/60 Hz

           Power consumption: 20w

           Led QTY: 84 pcs 5050 SMD

           Color: Full Color RGB

           Life-span: ≥100000h

           Surface Board: ABS+Tempered glass

           Waterproof: IP55-IP67

            Load-bearing: 500kg/m²

            Control mode: SD controller (supply DMX, sound control, remote control) PC controller, MADRIX.

            Size: 500*500*70mm

            Weight: 23Kg

           Applicable places: DJs, bands, bars, pubs, clubs, skating rinks, KTV, family party, birthday, celebration, wedding, festival, shopping mall, store, store, and other designated places.

Included accessories:

  • Power Supply
  • DMX SD controller
  • Protection Edges
  • Flight case,10 in 1

The number of these accessories above, we will configure according to the number of floor tiles.

If you need special customization requirements or transportation needs, such as customs clearance and home delivery services, do not hesitate to contact customer service.

  • Please Note:

          We have different power supply plugs, united kingdom plugs, au plugs, EU plugs, the USA plugs, please let us know the power supply you need, or we will choose everything according to your country.

How To Use

  • How to operate your MK-LD03D LED dance floor?

1. Before connecting, please confirm the first brick of each row. The one with the black connector is the power line, which is directly connected to the power box. The other one with a white connector is the signal line. Please connect the signal line to the signal box. After the first brick is determined, the joint at the other end is connected to the corresponding joint of the next brick to ensure that the male and female are corresponding.

Note that the power must be cut off during the connection process, so as to avoid short circuits caused by misconnection.

2. The signal box has 8 interfaces, each interface can drive a row of floor tile lights

3. There are 96 built-in effects in the SD card of the signal box, which can be switched by controlling the buttons on the signal box. This is how we normally operate mode.

This standard signal controller comes with voice control, master-slave, and self-propelled modes, which can be operated directly by buttons.

  • How to install a magnetic model?

  • The installation of the magnet model is easier. The power cord is all through the slope of the floor tile lamp. Please determine the position of the slope first, and then follow the arrows on each floor tile lamp to splice the floor tile lights in order.

We will equip complete power boxes and signal boxes according to the number of floor tiles. If you want to customize the floors according to your needs, please provide us with the area or number of tiles you need.

  • DMX Control Mode

 If you want to use DMX512 to control, can use the DMX SD signal controller, just link the floor tile light and the DMX console.

  • Computer Control Mode

If you want to use a computer controller, please tell us, and we will provide you with a controller specially used to link the computer, then just link the floor tile and the computer with signal cables,  and use the software control in the computer.



  • Since the floor tiles need to be customized, the processing time is  7-14 days.
  • Shipped by sea, and the shipping time is about 2 months.
  • Please check the port closest to you, leave a message to customer service, and we will contact you in time to communicate the details of transportation.
  • The price in the options is all including sea freight. We usually choose the way with a clearance tax. So you don’t need to clear the customs and pick up the goods yourself. Just fill in the correct address and contact information, and the floor tiles will be delivered to your door.
