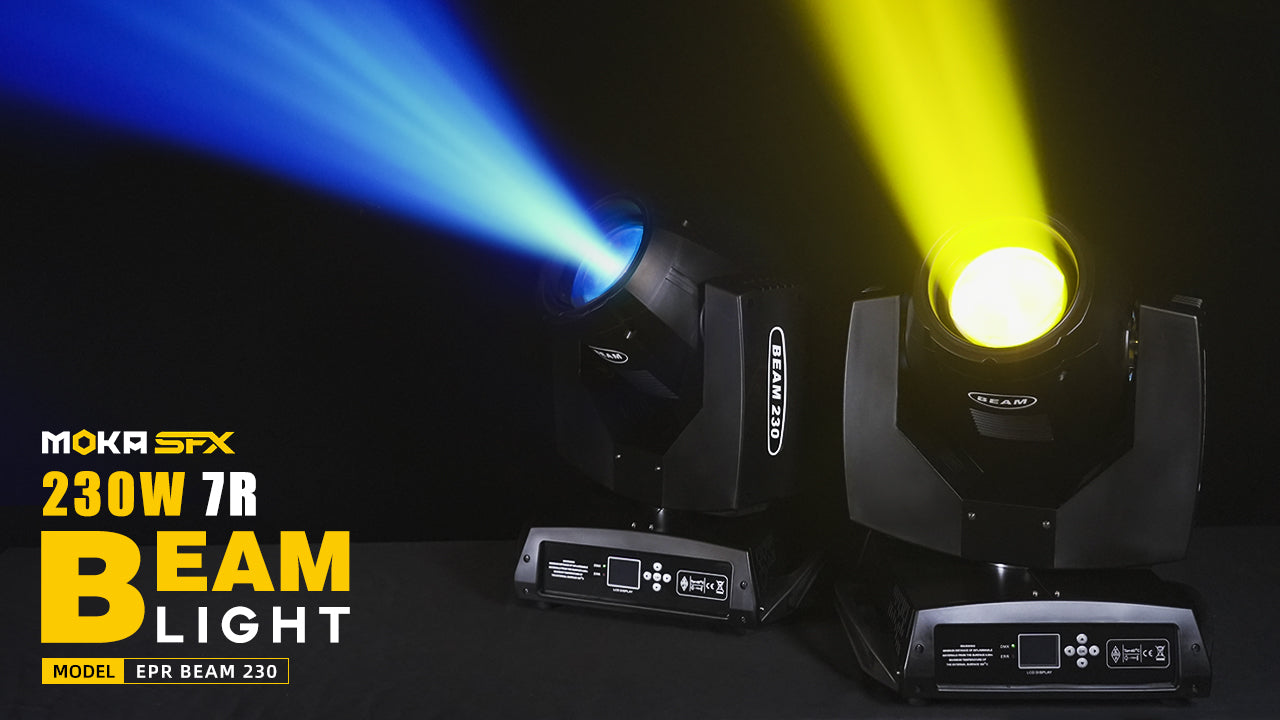

MOKA SFX 7R Beam 230W Moving Head Light

Save 12%

Warehouse: China Warehouse
Plug: US
unit: 1 unit
Sale price$499.00 Regular price$565.00

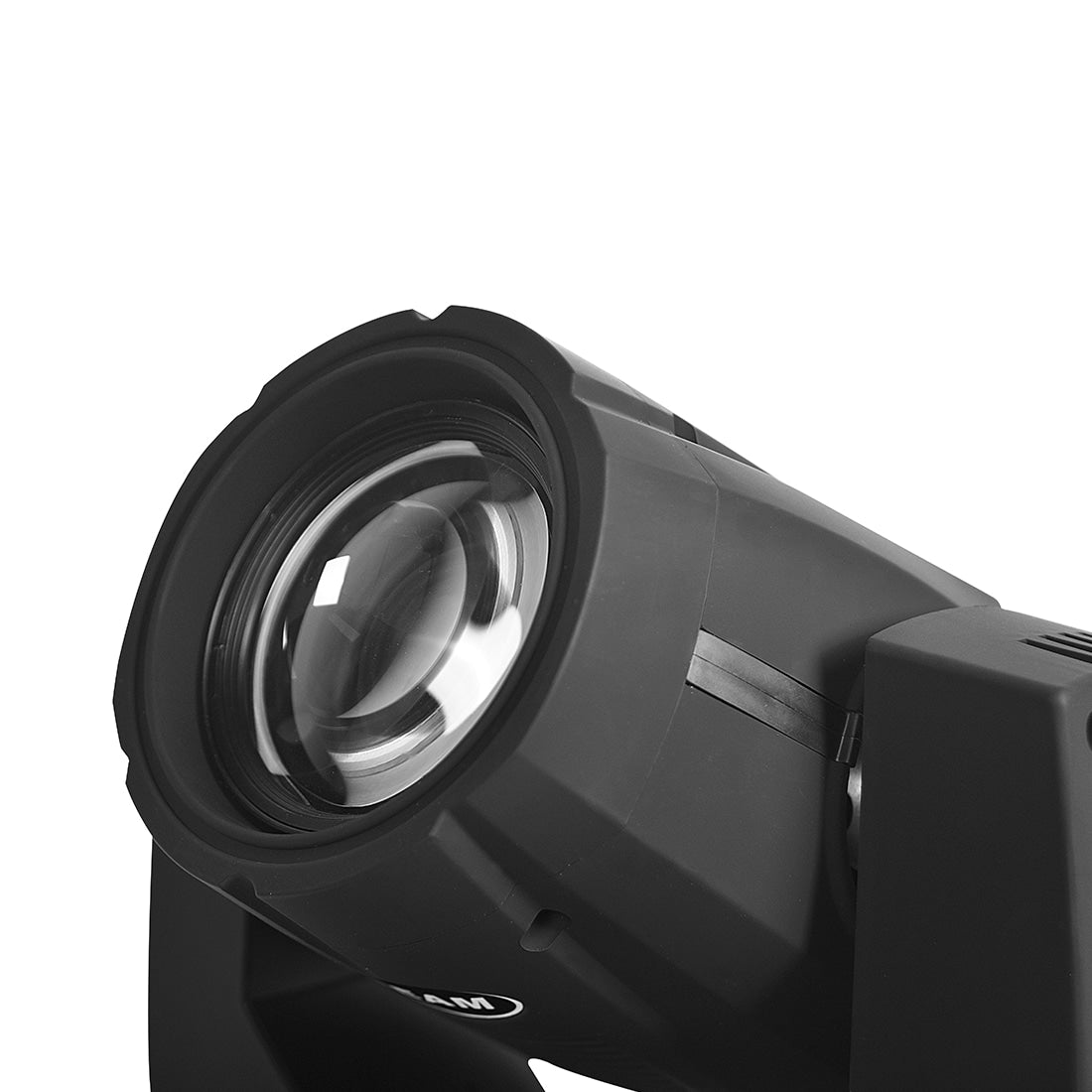

  • Featuring a high-quality optical lens with 16 facet prisms.
  • The maximum direct output distance can reach 25 meters, with 59760LUX.
  • Supports DMX512, Master/Slave, Auto, and Sound-activated control modes.
  • The EPL Beam 7R has a horizontal scanning angle of 540 degrees and a vertical scanning angle of 270 degrees.
  • Includes a color wheel (fourteen colors + white) and a gobo wheel (seventeen patterns + white).
  • Horizontal scan: 540° (16-bit precision scanning) Electronic correction
  • Vertical scan: 250° (16-bit precision scanning) Electronic correction
  • Strobe: Strobe frequency can reach up to 13 times per second, and random strobe and pulse strobe can be selected
  • Fogging: 0%~100% linear fogging
  • Prism: 8+16+24 honeycomb prism
  • Console light bulb and console reset function, with delay function

Technical Specifications

  • Specifications

            Voltage: AC 90-240V, 50Hz/60Hz

            Lamp: 230W 7R

            Light Power: 350W

            Color Temperature: 8500K

          Light Output: 25m (65 feet), 59760LUX

            Modes: DMX512, Master/Slave, Auto, Sound-activated

            Channels: 16CH

            Colors: 14 colors + white

            Gobos: 17 static gobos + open gobos, independent gobos, and color wheel

            Prism Wheel:8+-facet prism

            Dimming: 0 – 100% linear dimmer

            Beam Angle: 3 degrees

            Movement: Pan: 540 degrees, Tilt: 250 degrees



          Recommended for indoor use (with ceiling heights of 4-5 meters) in: DJ events, live bands, bars, pubs, clubs, skating rinks, KTVs, family gatherings, birthdays, celebrations, weddings, festivals, malls, boutiques, showroom indoor stage performances, multipurpose halls, theaters, auditoriums.

  • Please Note

          We have different power plugs: UK plug, AU plug, EU plug, US plug. Please let us know your power requirements, otherwise, we will select based on your country/region.

How to Use

The user manual is included with the machine. If the manual is missing, please leave a message on the website, and we will contact you as soon as possible.


  • From our warehouse in China, direct shipments take 7-20 working days.
  • The shipping type varies by region but is uniformly displayed as international shipping.
  • Goods will be dispatched within 1-5 working days. Once the logistics order number is generated, our customer service will send you an email notification. Please pay attention to the shipping status.
  • If you have any questions, please leave a message.


  • Q: Can the fixture operate without a DMX controller?
  • A: Yes, no worries! Besides the DMX control mode, all moving head lights also have modes such as auto-run, sound-activated, and manual control.
    When there is no DMX controller available, you can opt for the sound-activated control mode, which produces excellent effects.


  • Q: What should I do if the bulb malfunctions within the warranty period?
  • A: Rest assured, with over 10 years of export experience, we provide lifetime free technical consultation. Additionally, our professional after-sales team responds to your inquiries within 1 hour and provides solutions within 8 hours to address your after-sales issues. However, we require your active cooperation and feedback. You can provide feedback by shooting videos and photos of the problem and describing any issues encountered during the operation of the light. We need to identify which part may be damaged and then guide you step by step on how to handle it. If the problem is complex, we also provide instructional videos. If it still doesn't work, we will send you free replacement parts; you only need to pay for shipping.

  • Q: How can I ensure the stability of the light after the warranty period?
  • A: If the product is beyond the warranty period (1 year), we still offer lifetime free technical consultation. Even after the warranty period, we recommend regular maintenance and upkeep of the lights. If any issues arise beyond the warranty period, you can describe the problem, shoot videos and photos, and we will provide you with the necessary components for repair. You will be responsible for the cost of the components and shipping.
